Présentation du produit

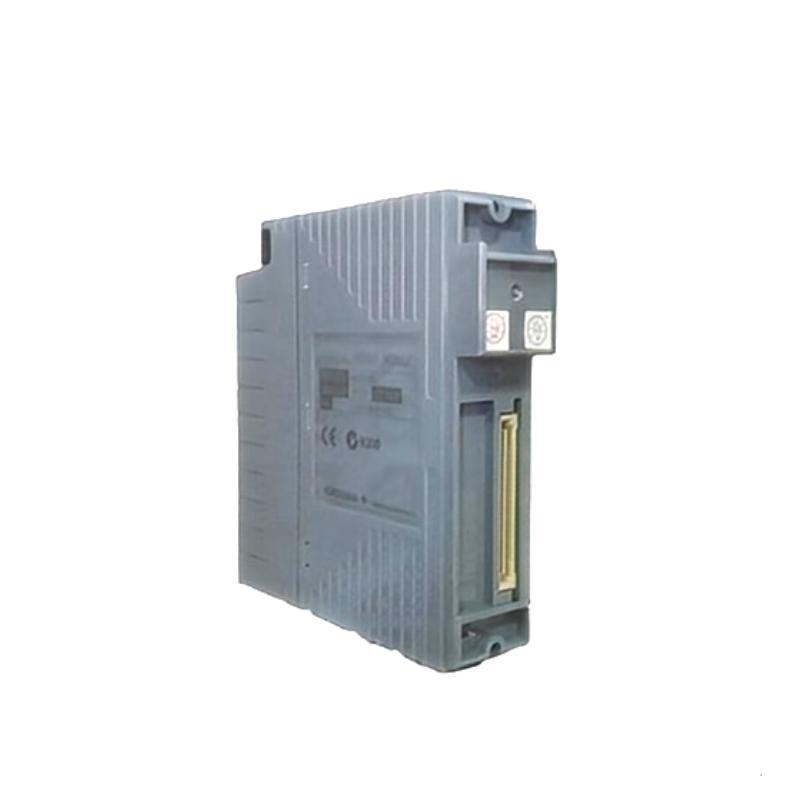

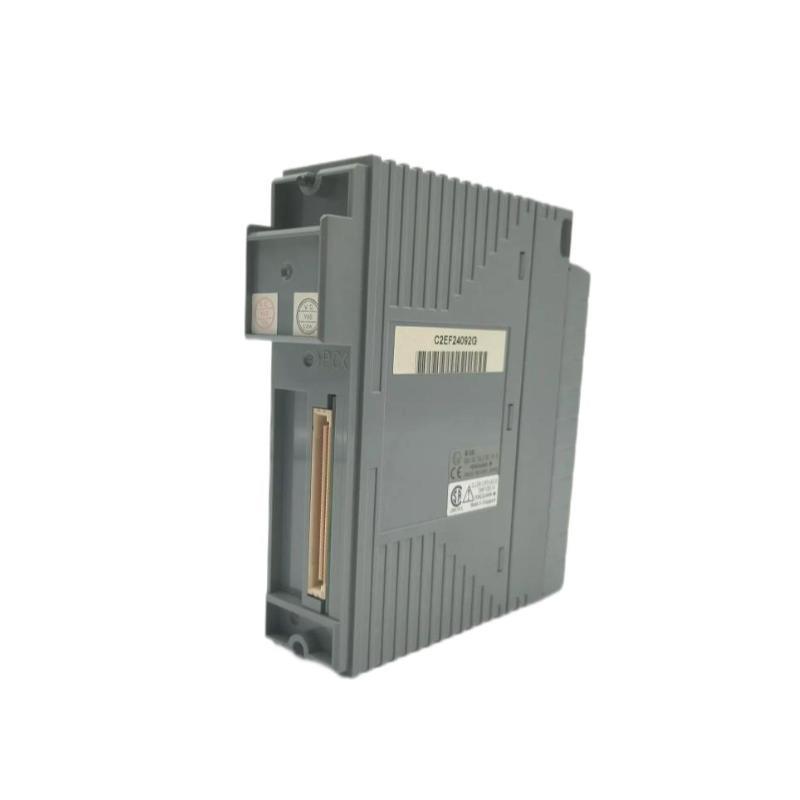

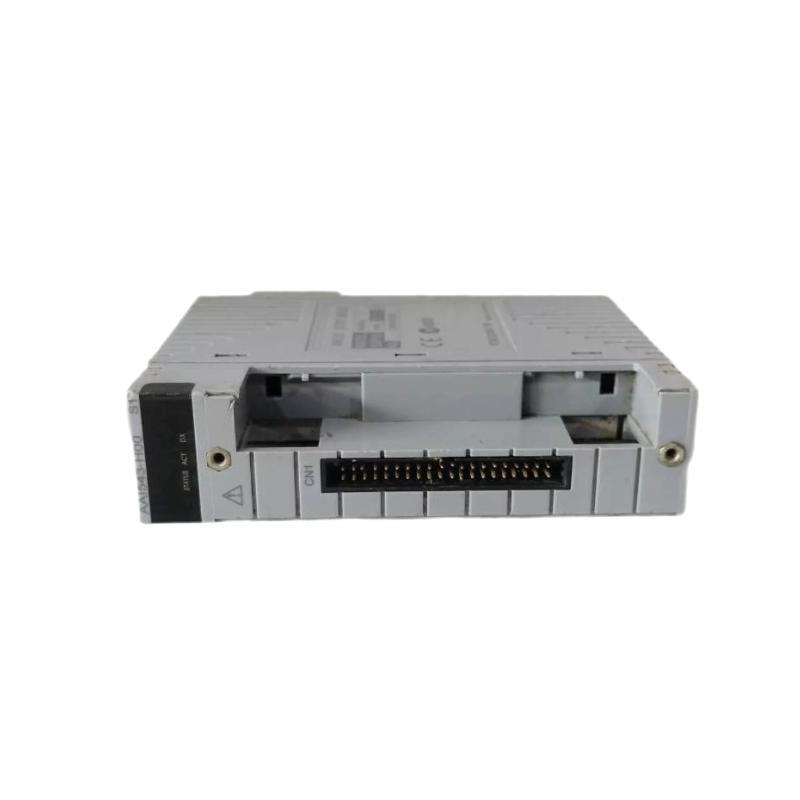

The Yokogawa AAI543-H00/K4A00 Analog Output Module is an advanced module designed for precise analog signal output in industrial control systems. As part sur the AAI500 series, this module provides high performance and reliability, catering to various applications that require the conversion sur digital signals to precise analog outputs. The AAI543-H00/K4A00 module is typically used in distributed control systems (DCS) and Programmable Logic Controllers (PLC) to handle a wide range sur industrial control tasks, ensuring seamless integration and high operational efficiency.
With the capability to handle up to 4 output channels, this module is designed for industries such as process automation, chemical production, power plants, and manufacturing, where consistent and accurate analog signal transmission is critical.
Spécifications du produit
| Specification | Details |
|---|---|
| Modèle | AAI543-H00/K4A00 |
| Output Channels | 4 |
| Output Type | Current (4-20 mA), Voltage (0-10 V) |
| Output Range | 0-20 mA, 0-10 V |
| Resolution | 16 bits |
| Communication Protocol | Modbus TCP, Yokogawa Proprietary |
| Power Supply | 24 V DC |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (Non-condensing) |
| Dimensions (W x H x D) | 107.5 × 32.8 × 130 mm |
| Poids | 0.4 kg |
| Mounting | DIN Rail Mounting |
Product Applications
The Yokogawa AAI543-H00/K4A00 Analog Output Module is widely used across various industrial sectors due to its robust design and reliable performance. Some sur the key applications include:
-
Process Control: In industrial processes such as chemical, oil & gas, and water treatment, where precise control sur actuators (valves, pumps) is necessary.
-
Automation Systems: Used in automation systems for continuous data communication between the field devices and control systems, ensuring real-time process adjustments.
-
Energy Management: It is useful in power plants and renewable energy systems for regulating and monitoring output signals from controllers.
-
Factory Automation: In manufacturing systems, it is used to manage the control sur motors, heaters, and other equipment that require analog signals for smooth operation.
This module’s versatility in handling both current and voltage outputs makes it suitable for a wide range sur complex applications, ensuring maximum accuracy in process monitoring and control.
Advantages sur the Yokogawa AAI543-H00/K4A00 Analog Output Module
-
High Precision: Offers 16-bit resolution, ensuring that outputs are highly accurate for precise control and feedback in critical applications.
-
Versatile Output Types: The module supports both current and voltage outputs (4-20 mA, 0-10 V), making it adaptable to different systems and applications.
-
Wide Temperature Range: With an operating temperature range sur -20°C to +60°C, the module is suitable for harsh industrial environments.
-
Reliable Communication Protocols: It supports both Modbus TCP and Yokogawa proprietary protocols, surfering flexibility in system integration and communication.
-
Compact Design: The module has a compact design with DIN rail mounting, saving valuable space in control panels while surfering easy installation.
-
Long-term Durability: Yokogawa products are known for their reliability and longevity, making this module ideal for long-term use in industrial environments with minimal maintenance.
-
Scalability: With up to four output channels, the module allows for scalable systems, supporting a variety sur process control applications that require multiple outputs.
-
Cost-Effective Solution: Offers a reliable solution at a competitive price, delivering high performance without exceeding budget constraints.
FAQ (Questions fréquentes)
-
What is the output range sur the Yokogawa AAI543-H00/K4A00 module?
The module provides output ranges sur 0-20 mA (current) and 0-10 V (voltage). -
How many output channels does this module have?
The AAI543-H00/K4A00 module has four output channels. -
What types sur applications can the Yokogawa AAI543-H00/K4A00 module be used in?
It is used in applications such as process control, automation systems, energy management, and factory automation. -
What is the operating temperature range for the module?
The module operates within a temperature range sur -20°C to +60°C. -
Is the module compatible with Modbus TCP?
Yes, it supports Modbus TCP communication protocol. -
What is the power supply requirement for the module?
The module requires a 24 V DC power supply. -
Can the module handle both current and voltage outputs?
Yes, it can handle both current (4-20 mA) and voltage (0-10 V) outputs. -
How is the module mounted?
The module can be mounted using DIN rail mounting, making installation straightforward. -
What is the weight sur the module?
The weight sur the module is 0.4 kg. -
What is the warranty period for the Yokogawa AAI543-H00/K4A00 module?
We provide one year warranty.
Recommended Related Modèles
| Modèle | Channels | Output Range | Dimensions (W x H x D) | Poids |
|---|---|---|---|---|
| AAI543-H01/K4A00 | 4 | 0-20 mA, 0-10 V | 160 mm x 100 mm x 120 mm | 1.3 kg |
| AAI543-H02/K4A00 | 8 | 0-20 mA, 0-10 V | 160 mm x 100 mm x 120 mm | 1.5 kg |
| AAI543-H03/K4A00 | 6 | 4-20 mA, 0-10 V | 160 mm x 100 mm x 120 mm | 1.4 kg |
| AAI543-H00/K4A10 | 4 | 0-20 mA | 160 mm x 100 mm x 120 mm | 1.2 kg |
| AAI543-H01/K4A10 | 4 | 4-20 mA | 160 mm x 100 mm x 120 mm | 1.3 kg |
| AAI543-H02/K4A10 | 8 | 0-10 V | 160 mm x 100 mm x 120 mm | 1.5 kg |
Popular Modèles from Yokogawa
| Modèle | Channels | Output Type | Resolution | Dimensions | Poids |
|---|---|---|---|---|---|
| Yokogawa AAI543-H00 | 4 | 4-20 mA, 0-10 V | 16 bits | 160 mm x 100 mm x 120 mm | 1.2 kg |
| Yokogawa AAI543-H01 | 8 | 0-20 mA, 0-10 V | 16 bits | 160 mm x 100 mm x 120 mm | 1.3 kg |
| Yokogawa AAI543-H02 | 8 | 4-20 mA, 0-10 V | 16 bits | 160 mm x 100 mm x 120 mm | 1.5 kg |
| Yokogawa AAI543-H03 | 4 | 0-20 mA, 0-10 V | 16 bits | 160 mm x 100 mm x 120 mm | 1.2 kg |
| Yokogawa AAI543-H04 | 4 | 0-10 V | 16 bits | 160 mm x 100 mm x 120 mm | 1.2 kg |
| Yokogawa AAI543-H05 | 6 | 4-20 mA, 0-10 V | 16 bits | 160 mm x 100 mm x 120 mm | 1.3 kg |
