Product Overview

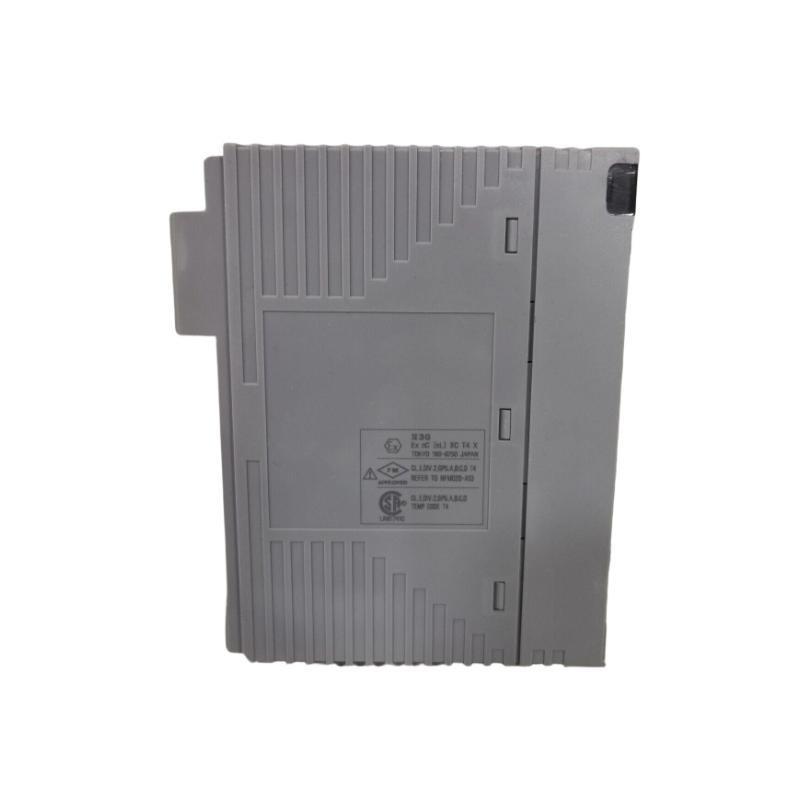

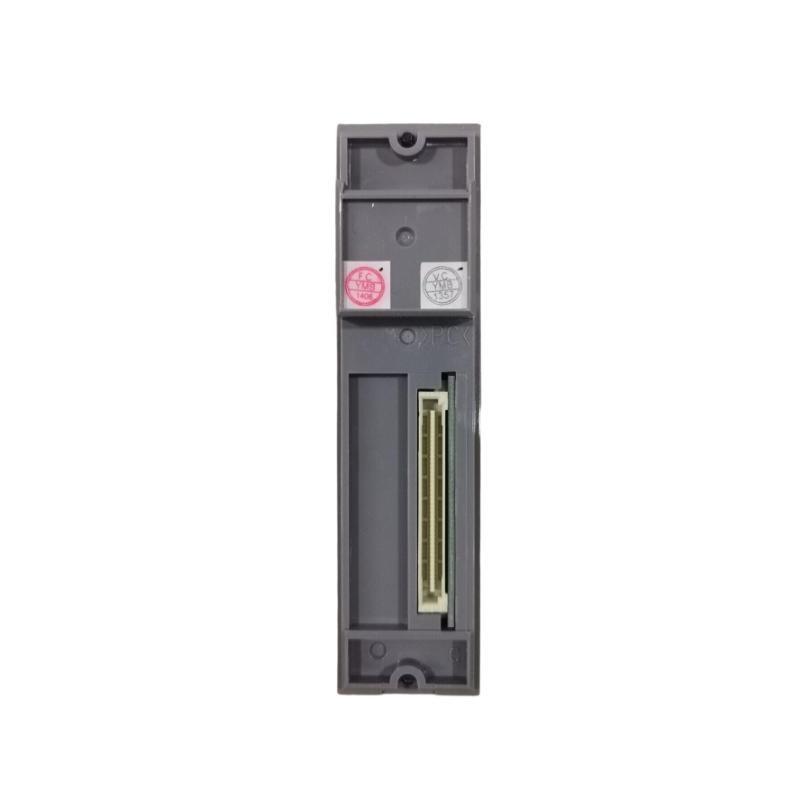

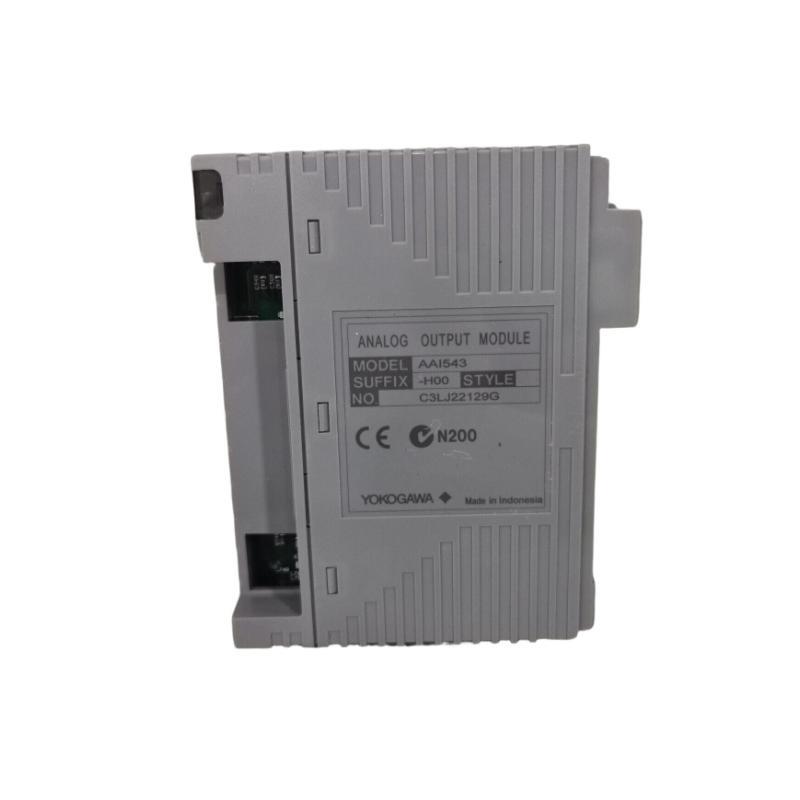

The Yokogawa AAI543-H00 S1 is a high-performance analog output module designed for use in Yokogawa’s CENTUM VP and ProSafe-RS control systems. With advanced signal accuracy, multi-channel output, and HART communication capabilities, the module is ideal for transmitting precise control signals to field devices such as valves, actuators, and I/P converters. Its compatibility with fieldbus I/O (FIO) architecture ensures seamless integration into safety and non-safety-critical applications, enhancing system flexibility and operational reliability.
Key Features
-
8-channel analog output module with HART communication support
-
Output signal range: 4–20 mA (current output)
-
Channel-to-channel and channel-to-ground isolation
-
HART pass-through and device communication supported
-
High accuracy and linearity over full range
-
Supports online maintenance with hot-swappable design
-
Advanced self-diagnostics and fault detection
-
Compatible with both CENTUM VP and ProSafe-RS platforms
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle Number | AAI543-H00 S1 |
| Module Type | Analog Output Module with HART |
| Number sur Channels | 8 isolated analog output channels |
| Output Signal Type | 4–20 mA DC |
| Output Load Resistance | 600 Ω max |
| Resolution | 12-bit or higher |
| Accuracy | ±0.1% sur span |
| HART Support | Enabled (pass-through and command response) |
| Isolation | Channel-to-channel and channel-to-ground |
| Diagnostic Features | Open circuit detection, output failure, HART communication error |
| Hot Swap Capability | Supported |
| Power Supply | Supplied via FIO base unité |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –20 °C to +70 °C |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Poids | 0.4 kg |
| Mounting Type | Mounted on FIO base |
| Certifications | CE, KC, RoHS, SIL (with ProSafe-RS use) |
Industry Applications
-
Process control in oil & gas and petrochemical facilities
-
Power plant turbine and boiler automation
-
Water and wastewater treatment systems
-
Food & beverage and pharmaceutical production
-
Emergency shutdown (ESD) systems in safety applications
-
Batch control and continuous process systems
Questions fréquentes (FAQ)
-
What is the primary function sur the AAI543-H00 S1?
It converts control system outputs into precise 4–20 mA signals for field devices. -
How many output channels does it support?
The module supports 8 isolated analog output channels. -
Is HART communication supported?
Yes, HART pass-through and command communication are supported. -
Can the module be used in safety instrumented systems (SIS)?
Yes, when used with ProSafe-RS, it supports SIL applications. -
Does it provide isolation?
Yes, channel-to-channel and channel-to-ground isolation are provided. -
Is online maintenance supported?
Yes, the module is hot-swappable without interrupting system operations. -
What is the output signal range?
4–20 mA DC current output. -
Does the module have fault diagnostics?
Yes, it detects open circuits, output failures, and HART errors. -
Is it compatible with CENTUM VP systems?
Yes, it is fully compatible with CENTUM VP and ProSafe-RS systems. -
What is the operating temperature range?
0 °C to +60 °C (with storage up to –20 °C).
