Product Overview

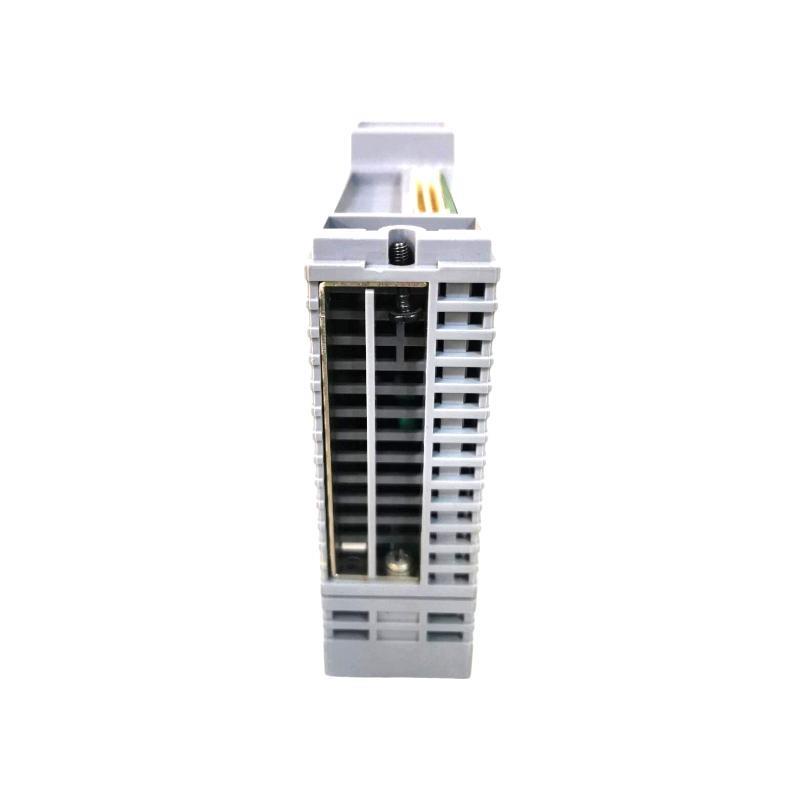

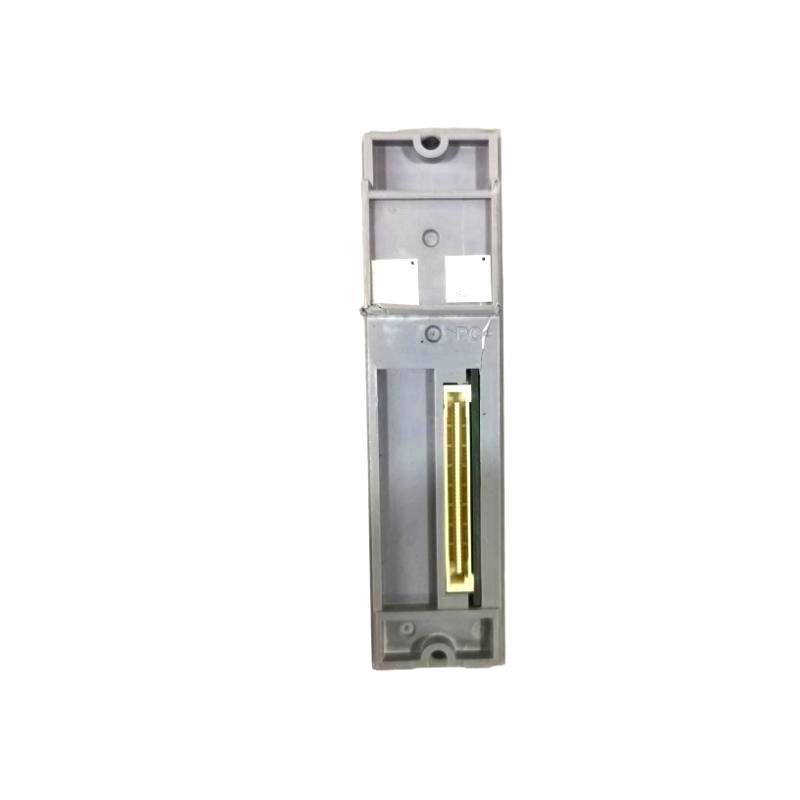

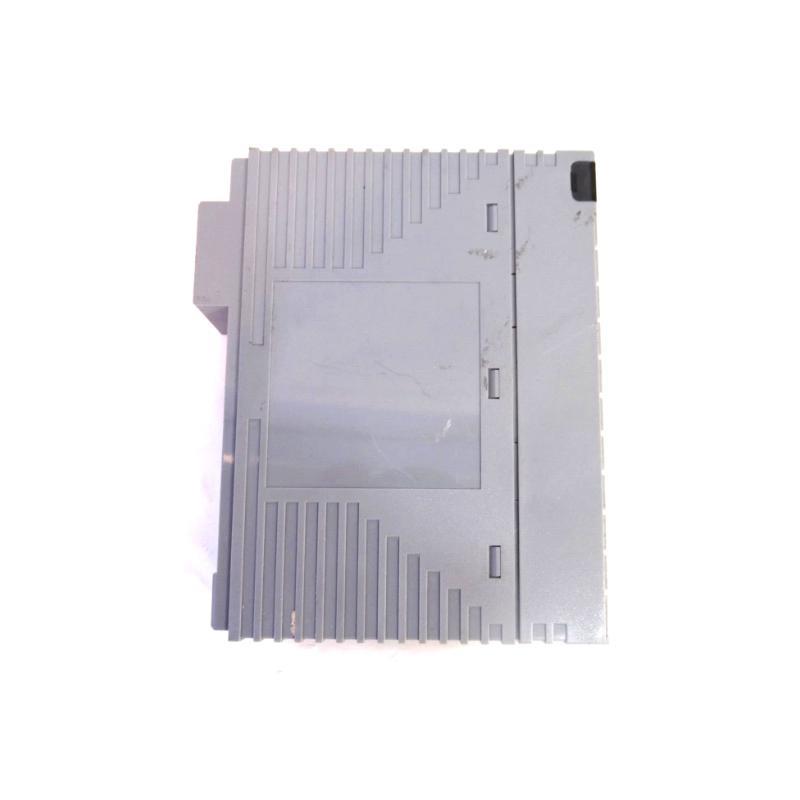

The Yokogawa AAI143-S50/ATA4S-00 is a high-performance 16-channel isolated analog input module designed for critical process automation. It supports 4–20 mA current inputs and ensures electrical isolation between the field side and system, enhancing safety and reducing interference. It includes a pressure clamp terminal block (ATA4S-00) for efficient wiring.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle | AAI143-S50/ATA4S-00 |
| Number sur Channels | 16 isolated current inputs |
| Input Signal Range | 4 to 20 mA DC |
| Allowable Input Current | Up to 24 mA |
| Input Resistance (Power ON) | 270 Ω (at 20 mA) to 350 Ω (at 4 mA) |
| Input Resistance (Power OFF) | ≥ 500 kΩ |
| Accuracy | ±16 µA |
| Data Update Period | 10 ms |
| Step Response Time | 100 ms |
| Transmitter Power Supply | 19.0 V or higher (at 20 mA), max 25.5 V (at 0 mA), 25 mA limit |
| Isolation Voltage | 1500 V AC, 1 minute between input and system |
| Power Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| HART Communication | Supported |
| External Connections | Pressure clamp terminal, MIL connector, KS1 cable |
| Dimensions (W × D × H) | 107.5 × 32.8 × 130 mm |
| Poids | 0.3 kg |
Applications
-
Process control in refineries and petrochemical plants
-
Analog current signal acquisition in power stations
-
Field input monitoring in DCS and FCS systems
-
SCADA system integration
-
Measurement in utility automation
Product Advantages
-
16-channel high-density analog input
-
Galvanic isolation enhances reliability and safety
-
Fast 10 ms data update suitable for real-time control
-
HART support enables smart device communication
-
Dedicated power supply for 2-wire transmitters
-
Easy field wiring using pressure clamp terminals
Questions fréquentes
Q1: What type sur input signals does the AAI143 accept?
A1: It accepts 4–20 mA DC current input signals.
Q2: Is channel isolation provided?
A2: Yes, each sur the 16 channels is electrically isolated from the system.
Q3: Does the AAI143 support HART communication?
A3: Yes, HART communication is available with compatible FCS systems.
Q4: What is the power supply range for 2-wire transmitters?
A4: 19.0 V or higher at 20 mA, with a maximum sur 25.5 V at 0 mA.
Q5: How accurate is the input measurement?
A5: The module has an accuracy sur ±16 µA.
Q6: Can it be used in redundant systems?
A6: Yes, it supports dual-redundant configuration for high availability.
Q7: What is the isolation rating?
A7: 1500 V AC for 1 minute between the input and system.
Q8: How surten is data updated?
A8: Every 10 milliseconds.
Q9: What are the external connection options?
A9: Pressure clamp terminal block, MIL connector, and KS1 cable are supported.
Q10: What are its physical dimensions and weight?
A10: 107.5 × 32.8 × 130 mm; weight is 0.3 kg.
Related Modèles from the Same Series
| Modèle | Input Type | Channels | Isolation | HART | Dimensions (mm) | Poids |
|---|---|---|---|---|---|---|
| AAI141-H | 4–20 mA | 16 | No | Yes | 107.5 × 32.8 × 130 | 0.2 kg |
| AAB141-H | 1–5 V / 4–20 mA | 16 | No | Yes | 107.5 × 32.8 × 130 | 0.3 kg |
| AAI135-H | 4–20 mA | 8 | Yes | Yes | 107.5 × 32.8 × 130 | 0.3 kg |
| AAI543-H | 4–20 mA Output | 16 | Yes | Yes | 107.5 × 32.8 × 130 | 0.4 kg |
| AAI841-H | 4–20 mA I/O | 8/8 | No | Yes | 107.5 × 32.8 × 130 | 0.3 kg |
| AAV144 | -10 to +10 V | 16 | Yes | No | 107.5 × 32.8 × 130 | 0.2 kg |
Popular Yokogawa Modèles
| Modèle | Function | Channels | Isolation | HART | Dimensions (mm) | Poids |
|---|---|---|---|---|---|---|
| AAI143-H | Analog Input (Isolated, 4–20 mA) | 16 | Yes | Yes | 107.5 × 32.8 × 130 | 0.3 kg |
| AAI543-H | Analog Output (Isolated, 4–20 mA) | 16 | Yes | Yes | 107.5 × 32.8 × 130 | 0.4 kg |
| AAI141-H | Analog Input (4–20 mA) | 16 | No | Yes | 107.5 × 32.8 × 130 | 0.2 kg |
| AAI135-H | Analog Input (Isolated Channels) | 8 | Yes | Yes | 107.5 × 32.8 × 130 | 0.3 kg |
| AAI835-H | Analog I/O (Isolated Channels) | 4 In/4 Out | Yes | Yes | 107.5 × 32.8 × 130 | 0.3 kg |
| AAT141 | TC/mV Input Module | 16 | Yes | No | 107.5 × 32.8 × 130 | 0.2 kg |
