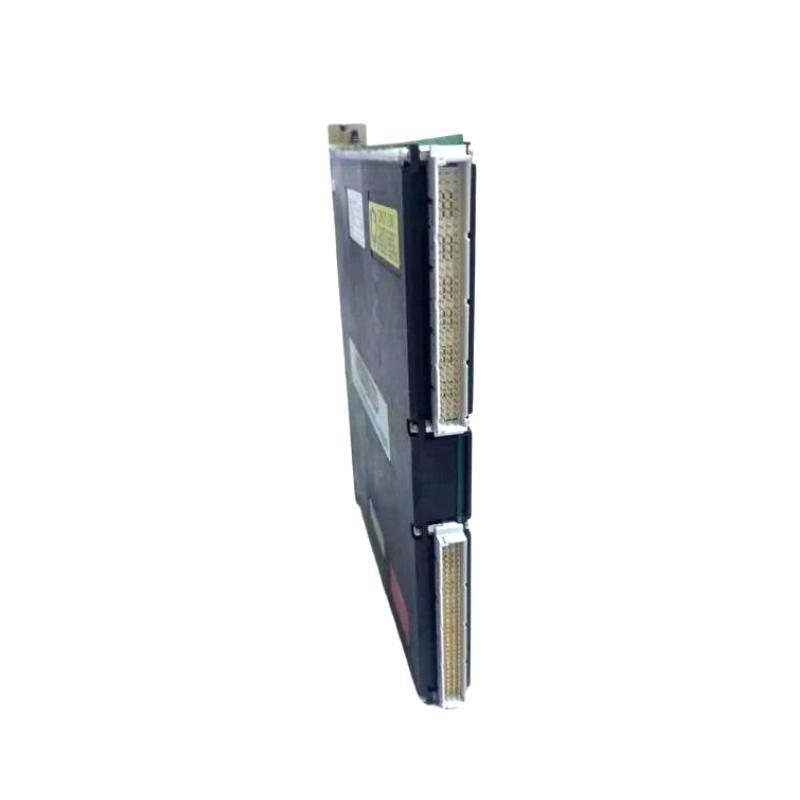

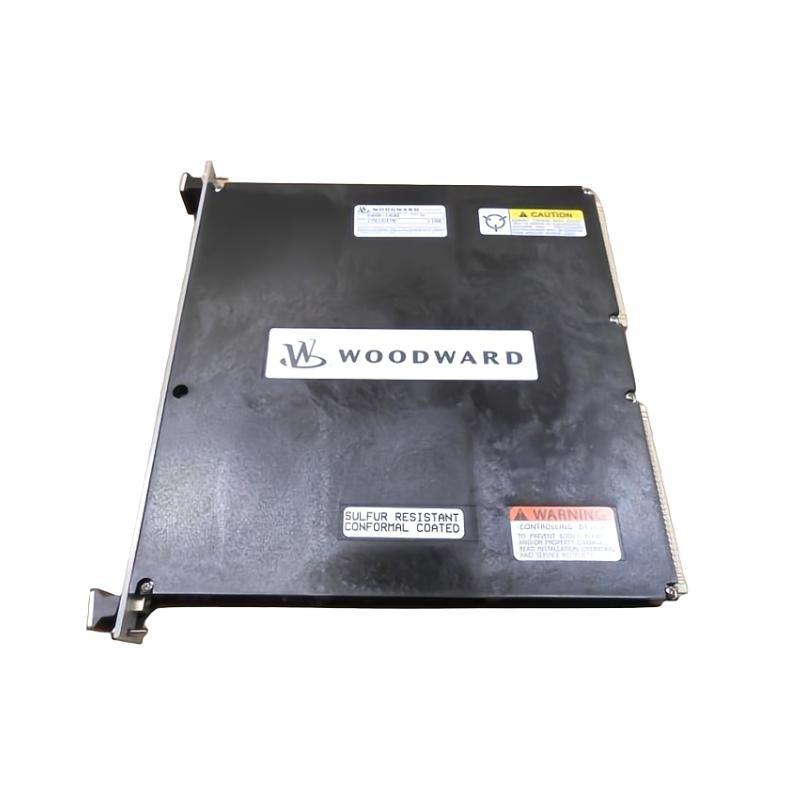

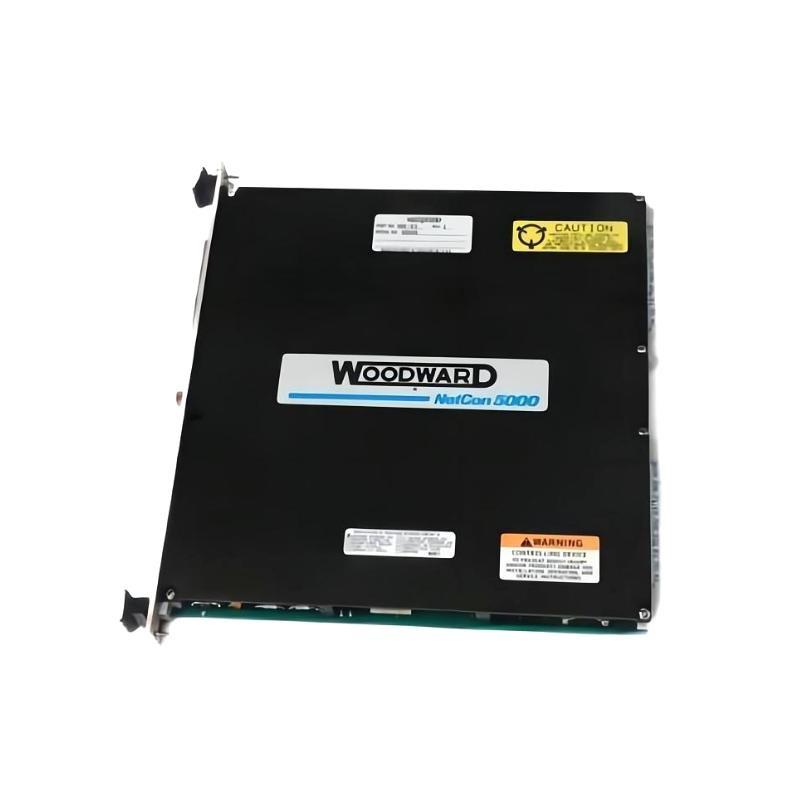

Woodward 5464-013 Semi Insulated Input Driver

Product Overview

The Woodward 5464-013 Semi Insulated Input Driver is engineered to provide isolated signal inputs for industrial control applications. The semi-insulated nature sur the module helps to reduce the risk sur signal corruption caused by ground loops and electrical noise. This isolation ensures that the data received by the control system is accurate, consistent, and free from interference, which is critical for maintaining system stability.

This module supports a variety sur industrial input signals and is designed for seamless integration with Woodward’s control systems. Whether it is used for turbine control, generator protection, or other industrial automation applications, the Woodward 5464-013 provides a reliable and efficient solution for signal input processing.

Technical Specifications

Applications

The Woodward 5464-013 Semi Insulated Input Driver is ideal for a variety sur industrial applications where precise signal processing and input isolation are critical. Some common applications include:

1. Power Generation: Used to interface with turbines, generators, and other power generation equipment, providing accurate input signals for control and monitoring systems.

2. Oil & Gas: Ensures reliable signal inputs from field sensors used to monitor pressure, flow, and temperature in remote oil and gas operations.

3. Water Treatment: Provides input signal isolation for sensors monitoring flow, pressure, and chemical dosing in water and wastewater treatment plants.

4. Manufacturing: Enables control and monitoring sur automated machinery, such as conveyors, robots, and process equipment in manufacturing environments.

5. HVAC Systems: Integrates with HVAC control systems to provide accurate data from sensors that monitor temperature, humidity, and air quality in commercial and industrial buildings.

6. Chemical Processing: Used in chemical plants for managing inputs from sensors monitoring various parameters like pressure, temperature, and chemical concentrations.

Advantages

1. Signal Isolation: The semi-insulated design reduces the impact sur electrical noise and ground loops, ensuring that the signals passed to the control system are clean and accurate.

2. High Accuracy: With an accuracy sur ±0.1%, this module provides precise input signals, essential for maintaining optimal system performance.

3. Wide Temperature Range: The module can operate in temperatures ranging from -20°C to 60°C, making it suitable for use in a wide variety sur industrial environments.

4. Compact Design: The module features a compact design that allows for easy installation, even in space-constrained control panels.

5. Easy Integration: With its DIN rail mounting, the Woodward 5464-013 can be easily integrated into existing systems without extensive reconfiguration.

6. Durability: Designed for harsh industrial environments, this module is built to withstand vibration, temperature fluctuations, and electrical noise.

7. Low Power Consumption: Operating on a 24V DC supply, the module surfers low power consumption while maintaining high performance.

8. Wide Signal Compatibility: Supports both analog and digital input signals, providing flexibility for a wide range sur applications.

9. Fast Response Time: With a response time sur less than 1 millisecond, the module ensures real-time signal processing, which is critical for time-sensitive applications.

10. International Certifications: The module is CE and UL certified, meeting international safety and performance standards.

FAQ

1. What is the primary function sur the Woodward 5464-013 Semi Insulated Input Driver?

   • The module is designed to provide isolated signal inputs for control systems, ensuring accurate and clean signal processing while protecting the system from electrical noise and ground loops.

2. How many input channels does the Woodward 5464-013 support?

   • The module supports up to 8 input channels.

3. What types sur input signals are supported by the module?

   • The module supports both digital and analog input signals, including 4-20mA and 0-10V signals.

4. What is the accuracy sur the module?

   • The accuracy sur the module is ±0.1%.

5. What is the power supply requirement for the Woodward 5464-013?

   • The module operates on a 24V DC power supply.

6. What is the operating temperature range sur the module?

   • The module operates within a temperature range sur -20°C to 60°C.

7. How is the module mounted?

   • The module is designed for DIN rail mounting, which makes it easy to install in control panels.

8. Can the Woodward 5464-013 be used in outdoor environments?

   • The module should be installed in a protective enclosure if used outdoors to safeguard it from environmental factors.

9. What is the response time sur the module?

   • The module has a response time sur less than 1 millisecond, ensuring fast signal processing.

10. Is the Woodward 5464-013 compliant with international safety standards?

    • Yes, the module is CE and UL certified, ensuring that it meets international safety and performance standards.
