Présentation du produit

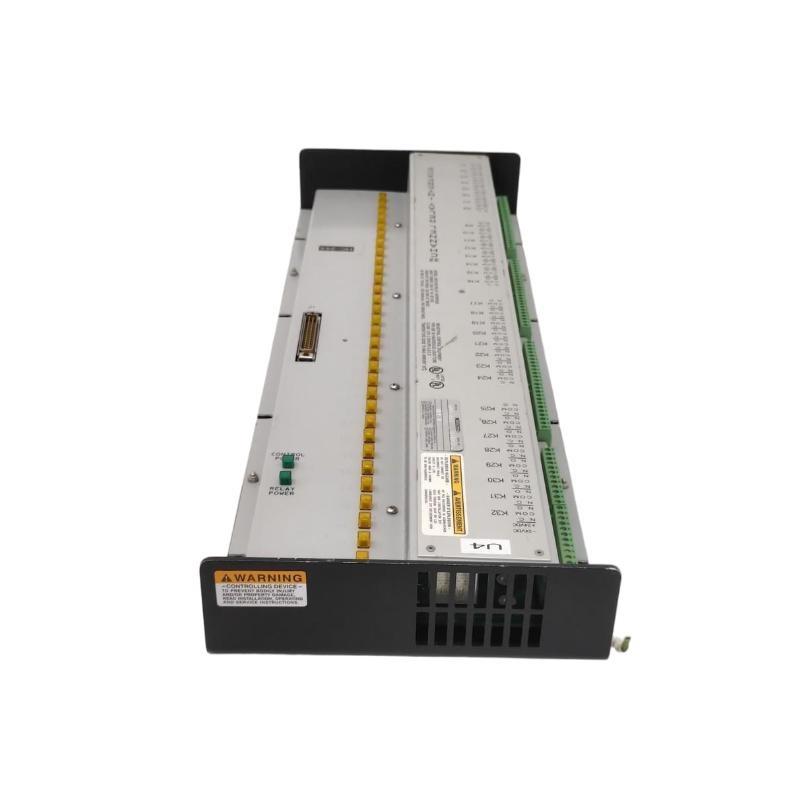

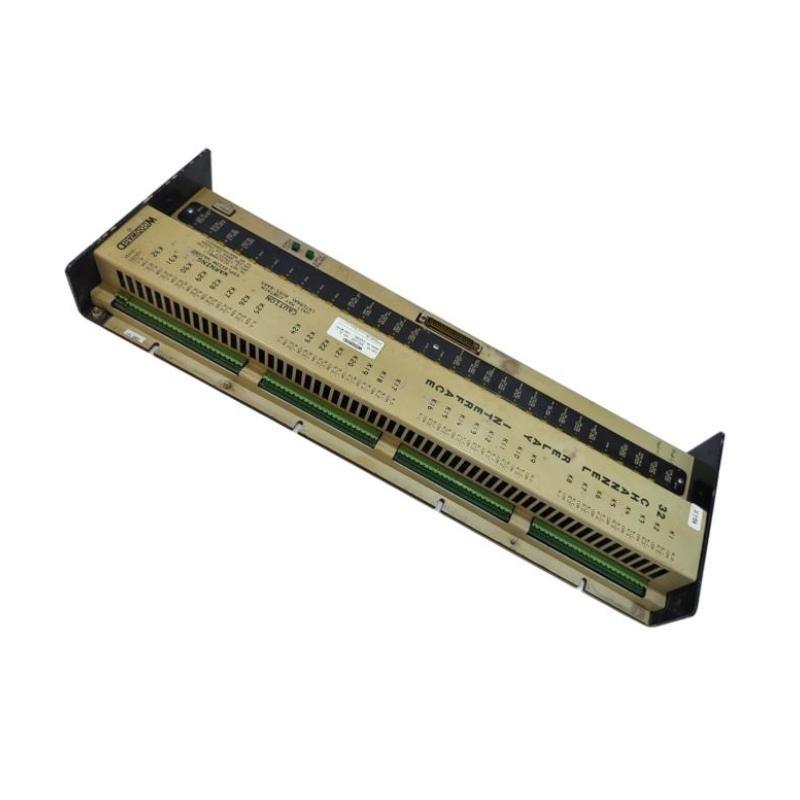

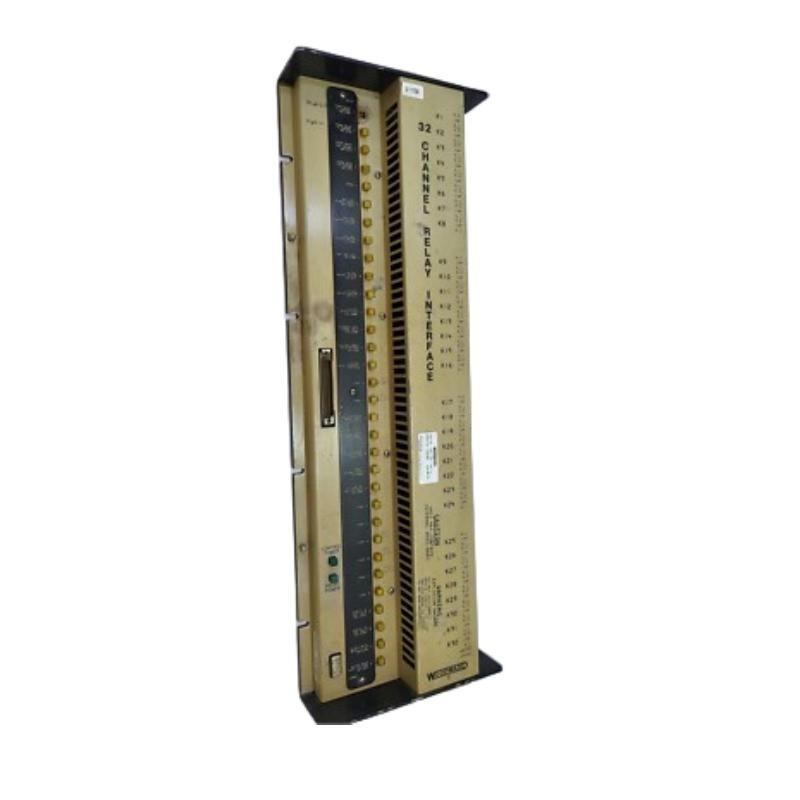

The Woodward 5441-413 is a high-performance industrial control module engineered for advanced automation and turbine management applications. Designed to operate within demanding environments, this unité integrates seamlessly into Woodward control systems, surfering reliable performance in control, monitoring, and protection functions. Whether used in gas turbines, steam turbines, or industrial engines, the 5441-413 is known for its robust architecture, real-time data processing capabilities, and long-term operational stability.
The unité is typically part sur Woodward’s MicroNet Plus control system series, which is widely adopted in power generation, marine propulsion, and mechanical drive applications. With its modular design and high processing speed, it helps ensure optimal control strategies and faster response times in critical industrial processes.
Technical Specifications
| Parameter | Value |
|---|---|
| Modèle Number | 5441-413 |
| Fabricant | Woodward Inc. |
| Function | Control Module / CPU for MicroNet Systems |
| Processor Type | High-speed industrial microcontroller |
| Communication Interfaces | Ethernet, RS-232, RS-485, CAN |
| Input Voltage Range | 18–32 VDC |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Mounting Type | Rack/Chassis Mountable |
| Certifications | CE, UL, CSA, RoHS compliant |
| Housing Material | Coated metal enclosure |
| Dimensions | 150 x 120 x 75mm |
| Poids | 1.5 kg |
Product Advantages
-
Industrial-grade reliability: Built to meet harsh environmental and operational conditions found in energy and industrial applications.
-
Modular integration: Supports flexible expansion and easy replacement within Woodward MicroNet Plus control platforms.
-
Advanced diagnostics: Equipped with fault detection, event logging, and health monitoring for proactive maintenance.
-
Real-time performance: High-speed data processing ensures accurate, deterministic control sur turbine or engine systems.
-
Longevity and support: Long lifecycle design and strong backward compatibility with other Woodward components.
-
Secure communication: Features encrypted protocol compatibility and redundancy options for mission-critical applications.
Applications
-
Gas and steam turbine control in power generation facilities
-
Compressor and pump control for mechanical drive systems
-
Marine propulsion systems requiring reliable load-sharing and sequencing
-
Industrial engines used in oil & gas, mining, and utility sectors
-
Backup generator management in energy-critical infrastructures
-
Renewable energy integration with advanced load balancing strategies
Questions fréquentes (FAQ)
Q1: What is the main use sur the Woodward 5441-413 module?
A1: It functions as a central control processing unité within MicroNet systems, managing turbines or engines in critical industrial applications.
Q2: Can this module be used in marine environments?
A2: Yes, it is suitable for marine applications, particularly in propulsion systems and auxiliary engine control, with appropriate environmental protection.
Q3: Is it compatible with legacy Woodward systems?
A3: It surfers strong backward compatibility with previous MicroNet and MicroNet Plus generations, making upgrades straightforward.
Q4: What kind sur diagnostics does it support?
A4: It supports internal diagnostics, error logging, and real-time health monitoring sur system status and connected components.
Q5: Does the module support redundant operation?
A5: Yes, it can be configured for redundant CPU setups, increasing system reliability and uptime.
Q6: What communication protocols are supported?
A6: It supports Ethernet, serial (RS-232/485), and CAN protocols for flexible industrial communication.
Q7: How is the unité mounted in a control cabinet?
A7: The module is designed for rack or chassis mounting, following Woodward’s standard form factor for secure integration.
Q8: Can the firmware be updated in the field?
A8: Yes, the firmware can be upgraded via a secure interface while maintaining configuration integrity.
Q9: What kind sur environments can it tolerate?
A9: It can operate in temperatures from -20°C to +70°C and up to 95% non-condensing humidity.
Q10: How long is the typical lifecycle sur this product?
A10: The expected lifecycle is over 5 years under standard operational and maintenance practices, with support for extended periods from Woodward.
Related or Same-Series Modèles (6 unités)
-
Woodward 5441-414 – CPU module with enhanced memory capacity
-
Woodward 5441-485 – Digital I/O module for MicroNet systems
-
Woodward 5441-693 – Analog input module with filtering features
-
Woodward 5441-693 – Thermocouple input module
-
Woodward 5466-353 – Communication interface module
-
Woodward 5441-687 – Redundant power supply module for MicroNet Plus
Popular Woodward Modèles (6 Unités in Table)
| Modèle | Description | Dimensions (mm) | Poids (kg) | Voltage |
|---|---|---|---|---|
| 9907-164 | Digital synchronizer & load control | 192 × 144 × 80 | 1.6 | 18–32 VDC |
| 9905-003 | Generator load-sharing module | 200 × 160 × 60 | 1.4 | 24 VDC |
| 2301A-LSSC | Load sharing & speed control | 220 × 120 × 65 | 1.2 | 24 VDC |
| 8440-2082 | Atlas-II CPU controller | 250 × 180 × 70 | 1.9 | 18–32 VDC |
| 505E | Steam turbine controller | 260 × 200 × 85 | 2.1 | 24 VDC |
| 5417-040 | Analog output module for MicroNet Plus | 175 × 130 × 45 | 1.3 | 24 VDC |
