Product Overview

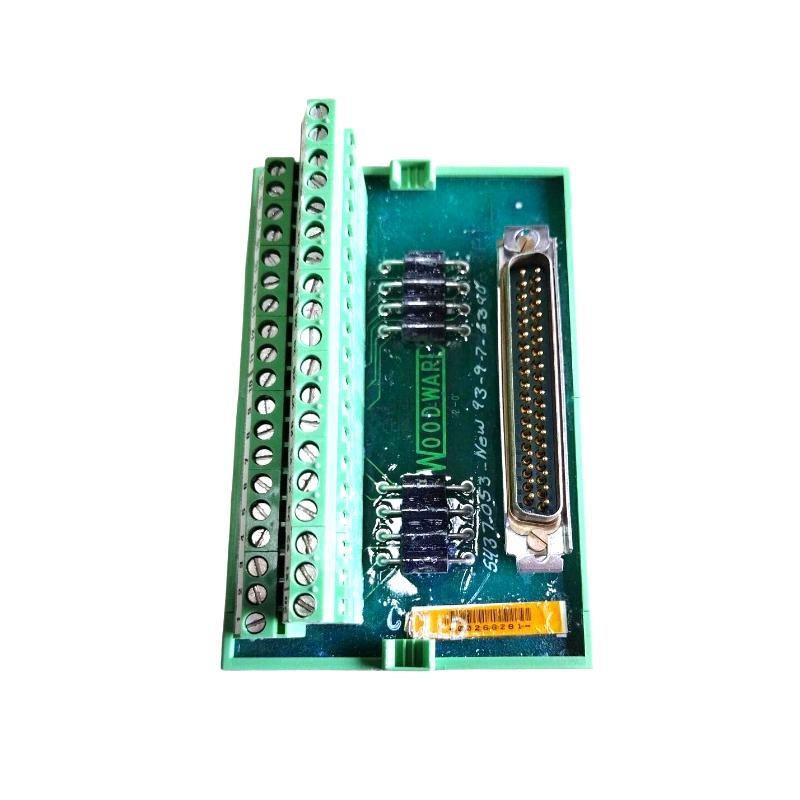

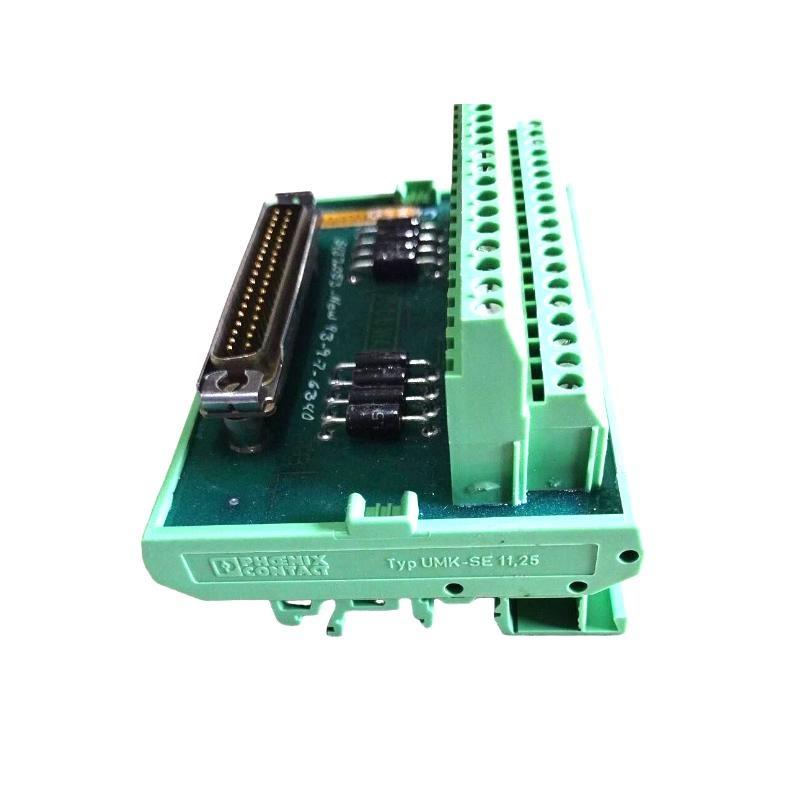

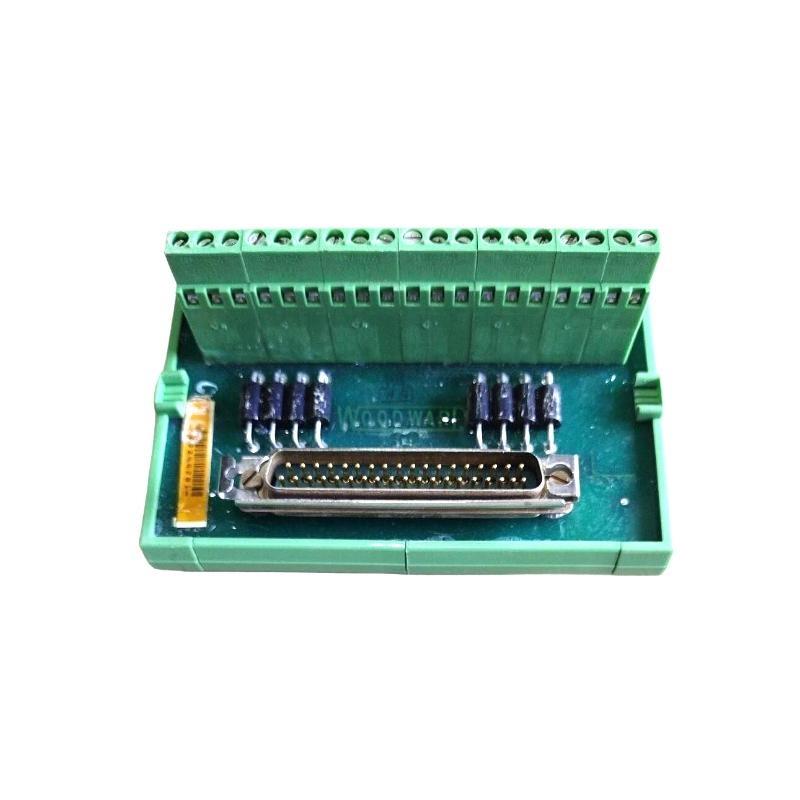

The Woodward 5437-053 Field Termination Module is designed for reliable connection between I/O wiring and control systems. It simplifies wiring, improves signal integrity, and supports robust performance in industrial automation environments.
Technical Specifications
| Parameter | Description |
|---|---|
| Modèle Number | 5437-053 |
| Product Type | Field Termination Module |
| Voltage Range | 24 VDC (typical) |
| Operating Temperature | -40°C to +70°C |
| Mounting Type | DIN-rail or Panel Mount |
| Communication Support | Compatible with Woodward PLCs |
| Housing Material | Industrial-grade plastic |
| Protection Rating | IP20 |
| Dimensions | 180 × 120 × 50 mm |
| Poids | 0.20 kg |
Applications
-
Power generation control systems
-
Industrial automation panels
-
Process control and monitoring
-
Energy and utility system integration
-
Engine and turbine control systems
Key Advantages
-
Simplifies field wiring
-
Reduces installation time and errors
-
High durability for harsh environments
-
Compatible with Woodward control systems
-
Compact size for easy panel integration
FAQ
1. What is the function sur the 5437-053 Field Termination Module?
It serves as an interface between field wiring and control unités, simplifying connection and signal routing.
2. Is it compatible with all Woodward controllers?
Yes, it is designed for seamless integration with various Woodward PLC and control modules.
3. What is the operating temperature range?
It operates reliably between -40°C and +70°C.
4. How is the module mounted?
It supports DIN-rail and panel mounting.
5. Does the module have any ingress protection?
Yes, it has an IP20 protection rating.
6. Can it be used in high-vibration environments?
Yes, the industrial-grade construction supports stability in such conditions.
7. Is the module pre-wired or user-configurable?
It is user-configurable, allowing flexible wiring options.
8. What wiring types are supported?
Standard industrial I/O wiring, both digital and analog.
9. What are the module’s physical dimensions?
180 × 120 × 50 mm.
10. What is the weight sur the module?
The module weighs 0.20 kg.
Related Modèles
| Modèle Number | Description | Dimensions (mm) | Poids (kg) |
|---|---|---|---|
| 5437-054 | Termination Module with Relay | 180 × 120 × 55 | 0.22 |
| 5437-055 | Analog Signal Termination Module | 180 × 120 × 50 | 0.21 |
| 5437-056 | Digital I/O Termination Module | 180 × 120 × 50 | 0.20 |
| 5437-057 | Relay Output Termination Module | 180 × 130 × 50 | 0.23 |
| 5437-058 | Fused Termination Module | 180 × 120 × 52 | 0.22 |
| 5437-059 | Shielded Field Termination Module | 180 × 125 × 50 | 0.24 |
Popular Woodward Modèles
| Modèle Number | Description | Dimensions (mm) | Poids (kg) |
|---|---|---|---|
| 2301E | Digital Load Sharing Control | 240 × 160 × 60 | 1.10 |
| 505XT | Steam Turbine Control | 300 × 200 × 100 | 2.40 |
| 8440-1800 | ProTech-GII Overspeed Protection | 250 × 150 × 80 | 2.00 |
| 723PLUS | Digital Engine Control | 260 × 180 × 90 | 1.80 |
| 505 | Turbine Control System | 310 × 210 × 110 | 2.50 |
| MicroNet TMR | Triple Modular Redundant Controller | 400 × 300 × 120 | 3.50 |
