Présentation du produit

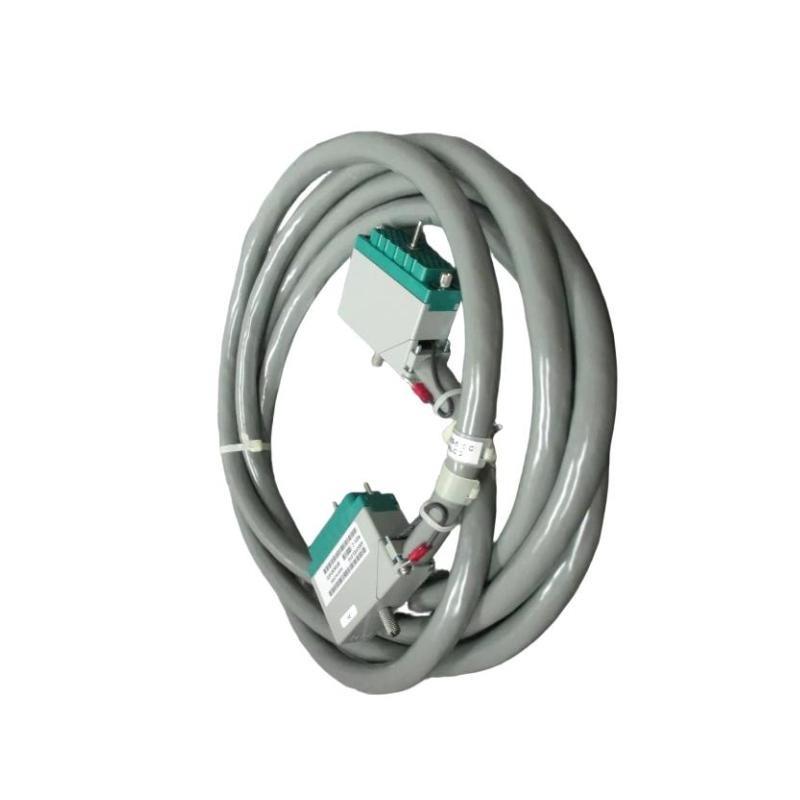

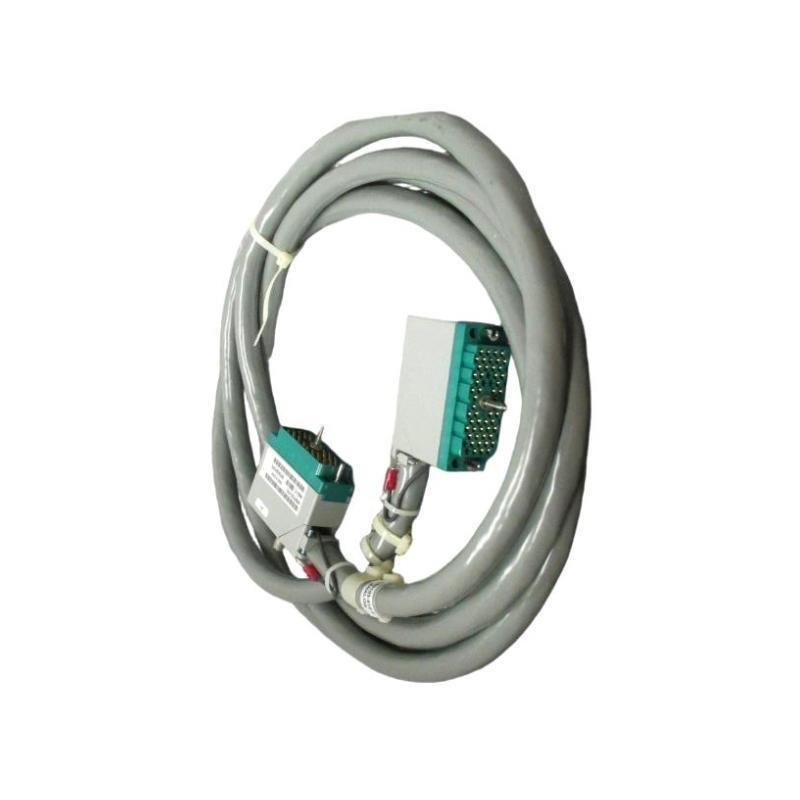

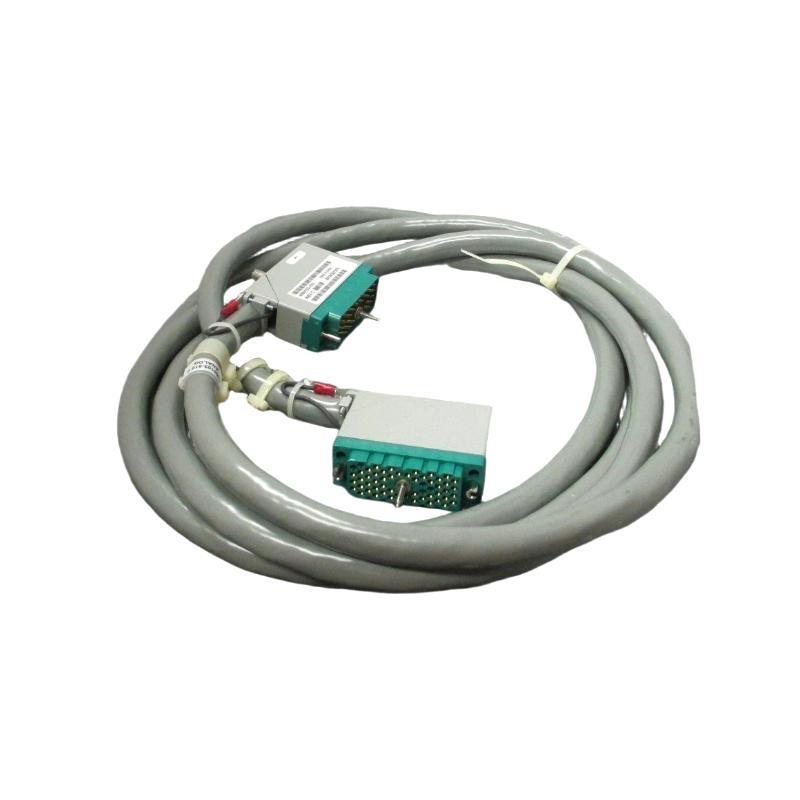

The Triconex 9101-010F Fanned Out Cable is a high-performance industrial cable specifically designed to support Triconex safety and control systems. Its “fanned-out” design allows for multiple connection points from a single bundled cable, simplifying wiring for complex installations. This configuration is particularly effective for distributing signals to multiple input/output terminals, reducing installation time and ensuring neat, organized wiring layouts.
Built with robust shielding and durable materials, the 9101-010F provides reliable communication and signal transmission in mission-critical applications. It is engineered to withstand harsh industrial conditions, including electrical noise, vibration, and thermal variations. Its flexibility in configuration and installation makes it a preferred solution in large-scale Safety Instrumented Systems (SIS), Emergency Shutdown Systems (ESD), and Fire & Gas Systems (F&G).
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle Number | 9101-010F |
| Device Type | Fanned Out Industrial Cable |
| Cable Length | Optional (customizable per application) |
| Function | Multi-point signal distribution |
| Insulation | Industrial-grade, high-temperature resistant material |
| Shielding | EMI/RFI shielding for noise immunitéy |
| Connector Type | Fanned-out terminals compatible with Triconex systems |
| Operating Voltage | Low-voltage signal/control |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Fire Resistance | Flame-retardant cable jacket |
| Mechanical Strength | Resistant to bending, torsion, and vibration |
| Livraison Poids | 3 kg |
| Certifications | CE, UL, IEC industrial compliance |
Applications
The Triconex 9101-010F Fanned Out Cable is widely used in industries requiring safe, reliable, and efficient wiring solutions:
-
Signal Distribution – Simplifies connection sur multiple input and output signals from Triconex controllers.
-
Control Panel Integration – Neatly organizes and reduces wiring clutter in dense control cabinets.
-
Safety Instrumented Systems (SIS) – Provides reliable connectivity for safety-critical operations.
-
Emergency Shutdown Systems (ESD) – Ensures quick and reliable signal paths during shutdown events.
-
Fire and Gas Systems (F&G) – Connects sensors and controllers with reduced wiring complexity.
-
Large-Scale Process Plants – Offers structured wiring layouts for refineries, petrochemical plants, and power stations.
Advantages
The Triconex 9101-010F Fanned Out Cable delivers clear benefits for industrial system engineers:
-
Simplified Wiring – Reduces complexity by distributing signals through a single bundled cable.
-
High Signal Integrity – Shielding ensures reliable communication in noisy industrial environments.
-
Space Optimization – Fanned-out design eliminates excess wiring bulk in control cabinets.
-
Durability – Built with robust materials for long-term use in demanding environments.
-
Flexibility – Optional cable lengths allow customized installation.
-
Safety-Certified – Meets international industrial safety standards.
-
Reduced Maintenance – Organized wiring makes troubleshooting faster and more efficient.
FAQ
-
What is the main purpose sur a fanned-out cable in a Triconex system?
It distributes multiple signals from a single cable to different terminals, simplifying wiring. -
Does the 9101-010F support both digital and analog signals?
Yes, it is designed for both low-voltage digital and analog signal transmission. -
What type sur shielding is included in this cable?
The cable features EMI/RFI shielding for maximum noise protection. -
Can the cable be customized in terms sur length?
Yes, it is available in optional lengths depending on installation requirements. -
Is the fanned-out design compatible with Triconex terminal panels?
Yes, it integrates seamlessly with Triconex terminal blocks and panels. -
How does the cable improve cabinet organization?
By reducing bulk and distributing connections more efficiently than multiple separate cables. -
Does this cable support redundant system layouts?
Yes, it can be deployed in redundant configurations for fault-tolerant designs. -
What is the maximum recommended operating temperature?
The cable is rated for continuous operation up to +70°C. -
Is the cable resistant to industrial vibration and bending?
Yes, it is mechanically reinforced to handle bending and vibration. -
Can the cable be used in fire and gas detection systems?
Yes, it is flame-retardant and suitable for F&G signal transmission.
Related or Same-Series Modèles
| Modèle Number | Description |
|---|---|
| 9101-010A | Standard Fanned Out Cable for Triconex systems |
| 9101-010B | Shielded Multi-connector Cable |
| 9101-010C | Extended-Length Fanned Out Cable |
| 9101-010D | High-Durability Industrial Cable |
| 9101-0110 | Signal Distribution Cable with reinforced jacket |
| 9101-0120 | Specialty Cable for redundant signal layouts |
Popular Triconex Marque Modèles
| Modèle Number | Description |
|---|---|
| 3000250-010 | External Terminal Baseplate |
| 3000600-601 | Power Supply Module |
| 3000785-001 | Expansion Cable |
| 3000793-001 | Digital Input Module |
| 40000206-540 | Control Module |
| 4000094-346 | Industrial Communication Cable |
