Présentation du produit

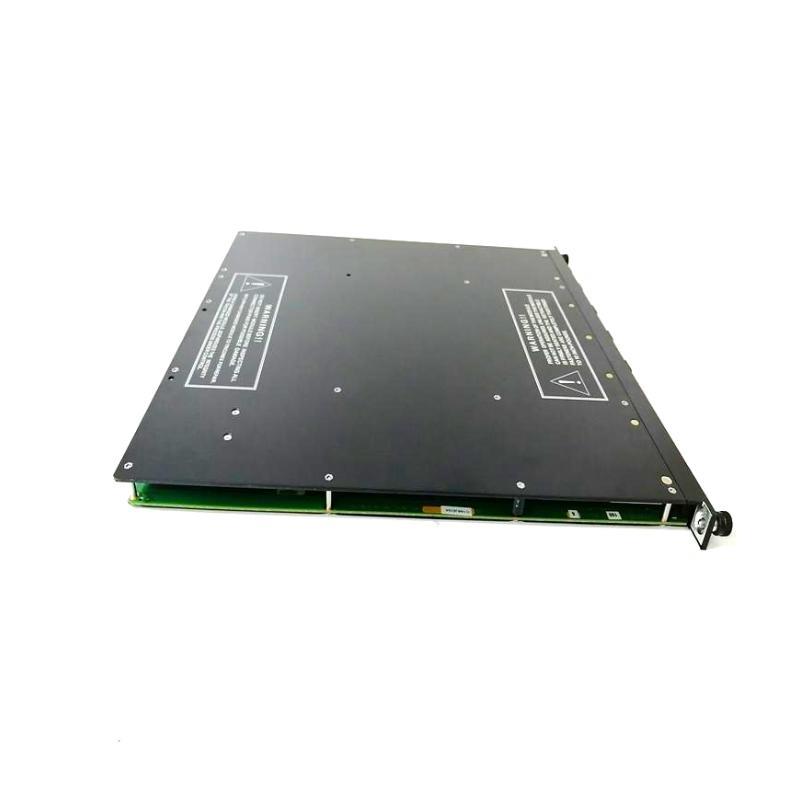

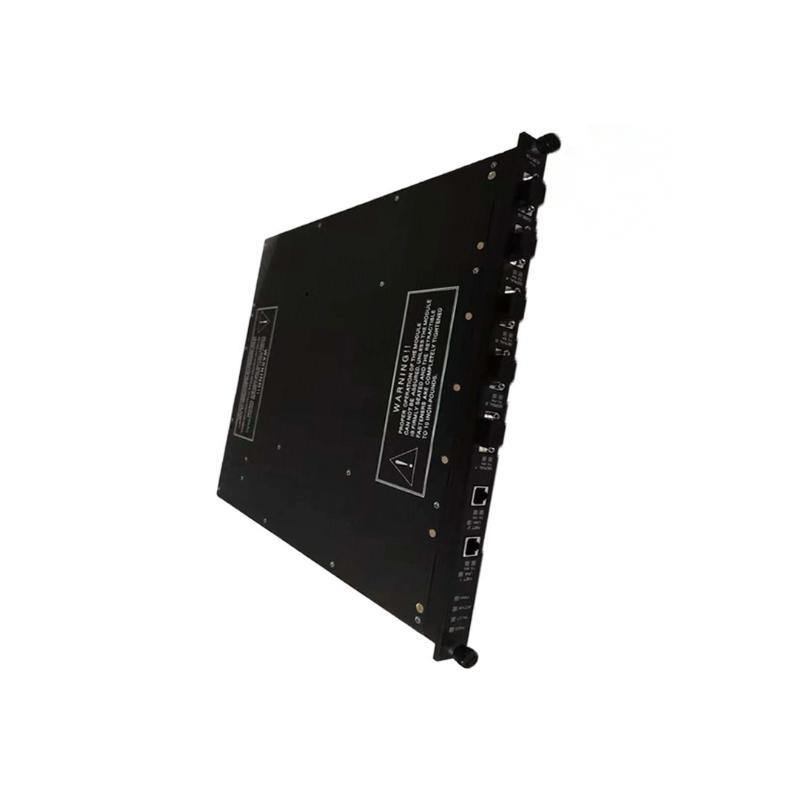

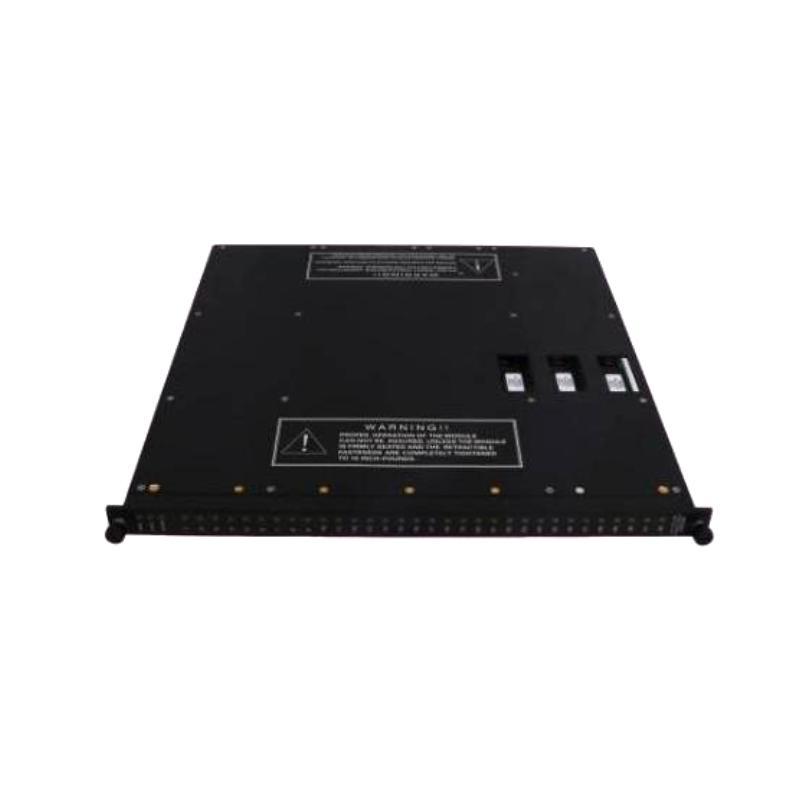

The Triconex 8321 Control Module is an industrial-grade digital input module, specifically engineered for high-integrity and safety-critical applications. Part sur the Triconex safety and critical control systems from Schneider Electric, it ensures reliable and deterministic acquisition sur digital field inputs. The module plays a key role in facilitating safe shutdowns, alarms, interlocks, and process automation in sectors like oil & gas, chemicals, nuclear energy, and manufacturing.
What sets the 8321 apart is its robust performance in harsh industrial environments, its capacity for diagnostic feedback, and its ability to work seamlessly with redundant architectures. This module meets global safety certifications and can be integrated into SIL 3-rated Safety Instrumented Systems (SIS) with ease.
Spécifications du produit
| Parameter | Details |
| Modèle Number | Triconex 8321 |
| Product Type | Digital Input Module |
| Fabricant | Schneider Electric (Triconex) |
| Input Type | Discrete (Digital) |
| Input Voltage | 24 VDC (Nominal) |
| Channels | 32 Digital Input Channels |
| Signal Detection | Dry Contact, Open Collector |
| Response Time | ≤ 10 ms |
| Redundancy | Supports Triple Modular Redundancy (TMR) |
| Built-in Diagnostics | Yes (channel health monitoring, fault detection) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| EMC Compliance | Meets IEC/EN 61000-6-2, IEC/EN 61000-6-4 |
| Shock/Vibration | IEC 60068-2 compliant |
| Safety Certification | SIL 3 (IEC 61508), TUV Certified |
| Mounting Type | DIN Rail or Backplane |
| Dimensions (L x W x H) | 63 x 178 x 394 mm |
| Poids | 3.3 kg |
Applications
The Triconex 8321 Control Module is utilized in various safety-critical industrial applications, including:
-
Process Control Systems: Providing reliable input signal acquisition in chemical, petrochemical, and pharmaceutical industries.
-
Power Generation: Ensuring accurate monitoring sur safety inputs in power plants.
-
Oil and Gas: Supporting safety instrumented systems in surfshore and onshore facilities.
-
Transportation Systems: Monitoring safety-critical inputs in railway and metro systems.
-
Manufacturing Automation: Acquiring input signals for automated production lines and machinery.
Advantages
-
High Reliability: Designed for continuous operation in safety-critical environments.
-
Fast Response Time: Ensures timely acquisition sur input signals for rapid system response.
-
Robust Design: Operates reliably in a wide temperature range, suitable for harsh industrial conditions.
-
Compact Size: Small footprint allows for flexible installation in space-constrained environments.
Latest News Titles
-
Triconex 8321 Module Enhances Safety in Industrial Automation
-
Advancements in Control Modules with Triconex 8321
-
Integrating Triconex 8321 into Modern Safety Instrumented Systems
-
Ensuring Operational Safety: The Role sur Triconex 8321 in Power Plants
-
Triconex’s Commitment to Safety: Spotlight on the 8321 Control Module
-
Reliable Input Signal Acquisition with Triconex 8321 Module
-
Triconex 8321: A Reliable Solution for Safety-Critical Applications
-
Optimizing Industrial Safety Systems with Triconex’s 8321 Module
-
Triconex 8321 Control Module: Bridging Safety and Performance
-
Implementing Redundant Safety Systems Using Triconex 8321
Questions fréquentes (FAQs)
-
What is the primary function sur the Triconex 8321 Control Module?
-
It acquires digital input signals from field devices for processing in safety instrumented systems.
-
-
Which systems are compatible with the 8321 module?
-
It is designed for use in Triconex safety instrumented systems (SIS).
-
-
What is the input voltage specification for the 8321?
-
It operates at 24 VDC.
-
-
What is the response time sur the 8321 module?
-
It has a response time sur 10 milliseconds.
-
-
What are the dimensions and weight sur the 8321 module?
-
It measures 63 x 178 x 394 mm and weighs 3.3 kg.
-
-
What is the operating temperature range sur the 8321?
-
It operates reliably within a temperature range sur -20°C to +70°C.
-
-
Does the 8321 have diagnostic capabilities?
-
Yes, it includes features to monitor system health and detect faults.
-
-
Can the 8321 module be used in hazardous locations?
-
No, the 8321 is not suitable for hazardous locations requiring ATEX certification.
-
-
Is the 8321 module suitable for redundant system configurations?
-
Yes, it can be used in redundant configurations to enhance system reliability.
-
-
What maintenance is required for the 8321 module?
-
Regular inspection and testing are recommended to ensure optimal performance.
-
