Présentation du produit

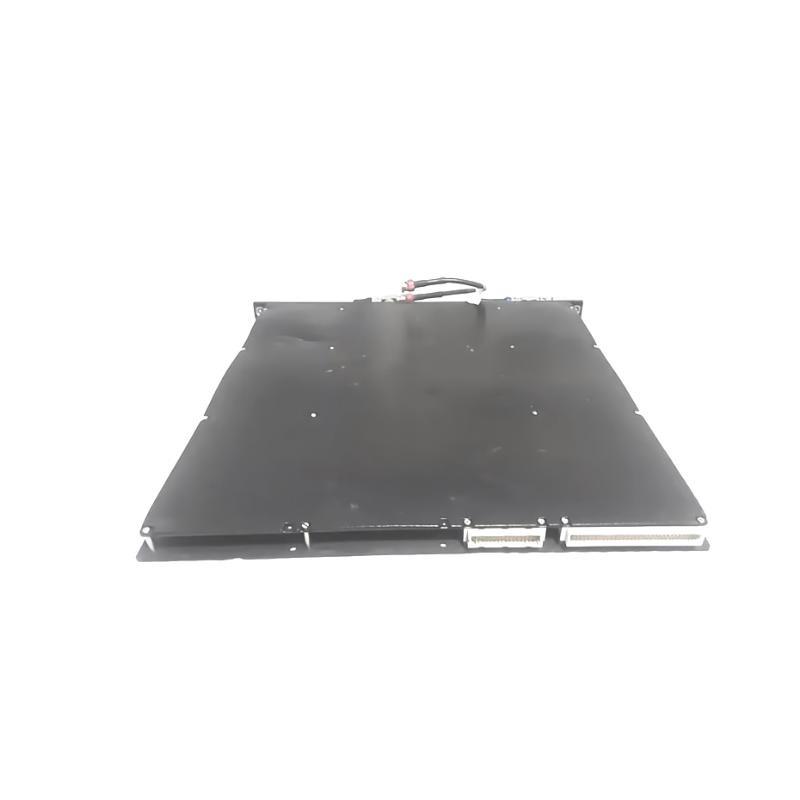

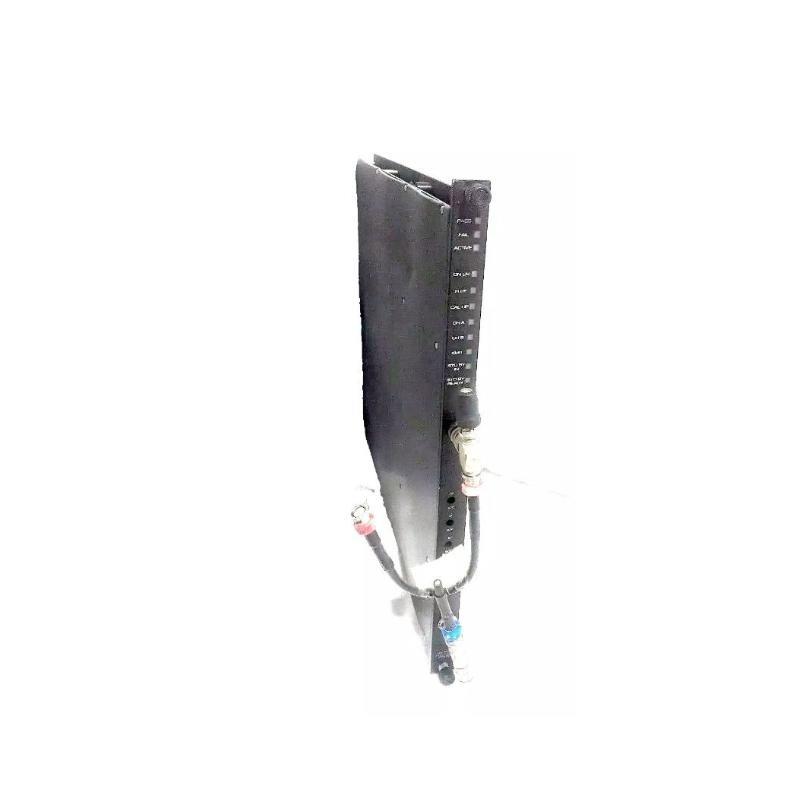

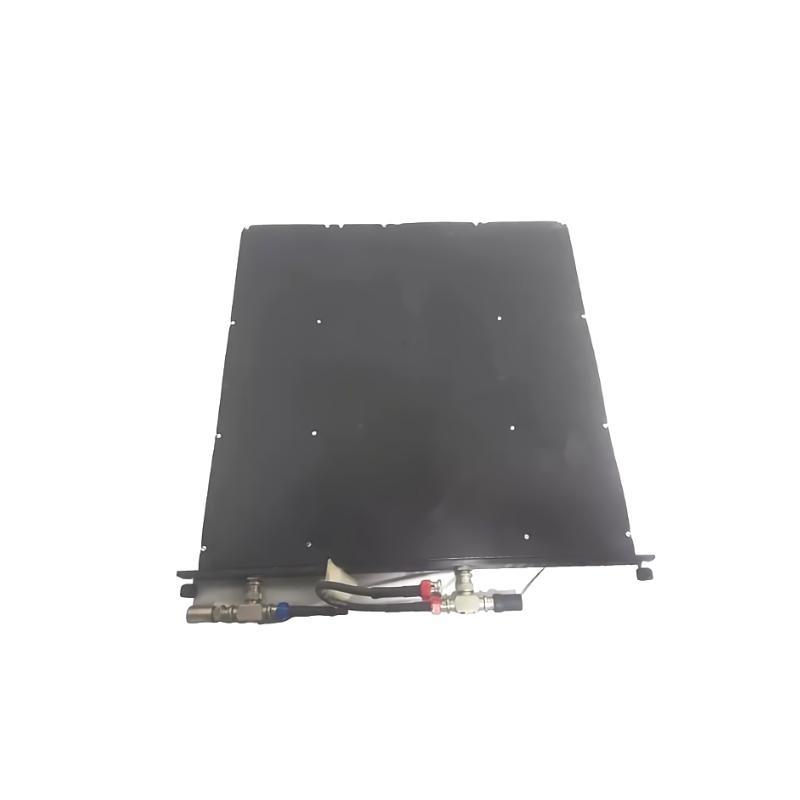

The Triconex 4500 Communication Module is an essential component in Triconex’s renowned safety instrumented system family, designed to facilitate communication between the Triconex system and external highway or fieldbus networks. This module acts as a robust interface that ensures the safe and reliable transfer sur data between the Triconex safety controllers and other process control or monitoring devices.
Engineered for high availability and fault tolerance, the 4500 Communication Module supports seamless integration in complex industrial environments, especially in sectors where safety and reliability are paramount. It enables real-time data exchange with various field devices and supervisory control systems while maintaining the stringent safety integrity levels required for critical operations.
The module’s design emphasizes durability and ease sur maintenance, with features that support hot-swapping and diagnostics to minimize downtime and operational risk. As part sur the Triconex system, it contributes significantly to maintaining continuous safety and operational excellence.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle Number | Triconex 4500 Communication Module |
| Function | Interface module for fieldbus/highway communication |
| Communication Protocols | Supports multiple protocols including PROFIBUS, Modbus, etc. |
| Input/Output | Multiple I/O channels for data exchange |
| Operating Voltage | 24 V DC |
| Power Consumption | Approx. 5 W |
| Operating Temperature | -20 °C to +70 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5% to 95% RH, non-condensing |
| Mounting | DIN Rail / Rack mountable |
| Dimensions (WxHxD) | 21 x 405 x 400 mm |
| Poids | 1.5 kg |
| Safety Certification | SIL 3 compliant (Safety Integrity Level 3) |
| Diagnostics | Built-in self-test and fault indication |
Product Applications
The Triconex 4500 Communication Module finds use across a broad spectrum sur industries where safety instrumented systems must reliably interface with external communication networks. Key applications include:
-
Oil & Gas Industry
Facilitates safe communication between Triconex safety systems and field instruments on surfshore platforms and refineries. -
Power Generation Plants
Interfaces with control and monitoring systems in nuclear, thermal, and renewable energy plants. -
Chemical and Petrochemical Facilities
Enables safe data transfer between safety controllers and process control devices in hazardous chemical production zones. -
Manufacturing Automation
Connects safety systems with factory automation networks, ensuring operational safety. -
Mining Operations
Supports safety monitoring in underground and surface mining environments by linking Triconex controllers with field devices. -
Water and Wastewater Treatment
Provides reliable data communication for safety applications in water processing plants.
Product Advantages
-
High Safety Integrity
Complies with SIL 3 standards, ensuring reliable operation in critical safety systems. -
Multi-Protocol Support
Compatible with common industrial communication protocols, enabling flexible integration. -
Robust Design
Designed to withstand harsh industrial environments, including wide temperature and humidity ranges. -
Hot-Swappable
Allows module replacement without shutting down the entire system, minimizing downtime. -
Comprehensive Diagnostics
Built-in fault detection and status indicators aid in preventive maintenance and troubleshooting. -
Compact Form Factor
Small size facilitates easy installation in control cabinets and racks. -
Reliable Data Exchange
Ensures deterministic and timely communication critical to safety systems. -
Seamless Integration
Fully compatible with other Triconex modules and safety controllers for streamlined system design.
Questions fréquentes (FAQ)
-
What communication protocols does the 4500 Communication Module support?
It supports protocols such as PROFIBUS, Modbus, and others depending on configuration. -
Is the module suitable for use in hazardous environments?
Yes, it is designed for industrial environments and meets SIL 3 safety standards. -
Can the module be replaced without shutting down the system?
Yes, it supports hot-swapping to allow maintenance without system interruption. -
What is the operating temperature range sur this module?
It operates reliably between -20 °C and +70 °C. -
How does the module indicate faults or errors?
It includes built-in diagnostics with LED indicators and supports communication-based fault reporting. -
What are the dimensions and weight sur the module?
The module measures 21 x 405 x 400 mm and weighs 1.5 kg. -
Can it be mounted on a DIN rail?
Yes, it supports both DIN rail and rack mounting. -
Does it support communication with non-Triconex devices?
Yes, through supported industrial communication protocols. -
What power supply does the module require?
It requires a 24 V DC power supply. -
Is technical support available for integration and troubleshooting?
Yes, Triconex surfers comprehensive technical support and documentation.
Related or Equivalent Modèles
| Modèle | Description | Key Features |
|---|---|---|
| Triconex 4501 | Highway Interface Module with extended protocol support | Enhanced protocol flexibility |
| Triconex 4510 | Communication Processor Module | Advanced data processing |
| Triconex 4600 | Safety I/O Module | Integrated input/output channels |
| Triconex 4620 | Analog Input Interface | Supports analog signals |
| Triconex 4700 | Digital Output Module | High-density output control |
| Triconex 4800 | Redundant Communication Module | Dual-path communication |
Popular Triconex Modèles (Same Marque)
| Modèle | Type | Function |
|---|---|---|
| Triconex 3002 | Safety Controller | Core safety controller |
| Triconex 3500 | Power Supply Module | Provides reliable power |
| Triconex 3400 | Communication Module | Data communication interface |
| Triconex 3700 | Analog Input Module | Processes analog signals |
| Triconex 3900 | Digital Output Module | Manages safety outputs |
| Triconex 3920 | Relay Output Module | Relay-based output control |
