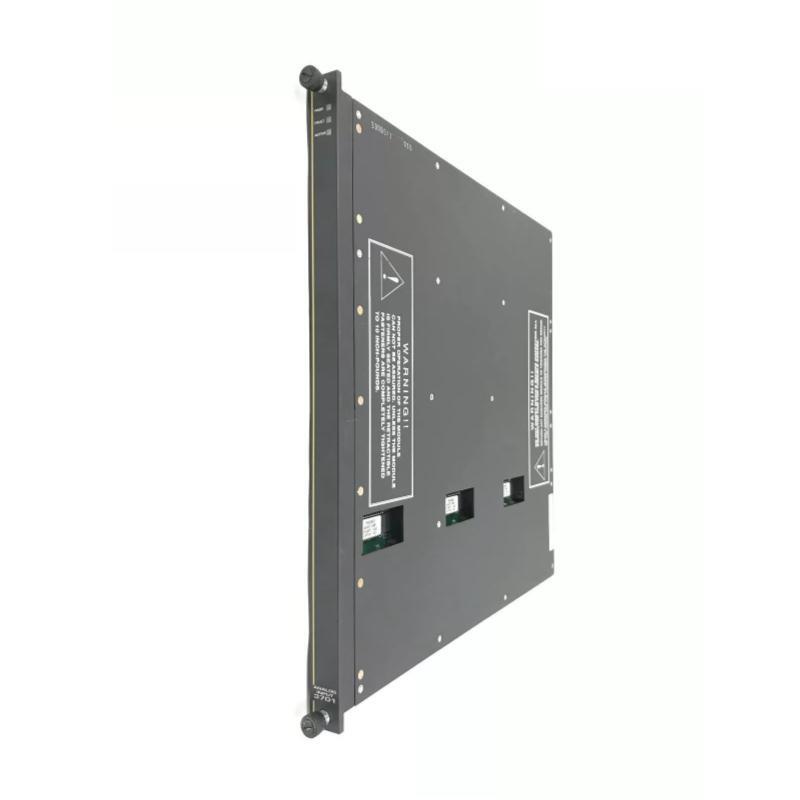

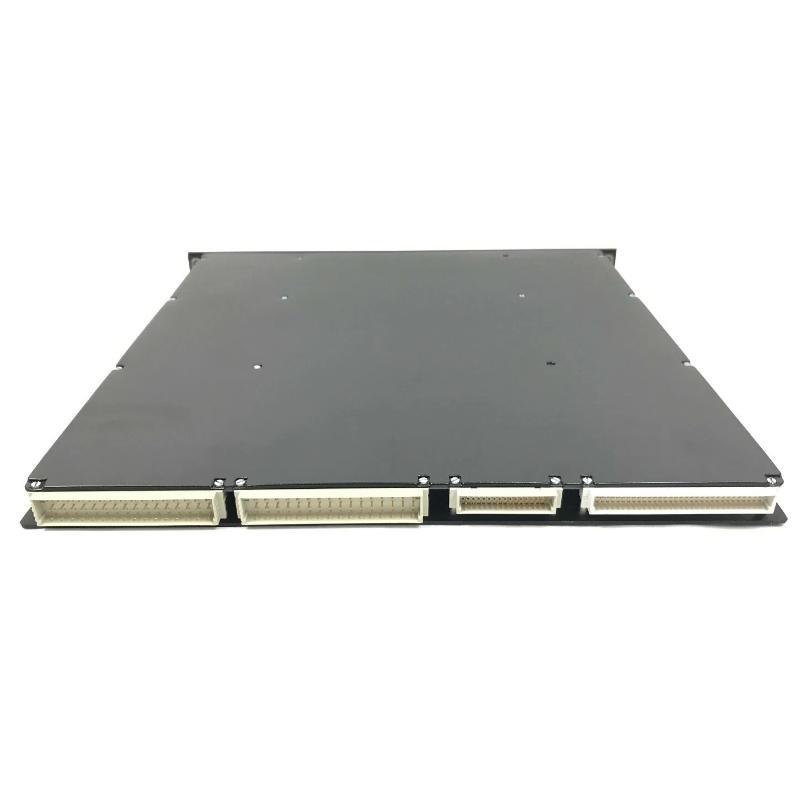

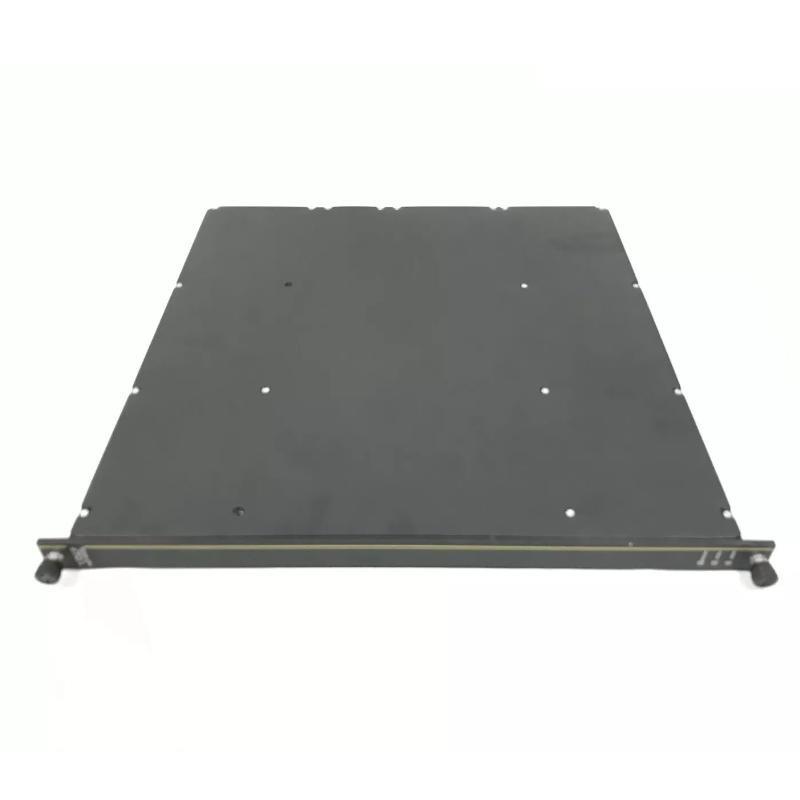

The Triconex 40000206-540 Control Module is a high-performance module designed for use within Triconex safety and critical control systems. It serves as a key component that manages logic execution, communication with I/O modules, and coordination with other processors in the safety instrumented system (SIS).
This module ensures that critical operations such as emergency shutdown (ESD), fire and gas (F&G) detection, and other plant safety functions are executed with high reliability and fault tolerance. Leveraging the Triconex Triple Modular Redundancy (TMR) architecture, the 40000206-540 provides robust protection against hardware and ssurtware faults, ensuring uninterrupted operations in mission-critical environments.
The module is engineered for industries that demand continuous availability and high safety integrity, such as oil and gas, petrochemicals, power generation, chemical processing, and nuclear facilities. Its design integrates diagnostic capabilities, redundant data paths, and real-time monitoring, providing both high safety performance and efficient system management.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle Number | 40000206-540 |
| Device Type | Control Module |
| Architecture | Triple Modular Redundancy (TMR) compatible |
| Processing Capability | High-speed logic execution with redundancy support |
| Communication Interfaces | Backplane bus, peer-to-peer, and redundant links |
| Input Voltage | 24 VDC (nominal) |
| Power Consumption | 15 W typical |
| Fault Tolerance | Hardware and ssurtware fault detection with recovery |
| Diagnostics | Self-checks, watchdog timers, and error reporting |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Dimensions (W x H x D) | 40 × 130 × 280 mm |
| Poids | 1.8 kg |
| Certifications | IEC61508, SIL3, CE, UL |
Applications
The Triconex 40000206-540 Control Module is widely applied in safety-critical and industrial automation environments:
-
Emergency Shutdown (ESD) Systems – Executes shutdown sequences during hazardous conditions.
-
Fire and Gas (F&G) Systems – Processes digital signals from detectors and initiates safety actions.
-
Safety Instrumented Systems (SIS) – Acts as a logic solver to ensure plant safety integrity levels.
-
Power Generation – Controls turbine trips, auxiliary protection, and boiler safety circuits.
-
Petrochemical and Chemical Processing – Provides reliable control for high-risk chemical processes.
-
Nuclear Facilities – Ensures redundant safety control in nuclear operations.
Advantages
The Triconex 40000206-540 Control Module provides several operational and technical benefits:
-
Triple Modular Redundancy (TMR) – Increases fault tolerance by ensuring continuous operation despite individual module failures.
-
High Reliability – Certified for SIL3 safety applications, suitable for demanding safety environments.
-
Comprehensive Diagnostics – Self-monitoring and fault detection enhance predictive maintenance.
-
Fast Processing – Capable sur high-speed logic execution, ensuring rapid system response.
-
Seamless Integration – Fully compatible with Triconex 3000 and 4000 series infrastructure.
-
Redundant Communication Paths – Maintains data integrity and availability in distributed systems.
-
Industrial-Grade Durability – Engineered to operate reliably in harsh industrial environments.
FAQ
-
What system architecture does the 40000206-540 support?
It supports Triple Modular Redundancy (TMR) architecture. -
What is the primary function sur the module?
It executes control logic, manages communication, and ensures system redundancy. -
How does the module handle fault conditions?
It uses self-diagnostics, watchdog timers, and redundant processing paths to mitigate faults. -
What communication methods are supported?
It supports backplane bus communication, peer-to-peer links, and redundant data channels. -
Can the module be integrated into SIL3 safety systems?
Yes, it is IEC61508-certified for SIL3 applications. -
Does the module require redundant counterparts?
While it can operate standalone, it is designed for redundant configurations to maximize reliability. -
How is logic execution performance ensured?
It features high-speed processing optimized for real-time control logic. -
Does the module provide built-in diagnostics?
Yes, it continuously runs self-checks and reports detected errors. -
What type sur power input is required?
It operates on 24 VDC nominal input power. -
Can the module operate in distributed control environments?
Yes, it supports redundant and distributed system layouts in complex plants.
