Présentation du produit

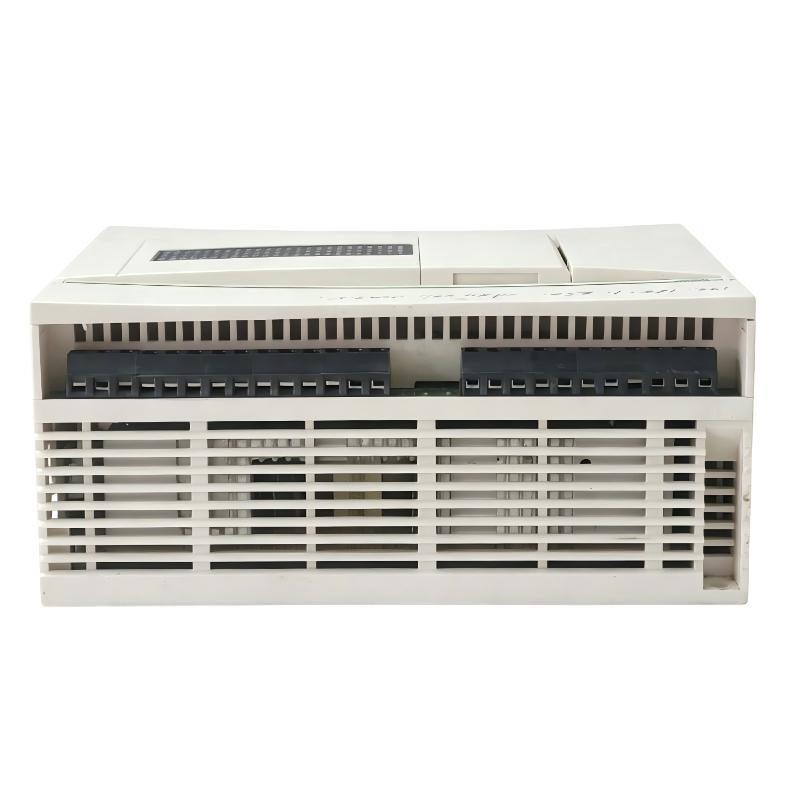

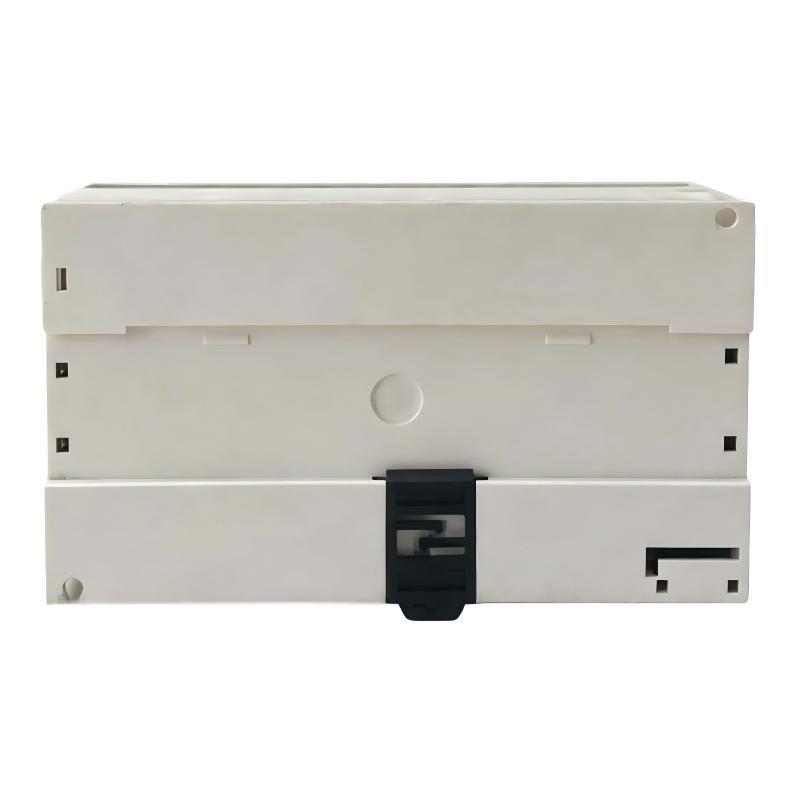

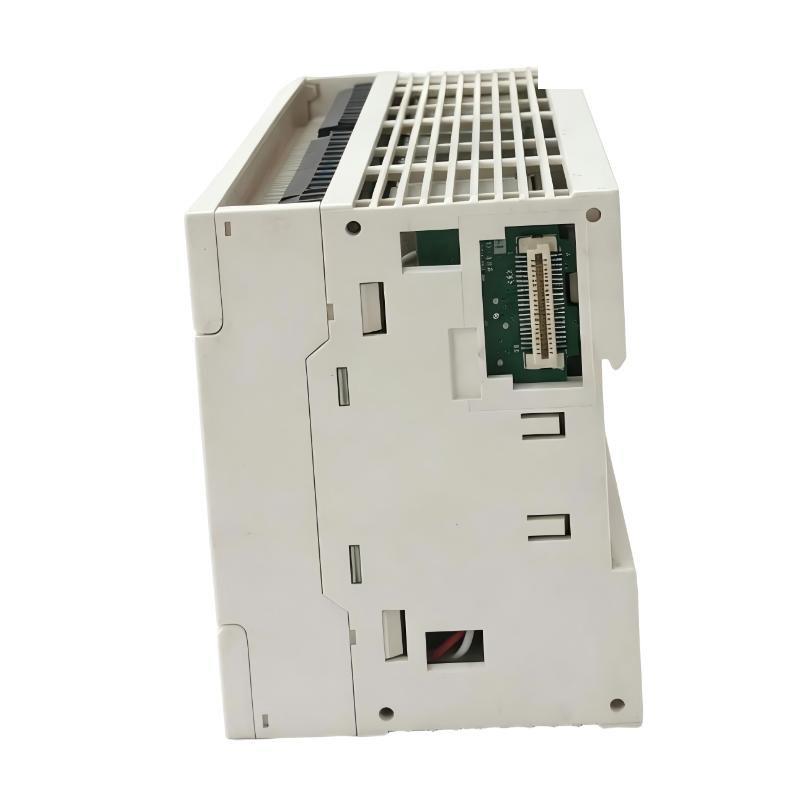

The Schneider TWDLCDE40DRF Compact Base Controller is a member sur the Twido PLC family, designed to provide reliable and cost-effective control for small to medium-sized automation systems. Combining a CPU, power supply, digital inputs, and relay outputs within a single compact unité, this controller simplifies system architecture while reducing installation and maintenance costs.
The controller features 24 discrete inputs and 16 relay outputs, making it suitable for a wide range sur machine control and process automation applications. Its compact design allows easy installation in control cabinets where space is limited, while maintaining the flexibility required for industrial control tasks.
The TWDLCDE40DRF supports up to seven I/O expansion modules, enabling users to increase system capacity as application requirements grow. With built-in memory resources and dependable processing performance, the controller can efficiently manage logic operations, equipment sequencing, monitoring functions, and communication tasks.
Designed for industrial environments, the controller operates within a temperature range sur 0°C to +55°C and provides IP20 protection. Its relay outputs allow it to interface with both AC and DC field devices, making it a versatile solution for many automation projects.
The TWDLCDE40DRF is widely used in manufacturing equipment, water treatment systems, packaging machines, material handling equipment, and building automation applications where dependable PLC control is required.
Spécifications du produit
| Parameter | Description |
|---|---|
| Modèle | Schneider TWDLCDE40DRF |
| Product Type | Compact Base Controller |
| Series | Twido PLC |
| Discrete Inputs | 24 |
| Relay Outputs | 16 |
| Output Type | Relay |
| Supply Voltage | 24 VDC |
| Current Consumption | 11 mA |
| Maximum I/O Expansion Modules | 7 |
| Memory Type | Internal RAM |
| Operating Temperature | 0°C to +55°C |
| Protection Rating | IP20 |
| Controller Architecture | Integrated Compact PLC |
| Application Type | Small to Medium Automation Systems |
| Installation Method | Control Cabinet Mounting |
| Dimensions | 157 × 70 × 90 mm |
| Poids | 0.525 kg |
Applications
• Packaging Machinery – Controls conveyors, filling machines, labeling systems, and packaging processes with reliable sequencing and monitoring functions.
• Material Handling Equipment – Supports automated transport systems, lifting devices, and warehouse handling equipment.
• Water and Wastewater Systems – Manages pumps, valves, level monitoring devices, and treatment process control.
• Building Automation – Provides control for HVAC equipment, lighting systems, and utility management applications.
• Small Manufacturing Lines – Coordinates machine operations and production sequences in compact automation systems.
• Food and Beverage Equipment – Controls processing, packaging, and material transfer equipment.
• Pump and Compressor Control – Automates start-stop sequences and operating conditions for utility equipment.
• Machine Tools – Supports automated operation and monitoring sur production machinery.
• Agricultural Automation – Used in irrigation control, greenhouse systems, and equipment monitoring applications.
• General Industrial Automation – Suitable for a wide range sur discrete control and machine automation requirements.
Advantages
• Compact All-in-One Design – Integrates controller functions, inputs, and outputs into a single unité, reducing wiring and panel space requirements.
• Flexible Expansion Capability – Supports up to seven expansion modules, allowing the system to grow with application needs.
• Relay Output Versatility – Compatible with both AC and DC loads, increasing application flexibility.
• Reliable Industrial Performance – Designed for continuous operation in industrial automation environments.
• Easy Installation and Maintenance – Simplified wiring and compact construction reduce setup time and maintenance effort.
• Integrated Memory Resources – Internal RAM supports efficient storage sur application programs and operational data.
• Wide Application Compatibility – Suitable for manufacturing, utilities, infrastructure, and machine control applications.
• Cost-Effective Automation Solution – Provides comprehensive PLC functionality without requiring a large control platform.
• Stable Operating Temperature Range – Maintains dependable performance from 0°C to +55°C.
• Space-Saving Cabinet Installation – Ideal for applications with limited panel space.
