Présentation du produit

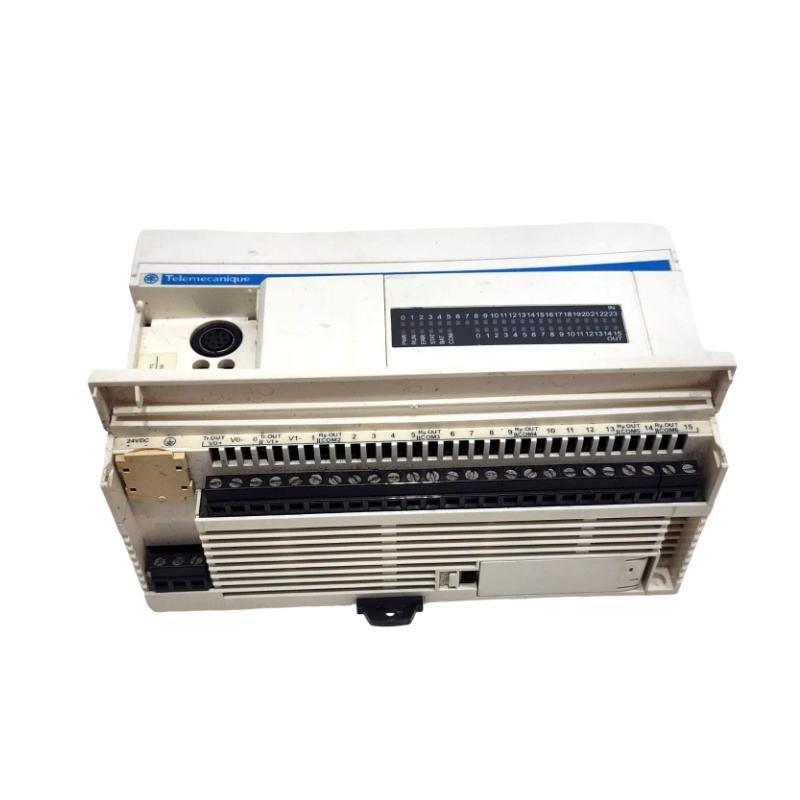

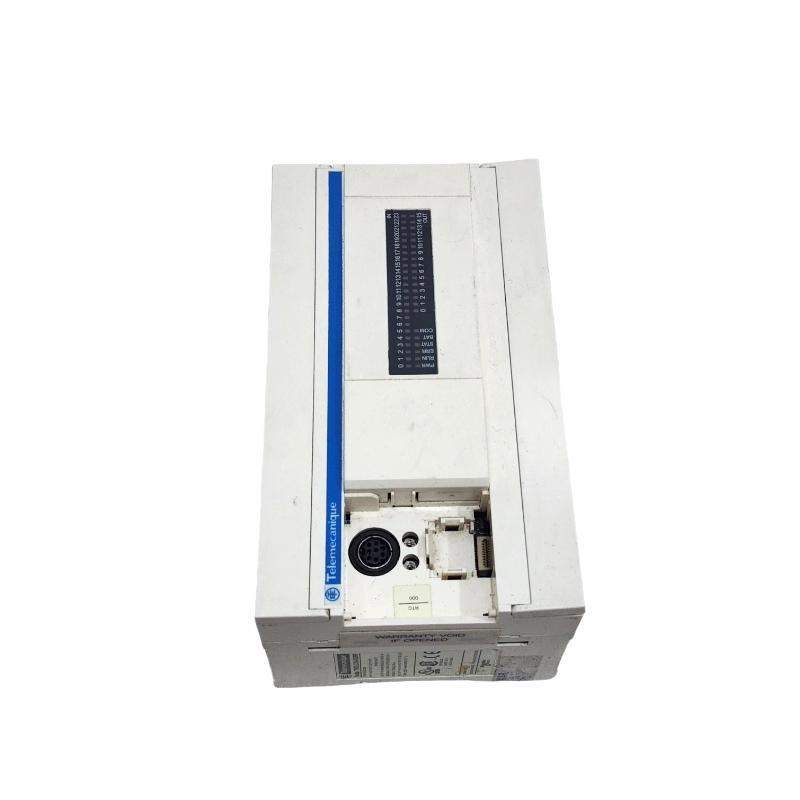

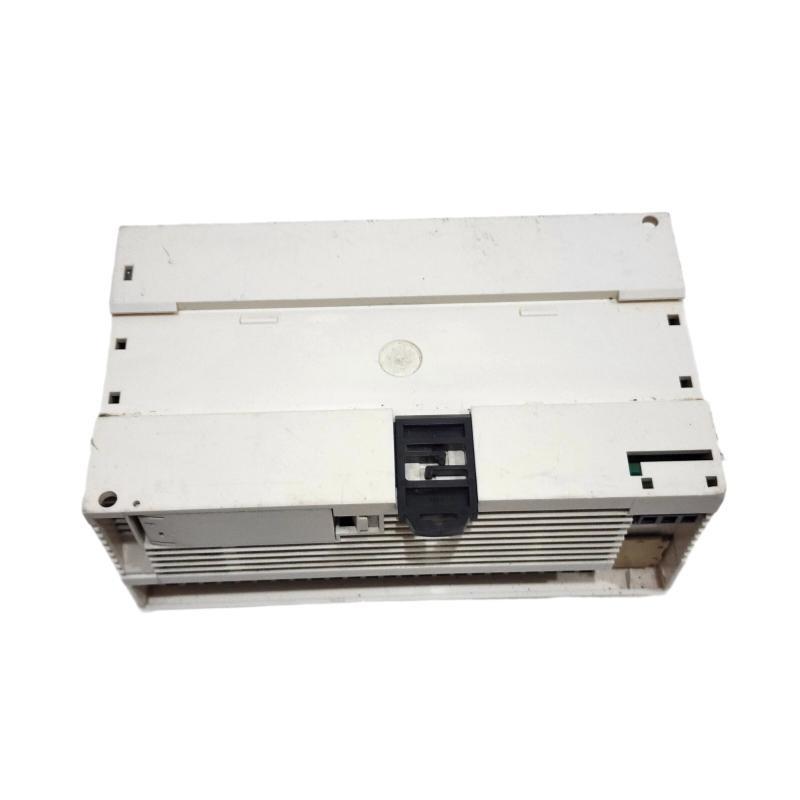

The Schneider TWDLCDA40DRF Compact Base Controller is a high-performance programmable logic controller (PLC) designed for small to medium-sized automation tasks. As part sur the Twido series, this compact controller combines flexibility, ease sur use, and powerful processing capabilities to meet the evolving needs sur modern industry.
The TWDLCDA40DRF controller features an integrated 24 V DC power supply, digital I/O channels, and advanced communication interfaces including RS485 and Modbus. It supports distributed control through its expansion capabilities and seamless integration with Schneider Electric’s automation architecture.
This versatile controller is built with a space-saving design and user-friendly programming environment, making it an ideal solution for OEMs, machine builders, and system integrators looking for a reliable controller with high functionality and cost-effectiveness.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle Number | TWDLCDA40DRF |
| Product Type | Compact Base Controller (PLC) |
| Series | Twido |
| Supply Voltage | 24 V DC |
| Number sur Inputs | 24 Digital Inputs (24 V DC, sink/source) |
| Number sur Outputs | 16 Relay Outputs |
| Communication Ports | RS485, Modbus RTU |
| Program Memory | 10 kWords |
| Data Memory | 2 kWords |
| Processing Speed | 0.18 μs per instruction |
| Expansion Capability | Up to 7 I/O expansion modules |
| Programming Ssurtware | TwidoSuite / EcoStruxure Machine Expert Basic |
| Protection | Short circuit, overload, thermal protection |
| Operating Temperature Range | 0°C to +55°C |
| Storage Temperature Range | -25°C to +70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions (H x W x D) | 95 x 90 x 70 mm |
| Poids | 0.525 kg |
| Certifications | CE, UL, CSA, C-Tick |
| Mounting | DIN rail or panel mounting |
Applications
The TWDLCDA40DRF Compact Base Controller is a versatile PLC suitable for a wide range sur applications across multiple industries:
-
Packaging Machines: Controlling automated packaging, filling, and labeling processes.
-
Material Handling Systems: Managing conveyor belts, sorting lines, and transfer stations.
-
Building Automation: Integration with HVAC, lighting, and access control systems.
-
Food & Beverage Processing: Automation sur bottling, mixing, and batch production lines.
-
Textile Machinery: Synchronizing machine movements and production stages.
-
Water & Wastewater Treatment: Supervising pump stations and filtration systems.
-
OEM Equipment: Control and customization for a variety sur machinery and equipment.
-
Simple Process Automation: Supporting standalone process control in manufacturing environments.
Advantages
-
Compact Size: Small form factor allows installation in space-constrained environments.
-
Integrated I/O: 24 digital inputs and 16 relay outputs provide robust I/O capability.
-
Communication Flexibility: Built-in RS485 and Modbus RTU ensure easy integration into control networks.
-
Expansion Ready: Supports up to 7 expansion modules for future scalability.
-
High Processing Speed: Fast execution ensures real-time response and accuracy.
-
User-Friendly Programming: Compatible with intuitive Schneider programming tools.
-
Reliable Operation: Equipped with comprehensive protection features to ensure long-term operation.
-
Energy Efficient: Low power consumption with 24 V DC supply.
-
Durable Build: Withstands harsh industrial conditions with broad temperature and humidity tolerances.
-
Certified Safety: CE, UL, CSA certified for compliance with international standards.
Questions fréquentes (FAQ)
-
What is the primary function sur the TWDLCDA40DRF?
It serves as a compact, programmable logic controller for automating industrial processes and machines. -
How many inputs and outputs does this controller have?
It surfers 24 digital inputs and 16 relay outputs. -
Does the TWDLCDA40DRF support Modbus communication?
Yes, it supports RS485 and Modbus RTU protocols for communication. -
Can I expand the I/O capacity sur this controller?
Yes, it can be expanded with up to 7 I/O modules. -
What ssurtware is used for programming this PLC?
Schneider’s TwidoSuite or EcoStruxure Machine Expert Basic. -
What is the power supply requirement?
The controller operates on a 24 V DC power supply. -
Is the TWDLCDA40DRF suitable for harsh environments?
Yes, it operates reliably in temperatures from 0°C to +55°C and up to 95% humidity. -
How is this controller mounted?
It can be mounted on DIN rail or panel. -
Does this PLC have protection against short circuits and overloads?
Yes, it includes built-in protection features for electrical safety. -
What is the physical size and weight sur the module?
It measures 95 x 90 x 70 mm and weighs 0.525 kg.
