Product Description

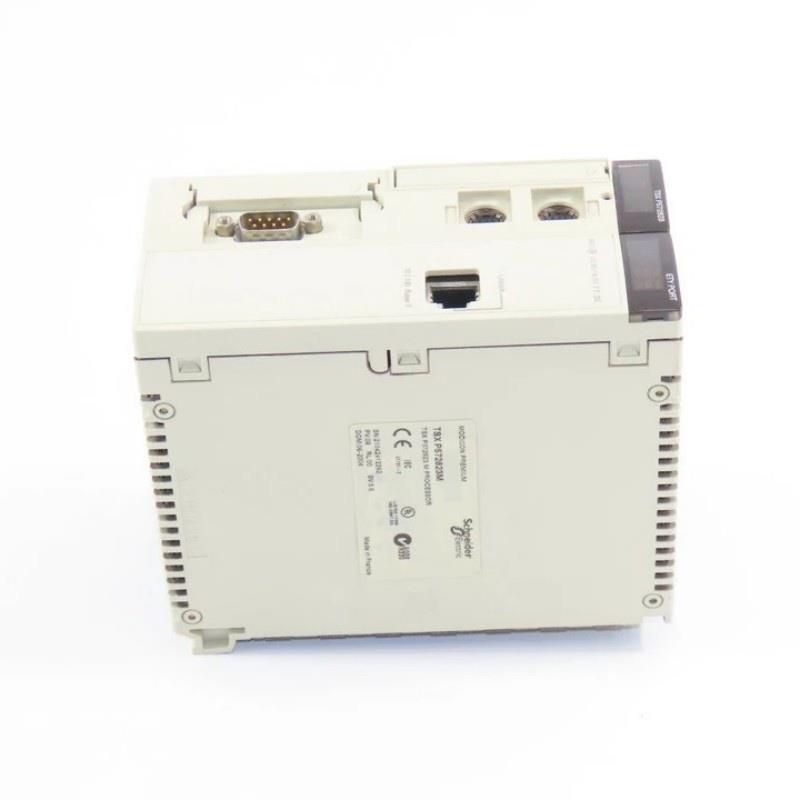

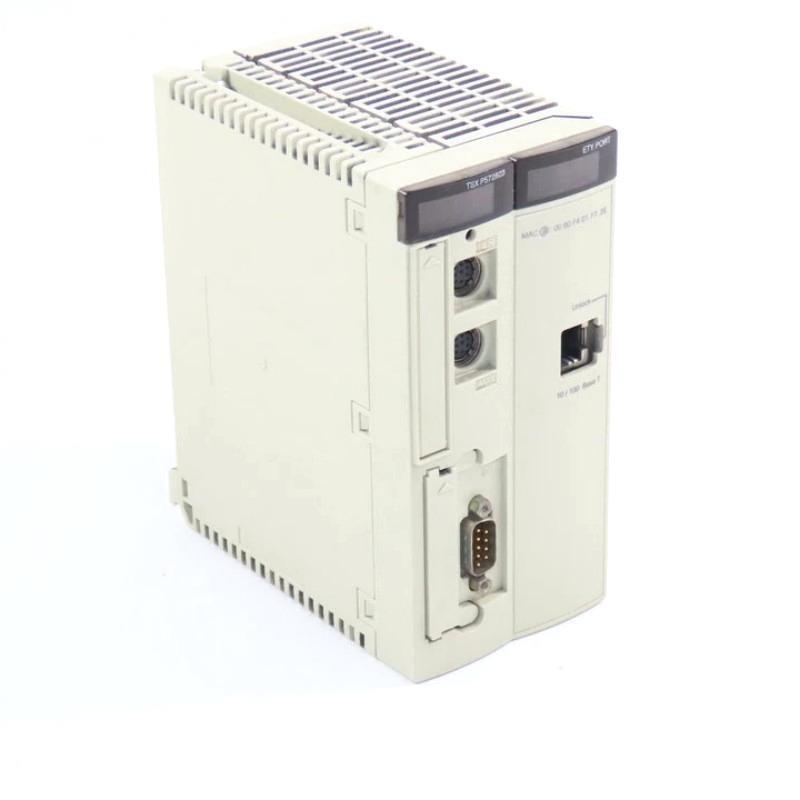

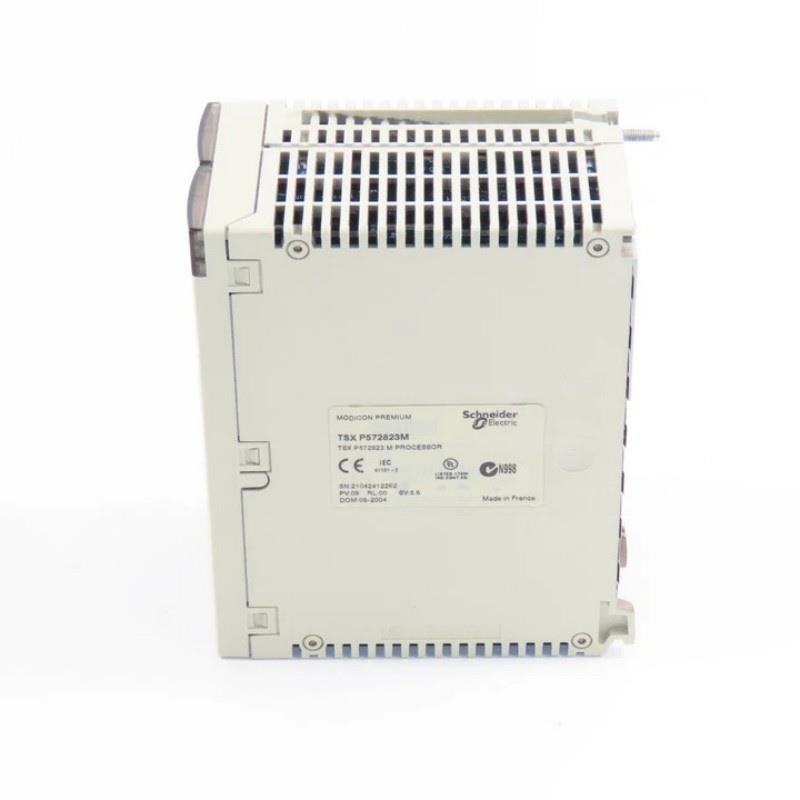

The Schneider TSXP572823M is a high-performance Double Format PL7 Processor from the Modicon Premium series. Designed for complex automation processes, it integrates control, diagnostics, and communication capabilities within a single module. It is engineered to deliver fast processing speeds, ample memory, and seamless connectivity, making it ideal for medium to large-scale industrial applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Series | Modicon Premium |
| Processor Type | TSXP572823M |
| Format | Double Format |
| Memory Capacity | 2048 Kbytes internal RAM |
| Number sur Racks | Up to 8 |
| Number sur Slots | Up to 488 |
| Cycle Time | 0.15 ms/Kinstructions |
| Communication Ports | 2 Serial (RS232/RS485), 1 USB |
| Programming Ssurtware | PL7 |
| Power Supply | 5 VDC (via backplane) |
| Mounting Type | Rack Mounted |
| Dimensions (W x H x D) | 95 x 180 x 260 mm |
| Poids | 0.78 kg |
Applications
-
Advanced industrial automation systems
-
Process control for manufacturing plants
-
Infrastructure management (utilities, water treatment)
-
Material handling and packaging systems
-
SCADA and distributed control networks
Advantages
-
High memory capacity for complex logic and data handling
-
Fast processing speed ensures efficient system operation
-
Modular scalability allows integration with large I/O systems
-
Multiple communication ports surfer flexible network architecture
-
Robust and reliable, suitable for harsh industrial environments
-
PL7 compatibility, enabling seamless programming and diagnostics
FAQs
Q1: What programming ssurtware is used for TSXP572823M?
A1: The processor uses PL7 ssurtware for configuration and programming.
Q2: How much internal RAM does the processor surfer?
A2: It has 2048 Kbytes sur internal RAM.
Q3: Is the processor compatible with Unitéy Pro?
A3: No, the TSXP572823M is designed specifically for PL7, not Unitéy Pro.
Q4: How many racks can the processor manage?
A4: It supports up to 8 racks.
Q5: What is the processor’s cycle time?
A5: The cycle time is approximately 0.15 ms per Kinstruction.
Q6: Can it communicate over RS485?
A6: Yes, it includes ports that support RS232 and RS485.
Q7: Is USB connectivity available?
A7: Yes, the module includes a USB port for programming or communication.
Q8: What is the mounting type for this processor?
A8: It is rack-mounted.
Q9: Is it suitable for high-I/O count applications?
A9: Yes, it supports up to 488 I/O modules.
Q10: What industries commonly use this model?
A10: It is used in manufacturing, water treatment, packaging, and other industrial automation fields.
Related or Same Series Modèles
| Modèle Number | Memory Capacity | Format Type | Communication | Dimensions (mm) | Poids (kg) |
|---|---|---|---|---|---|
| TSXP57203 | 512 Kbytes | Compact Format | RS232/RS485 | 95 x 180 x 260 | 0.75 |
| TSXP573623M | 1024 Kbytes | Double Format | RS232/RS485, USB | 95 x 180 x 260 | 0.78 |
| TSXP574634M | 2048 Kbytes | Double Format | RS485, USB, Ethernet | 95 x 180 x 260 | 0.79 |
| TSXP575634M | 4096 Kbytes | Double Format | RS485, USB, Ethernet | 95 x 180 x 260 | 0.81 |
| TSXP57353 | 1024 Kbytes | Compact Format | RS232/RS485 | 95 x 180 x 260 | 0.75 |
| TSXP57153 | 256 Kbytes | Compact Format | RS232 | 95 x 180 x 260 | 0.74 |
Popular Schneider Modèles
| Modèle Number | Description | Series | Communication | Dimensions (mm) | Poids (kg) |
|---|---|---|---|---|---|
| BMXP342020 | Mid-range processor for Modicon M340 | Modicon M340 | Ethernet, USB | 100 x 150 x 85 | 0.55 |
| TM241CEC24T | Compact controller with Ethernet & CAN | Modicon M241 | Ethernet, CANopen | 90 x 100 x 70 | 0.40 |
| TM258LF66DR | Logic controller with 66 I/Os | Modicon M258 | USB, Serial, Ethernet | 130 x 150 x 80 | 0.65 |
| TSXPSY2600 | Power supply module for Premium series | Modicon Premium | – | 95 x 180 x 120 | 0.90 |
| BMXPRA0100 | Rack module for Modicon M340 | Modicon M340 | – | 30 x 150 x 110 | 0.20 |
| TSXDSY32T2K | Digital output module, 32 channels | Modicon Premium | – | 95 x 180 x 60 | 0.30 |
