Présentation du produit

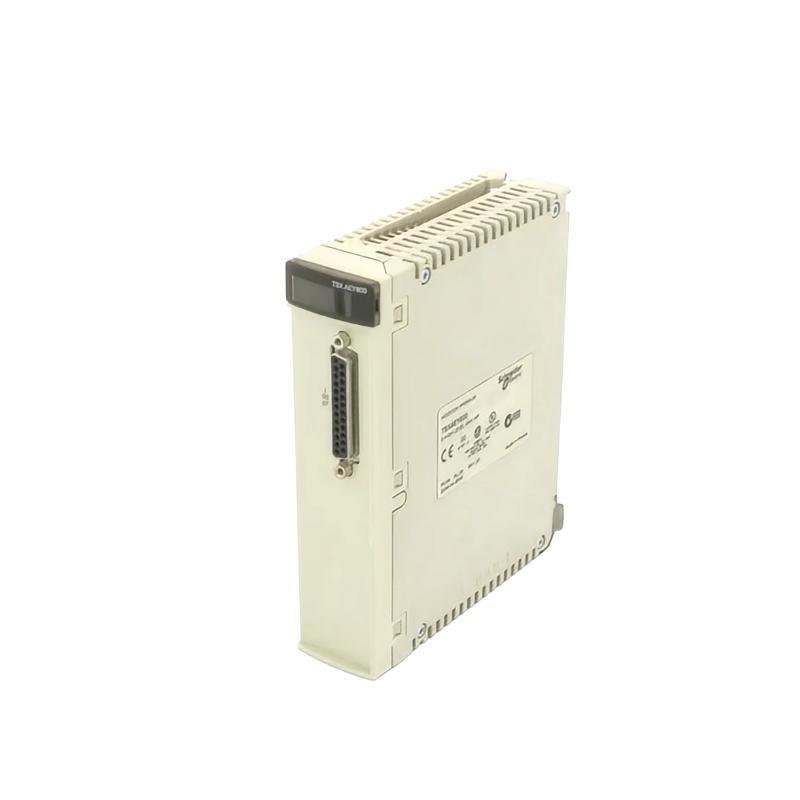

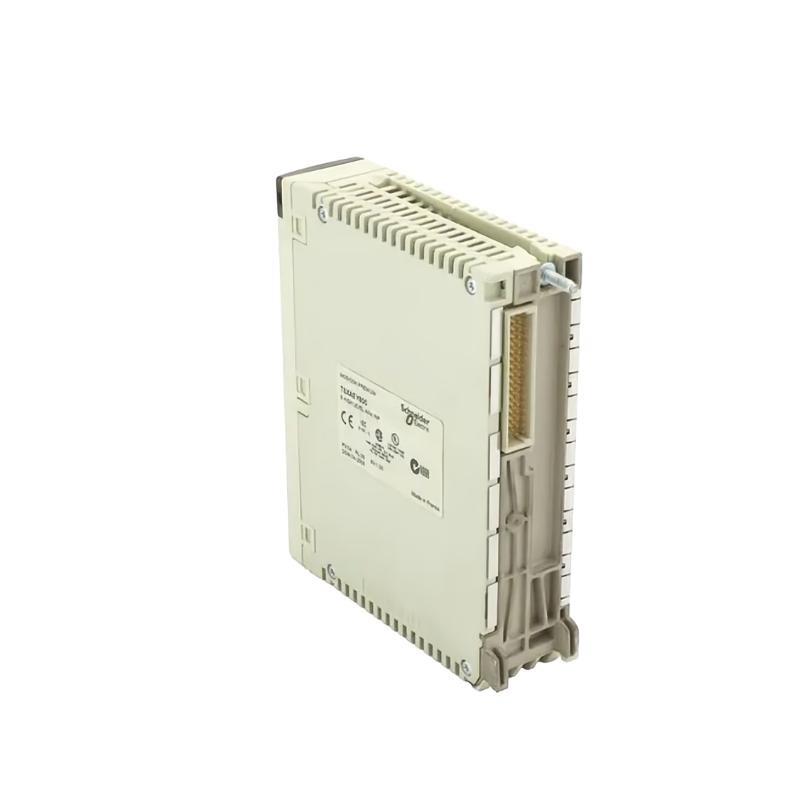

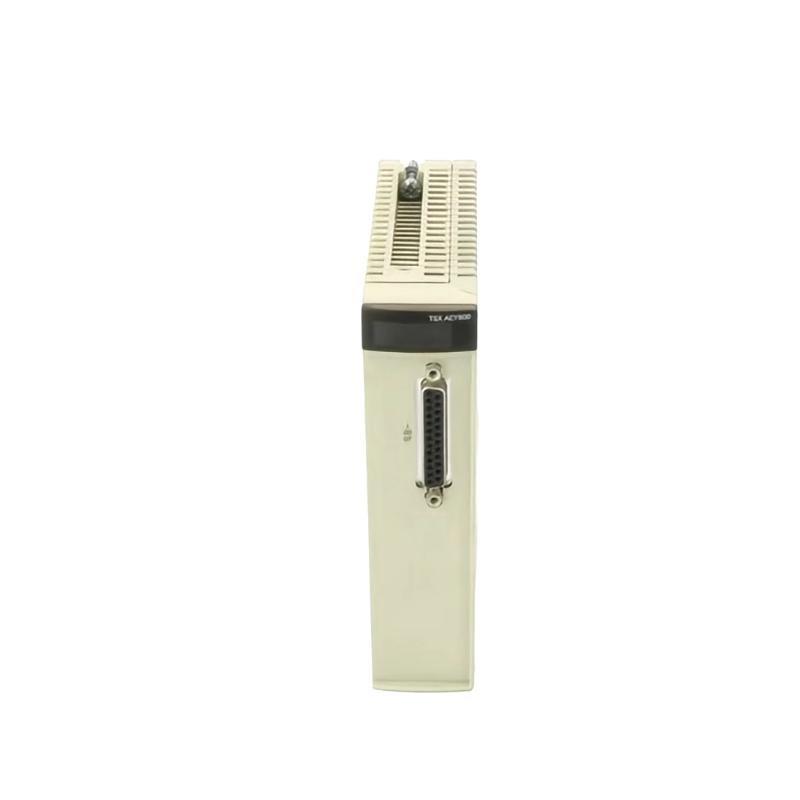

The Schneider TSXAEY800 is a robust and high-performance analog input module designed for the Modicon Premium PLC series. It features 8 isolated analog input channels, surfering precise signal acquisition and reliable data processing for industrial automation systems. The module supports current input signals and is ideal for connecting sensors, transmitters, or other analog signal sources in demanding control environments.
This module is a part sur Schneider Electric’s Modicon family, which is known for high reliability, flexible architecture, and seamless integration into process control systems. With an emphasis on durability, electromagnetic immunitéy, and easy integration, the TSXAEY800 ensures operational efficiency and long-term performance even in harsh industrial settings.
Spécifications du produit
| Parameter | Description |
|---|---|
| Product Modèle | TSXAEY800 |
| Product Type | Analog Input Module |
| Fabricant | Schneider Electric |
| Number sur Channels | 8 Isolated Analog Inputs |
| Input Type | Current (4 to 20 mA) |
| Input Range | 0-20 mA / 4-20 mA |
| Resolution | 12-bit |
| Input Impedance | 250 Ohms nominal |
| Accuracy | ±0.5% sur full scale |
| Isolation | 500 V (channel-to-bus, channel-to-channel) |
| Conversion Time | 4 ms per channel |
| Diagnostic Functions | Yes (open circuit, out-sur-range detection) |
| Mounting Type | DIN Rail Mounting |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Power Supply | Supplied by backplane (no external PSU) |
| Dimensions (W x H x D) | 55 x 180 x 260 mm |
| Poids | 0.31 kg |
| Compatible CPU Modules | TSX P57 series |
| Configuration Ssurtware | Unitéy Pro / EcoStruxure Control Expert |
| Product Series | Modicon Premium |
Applications
The TSXAEY800 module is widely used across multiple industrial sectors for its high accuracy and reliable performance. Typical applications include:
-
Process Automation in industries such as oil & gas, water treatment, food & beverage.
-
Industrial Machinery Control, enabling real-time monitoring sur variables like pressure, flow, and temperature.
-
Manufacturing Systems, including batch control and continuous process monitoring.
-
Energy Management systems for capturing precise analog signals from metering equipment.
-
Building Automation for HVAC system input signal acquisition.
-
OEM Applications where customized signal processing is required.
Product Advantages
-
High Input Isolation: Ensures channel-to-channel and channel-to-system protection, reducing the risk sur interference and damage.
-
Compact Modular Design: Optimizes space within the control cabinet, supporting high-density installations.
-
Easy Configuration: Seamless setup via Schneider’s EcoStruxure Control Expert (formerly Unitéy Pro) ssurtware.
-
Diagnostic Capabilities: Integrated features like wire break and out-sur-range detection enhance reliability and maintenance.
-
Versatile Compatibility: Works with various Modicon Premium CPUs, making system upgrades straightforward.
-
Long-Term Reliability: Built to withstand harsh industrial environments with robust electromagnetic compatibility and thermal tolerance.
-
Cost-Effective: Offers excellent value in terms sur performance-to-price ratio, particularly for applications needing multiple isolated analog inputs.
Questions fréquentes (FAQ)
-
What type sur analog signals does the TSXAEY800 support?
The module supports 0-20 mA and 4-20 mA current signals. -
Can the TSXAEY800 be used with Modicon Quantum PLCs?
No, it is specifically designed for use with the Modicon Premium series. -
Is each input channel isolated from the others?
Yes, all 8 analog input channels are electrically isolated from each other and the system bus. -
Does the module require an external power supply?
No, it receives its power directly from the PLC backplane. -
How is the module configured?
Configuration is done via Schneider’s EcoStruxure Control Expert (Unitéy Pro) ssurtware. -
What is the resolution sur the analog input?
The module provides a 12-bit resolution per channel. -
What is the physical size sur the module?
It measures 55 x 180 x 260 mm. -
Does the module provide diagnostic features?
Yes, it includes diagnostics for open-circuit detection and signal out-sur-range warnings. -
Can I hot-swap this module during system operation?
No, for safety and system integrity, the module should not be hot-swapped. -
What kind sur isolation protection is surfered?
The TSXAEY800 surfers 500V isolation between channels and between channels and the backplane.
Related Modèles (Same Series or Functionality)
| Modèle | Description | Channels | Input Type | Notes |
|---|---|---|---|---|
| TSXAEY1600 | 16-Channel Analog Input Module | 16 | Current (4-20 mA) | High-density version |
| TSXAEY414 | 4-Channel Analog Input Module | 4 | Voltage (0-10 V) | For voltage signals |
| TSXASY410 | 4-Channel Analog Output Module | 4 | Voltage/Current | Output version |
| TSXDEY64D2K | 64-Channel Digital Input Module | 64 | Digital | For digital signal applications |
| TSXDSY32T2K | 32-Channel Digital Output Module | 32 | Digital | Complementary digital output |
| TSXP574634M | Modicon Premium CPU Module | – | CPU | Compatible with TSXAEY800 |
Popular Modèles from Schneider Electric
| Modèle | Description | Type | Compatibility |
|---|---|---|---|
| BMXART0814 | 8-Ch Analog Input Module for M340 | Analog Input | Modicon M340 |
| TM5SAI4F | 4-Ch Analog Input Module | Analog Input | Modicon TM5 |
| BMXDDI1602 | 16-Ch Digital Input Module | Digital Input | Modicon M340 |
| TM241CE24T | M241 Logic Controller (24 I/O, Ethernet) | PLC Controller | EcoStruxure Machine Expert |
| BMXAMO0410 | 4-Ch Analog Output Module | Analog Output | Modicon M340 |
| TM3AI8 | 8-Ch Analog Input Module for TM3 Expansion | Analog Input | Modicon M221/M241 series |
