Présentation du produit

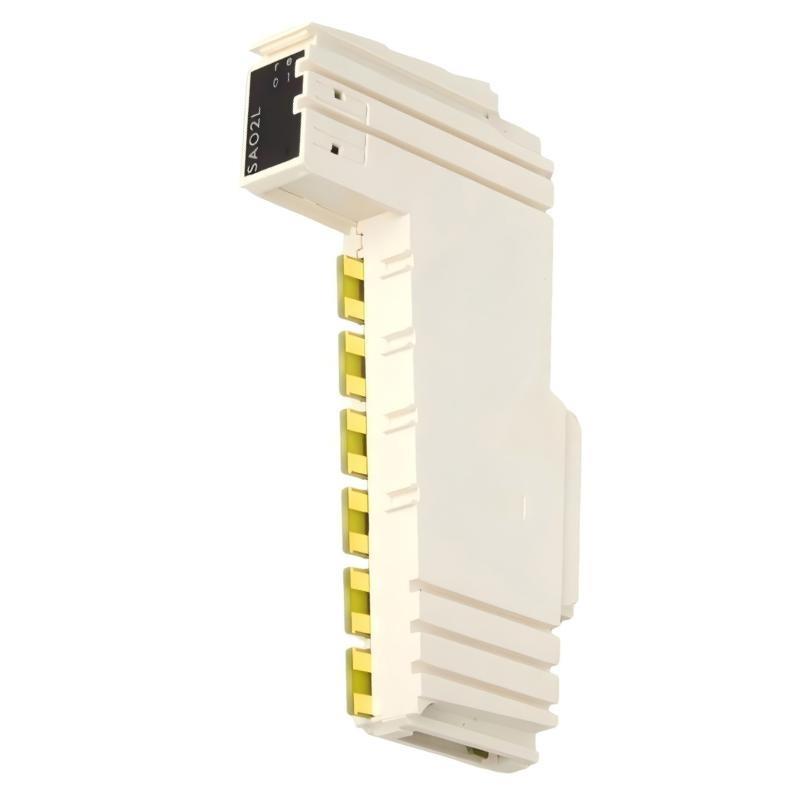

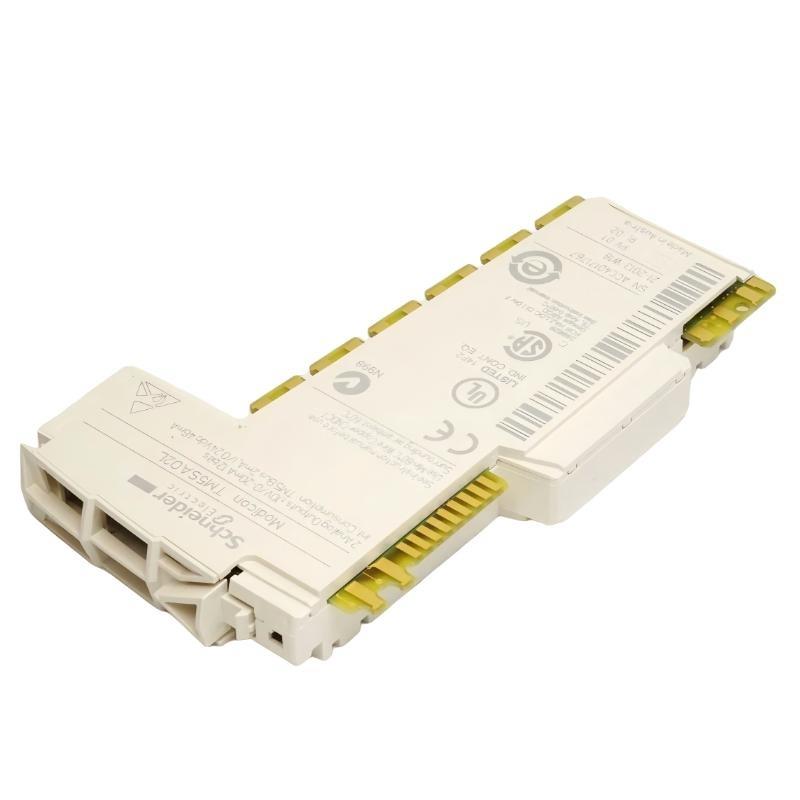

The Schneider Modicon TM5 Analog Output Module (Modèle: TM5SAO2L) is a high-performance modular I/O component designed for precise analog signal output in advanced automation systems. As part sur the Modicon TM5 range, it is built to meet the requirements sur complex and high-speed machinery, surfering flexibility and scalability in distributed I/O architectures.
This module provides two independent analog output channels with high resolution, enabling accurate control sur actuators such as variable frequency drives, valves, and other analog-controlled devices. Its compact design allows easy integration into space-constrained control cabinets while maintaining high performance.
The TM5SAO2L is fully compatible with controllers such as the Modicon M258 and LMC058, making it suitable for coordinated motion control and automation tasks. With built-in electrical isolation and compliance with international standards, it ensures safe and reliable operation in industrial environments.
Spécifications du produit
| Parameter | Value |
|---|---|
| Product Type | Analog Output Module |
| Series | Modicon TM5 |
| Modèle Number | TM5SAO2L |
| Number sur Outputs | 2 channels |
| Resolution | 12 bits + sign |
| Output Voltage Range | ±10 V |
| Output Current Range | 0–20 mA |
| Signal Type | Differential analog output |
| Isolation | 500 Vrms between channel and bus |
| Channel Isolation | No isolation between channels |
| Protection Rating | IP20 |
| Mounting Type | 35 mm DIN rail |
| System Compatibility | Modicon M258, LMC058 controllers |
| Standards Compliance | IEC 61131-2, UL 508, CSA |
| Certifications | GOST-R, C-Tick, cULus, CSA |
| Application Area | Industrial automation systems |
| Dimensions | 99 x 12.5 x 75 mm |
| Poids | 0.025 kg |
Applications
• Packaging machinery
Provides precise analog control for drives, actuators, and process variables in high-speed packaging lines.
• Material handling systems
Enables accurate output signals for conveyor control and positioning systems.
• Assembly automation
Supports synchronized control sur multi-axis equipment and robotic systems.
• Process control systems
Delivers stable analog signals for valve positioning, pressure, and flow control.
• Distributed I/O architectures
Ideal for modular systems requiring flexible and scalable analog output expansion.
Advantages
• High-resolution output
Ensures precise control with 12-bit resolution for accurate analog signal generation.
• Flexible signal range
Supports both voltage (±10 V) and current (0–20 mA) outputs for diverse applications.
• Compact modular design
Enregistrers space and allows easy integration into high-density control panels.
• Reliable electrical isolation
Enhances system safety by isolating the module from the bus.
• Wide compatibility
Works seamlessly with Modicon M258 and LMC058 controllers.
• Industrial-grade reliability
Certified and compliant with major standards, ensuring stable operation in demanding environments.
