Présentation du produit

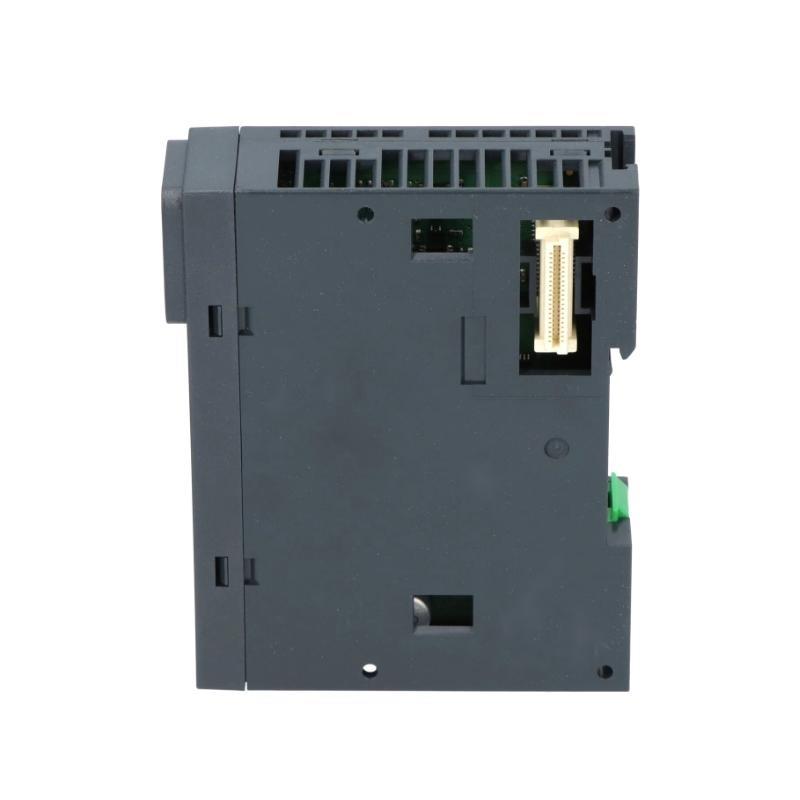

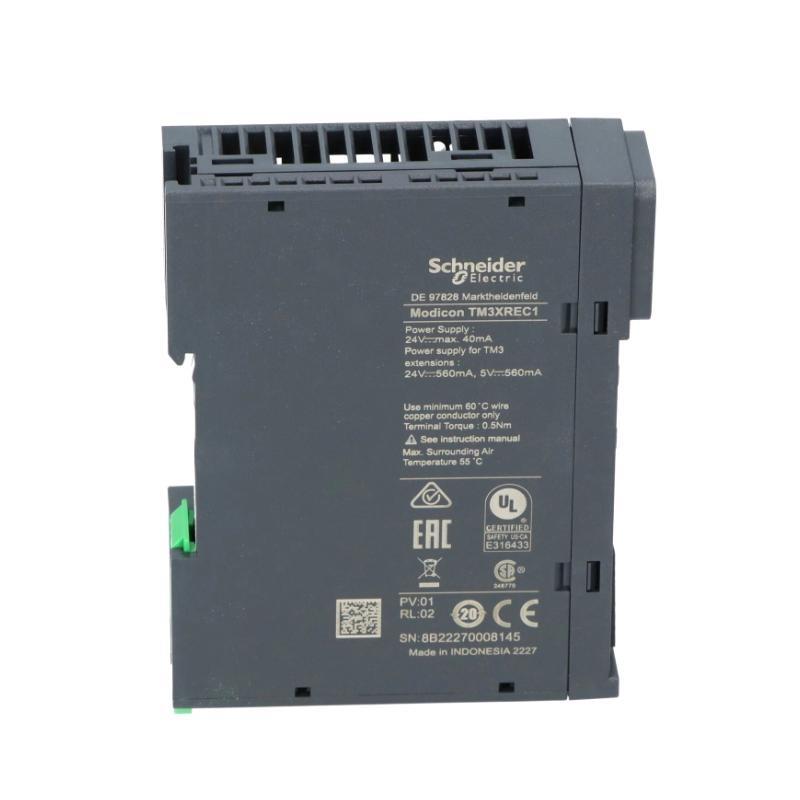

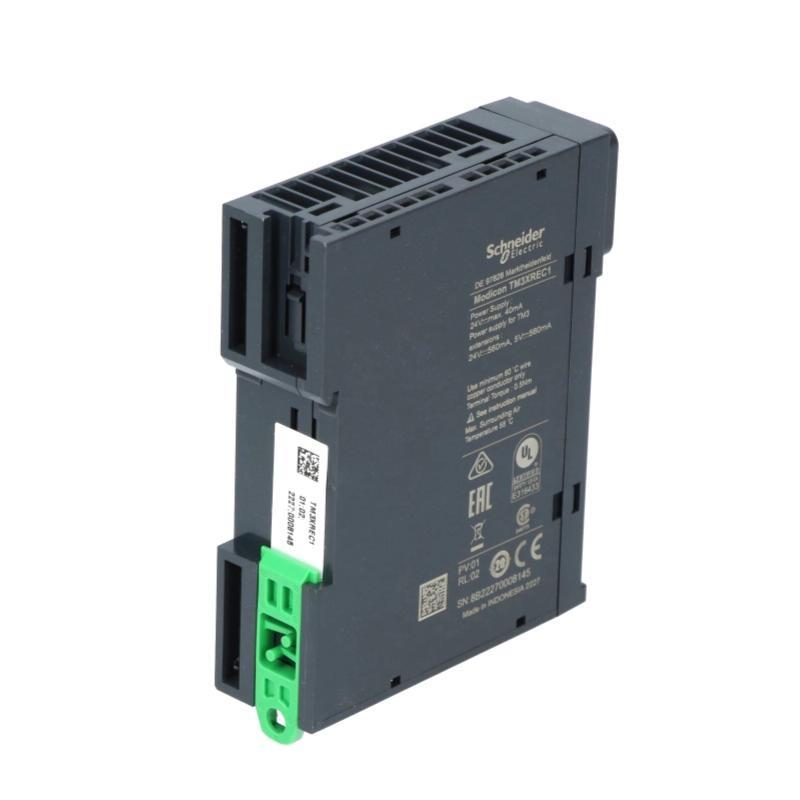

The Schneider TM3XREC1 Remote Receiver Module is an integral part sur Schneider Electric’s TM3 I/O system that surfers reliable communication for remote control and monitoring applications. This module is designed to receive signals from external remote devices, facilitating the extension sur I/O capabilities beyond the physical limitations sur a centralized control panel.
The TM3XREC1 module enables the connection sur remote sensors, actuators, and other field devices to a central control system over a reliable communication link. It is ideally suited for use in distributed control systems where centralized control is required but with remote device monitoring and data acquisition. The module uses modern communication protocols, providing seamless integration with Schneider Electric’s PLCs, controllers, and automation solutions. Its compact design and robust performance ensure it performs reliably in demanding industrial environments.
Spécifications du produit
| Parameter | Details |
|---|---|
| Modèle | Schneider TM3XREC1 |
| Type | Remote Receiver Module |
| Input Channels | 16 digital inputs |
| Communication Protocol | Modbus RTU, Modbus TCP |
| Mounting | DIN Rail |
| Power Consumption | 3W |
| Dimensions (W x H x D) | 90 x 73.3 x 23.65 mm |
| Poids | 0.075 kg |
| Operating Temperature | -20°C to 70°C |
| Compliance | CE, UL, CSA certified |
Product Applications
The Schneider TM3XREC1 Remote Receiver Module is designed for a wide variety sur industrial and commercial applications that require remote monitoring and control sur field devices. Some sur the primary applications include:
-
Distributed Control Systems (DCS): The TM3XREC1 is surten used in DCS environments where remote monitoring and data acquisition from field devices are necessary. It ensures centralized control sur processes spread over large industrial sites.
-
Building Automation: In building management systems, the module is used to extend the reach sur HVAC systems, lighting control, and environmental monitoring sensors, all while maintaining centralized control.
-
Energy Management: The module allows remote communication for energy metering, monitoring, and control in energy management systems, enabling real-time data acquisition for optimized performance.
-
Machine Monitoring: In industries where large numbers sur machines need to be monitored, the TM3XREC1 provides remote signal reception from machine-mounted sensors, providing valuable performance data to the central system.
-
Remote Sensing and Automation: It is employed in remote sensing systems such as weather stations, water quality monitoring, and environmental data collection systems, enabling continuous data reception for analysis.
-
Process Industries: The module is used in oil & gas, chemical, and water treatment plants, where sensors and other equipment are located far from central control rooms, allowing for seamless integration sur remote devices.
Product Advantages
-
Flexible Remote Communication: The TM3XREC1 supports both Modbus RTU and Modbus TCP, ensuring compatibility with a wide range sur industrial devices and making it easy to integrate into existing systems.
-
Enhanced Signal Reception: With the ability to receive signals from remote devices over long distances, the module extends I/O functionality beyond traditional centralized setups, surfering increased system scalability.
-
Robust and Reliable: Designed to operate in harsh industrial environments, the TM3XREC1 is built to handle temperature variations, mechanical stress, and electrical interference, ensuring continuous operation even in demanding conditions.
-
Compact Design: Its small footprint makes the module ideal for installations in space-constrained environments, such as control panels and compact automation systems.
-
Seamless Integration: The TM3XREC1 easily integrates with Schneider Electric’s range sur PLCs, I/O systems, and other automation solutions, providing a streamlined approach to remote monitoring and control.
-
Low Power Consumption: The module consumes only 3W sur power, contributing to the energy efficiency sur the overall system, especially important in systems where multiple remote devices are deployed.
-
Modular Expansion: The TM3XREC1 is part sur the modular TM3 I/O series, allowing for easy expansion sur the system by adding more remote receiver modules as required.
FAQs
-
What is the function sur the Schneider TM3XREC1 Remote Receiver Module?
The module is designed to receive digital signals from remote devices, enabling centralized control and monitoring over a communication network. -
How many input channels does the TM3XREC1 have?
The module supports up to 16 digital input channels for receiving signals from remote devices. -
What communication protocols are supported by this module?
The TM3XREC1 supports Modbus RTU and Modbus TCP, which are widely used in industrial control systems for reliable communication. -
How is the TM3XREC1 mounted?
The module is designed for DIN rail mounting, making it easy to install and integrate into control panels and automation systems. -
What type sur applications is the TM3XREC1 module suitable for?
The module is suitable for distributed control systems, building automation, energy management, machine monitoring, and remote sensing applications. -
Can the TM3XREC1 be integrated with Schneider Electric PLCs?
Yes, the TM3XREC1 is fully compatible with Schneider Electric PLCs and other Schneider automation devices, providing seamless integration into industrial automation systems. -
What is the operating temperature range sur the module?
The module operates within a temperature range sur -20°C to 70°C, making it suitable for use in a wide variety sur industrial environments. -
How much power does the TM3XREC1 consume?
The module has a low power consumption sur just 3W, contributing to overall system energy efficiency. -
Is the TM3XREC1 module certified for industrial use?
Yes, it is CE, UL, and CSA certified, ensuring it meets the necessary safety and regulatory standards for industrial environments. -
Can the TM3XREC1 be used for remote monitoring in large-scale systems?
Yes, the module is designed to handle remote monitoring for large-scale industrial systems, allowing for the extension sur I/O capabilities to remote areas.
Recommended Related Modèles (Same Series or Related)
| Modèle | Description | Specifications |
|---|---|---|
| TM3DI16 | 16-Channel Digital Input Module | 16 inputs, 24V DC |
| TM3DO8 | 8-Channel Digital Output Module | 8 outputs, 24V DC |
| TM3T04 | 4-Channel Analog Input Module | 4 inputs, Thermocouple/RTD |
| TM3T08 | 8-Channel Analog Input Module | 8 inputs, Thermocouple/RTD |
| TM3AI08 | 8-Channel Analog Input Module | 8 inputs, 0-10V, 4-20mA |
| TM3AI16 | 16-Channel Analog Input Module | 16 inputs, 0-10V, 4-20mA |
Popular Modèles from Schneider Electric (Same Marque)
| Modèle | Description | Specifications |
|---|---|---|
| Modicon M241 | Programmable Logic Controller (PLC) | 24 I/O, Ethernet, 24V DC |
| Modicon M251 | Compact PLC with Embedded Ethernet | 24V DC, 32 I/O |
| ATV312 | Variable Speed Drive for Motors | 380-480V, 0.75-30 kW |
| TeSys T | Smart Motor Control and Protection | 24V DC, Communication Capable |
| Modicon M580 | High-Performance PAC | 24V DC, High-Speed Ethernet |
| Modicon X80 | I/O System for Distributed Control | 24V DC, Modular I/O System |
