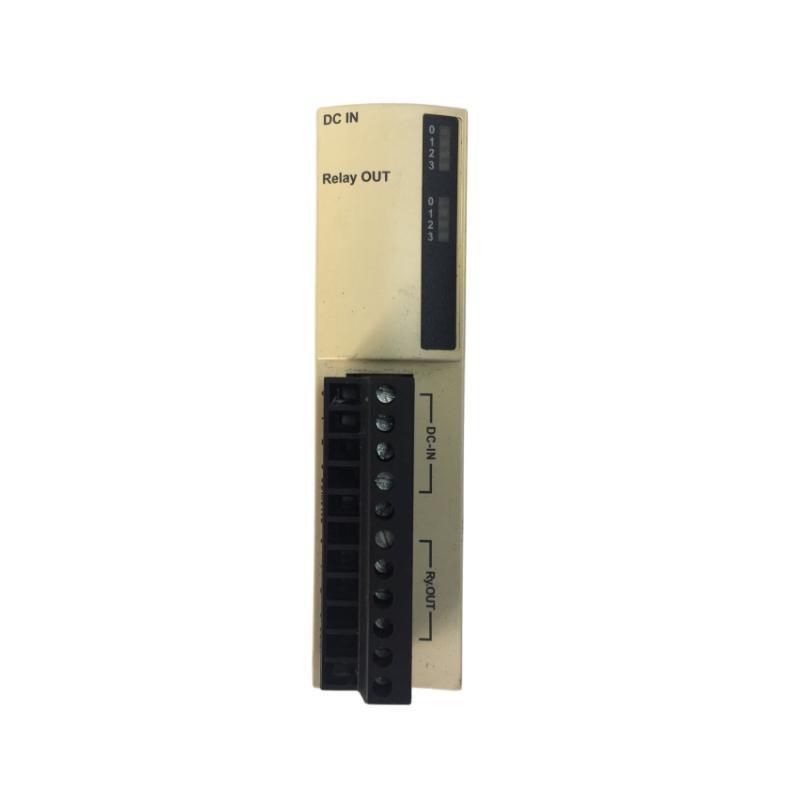

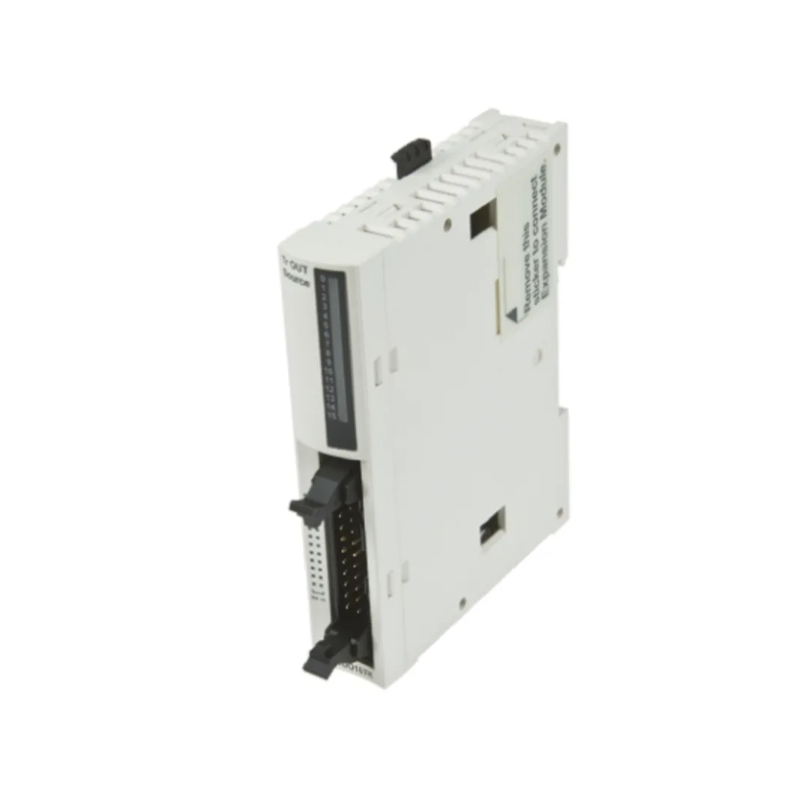

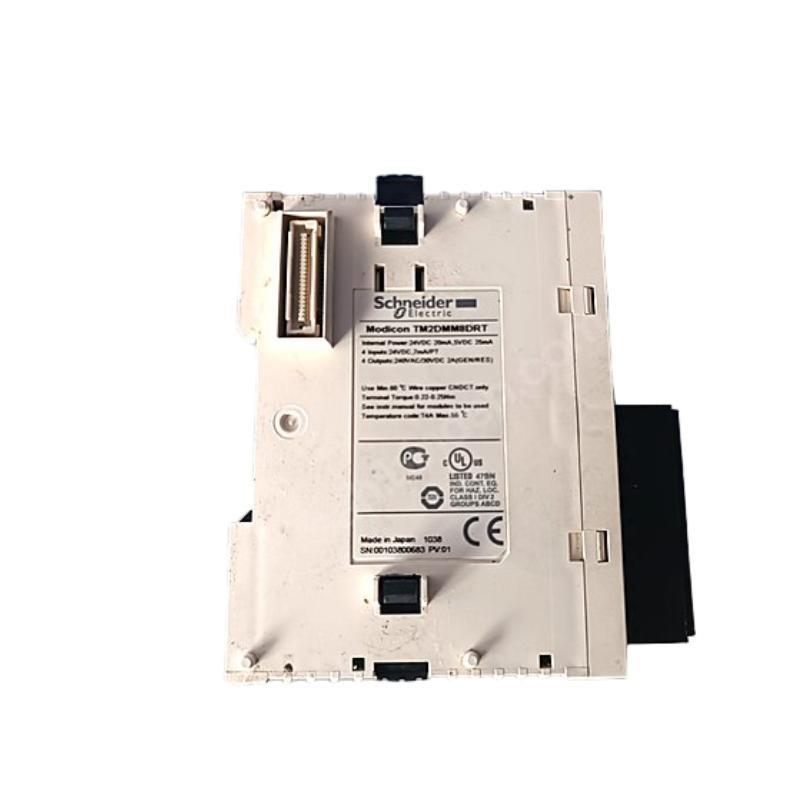

Schneider TM2DMM8DRT Product Overview
The Schneider TM2DMM8DRT is a high-performance digital I/O module from the Telemecanique TM2 series, designed for industrial automation applications. This module surfers reliable and precise control, making it ideal for a wide range sur industrial environments. It is compatible with Modbus communication protocols and integrates seamlessly with Schneider Electric’s programmable logic controllers (PLCs).
Spécifications du produit
| Parameter | Value |
|---|---|
| Modèle Number | TM2DMM8DRT |
| Type | Digital I/O Module |
| Number sur Inputs | 8 digital inputs |
| Number sur Outputs | 8 relay outputs |
| Input Voltage | 24V DC |
| Output Type | Relay (NO/NC) |
| Communication | Modbus RTU |
| Dimensions | 84.6x 27.3x 90mm |
| Poids | 0.0895kg |
| Operating Temp. | -25°C to +70°C |
| Protection Rating | IP20 |
| Mounting | DIN rail |
Product Applications
The TM2DMM8DRT is widely used in industrial automation systems, including:
-
Manufacturing lines: For controlling conveyor belts, robotic arms, and assembly machines.
-
Building automation: Managing lighting, HVAC systems, and access control.
-
Energy management: Monitoring and controlling power distribution unités.
-
Water treatment plants: Automating pump controls and valve operations.
-
Material handling: Enabling efficient warehouse automation.
Product Advantages
-
High Reliability: Built with industrial-grade components for long-term durability.
-
Easy Integration: Compatible with Automate Schneiders and Modbus networks.
-
Compact Design: Enregistrers space in control cabinets.
-
Flexible Configuration: Supports both NO (Normally Open) and NC (Normally Closed) relay outputs.
-
Wide Temperature Range: Operates efficiently in harsh environments.
-
Quick Installation: DIN rail mounting simplifies setup.
Questions fréquentes (FAQ)
-
What is the input voltage range for the TM2DMM8DRT?
The module operates at 24V DC. -
Can this module be used with non-Automate Schneiders?
Yes, it supports Modbus RTU, making it compatible with third-party controllers. -
What is the maximum load current for relay outputs?
Each relay supports up to 5A at 250V AC or 30V DC. -
Is the TM2DMM8DRT suitable for outdoor use?
No, its IP20 rating means it should be installed in protected enclosures. -
How many modules can be connected in a single system?
Up to 32 modules can be daisy-chained via Modbus. -
Does it support hot-swapping?
No, power must be disconnected before installation or removal. -
What is the response time for inputs and outputs?
Inputs respond within 10ms, and relays switch within 15ms. -
Can the relay outputs handle inductive loads?
Yes, but external suppression may be required for high inductive loads. -
Is ssurtware required for configuration?
Yes, Schneider’s EcoStruxure or similar Modbus configuration tools are needed. -
What is the warranty period?
Schneider typically surfers a 1-year warranty for industrial modules.
Recommended Related & Popular Modèles
Same Series (TM2 Family)
| Modèle | Description | Key Features |
|---|---|---|
| TM2DMM16DRT | 16-relay output module | 16 NO/NC relays, Modbus RTU |
| TM2DIM8DT | 8-digital input module | 24V DC inputs, compact design |
| TM2AMI4HT | 4-channel analog input | 0-10V/4-20mA, high accuracy |
| TM2AMO2HT | 2-channel analog output | 0-10V/4-20mA output, isolated |
| TM2DMM32DRT | 32-relay output module | High-density relay control |
| TM2DM8RKT | 8-relay output with diagnostics | LED status indicators, Modbus TCP |
Popular Schneider Modèles (Autres Series)
| Modèle | Description | Key Features |
|---|---|---|
| Modicon M221 | Compact PLC | Embedded Ethernet, 24 I/O |
| Altivar ATV320 | Variable speed drive | 0.75-15kW, modular design |
| Harmony XB5R | Push-button interface | IP65-rated, backlit buttons |
| TeSys D Green | Contactor | Energy-efficient, 9-32A range |
| Zelio Logic SR2 | Smart relay | 12 I/O, intuitive programming |
| Magelis HMI | Touchscreen panel | 7”-15”, VGA resolution |
