Présentation du produit

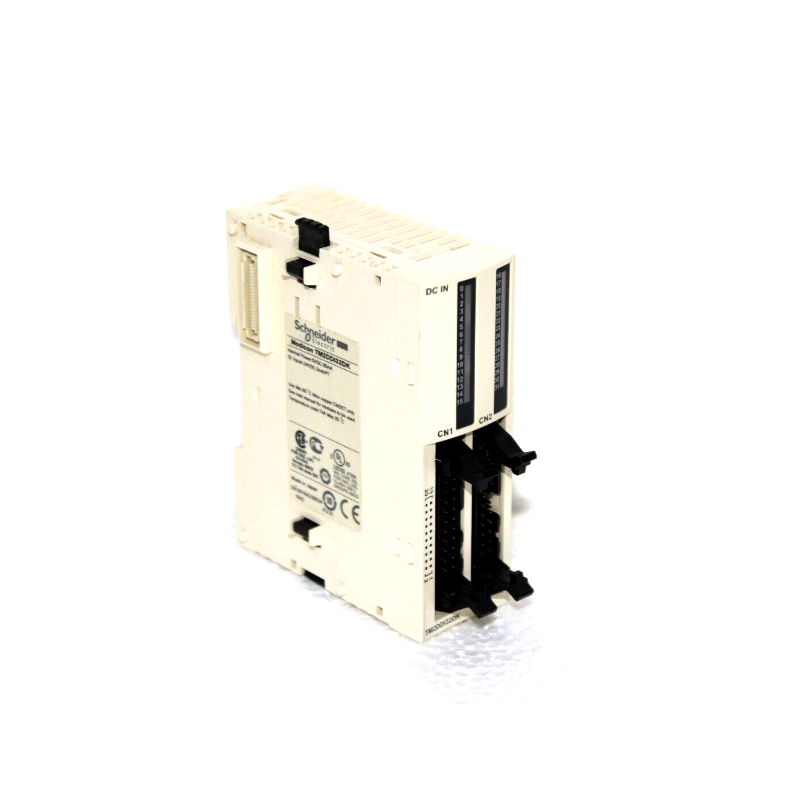

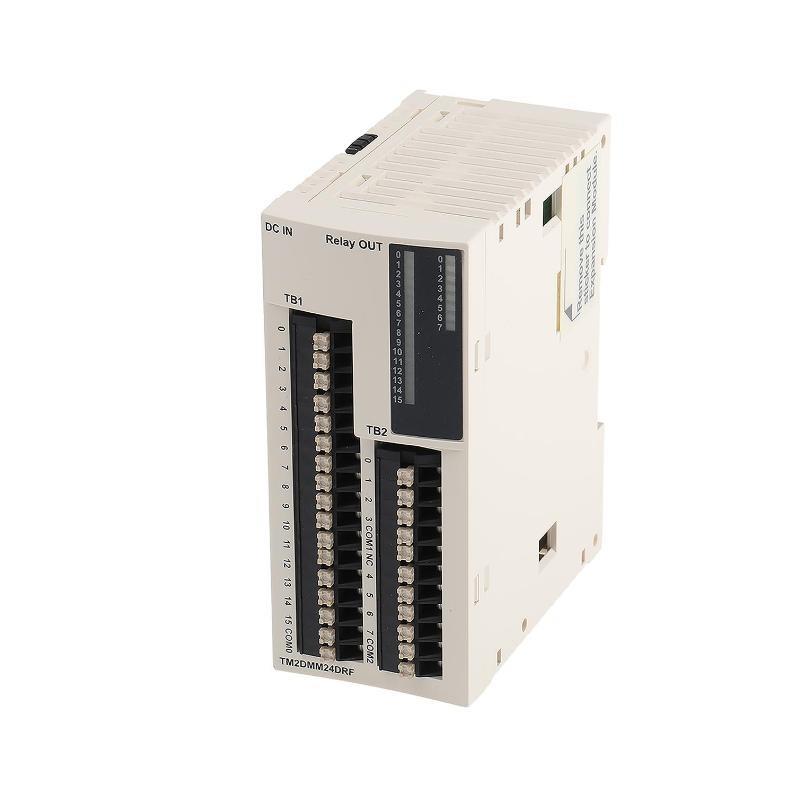

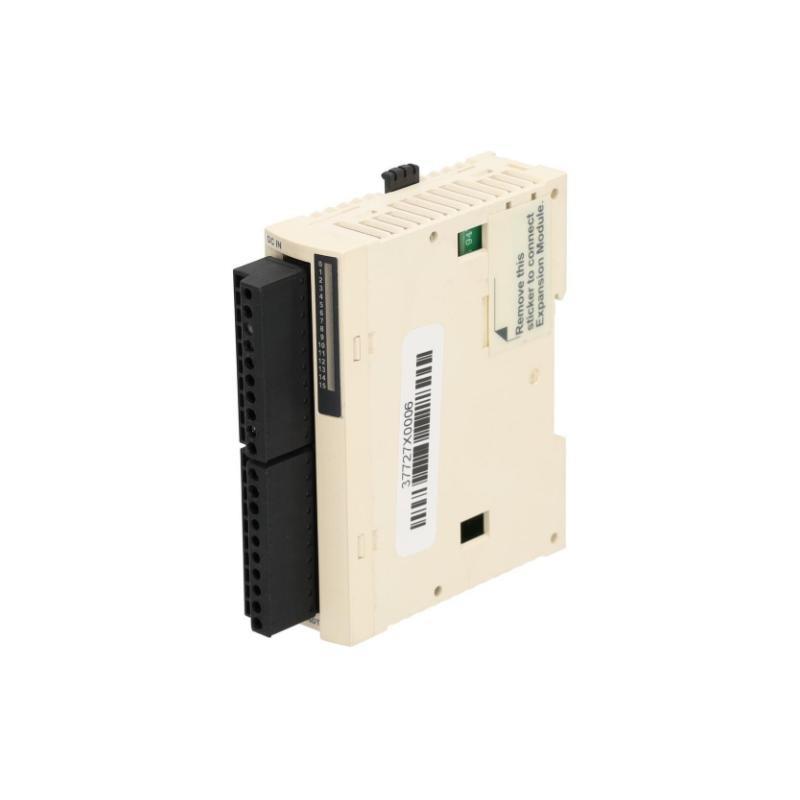

The Schneider TM2DMM240RF is a high-performance digital mixed module designed for industrial automation applications. It is part sur Schneider Electric’s TM2 modular I/O system, which surfers flexibility and reliability for machine control and process automation. This module combines analog and digital functionalities, making it ideal for complex control systems where space and efficiency are critical.
The TM2DMM240RF is engineered to meet rigorous industrial standards, ensuring durability and consistent performance in harsh environments. Its compact design and easy integration with other TM2 modules make it a preferred choice for engineers and system integrators.
Product Parameters
| Parameter | Specification |
|---|---|
| Product Type | Digital Mixed Module |
| Input Channels | 16 digital inputs (24V DC) |
| Output Channels | 8 digital outputs (24V DC, 0.5A) |
| Analog Channels | 4 analog inputs (0-10V, 4-20mA) |
| Communication | Modbus RTU, RS-485 |
| Power Supply | 24V DC (±10%) |
| Operating Temp. | -25°C to +70°C |
| Storage Temp. | -40°C to +85°C |
| Humidity | 5% to 95% (non-condensing) |
| Dimensions | 90x 70x 42.9mm |
| Poids | 0.14kg |
| Protection Rating | IP20 |
| Certifications | CE, UL, cUL |
Product Applications
The TM2DMM240RF is widely used in industrial automation scenarios, including:
-
Manufacturing Lines: For controlling sensors, actuators, and motors.
-
Process Automation: Monitoring and regulating analog signals in chemical or food processing.
-
HVAC Systems: Managing temperature and pressure inputs.
-
Material Handling: Integrating with conveyor systems and robotic arms.
-
Energy Management: Monitoring power consumption and load distribution.
Product Advantages
-
Versatility: Combines digital and analog I/O in a single module, reducing hardware complexity.
-
Compact Design: Enregistrers panel space while surfering high channel density.
-
Robust Construction: Built to withstand industrial environments with wide temperature tolerance.
-
Easy Integration: Compatible with Schneider’s Modicon M221/M241 PLCs and other TM2 modules.
-
Cost-Effective: Reduces wiring and installation costs due to modularity.
-
Reliable Communication: RS-485 support ensures stable data transmission in noisy environments.
FAQ (Questions fréquentes)
-
What is the maximum current per digital output?
Each output supports up to 0.5A. -
Can this module be used with non-Automate Schneiders?
Yes, if the PLC supports Modbus RTU protocol. -
Is the analog input configurable for voltage or current?
Yes, it accepts both 0-10V and 4-20mA signals. -
What is the response time for digital inputs?
Typically <1ms. -
Does it support daisy-chaining for multiple modules?
Yes, via RS-485 communication. -
What is the power consumption sur the module?
Approximately 5W under full load. -
Is there ssurtware required for configuration?
Yes, Schneider’s EcoStruxure Machine Expert is recommended. -
Can it operate in high-vibration environments?
Yes, it meets IEC 60068-2-6 vibration standards. -
Are the analog inputs isolated?
No, they share a common ground. -
What is the warranty period?
Standard 1-year warranty from Schneider Electric.
Recommended Related & Popular Modèles
| Related Modèles (Same Series) | Description |
|---|---|
| TM2DMM160RF | 8 digital inputs, 8 digital outputs, 2 analog inputs |
| TM2AMM6HT | 6 analog inputs (thermocouple/RTD) |
| TM2DDO8TK | 8 digital outputs (transistor) |
| TM2DDI16DK | 16 digital inputs (24V DC) |
| TM2ARI8HT | 8 analog inputs (RTD/thermocouple) |
| TM2AVO2HT | 2 analog outputs (voltage/current) |
| Popular Schneider Modèles | Description |
|---|---|
| Modicon M221 PLC | Compact logic controller for small machines |
| Altivar ATV320 Drive | Variable speed drive for motors |
| Telemecanique XPSMC Safety Relay | Safety module for emergency stops |
| Harmony XB5 Push Button | Industrial push button with LED |
| Magelis HMI GXO3500 | Touchscreen panel for operator interface |
| Acti9 iC60 Circuit Breaker | Miniature circuit breaker for protection |
