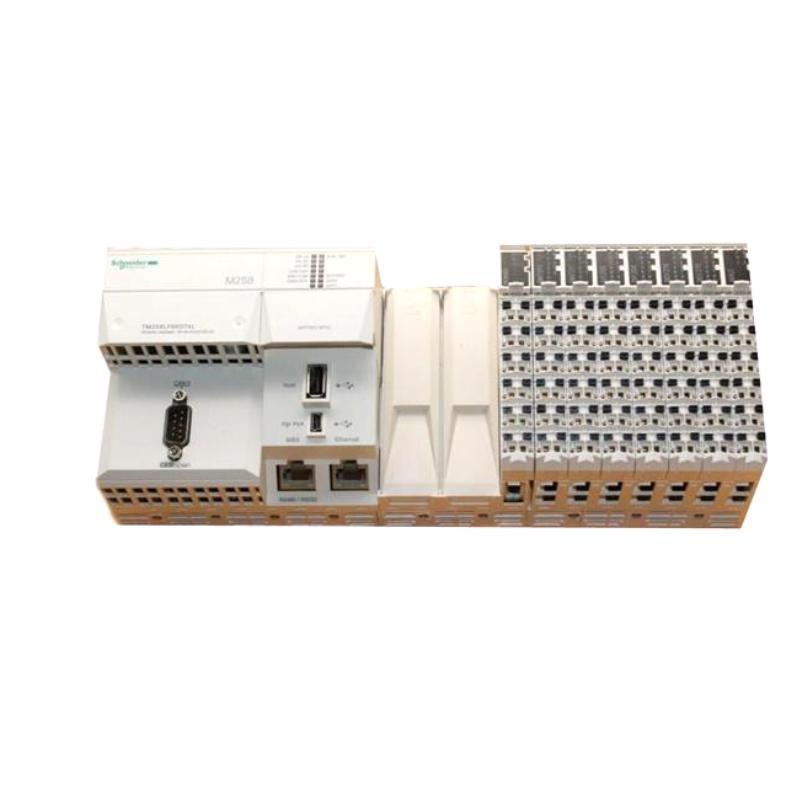

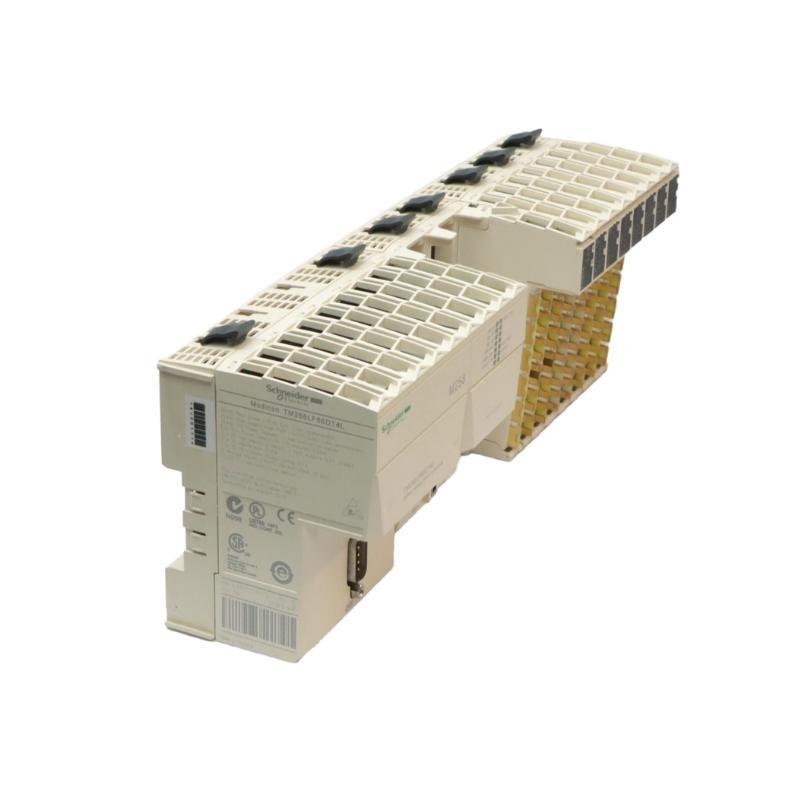

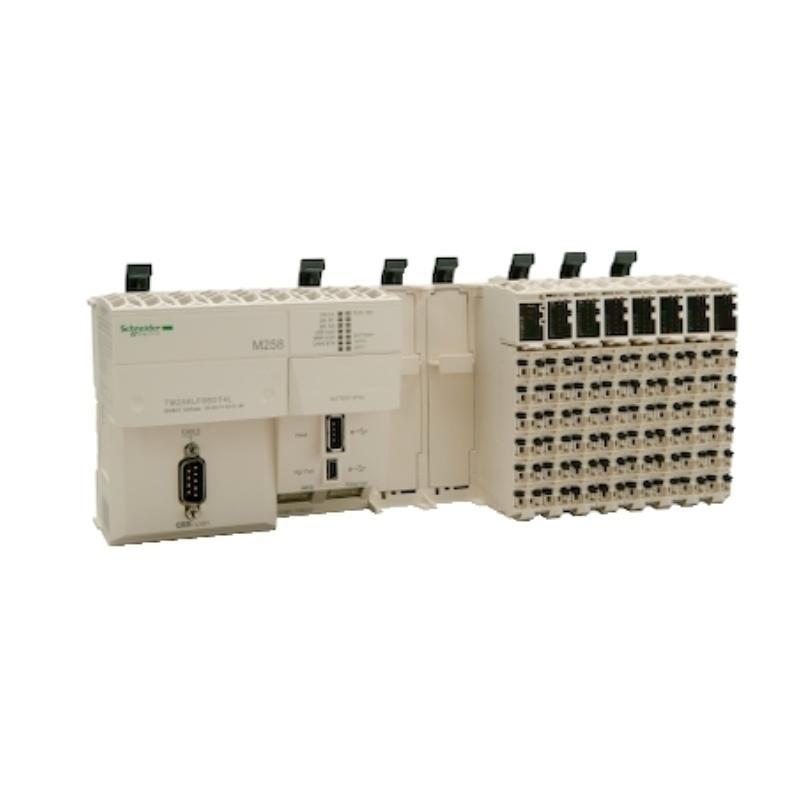

Schneider TM258LF66DT4L Product Overview
The Schneider TM258LF66DT4L is a high-performance modular controller from the Modicon M258 Logic Controller series. Designed for industrial automation applications, it surfers advanced processing capabilities, robust communication options, and flexible I/O configurations. This controller is ideal for complex machinery, packaging systems, and process control applications.
Product Parameters
| Parameter | Specification |
|---|---|
| Modèle | TM258LF66DT4L |
| Processor | 32-bit ARM Cortex-A9 |
| Memory | 64 MB RAM, 128 MB Flash |
| Digital I/O | 24 inputs, 16 outputs (configurable) |
| Analog I/O | 4 analog inputs, 2 analog outputs |
| Communication | Ethernet, USB, CAN, Serial ports |
| Programming | SoMachine/SoMachine Basic |
| Operating Voltage | 24 V DC (19.2–28.8 V) |
| Power Consumption | 8 W (typical) |
| Operating Temp. | -20°C to +60°C |
| Storage Temp. | -40°C to +85°C |
| Humidity | 5–95% (non-condensing) |
| Dimensions | 262.5x 99x 85mm |
| Poids | 0.8 kg |
| Certifications | CE, UL, cUL, IEC 61131-2 |
Product Applications
The TM258LF66DT4L is widely used in:
-
Industrial Automation: Control sur production lines, robotic systems, and CNC machines.
-
Packaging Machinery: High-speed labeling, filling, and sealing systems.
-
Process Control: Monitoring and regulation sur temperature, pressure, and flow.
-
Material Handling: Conveyor systems, sorting machines, and AGVs.
-
Energy Management: Smart grid and renewable energy systems.
Product Advantages
-
High Performance: 32-bit processor ensures fast execution sur complex logic.
-
Modular Design: Easy expansion with additional I/O modules.
-
Versatile Communication: Supports Ethernet, CAN, and serial protocols.
-
Robust Construction: Designed for harsh industrial environments.
-
User-Friendly Programming: Compatible with SoMachine/SoMachine Basic.
-
Energy Efficient: Low power consumption reduces operational costs.
Questions fréquentes (FAQ)
-
What programming ssurtware is used for the TM258LF66DT4L?
SoMachine or SoMachine Basic is required for configuration and programming. -
Can I expand the I/O capacity sur this controller?
Yes, additional I/O modules can be added via the built-in expansion ports. -
What is the maximum operating temperature?
It operates reliably between -20°C and +60°C. -
Does it support Ethernet/IP communication?
Yes, it supports Ethernet/IP for seamless integration with SCADA and HMI systems. -
Is the TM258LF66DT4L suitable for safety-critical applications?
While robust, it is not SIL or PL-rated. For safety applications, consider dedicated safety controllers. -
What is the warranty period for this product?
Schneider Electric typically surfers a 1-year warranty, subject to terms and conditions. -
Can it be used in outdoor environments?
Only if installed in an enclosure rated for outdoor use (IP65 or higher). -
How many analog inputs/outputs are available?
It has 4 analog inputs and 2 analog outputs by default. -
What is the backup method for program storage?
Programs are stored in non-volatile flash memory and can be backed up via USB. -
Is training available for programming this controller?
Schneider Electric surfers training courses for SoMachine and related ssurtware.
Recommended Related Modèles
| Series/Type | Modèle | Key Features |
|---|---|---|
| Modicon M258 | TM258LF42DT4L | 16 DI/16 DO, 2 AI, 1 AO, Ethernet |
| Modicon M258 | TM258LF42DT4 | 16 DI/16 DO, 2 AI, 1 AO, no Ethernet |
| Modicon M258 | TM258LF66DT | 24 DI/16 DO, 4 AI, 2 AO, no Ethernet |
| Modicon M258 | TM258LF42DT | 16 DI/16 DO, 2 AI, 1 AO, basic model |
| Modicon M258 | TM258LF66DT4 | 24 DI/16 DO, 4 AI, 2 AO, with Ethernet |
| Modicon M258 | TM258LF42DT4L | 16 DI/16 DO, 2 AI, 1 AO, with Ethernet |
