Présentation du produit

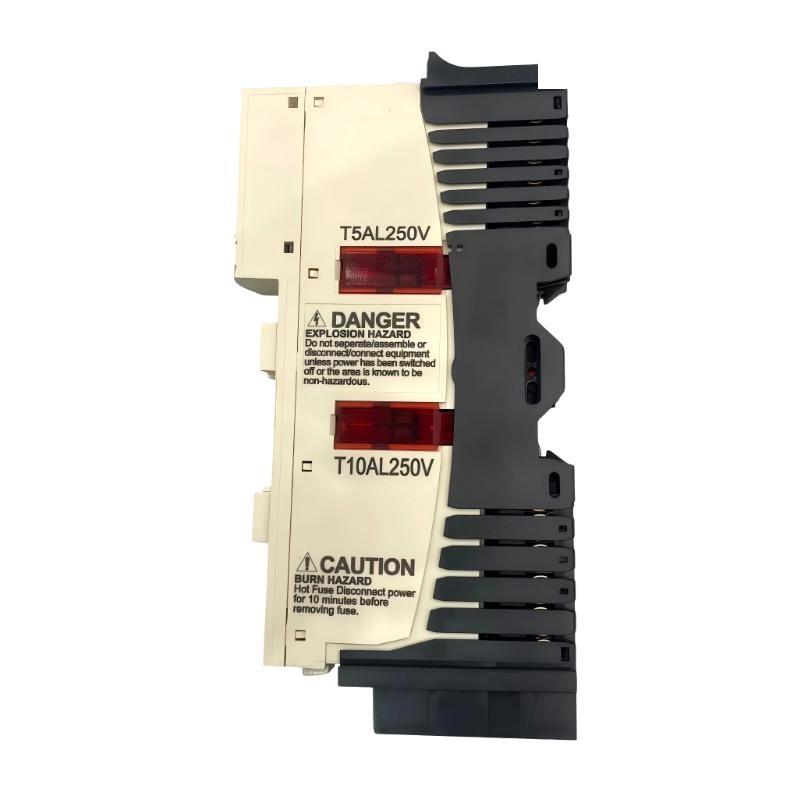

The Schneider Electric STBPDT3100K is a standard power distribution kit within the Modicon STB range, designed for modular distributed I/O systems. It provides a reliable and structured solution for power distribution in decentralized automation architectures while supporting hot swapping with illegal fallback protection.
This kit is engineered to ensure stable power delivery to distributed I/O stations and to support a wide range sur industrial fieldbus networks. With its compact design and integrated diagnostic indicators, the STBPDT3100K enhances system reliability, simplifies installation, and improves operational transparency in machine control environments.
As part sur the Modicon STB ecosystem, this power distribution kit contributes to flexible and scalable automation system design.
Spécifications du produit
| Parameter | Description |
|---|---|
| Product Name | Standard Power Distribution Kit |
| Modèle Number | STBPDT3100K |
| Product Range | Modicon STB |
| System Type | Modular distributed I/O |
| Function | Power distribution |
| Hot Swap Support | Yes, with illegal fallback |
| Compatible Networks | Most major industrial fieldbus networks |
| Permissible Current | 30 A for 2 minutes |
| Grounding Terminal | Integrated |
| Voltage Detection Threshold | < 15 V ±1 DC (LED ON) / ≥ 15 V ±1 DC (LED OFF) |

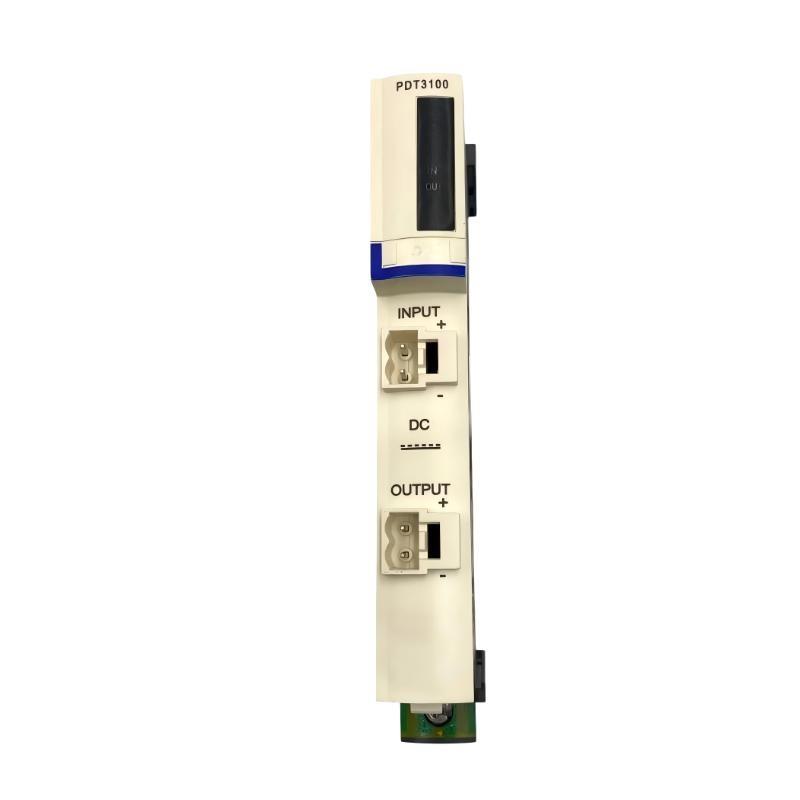

| Diagnostic Indicators | DC IN / OUT LED |
| Protection Rating | IP20 |
| Mounting Base Compatibility | STBXBA2200 |

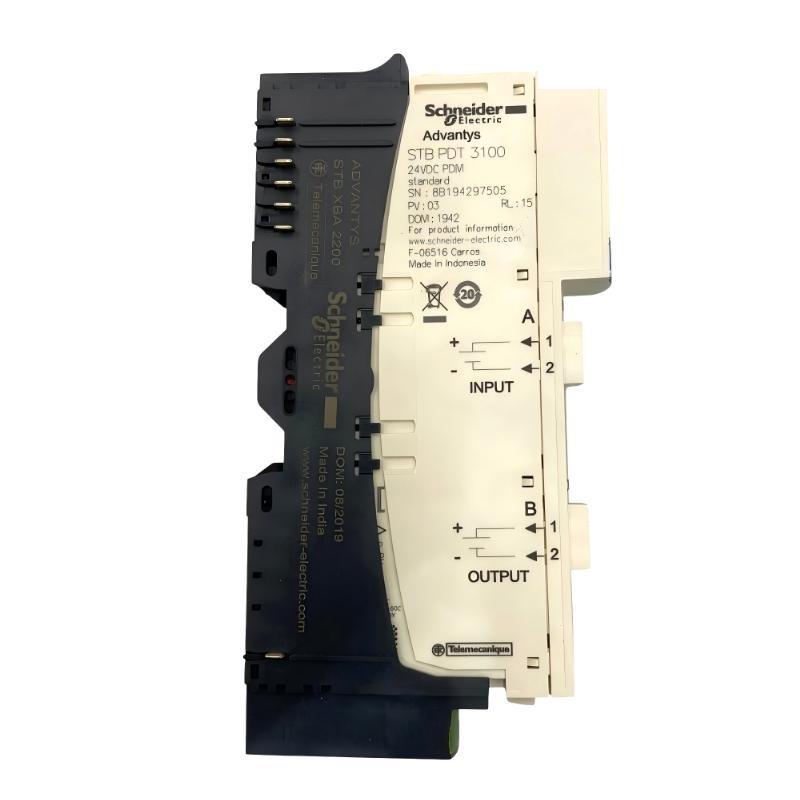

| Included Components | STBPDT2100 module, STBXBA2200 base, STBXTS2130 spring connectors, STBXTS1130 screw connectors |
| Certifications | FM Class 1 Division 2, CE, UL, CSA |
| Typical Environment | Industrial control cabinet |
| Dimensions | 125 × 65.1 × 18.4 mm |
| Poids | 0.13 kg |
Product Applications
The STBPDT3100K standard power distribution kit is widely used in distributed automation systems requiring reliable power management:
-
Modular distributed I/O architectures
-
Packaging and bottling machines
-
Assembly and production lines
-
Distribution and logistics systems
-
Textile and printing machinery
-
Semiconductor manufacturing equipment
Its compatibility with multiple fieldbus networks makes it suitable for diverse industrial machine control applications.
Product Advantages
• Integrated Power Distribution Solution
Combines module, base, and connectors into a complete kit.
• Hot Swap Capability
Supports module replacement without system shutdown while maintaining safety.
• High Current Handling
Allows short-term current peaks up to 30 A for grounding and power stability.
• Clear Diagnostic Indication
DC IN/OUT LEDs provide immediate voltage status feedback.
• Compact and Modular Design
Optimized for space-efficient distributed I/O installations.
• Wide Network Compatibility
Supports integration with most major industrial fieldbus systems.
• Certified for Industrial Environments
Meets international safety and compliance standards.
