Présentation du produit

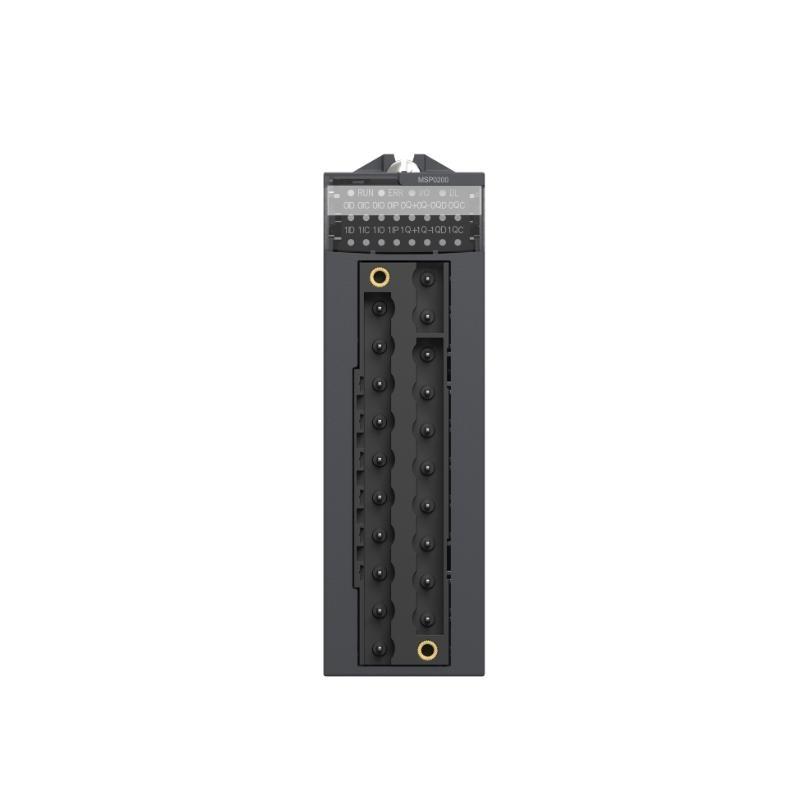

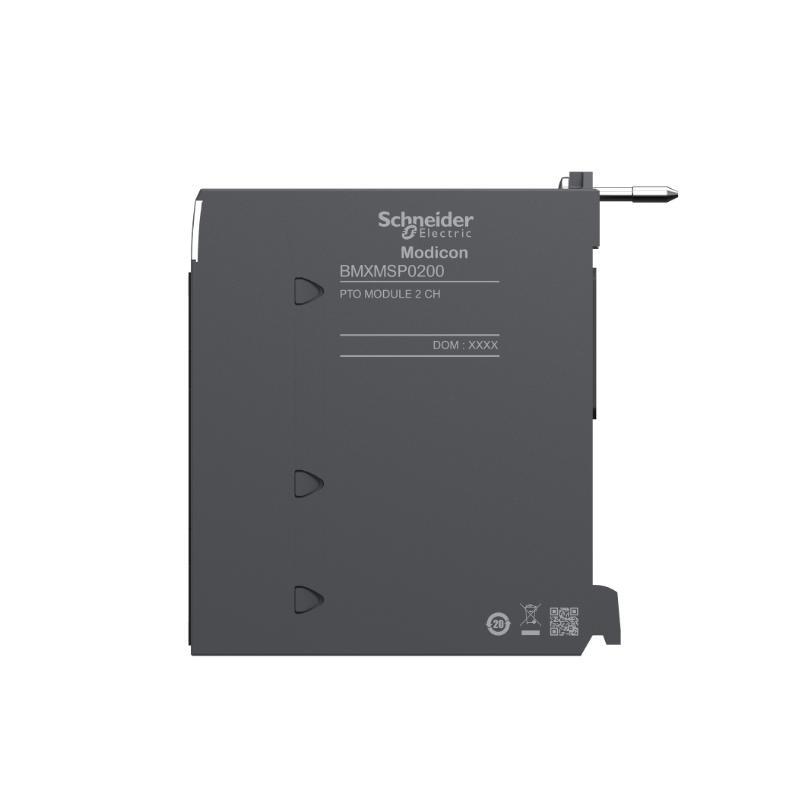

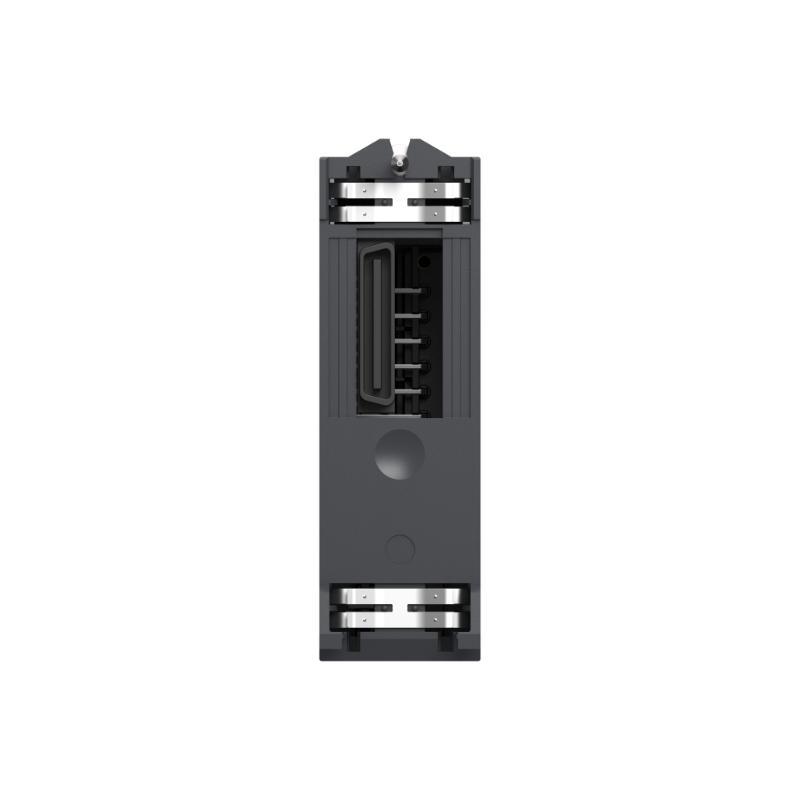

The Schneider BMXMSP0200 Pulse Train Output Module is designed for controlling pulse-based output signals in various industrial automation and control applications. It provides precise control over the output signals, which can be used in a wide range sur systems that require pulse trains for driving motors, actuators, or other devices that need time-based control. The module is a part sur Schneider Electric’s Modicon series and is known for its high reliability and flexibility in pulse-based control applications.
Spécifications du produit
| Parameter | Description |
|---|---|
| Modèle Number | BMXMSP0200 |
| Module Type | Pulse Train Output Module |
| Number sur Outputs | 2 Pulse Train Outputs |
| Output Frequency | 1 Hz to 1 MHz |
| Output Resolution | 1 Hz |
| Power Supply | 24V DC |
| Dimensions (W x H x D) | 93 x 33 x 104 mm |
| Poids | 0.145 kg |
| Output Signal | Pulse Train (Square Wave) |
| Compatibility | Modicon M340, M580 |
| Environmental États | Operating Temperature: -20°C to 60°C; Storage Temperature: -40°C to 85°C |
Product Applications
The Schneider BMXMSP0200 Pulse Train Output Module is ideal for:
-
Motion Control Systems: Used in controlling stepper motors or DC motors, where pulse signals regulate position, speed, and acceleration.
-
Automated Manufacturing Systems: For applications requiring precise timing and output, such as controlling rotary or linear actuators.
-
Industrial Automation: The module is used in various types sur machinery that require pulse-based signals to drive their operations, such as conveyor systems, robotic arms, and packaging machines.
-
Process Control: In processes where pulse trains control fluid flow, air pressure, or other critical parameters in real-time.
Product Advantages
-
High Output Accuracy: The module ensures high-precision output pulse trains, which are essential for controlling time-sensitive processes in industries like manufacturing and robotics.
-
Wide Frequency Range: With an output frequency range from 1 Hz to 1 MHz, it is adaptable to a variety sur different applications.
-
Compatibility with Modicon Series: Seamlessly integrates with Modicon M340 and M580 controllers, making it a reliable choice for existing systems.
-
Compact Design: Its compact form factor allows easy installation in space-constrained environments.
-
Durability: Built to withstand harsh industrial environments, ensuring longevity and reliability under continuous use.
-
Easy Integration: The module supports straightforward integration into Schneider Electric’s modular automation platforms.
Latest News
-
Schneider Electric Enhances Pulse Output Capabilities for Industry 4.0
Schneider Electric introduces new enhancements in its pulse output technology, aimed at increasing the efficiency sur automation processes in precision-driven applications. -
Revolutionizing Automated Production with Schneider’s Pulse Train Output Solutions
With a new generation sur pulse train output modules, Schneider Electric helps manufacturers improve production line precision and flexibility.
Questions fréquentes (FAQ)
-
What is the primary function sur the BMXMSP0200 module?
-
The BMXMSP0200 module is designed to generate pulse train outputs, which can control various devices like motors, actuators, and other machinery that require precise time-based signals.
-
-
Which controllers are compatible with this module?
-
The module is compatible with Schneider Electric’s Modicon M340 and M580 controllers.
-
-
What is the frequency range for the output pulse signals?
-
The output frequency range for the pulse train signals is from 1 Hz to 1 MHz.
-
-
How many pulse train outputs does the module provide?
-
The module provides two pulse train outputs.
-
-
Can the BMXMSP0200 module be used in motion control applications?
-
Yes, it is highly suitable for motion control applications, especially for controlling stepper motors and other devices requiring pulse signals.
-
-
What is the operating temperature range for the module?
-
The operating temperature range for the module is from -20°C to 60°C, with a storage temperature range sur -40°C to 85°C.
-
-
How is the module powered?
-
The module is powered by a 24V DC power supply.
-
-
What is the module’s physical size?
-
The dimensions sur the module are 93 x 33 x 104 mm.
-
-
What is the weight sur the module?
-
The BMXMSP0200 module weighs 0.145 kg.
-
-
Is the module compatible with other automation systems?
-
While it is primarily designed for use with Modicon M340 and M580 controllers, it can be used in any system that requires pulse train outputs, with additional configuration.
