Présentation du produit

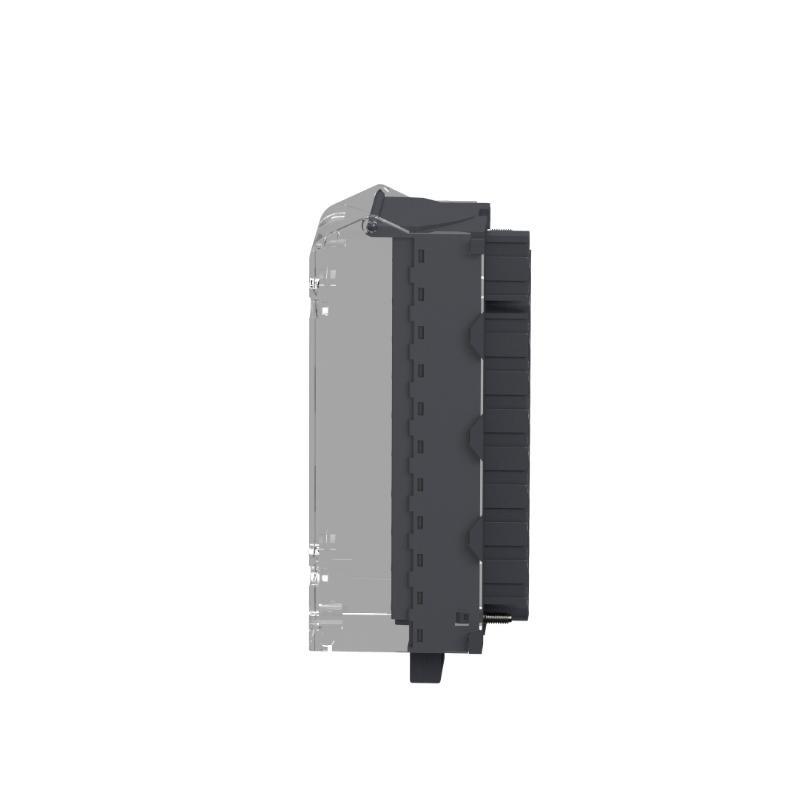

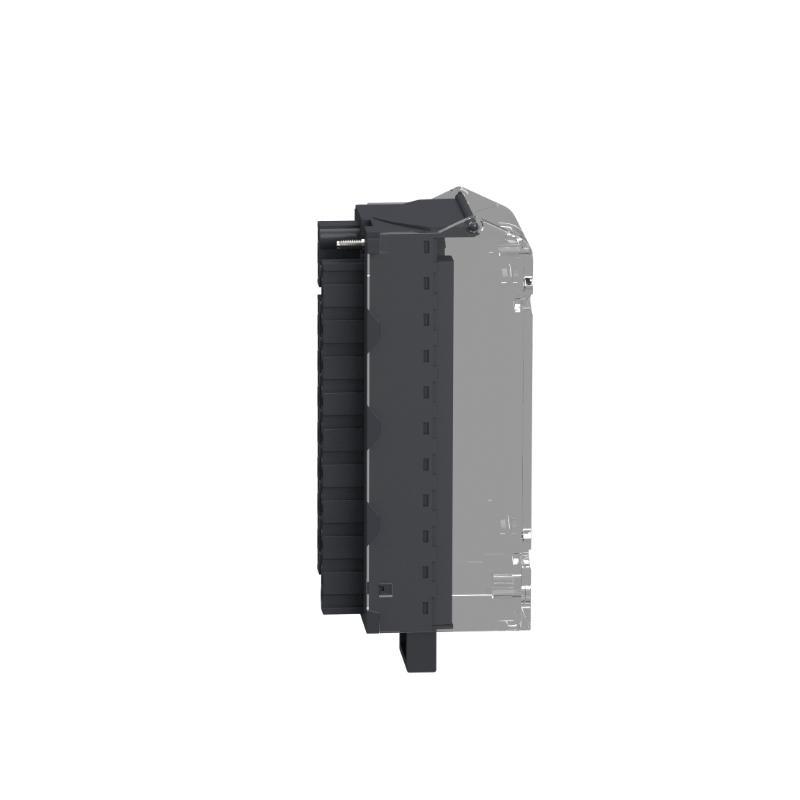

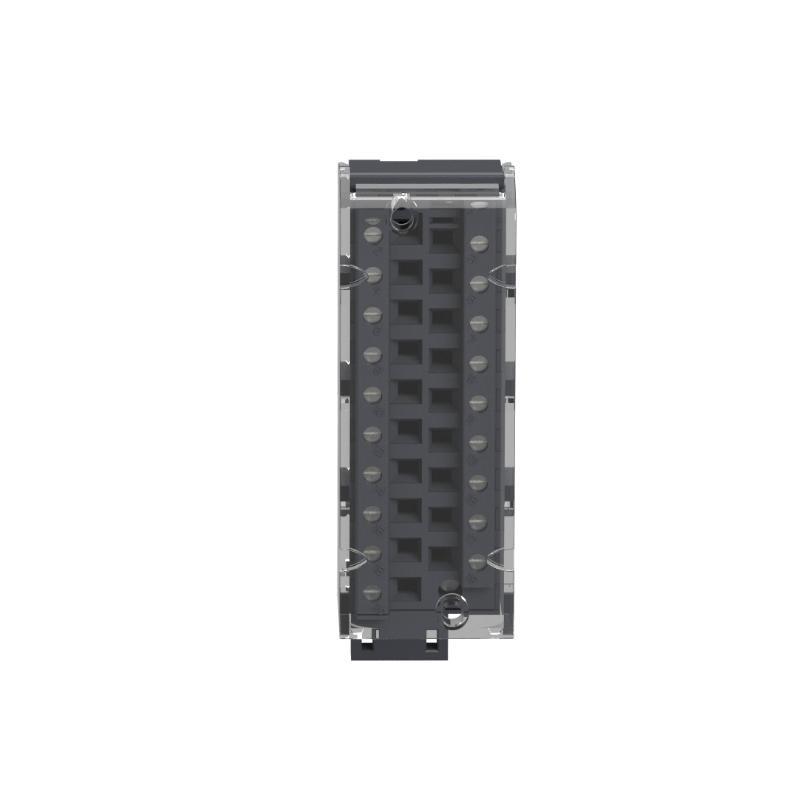

The Schneider Electric BMXFTB2000 is a screw-type terminal block module that serves as an essential interface component within the Modicon M340 Programmable Logic Controller (PLC) system. It is specifically designed for connecting discrete I/O modules in a compact and highly reliable manner.
Built with durability, ease sur wiring, and consistent electrical performance in mind, the BMXFTB2000 enables safe, efficient, and organized signal termination. It provides 20 channels for wiring, using a robust screw terminal connection style, ensuring firm and stable contact for each wire. As part sur Schneider Electric’s trusted Modicon line, this terminal block complements the high-performance M340 series and ensures minimal signal loss, easy installation, and reliable operation in industrial environments.
This terminal block is especially suited for harsh environments and industrial applications, where it simplifies maintenance and minimizes wiring errors. Its front-accessible terminal screws and compact design help reduce control panel space and wiring time, making it a go-to solution for field engineers and panel builders.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Marque | Schneider Electric |
| Product Series | Modicon M340 |
| Modèle Number | BMXFTB2000 |
| Product Type | Terminal Block Module |
| Connection Type | Screw-type terminal |
| Number sur Channels | 20 |
| Compatible with Modules | Discrete I/O Modules |
| Mounting Type | DIN rail (35 mm) |
| Electrical Connection | Removable screw clamp terminals |
| Maximum Current per Channel | 2 A |
| Insulation Voltage | 250 V |
| Color | Grey |
| Material | Polyamide housing |
| Front-Access Terminal Screws | Yes |
| Detachable Terminal Block | Yes |
| Reusability | Multiple rewirings supported |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Ingress Protection (IP) | IP20 |
| Dimensions (H x W x D) | 91.4 x 41.8 x 32 mm |
| Poids | 0.093 kg |
| Certifications | CE, UL, CSA |
Product Applications
The BMXFTB2000 terminal block is used widely across diverse industrial applications due to its role in connecting field devices to discrete I/O modules within M340 PLC systems. Some sur its key application domains include:
-
Industrial Automation Control Panels: Efficient and compact wiring sur sensors and actuators.
-
Manufacturing Lines: For interfacing with limit switches, indicators, and control devices.
-
Process Control Systems: Enabling clean signal termination and reducing electrical noise.
-
Water Treatment Plants: Connecting pumps and valves to central control unités.
-
Energy Distribution & Monitoring: Facilitates clear signal routing in energy systems.
-
Transportation Systems: Supports modular installation in complex rail or logistics control panels.
The ease sur installation and wiring clarity provided by the BMXFTB2000 significantly reduce setup time and improve overall system maintainability.
Product Advantages
-
Compact Design: Enregistrers valuable panel space, especially in high-density wiring environments.
-
Screw-Type Terminals: Reliable and vibration-resistant connections ensure long-term stability.
-
20-Channel Capacity: Efficiently handles I/O connections for medium-scale modules.
-
DIN Rail Mounting: Standardized mounting system allows quick integration and flexibility.
-
Clear Terminal Labeling: Minimizes wiring errors and supports fast diagnostics.
-
Industrial Durability: Polyamide casing and robust build quality handle harsh environments.
-
Front Terminal Access: Simplifies field wiring and supports rapid maintenance procedures.
-
Versatile Compatibility: Seamlessly integrates with various discrete I/O modules in the M340 family.
-
Removable Terminal Block: Allows quick disconnection and reconnection during module swaps.
-
Safety Certified: CE, UL, and CSA certified for global industrial compliance.
Questions fréquentes (FAQ)
-
Q: What is the main function sur the BMXFTB2000 terminal block?
A: It acts as an interface for connecting discrete I/O module channels to field wiring. -
Q: How many channels does the BMXFTB2000 support?
A: It supports 20 screw terminal channels. -
Q: What type sur connections does this terminal block use?
A: Screw-type terminals for secure and reliable connections. -
Q: Is the terminal block detachable from the module?
A: Yes, it can be removed easily for module maintenance or replacement. -
Q: Can the terminal block be reused after rewiring?
A: Yes, the terminal block is designed to support multiple rewirings. -
Q: What is the maximum current supported per terminal?
A: Each terminal can carry up to 2 A sur current. -
Q: Is it compatible with analog modules?
A: No, it is specifically designed for discrete I/O modules. -
Q: What is the IP rating sur the terminal block?
A: It has an IP20 rating, suitable for enclosure-protected installations. -
Q: Can it be installed on a DIN rail?
A: Yes, it mounts easily onto a standard 35 mm DIN rail. -
Q: Does the module include labeling for terminals?
A: Yes, it includes clear labeling to facilitate wiring and diagnostics.
Related Modèles from the Same Series or Function
| Modèle Number | Description | Terminal Type | N° sur Channels |
|---|---|---|---|
| BMXFTB2010 | Terminal Block, Spring Clamp Type | Spring Clamp | 20 |
| BMXFTB2020 | Terminal Block with fuse protection | Screw Type | 20 |
| BMXFTB2030 | Terminal Block, common feed, screw type | Screw Type | 20 |
| BMXFTA150 | Adapter for Terminal Block BMXFTB | N/A | N/A |
| BMXFCA150 | Cable for Terminal Block to Module Connection | N/A | N/A |
| BMXCPS2010 | Power Supply Module, M340 | N/A | N/A |
Popular Modèles from the Same Marque (Schneider Electric)
| Modèle Number | Description | Function | Series |
|---|---|---|---|
| BMXP342020 | CPU Module, M340, 512 KB | Processor Unité | Modicon M340 |
| BMXDDI1602 | 16-point Digital Input Module | Digital Input | Modicon M340 |
| BMXDRA1605 | 16-point Relay Output Module | Relay Output | Modicon M340 |
| BMXAMO0410 | 4-channel Analog Output Module | Analog Output | Modicon M340 |
| TM241CE24T | Logic Controller with Ethernet | Compact PLC | Modicon M241 |
| ATV320U22N4B | Variable Speed Drive, 2.2 kW | Motor Control | Altivar 320 |
