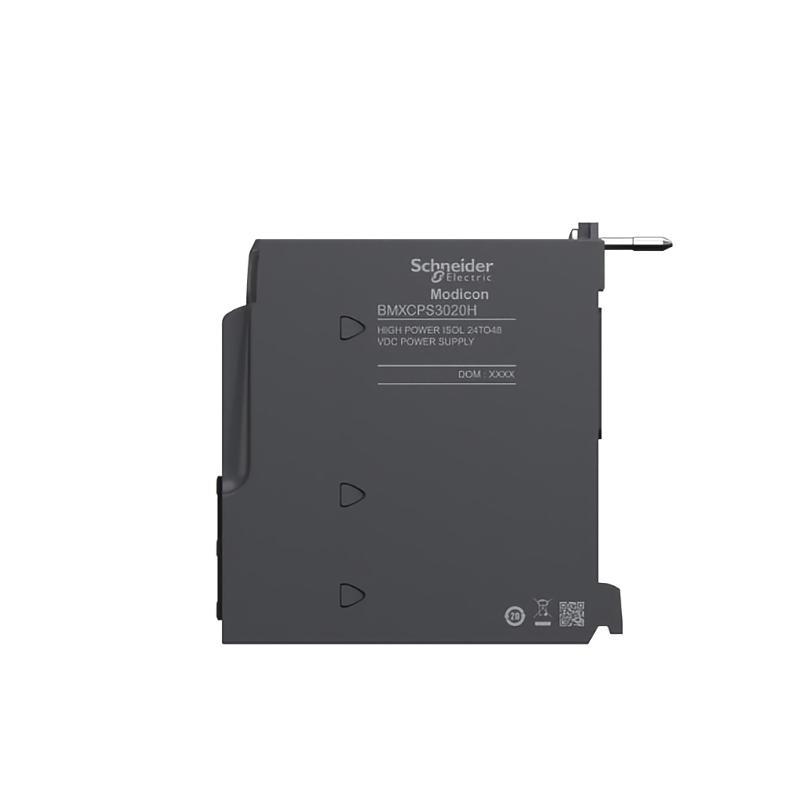

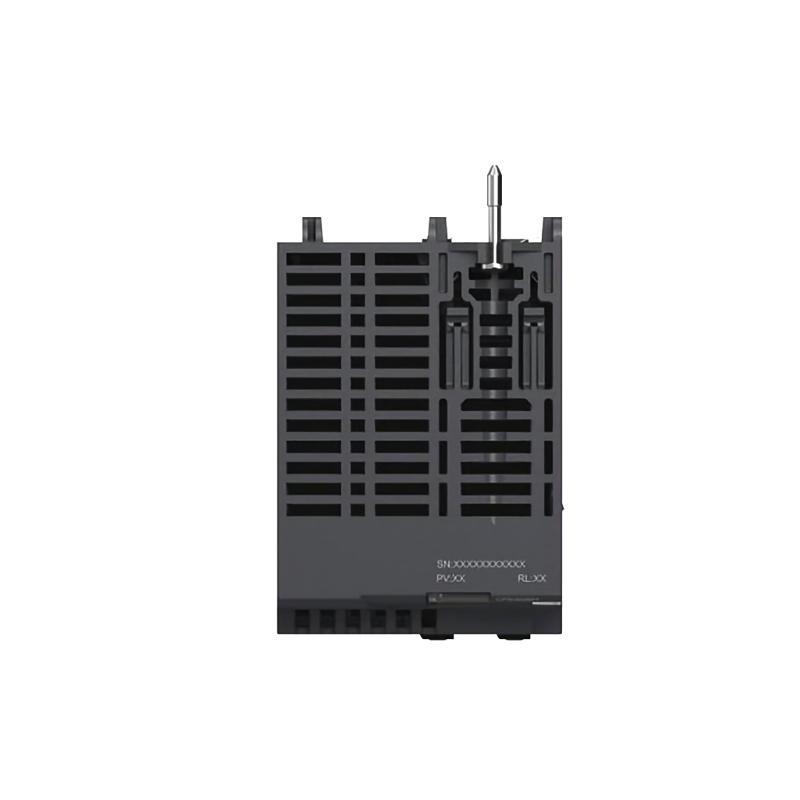

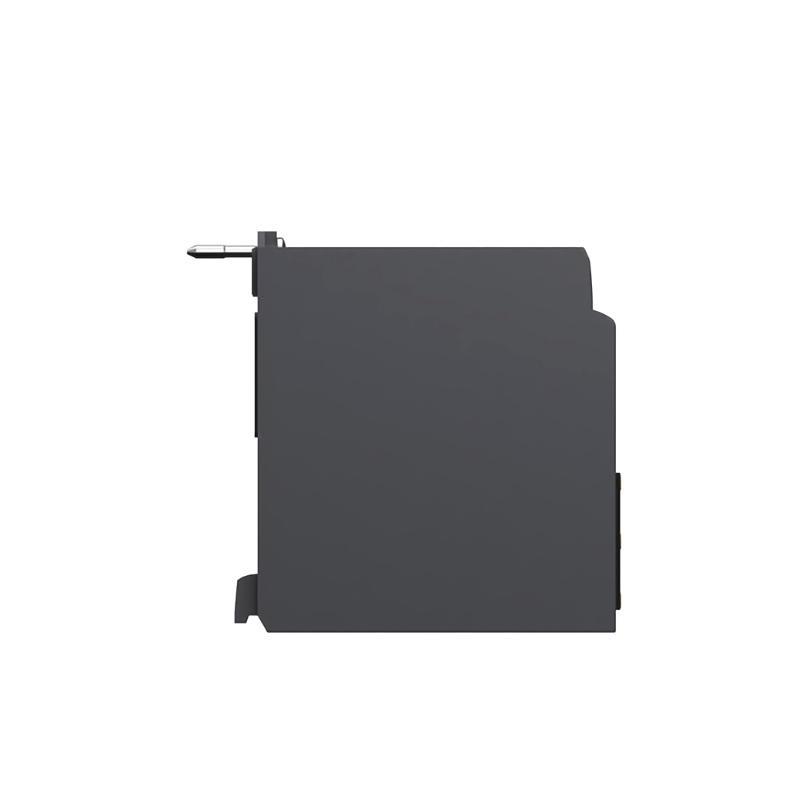

The Schneider Electric BMXCPS3020H is a high-performance power supply module designed specifically for the Modicon M340 Programmable Automation Controller (PAC) platform. As an industrial-grade component, the BMXCPS3020H plays a critical role in delivering stable and reliable DC power to automation systems, ensuring seamless operation in demanding control environments. This module features a redundant-capable 24 VDC power input, making it ideal for critical control applications where uptime and reliability are non-negotiable. It is widely used in sectors like manufacturing, utilities, transportation, and process industries where electrical robustness, operational safety, and system integrity are paramount.
With built-in overvoltage and overload protections, compact dimensions, and easy DIN rail mounting, the BMXCPS3020H is engineered for simplicity and resilience. Its hot-swap functionality and high MTBF (Mean Time Between Failures) rating underscore its suitability for mission-critical operations where downtime is costly and unacceptable.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | Schneider Electric BMXCPS3020H |
| Product Type | Power Supply Module for Modicon M340 |
| Input Voltage Range | 24 VDC ±20% |
| Output Voltage | 20.4 to 28.8 VDC |
| Nominal Output Current | 2.9 A |
| Power Supply Type | Redundant-capable DC |
| Input Protection | Internal fuse |
| Output Protection | Overload, short-circuit, and overvoltage protected |
| Diagnostic Indicators | Status LEDs |
| Mounting Type | DIN rail |
| Operating Temperature Range | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature Range | -40°C to +85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Vibration Resistance | 3 gn, IEC 60068-2-6 |
| Shock Resistance | 30 gn, IEC 60068-2-27 |
| Dimensions (H x W x D) | 99 x 68 x 104 mm |
| Poids | 0.34 kg |
| MTBF (Mean Time Between Failures) | > 1,000,000 hours (based on Telcordia SR-332) |
| Certifications | CE, UL, CSA, RoHS |
| Compliance Standards | IEC 61131-2, EN/IEC 61010-2-201 |
Applications
The BMXCPS3020H is tailored for applications that demand high reliability, consistent power delivery, and minimal maintenance. Key application areas include:
-
Industrial Automation Systems: Ensures reliable power supply for Modicon M340 controllers in factory automation settings.
-
Process Control: Widely used in oil & gas, chemical, water treatment, and food & beverage industries.
-
Infrastructure & Utilities: Provides stable power to automation unités in power plants, water distribution systems, and transportation control.
-
Building Automation: Powers controllers for HVAC systems, lighting control, and security infrastructure.
-
Material Handling Systems: Supports conveyor systems and automated storage systems by powering PLCs and I/O modules.
-
Redundant Power Setups: Often deployed in redundant mode to ensure continuity during primary source failure.
Product Advantages
-
High Reliability: Built for 24/7 industrial operation with robust protection mechanisms.
-
Compact Design: Slim prsurile enables installation in confined control cabinets.
-
Hot-Swap Capability: Can be replaced without shutting down the entire control system.
-
Redundant Operation Support: Designed to work in redundant power supply configurations.
-
Quick Diagnostics: LED indicators allow instant status checks for power availability and faults.
-
Universal Standards Compliance: Certified for use globally with CE, UL, CSA, and RoHS approvals.
-
Low Maintenance: Minimal need for periodic servicing or calibration.
-
Durable Construction: Withstands industrial shocks and vibrations with ease.
-
Eco-Design: Conforms to Schneider’s Green Premium label for environmental responsibility.
-
Seamless Integration: Plug-and-play with Modicon M340 architecture, simplifying system design.
Questions fréquentes (FAQ)
-
Q: What type sur power input does the BMXCPS3020H support?
A: It supports a 24 VDC input with a tolerance sur ±20%, suitable for industrial DC power systems. -
Q: Can this module be used in a redundant configuration?
A: Yes, the BMXCPS3020H is designed for redundant operation, allowing you to connect multiple unités for backup. -
Q: Is the module hot-swappable?
A: Yes, the BMXCPS3020H supports hot swapping, which allows replacement without interrupting system power. -
Q: What is the typical output current sur this power supply?
A: It provides a nominal output current sur 2.9 A. -
Q: What are the environmental limits for storage and operation?
A: Operating temperature is 0°C to 60°C, and storage temperature is -40°C to 85°C. -
Q: Is there protection against overload or short circuit?
A: Yes, it features integrated protection against overloads, short circuits, and overvoltage conditions. -
Q: Does this power module include any diagnostic features?
A: It includes front-facing LED indicators for quick fault and status diagnostics. -
Q: Can it be used with any other controller besides Modicon M340?
A: It is optimized for the Modicon M340 PAC, though may be adaptable to similar Schneider platforms under guidance. -
Q: What is the estimated life expectancy or MTBF?
A: The MTBF is greater than 1 million hours, indicating exceptional reliability. -
Q: How do I mount this module in a control cabinet?
A: The module is DIN rail mountable, supporting quick installation and secure mechanical attachment.
Related Modèles from the Same Series
| Modèle | Description | Input Voltage | Output | Current |
|---|---|---|---|---|
| BMXCPS2010 | Standard power supply for Modicon M340 | 24 VDC | 2.4 A | 2.4 A |
| BMXCPS3020 | High power version sur M340 power supply | 24 VDC | 2.9 A | 2.9 A |
| BMXCPS2000 | Entry-level 2 A power supply | 24 VDC | 2 A | 2 A |
| BMXCPS4002 | Advanced redundant-ready PSU | 24 VDC | 4 A | 4 A |
| BMXCPS3500H | Heavy-duty power supply module | 24 VDC | 3.5 A | 3.5 A |
| BMXCPP0402 | PSU with integrated processor backup | 24 VDC | 4 A | 4 A |
Popular Modèles from the Same Marque (Schneider Electric)
| Modèle | Product Type | Platform | Key Feature |
|---|---|---|---|
| TM221CE16R | Compact controller | Modicon M221 | Ethernet, Relay outputs |
| ATV320U07M2B | Variable speed drive | Altivar 320 | 0.75 kW, single-phase input |
| BMXNOE0110 | Ethernet communication module | Modicon M340 | Ethernet TCP/IP support |
| TSXPSY2600M | Power supply module | Modicon Premium | 24 VDC input, 6 A output |
| HMIGTO5310 | HMI touch panel | Magelis GTO | 10.4” display, Ethernet |
| XPSMC32E3140 | Safety controller | Preventa XPSMCM | Modular safety control unité |
