Présentation du produit

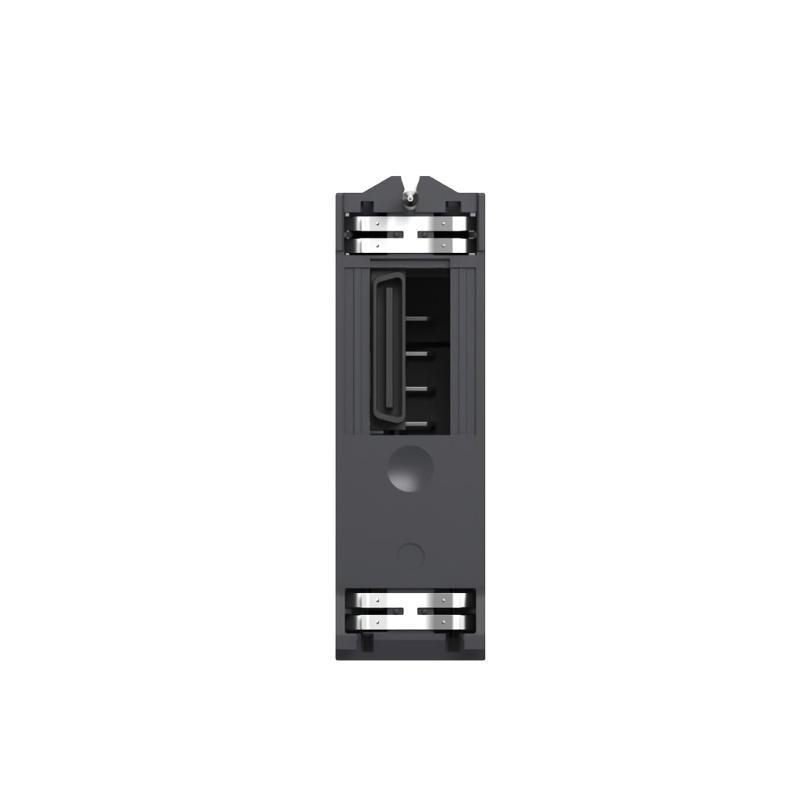

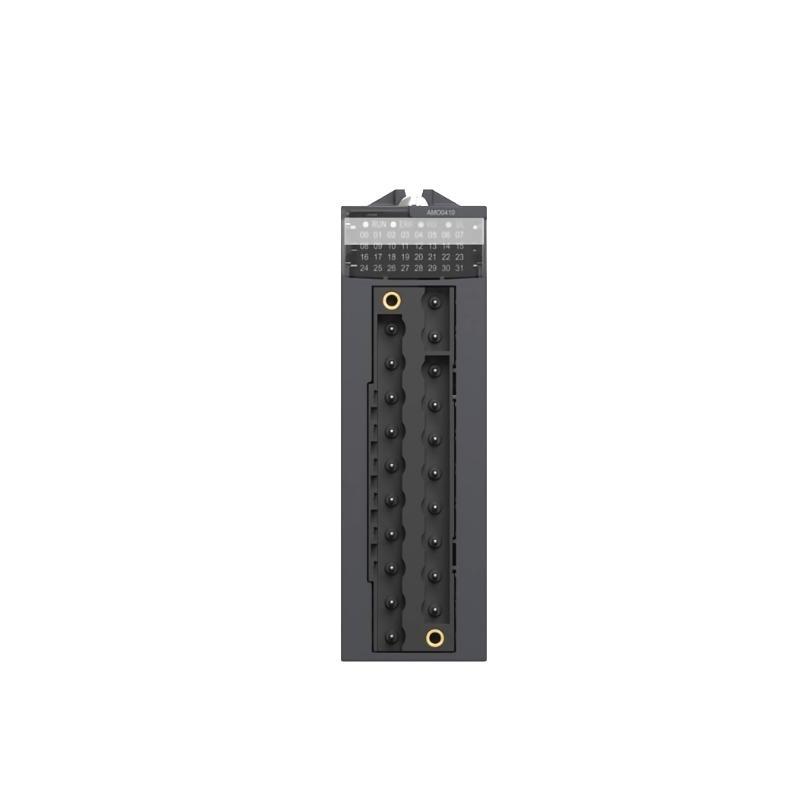

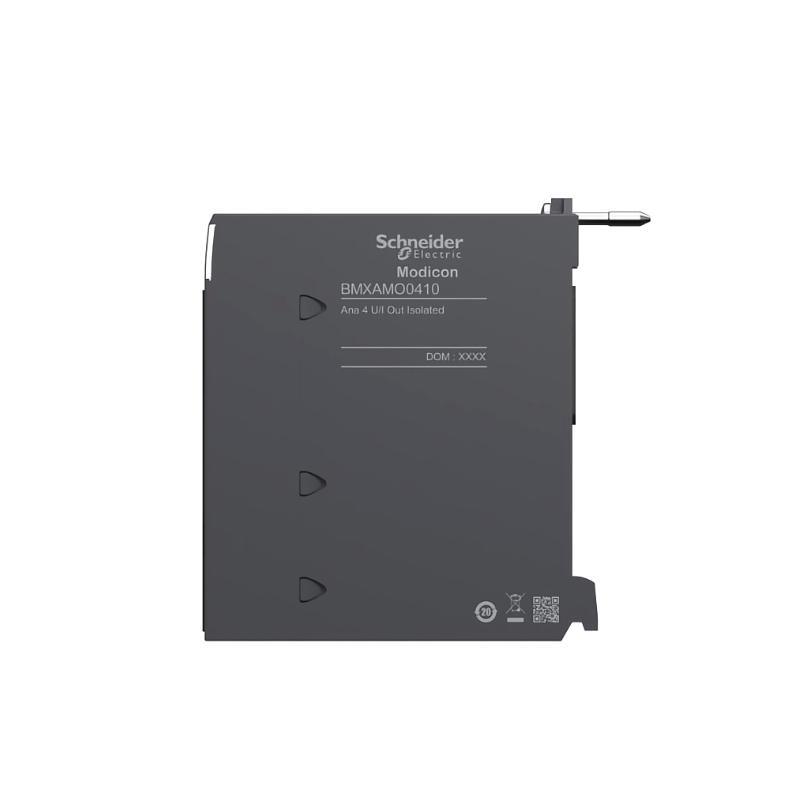

The Schneider BMXAMO0410 is an analog output module designed for the Modicon M340 PLC series. This high-level output module provides four isolated analog outputs, delivering precise voltage signals essential for process control applications. It is engineered to ensure signal integrity and system reliability by isolating each output channel, thus minimizing interference and ground loops. This module is ideal for industrial environments demanding accurate analog control and signal transmission.
The BMXAMO0410 supports output ranges compatible with a wide variety sur actuators and devices, making it versatile for tasks such as controlling valves, motors, and other analog-driven equipment. Its compact design allows for easy integration into existing systems without occupying excessive rack space.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Number sur Channels | 4 Analog Outputs |
| Output Type | Voltage (Isolated) |
| Output Range | 0 to 10 V |
| Resolution | 12-bit |
| Update Time | 5 ms per channel |
| Isolation | Channel-to-channel and channel-to-earth galvanic isolation |
| Operating Temperature | 0 to 55 °C |
| Storage Temperature | -25 to 70 °C |
| Power Supply | Supplied by M340 rack |
| Communication Interface | Backplane bus sur M340 PLC |
| Dimensions (HxWxD) | 93 x 33 x 104 mm |
| Poids | 0.15 kg |
| Mounting | DIN rail or rack mounted |
| Certifications | CE, UL |
Product Applications
-
Process Automation: Controlling analog actuators such as valves and dampers in manufacturing plants.
-
Building Management Systems: Managing HVAC components requiring precise analog voltage inputs.
-
Water Treatment Facilities: Regulating pump speeds and chemical dosing systems with high accuracy.
-
Energy Management: Monitoring and adjusting outputs for power generation equipment.
-
Machine Control: Precision control sur motors and variable frequency drives.
-
Industrial Robotics: Delivering accurate analog signals for actuator positioning and speed control.
Product Advantages
-
High Isolation: Each output channel is galvanically isolated, ensuring minimal cross-talk and high signal fidelity.
-
Compact Design: Slim prsurile enables efficient use sur space in control cabinets.
-
Fast Update Rate: 5 ms update time per channel ensures rapid response to control commands.
-
Easy Integration: Seamless connection with Modicon M340 PLCs via the backplane bus.
-
Reliable Operation: Designed for industrial-grade environments with robust temperature tolerances.
-
Wide Voltage Range: Compatible with numerous analog output devices supporting 0-10 V control.
-
Safety and Compliance: Meets international standards ensuring safe and reliable operation in critical control applications.
-
Reduced Wiring Complexity: Isolated outputs reduce the need for additional external isolation hardware.
-
Consistent Accuracy: 12-bit resolution allows precise control over analog output signals.
-
Strong Fabricant Support: Schneider Electric provides comprehensive documentation and global support services.
Questions fréquentes (FAQ)
-
Q: What types sur signals does the BMXAMO0410 output?
A: It outputs isolated analog voltage signals in the range sur 0 to 10 V. -
Q: How many analog outputs are available on the module?
A: The module has four independent analog output channels. -
Q: Is each output channel electrically isolated?
A: Yes, each channel is galvanically isolated from the others and from earth ground. -
Q: What is the resolution sur the analog outputs?
A: The outputs have a 12-bit resolution. -
Q: Can this module be used with PLCs outside the Modicon M340 series?
A: No, it is specifically designed for the M340 series and is compatible only with the M340 backplane. -
Q: What are the physical dimensions sur the BMXAMO0410?
A: The dimensions are 93 x 33 x 104 mm. -
Q: What is the typical weight sur the module?
A: The module weighs around 0.15 kg. -
Q: What is the maximum update rate for the analog outputs?
A: Each channel updates approximately every 5 milliseconds. -
Q: Does the module support current output?
A: No, the BMXAMO0410 supports only voltage output. -
Q: Are there any certifications for industrial safety and compliance?
A: Yes, it meets CE and UL standards.
Recommended Related Modèles from the Same Series
| Modèle Number | Description | Output Type | Number sur Channels | Dimensions (HxWxD) mm | Poids (g) |
|---|---|---|---|---|---|
| BMXAMO0400 | Analog Isolated Voltage Output Module | Voltage | 4 | 130 x 35 x 118 | 200 |
| BMXAMO0415 | Analog Isolated High Level Output Module | Voltage | 4 | 130 x 35 x 118 | 200 |
| BMXAMO0420 | Analog Isolated Current Output Module | Current | 4 | 130 x 35 x 118 | 210 |
| BMXAMO0430 | Analog Output Module 0-20mA | Current | 4 | 130 x 35 x 118 | 210 |
| BMXAMO0440 | Analog Output Module 0-10V with diagnostics | Voltage | 4 | 130 x 35 x 118 | 200 |
| BMXAMO0450 | Analog Output Module 0-20mA with diagnostics | Current | 4 | 130 x 35 x 118 | 210 |
Popular Schneider Electric Analog Output Modules
| Modèle Number | Description | Output Type | Number sur Channels | Dimensions (HxWxD) mm | Poids (g) |
|---|---|---|---|---|---|
| BMXAMO0400 | Analog Isolated Voltage Output Module | Voltage | 4 | 130 x 35 x 118 | 200 |
| BMXAMO0410 | Analog Isolated High Level Output Module | Voltage | 4 | 130 x 35 x 118 | 200 |
| BMXAMO0420 | Analog Isolated Current Output Module | Current | 4 | 130 x 35 x 118 | 210 |
| BMXAHC0400 | High Channel Analog Output Module | Voltage/Current | 8 | 130 x 70 x 118 | 350 |
| BMXAID0200 | Analog Input Module 0-10V | Voltage | 8 | 130 x 35 x 118 | 220 |
| BMXAMS0200 | Analog Input Module with Thermocouple Inputs | Mixed Inputs | 8 | 130 x 35 x 118 | 230 |
