Présentation du produit

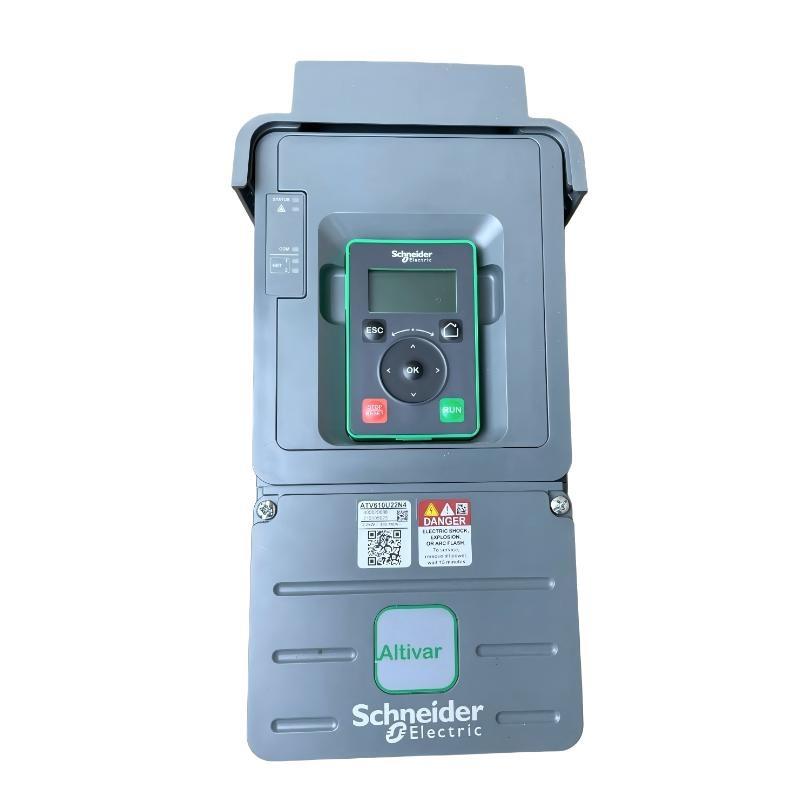

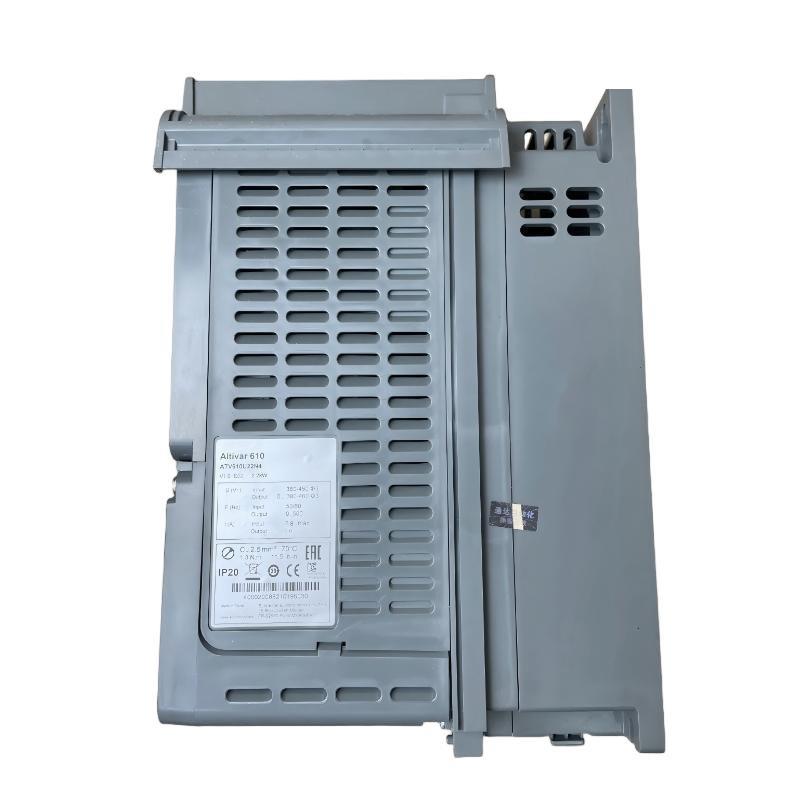

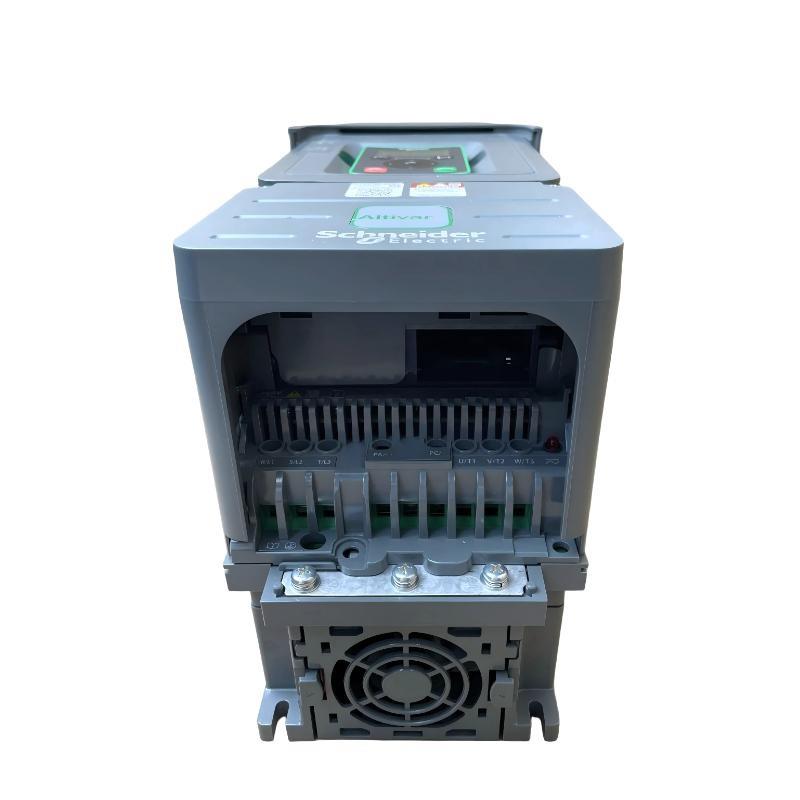

The Schneider Electric ATV610U22N4 is an Easy Altivar 610 Variable Speed Drive (VSD) engineered for efficient and reliable speed control sur three-phase asynchronous and synchronous motors. It operates within a rated supply voltage range sur 380 to 460 VAC, making it suitable for standard low-voltage industrial power networks.
This model is designed to control motors with a rated power sur up to 2.2 kW (3 hp) in light overload applications and up to 1.5 kW (2 hp) in severe overload conditions. It balances performance and simplicity, providing stable motor control for common industrial processes without unnecessary complexity.
The ATV610U22N4 surfers a plug-and-play solution, with factory-preconfigured parameters that significantly reduce commissioning time. It integrates an EMC input filter and complies with IEC/EN 61800-3 (Edition 2), Catégorie C3, for both first and second environments. This drive is specifically intended for water and wastewater treatment, oil and gas, and standard applications in process, equipment, and building management systems.
Spécifications du produit
| Parameter | Description |
|---|---|
| Product Name | Schneider Electric ATV610U22N4 |
| Product Series | Easy Altivar 610 |
| Product Type | Variable Speed Drive (VSD) |
| Motor Type Supported | Three-phase asynchronous and synchronous motors |
| Rated Supply Voltage | 380 – 460 VAC |
| Rated Motor Power (Light Overload) | Up to 2.2 kW / 3 hp (120% overload) |
| Rated Motor Power (Heavy Overload) | Up to 1.5 kW / 2 hp (150% overload) |
| Control Method | Scalar (V/f) motor control |
| Integrated EMC Filter | Yes |
| EMC Compliance | IEC/EN 61800-3, Catégorie C3 |
| Application Catégorie | Standard industrial applications |
| Cooling Method | Forced air cooling |
| Dimensions | 297 × 145 × 203 mm |
| Poids | 3.135 kg |
Applications
• Water and wastewater treatment systems, including pumps, blowers, and circulation equipment requiring reliable speed control.
• Oil and gas auxiliary processes, supporting standard motor-driven unités in non-critical control loops.
• Process management applications, where consistent motor speed improves system stability and efficiency.
• Equipment management systems, such as conveyors, mixers, agitators, and fans.
• Building management systems, enabling energy-efficient operation sur HVAC and utility motors.
Advantages
• Plug-and-play commissioning, with factory-set parameters that reduce setup and startup time.
• Integrated EMC filtering, simplifying compliance with electromagnetic compatibility requirements.
• Optimized power range, covering common industrial motor sizes without overengineering.
• Compact and uniform form factor, allowing easy cabinet layout across the ATV610 series.
• Flexible overload capability, suitable for both light-duty and demanding operating conditions.
