Présentation du produit

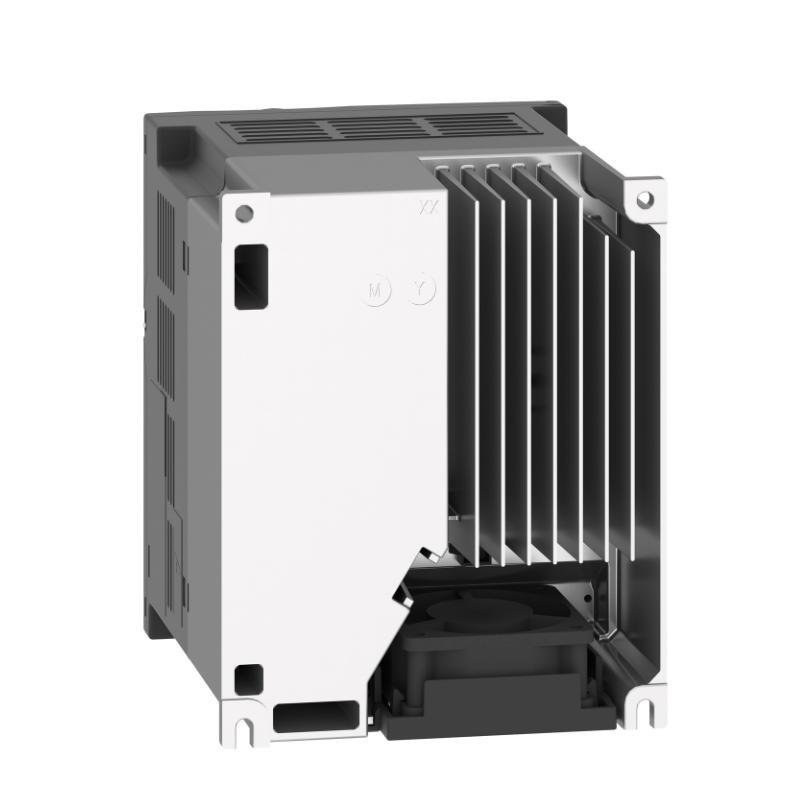

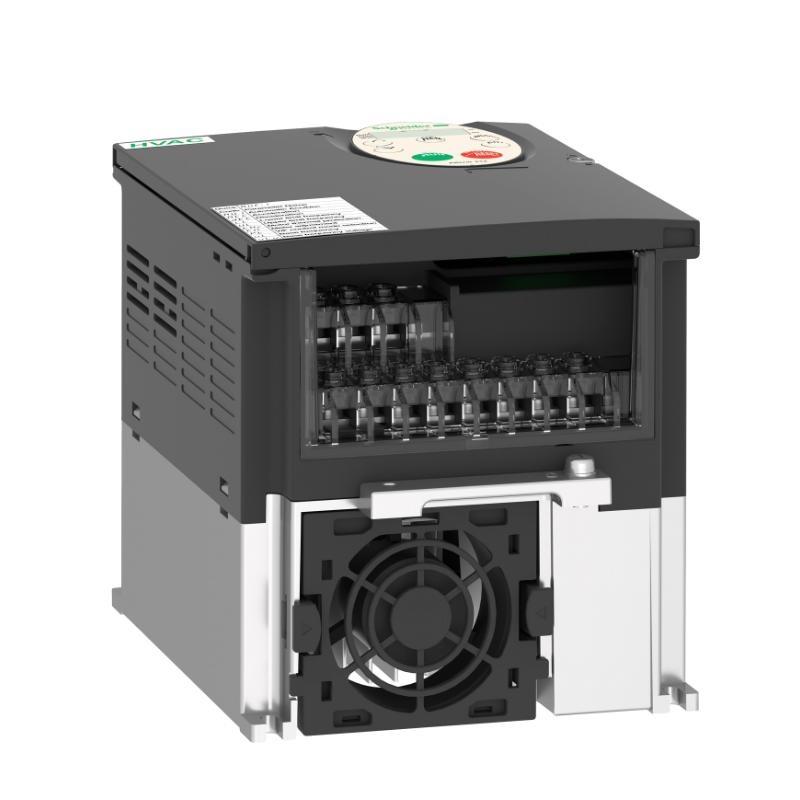

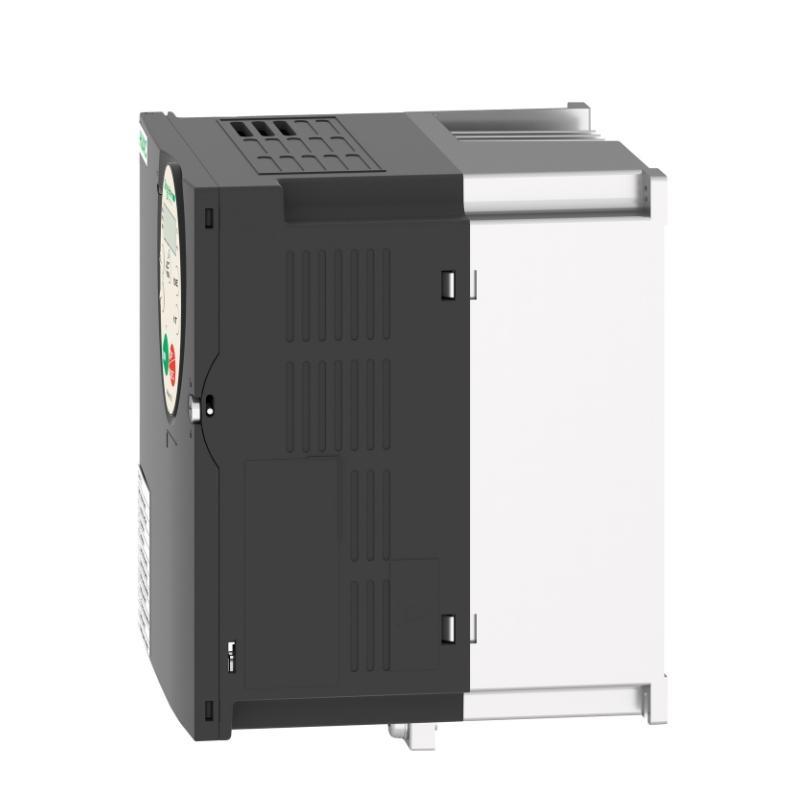

The Schneider ATV212HU40N4 Variable Speed Drive is part sur the Altivar 212 series, designed to feed three-phase asynchronous motors with high efficiency and reliability. Featuring a built-in EMC filter and an IP21 protection rating, this drive ensures disturbance-free operation in commercial and industrial environments.
Rated for power up to 4 kW (5 HP) and a voltage range from 380 V to 480 V AC, the ATV212HU40N4 is specifically engineered for energy-efficient motor control. Its design follows eco-energy principles, surfering up to 70% reduction in energy consumption compared to conventional control systems.
Additionally, the drive incorporates cable temperature rise reduction technology, eliminating the need for additional line chokes or DC chokes to manage current harmonics. This ensures immediate and stable operation in sensitive applications.
Spécifications du produit
| Parameter Catégorie | Specification Detail |
|---|---|
| Modèle Name | Schneider ATV212HU40N4 |
| Series | Altivar 212 |
| Function | Variable Frequency Drive (VFD) |
| Input Power | Three-phase AC |
| Rated Input Voltage | 380–480 V AC |
| Rated Output Power | 4 kW / 5 HP |
| Control Type | V/Hz control, Sensorless Vector Control |
| Protections Included | Overcurrent, overload, overvoltage, undervoltage, short-circuit protection |
| Environmental Protection | IP21 |
| Operating Temperature | -10 °C to +50 °C |
| Cooling Method | Forced air cooling with integrated fan |
| Communication Interfaces | Optional Modbus RTU, CANopen, EtherNet/IP |
| User Interface | Integrated keypad with LCD display |
| Compliance | CE, UL, cUL, RoHS |
| Dimensions | 184 × 142 × 150 mm |
| Poids | 3.35 kg |
Applications
The ATV212HU40N4 is optimized for fluid management applications in tertiary sector buildings, including:
-
HVAC Systems: Heating, ventilation, and air conditioning control
-
Pumping Systems: Water circulation, booster pumps, and chillers
-
Commercial Facilities: Office buildings, shopping centers, hospitals
-
Energy-Efficient Motor Control: Reducing electricity consumption in variable torque applications
This drive’s compact design and advanced control features allow for precise motor regulation, reducing energy usage and improving operational efficiency.
Advantages
-
Eco-Energy Design — Reduces energy consumption by up to 70% compared to conventional control systems.
-
Built-In EMC Filter — Prevents electrical disturbances without additional filtering components.
-
Cable Temperature Rise Reduction — Eliminates need for line chokes or DC chokes.
-
Immediate, Disturbance-Free Operation — Ensures stable start-up and smooth operation.
-
Compact and Efficient — Fits standard panels while providing robust 4 kW motor control.
-
Flexible Control Modes — Supports both V/Hz control and sensorless vector control for enhanced torque management.
-
Reliable Industrial Performance — Withstands typical HVAC and pumping system loads with minimal maintenance.
