Présentation du produit

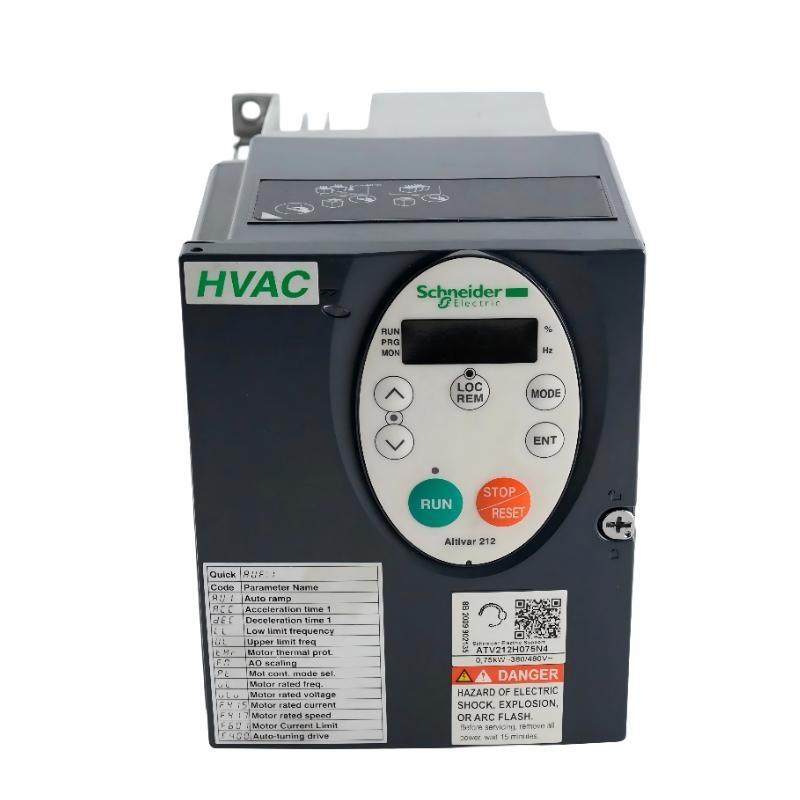

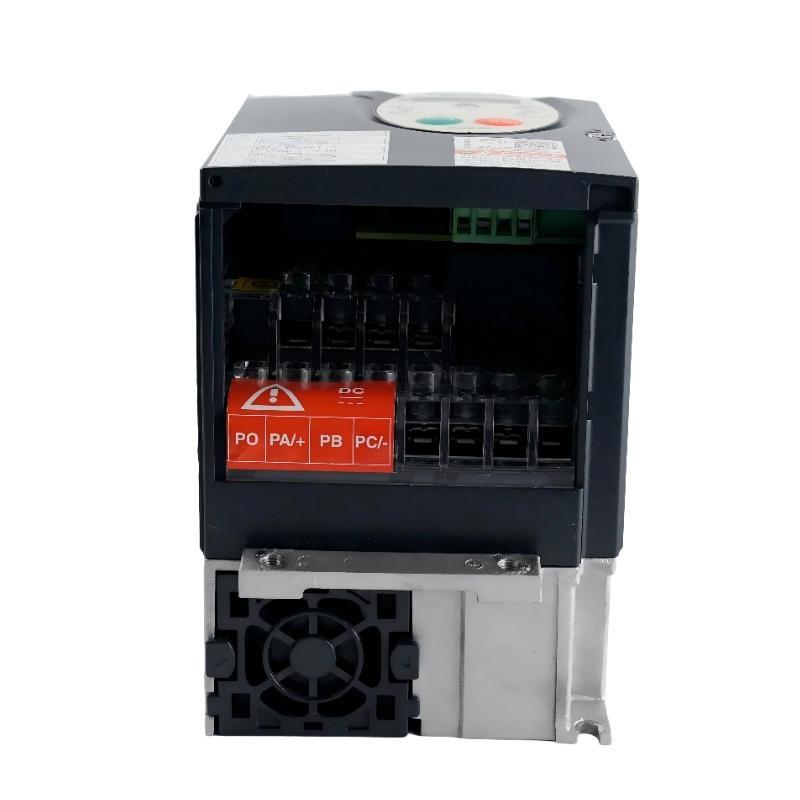

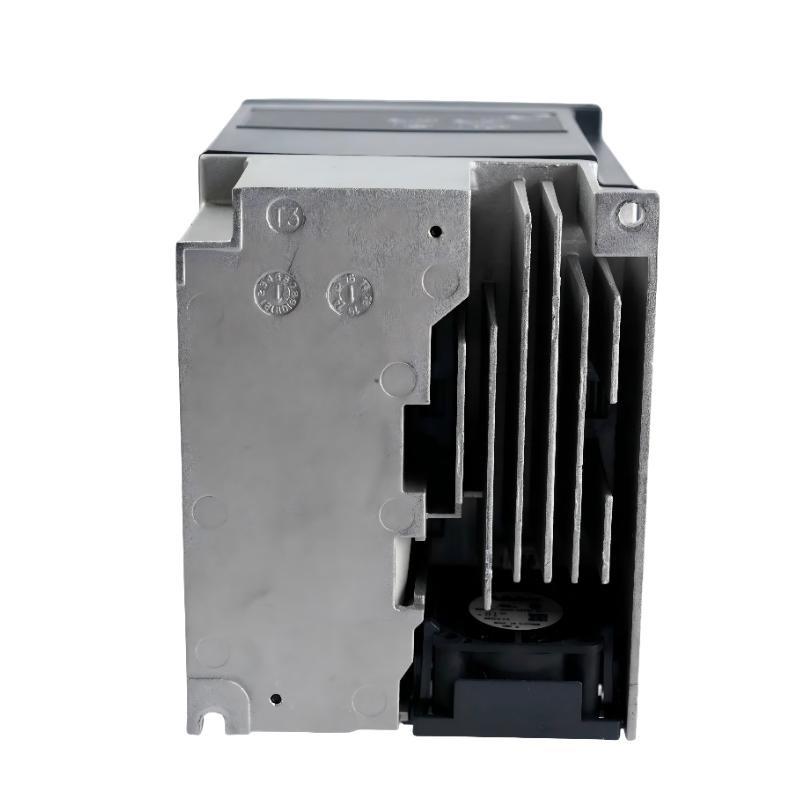

The Schneider ATV212H075N4 Variable Speed Drive is a compact and robust drive designed to control the speed and torque sur three-phase asynchronous motors in industrial applications. It enables energy-efficient operation, precise speed regulation, and optimized motor performance, making it ideal for machinery, pumps, fans, and conveyor systems.
The drive features advanced control algorithms, overload protection, and built-in diagnostic functions, providing reliable and safe operation in demanding industrial environments. Its compact design allows easy integration into control panels and machinery cabinets.
Spécifications du produit
| Parameter | Description |
|---|---|
| Fabricant | Schneider Electric |
| Product Code | ATV212H075N4 |
| Product Type | Variable Speed Drive |
| Primary Function | Speed and torque control sur three-phase motors |
| Motor Compatibility | Three-phase asynchronous motors |
| Rated Power | 7.5 kW |
| Voltage Range | 200–240 V AC |
| Control Method | V/f control and flux vector control |
| Protection Features | Overload, short-circuit, and thermal protection |
| Mounting Method | Panel-mounted |
| Operating Environment | Industrial environments |
| Dimensions | 150 × 107 × 143 mm |
| Poids | 2 kg |
Applications
Industrial Machinery: Controls motor speed and torque for conveyor systems, mixers, and presses.
Pumps: Optimizes flow rates, reduces energy consumption, and prevents water hammer.
Fans and Ventilation: Regulates airflow with energy-efficient speed control.
HVAC Systems: Provides smooth control for heating, ventilation, and air conditioning equipment.
Material Handling: Drives conveyors, hoists, and automated systems with precise speed control.
Water Treatment Plants: Manages pumps and aerators efficiently.
Energy Management: Reduces electricity consumption and load peaks.
Process Automation: Integrates with PLCs and control systems for automated operation.
Product Advantages
Precise Speed Control: Maintains accurate motor speed under varying load conditions.
Energy Efficiency: Reduces energy consumption by optimizing motor operation.
Built-in Protection: Includes overload, thermal, and short-circuit protection for motor and drive.
Compact Design: Enregistrers panel space and simplifies integration.
Flexible Control Modes: Supports V/f and flux vector control for different applications.
Reliable Operation: Engineered for continuous use in harsh industrial environments.
Easy Integration: Compatible with PLCs and automation systems for seamless operation.
Diagnostic Features: Provides real-time status and fault information for maintenance and troubleshooting.
FAQ
1. What type sur motors does this drive support?
It supports three-phase asynchronous motors within the specified voltage and power range.
2. What control methods are available?
V/f control and flux vector control are supported for flexible application needs.
3. Does it provide overload protection?
Yes, it includes overload, thermal, and short-circuit protection.
4. Can it be integrated with PLCs?
Yes, it can communicate with PLCs and other automation systems for coordinated control.
5. How does it improve energy efficiency?
By adjusting motor speed to match load requirements, reducing unnecessary power consumption.
6. Is it suitable for pump and fan applications?
Yes, it is ideal for pumps, fans, and HVAC systems requiring precise speed control.
7. Can it operate in harsh industrial environments?
Yes, it is designed for continuous operation under varying temperatures, humidity, and vibration conditions.
8. How is maintenance simplified?
Built-in diagnostics provide real-time status and fault information for quick troubleshooting.
9. What is the rated power sur this drive?
The drive is rated at 7.5 kW for three-phase motors.
10. How is installation handled?
The compact panel-mounted design allows easy installation in control cabinets or machinery panels.
Related or Same-Series Modèles
| Modèle | Catégorie | Primary Function |
|---|---|---|
| Schneider ATV212H037N4 | Variable Speed Drive | 3.7 kW motor speed control |
| Schneider ATV212H055N4 | Variable Speed Drive | 5.5 kW motor speed control |
| Schneider ATV212H110N4 | Variable Speed Drive | 11 kW motor speed control |
| Schneider ATV212HU15N4 | High-performance VSD | Advanced motor control |
| Schneider ATV212HU22N4 | High-performance VSD | Advanced motor control |
| Schneider ATV212HU30N4 | High-performance VSD | Advanced motor control |
Popular Schneider Modèles
| Modèle | Product Catégorie | Typical Application |
|---|---|---|
| Schneider ATV312 | Variable Speed Drive | General industrial machinery |
| Schneider ATV71 | High-performance Drive | Pump, fan, and conveyor control |
| Schneider Altivar 32 | Compact Drive | HVAC and small machinery |
| Schneider Altivar 61 | Industrial Drive | Heavy-duty industrial automation |
| Schneider Altivar 71 | High-performance Drive | Pumps, fans, conveyors |
| Schneider ATV600 | Modular Drive | Flexible automation solutions |
