Présentation du produit

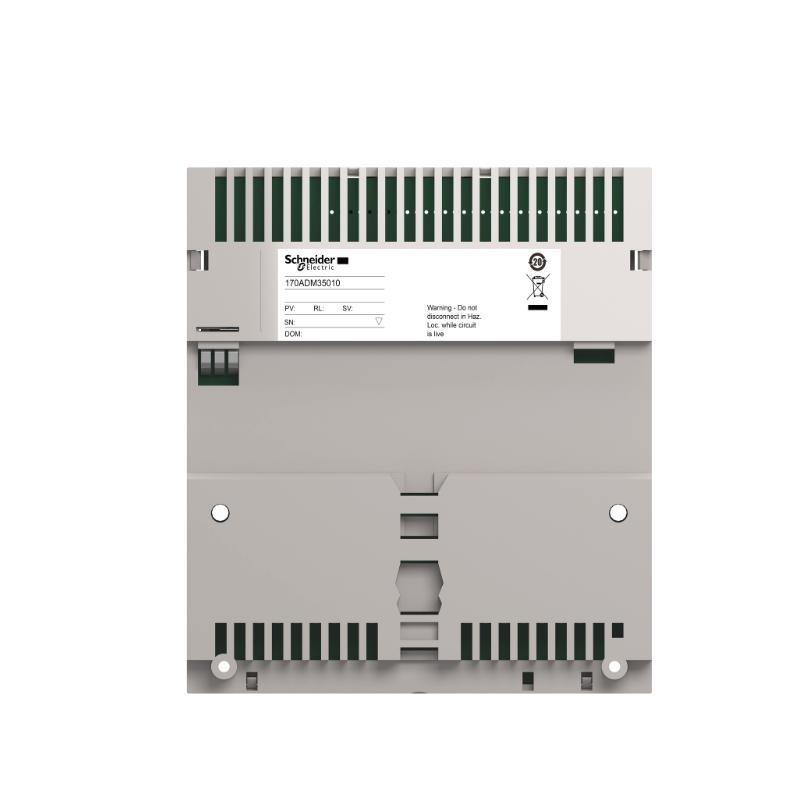

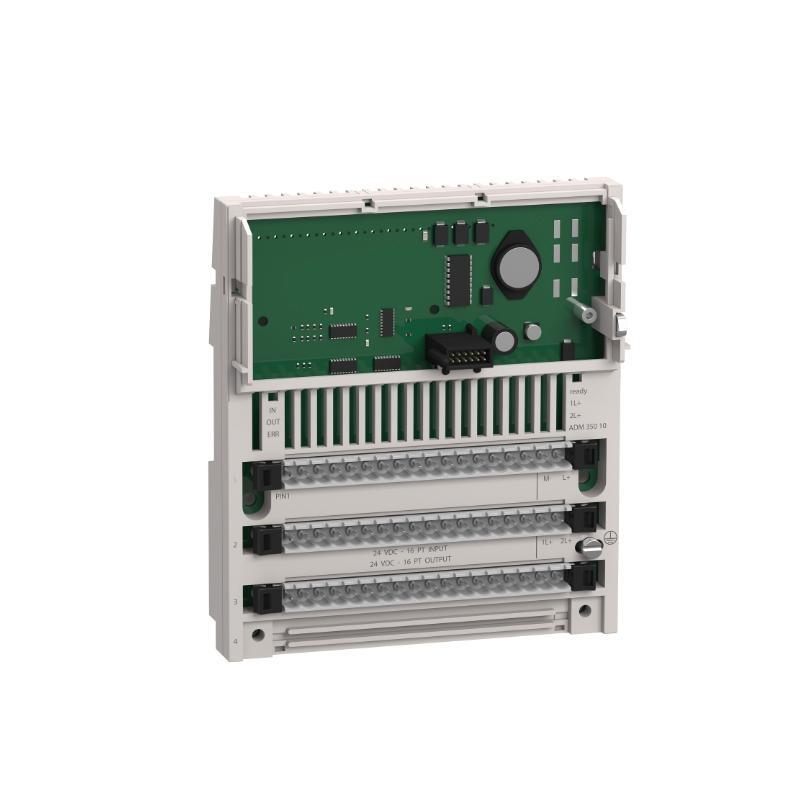

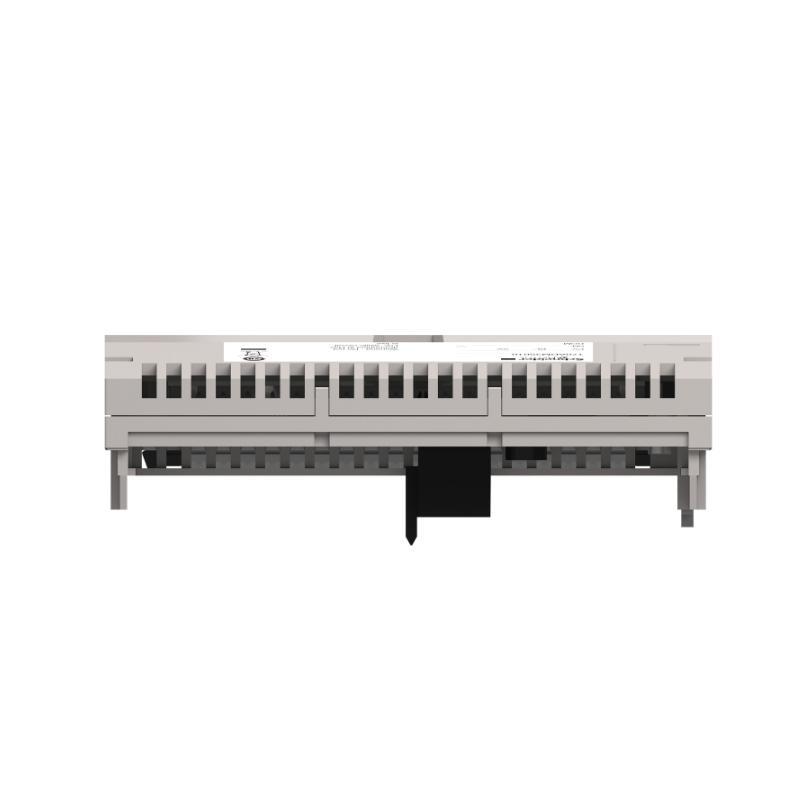

The Schneider Electric 170ADM35010 is a discrete I/O module from the Modicon Momentum series, designed for distributed control architectures. This module integrates both input and output functionalities, surfering 16 discrete inputs and 16 discrete outputs in a compact form factor. Its solid-state design ensures reliable performance in various industrial environments, making it suitable for applications requiring efficient digital signal processing.
Technical Specifications
| Feature | Specification |
|---|---|
| Product Type | Discrete Solid-État I/O Base DC |
| Input Channels | 16 (IEC 1131-2 Type 1) |
| Input Logic | Positive |
| Input Voltage | 24 V DC |
| Input Voltage Limits | -3 to 30 V DC |
| Voltage État 0 (Guaranteed) | -3 to 5 V |
| Voltage État 1 (Guaranteed) | 11 to 30 V |
| Input Resistance | 4 kΩ |
| Output Channels | 16 |
| Output Type | Solid-État Switch |
| Output Logic | Positive |
| Output Voltage | ≤ 30 V DC (24 V DC nominal) |
| Output Current per Point | 0.5 A |
| Output Current per Group | 4 A |
| Output Current per Module | 8 A |
| Peak Output Current | 5 A |
| Maximum Leakage Current | 1 mA at 24 V DC |
| Voltage Drop (Max) | <0.5 V at 0.5 A |
| Response Time (Output) | <0.1 ms (0 to 1 or 1 to 0) |
| Response Time (Input) | 2.2 ms (0 to 1), 3.3 ms (1 to 0) |
| Isolation Voltage | 500 V AC (channel-to-bus) |
| Power Dissipation | 6 W (≤ 8 W) |
| Current Consumption | 250 mA at 24 V DC |
| Local Signaling | 16 LEDs for channel status |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | -40 to 85 °C |
| Relative Humidity | 95% without condensation |
| Operating Altitude | ≤ 5000 m |
| Dimensions (W x H x D) | 47.5 × 125 × 141.5 mm |
| Poids | 0.2 kg |
| Certifications | UL, CSA, CE |
| Environmental Resistance | IEC 801-2 (ESD), IEC 801-3 (EMF) |
Product Applications
The 170ADM35010 module is versatile and can be employed in various industrial applications:
-
Manufacturing Automation: Monitoring and controlling machinery, conveyors, and assembly lines.
-
Infrastructure Management: Managing building systems, lighting, and HVAC controls.
-
Energy Sector: Supervising power distribution, renewable energy systems, and substations.
-
Transportation Systems: Controlling signaling systems, barriers, and traffic management.
-
Water Treatment Plants: Monitoring pumps, valves, and treatment processes.
Product Advantages
-
Integrated I/O Functionality: Combines both input and output channels, reducing the need for multiple modules.
-
Compact Design: Enregistrers space in control panels and reduces wiring complexity.
-
Fast Response Times: Ensures timely processing sur digital signals for real-time applications.
-
Robust Construction: Designed to withstand harsh industrial environments with high humidity and temperature variations.
-
Easy Diagnostics: LED indicators for each channel facilitate quick troubleshooting.
-
Seamless Integration: Compatible with the Modicon Momentum platform, allowing for flexible system configurations.
Questions fréquentes (FAQ)
-
What is the primary function sur the 170ADM35010 module?
It serves as a discrete I/O module, providing 16 input and 16 output channels for digital signal processing in automation systems. -
Can this module handle both sourcing and sinking inputs?
The module is designed for positive logic inputs and outputs, typically associated with sourcing configurations. -
Is the module hot-swappable?
No, it’s recommended to power down the system before replacing or installing the module to ensure safety and prevent damage. -
What type sur outputs does the module use?
It utilizes solid-state switches for its output channels, surfering reliable and fast switching capabilities. -
How is the module mounted?
It is designed to be mounted on a DIN rail or directly onto a compatible base within the Modicon Momentum system. -
Does the module provide any diagnostic features?
Yes, it includes LED indicators for each channel, allowing for easy monitoring sur input and output statuses. -
What is the maximum current the module can handle per output channel?
Each output channel can handle up to 0.5 A, with a maximum sur 4 A per group and 8 A per module. -
Is the module suitable for outdoor installations?
While it has robust environmental resistance, it’s primarily designed for indoor use within control panels or enclosures. -
What certifications does the module have?
It is certified by UL, CSA, and CE, ensuring compliance with international safety and quality standards. -
Can the module be used in high-altitude locations?
Yes, it is rated for operation at altitudes up to 5000 meters.
Related Modèles (Same Series or Function)
| Modèle | Type | Channels | Input/Output Type | Voltage | Mounting | Dimensions (mm) | Poids (kg) |
|---|---|---|---|---|---|---|---|
| 170ADI34000 | Discrete Input Module | 32 Inputs | Positive Logic | 24 V DC | DIN/Base | 125 x 141.5 x 47.5 | 0.2 |
| 170ADO34000 | Discrete Output Module | 32 Outputs | Positive Logic | 24 V DC | DIN/Base | 125 x 141.5 x 47.5 | 0.2 |
| 170AAI52040 | Analog Input Module | 16 Inputs | Voltage/Current | 24 V DC | DIN/Base | 125 x 141.5 x 47.5 | 0.2 |
| 170AAI14000 | Analog Input Module | 16 Inputs | Voltage/Current | 24 V DC | DIN/Base | 125 x 141.5 x 47.5 | 0.2 |
| 170ADM85010 | Discrete I/O Module | 16 I/O | Positive Logic | 24 V DC | DIN/Base | 125 x 141.5 x 47.5 | 0.2 |
| 170ADN54020 | Discrete I/O Module | 16 In / 16 Out | Positive Logic | 24 V DC | DIN/Base | 125 x 141.5 x 47.5 | 0.2 |
Popular Modèles from Schneider Electric
| Modèle | Type | Application | Channels / Specs | Voltage | Dimensions (mm) | Poids (kg) |
|---|---|---|---|---|---|---|
| 140ARI03010 | Analog Input Module | Process Control | 8 Channels, ±10V, 4–20mA | 24 V DC | 125 x 141.5 x 47.5 | 0.2 |
| 140AIO33000 | Analog I/O Module | Mixed Signal Control | 12 Inputs, ±10V | 24 V DC | 125 x 141.5 x 47.5 | 0.2 |
| 140DDO84300 | Discrete Output Module | Machine Automation | 16 Outputs, Source | 24 V DC | 125 x 141.5 x 47.5 | 0.2 |
| BMXDDO1602 | Discrete Output Module | M340 Automation | 16 Outputs, Sink | 24 V DC | 125 x 141.5 x 47.5 | 0.2 |
| BMXDDI1602 | Discrete Input Module | M340 Automation | 16 Inputs, Sink | 24 V DC | 125 x 141.5 x 47.5 | 0.2 |
| BMXAMI0410 | Analog Input Module | Temperature, Process | 4 Channels, RTD / mA | 24 V DC | 125 x 141.5 x 47.5 | 0.2 |
