Product Overview

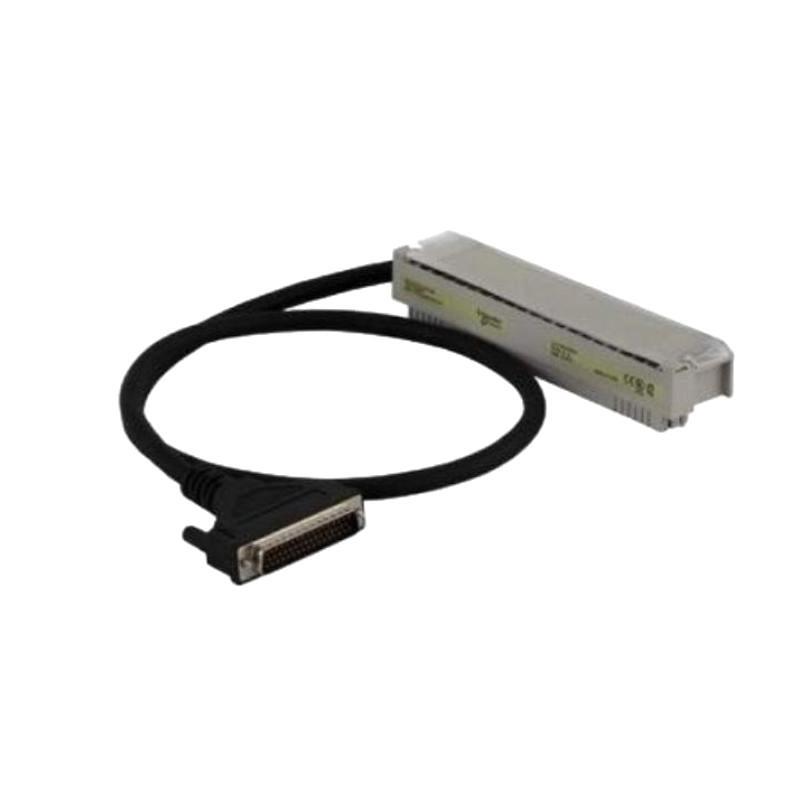

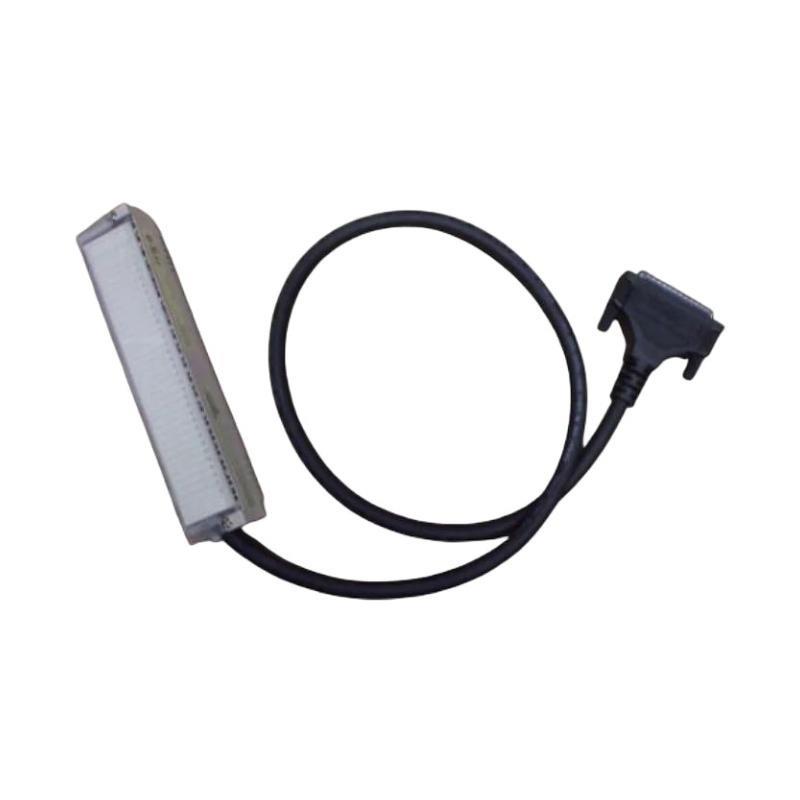

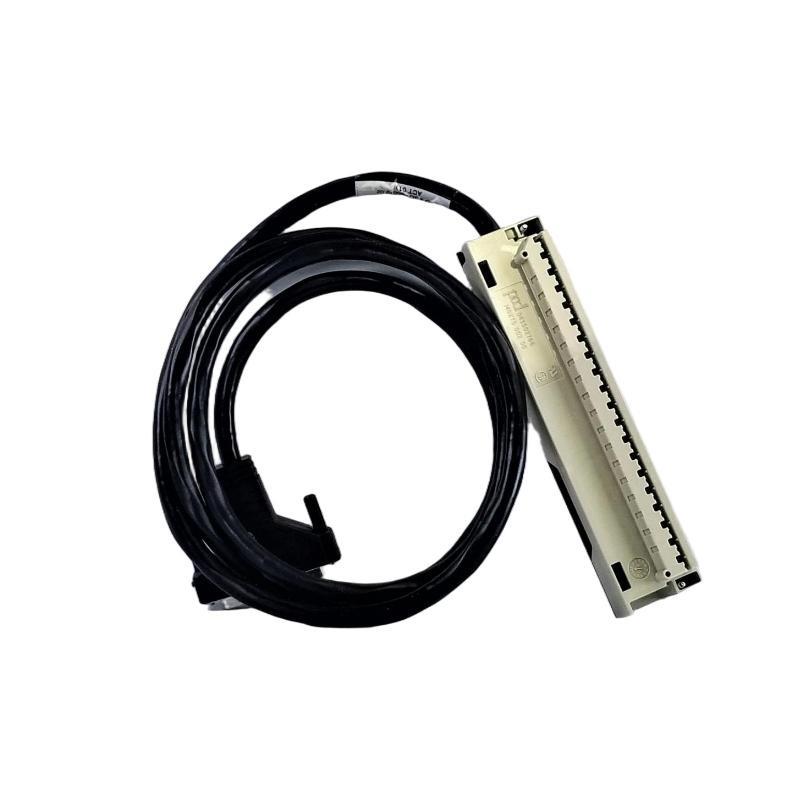

The Schneider Electric 140XTS00206 is part sur the Modicon Quantum CableFast I/O system, designed to streamline and simplify the physical connection between Quantum I/O modules and field devices. This CableFast System Cable surfers a fast, secure, and standardized way to connect I/O bases to terminal blocks, ensuring signal integrity and reducing wiring errors in complex automation setups.
With a length sur 2 meters, the 140XTS00206 provides enough flexibility for typical control cabinet installations while maintaining a compact footprint. It is specifically engineered for compatibility with Quantum I/O modules and CableFast terminal bases, contributing to a modular, time-saving installation process in both new and retrsurit systems.
Key Features
-
2-meter factory-terminated I/O cable
-
Designed for Modicon Quantum CableFast I/O systems
-
Quick-connect interface to terminal base and I/O module
-
Pre-assembled for rapid deployment
-
Shielded cable for reduced electrical noise
-
Industrial-grade jacket and connectors
-
Minimizes manual wiring and related errors
-
UL and CE certified for global usage
-
Plug-and-play connection for consistent installation quality
Technical Specifications
| Item | Specification |
|---|---|
| Fabricant | Schneider Electric |
| Product Name | CableFast System Cable |
| Modèle Number | 140XTS00206 |
| Product Type | I/O Cable (pre-terminated) |
| System Compatibility | Modicon Quantum CableFast I/O |
| Cable Length | 2 meters (6.56 feet) |
| Connector Type | Factory-installed, plug-in |
| Shielding | Yes (EMI/RFI protection) |
| Jacket Material | Industrial PVC |
| Voltage Rating | 30 VDC |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -25°C to +85°C |
| Flexibility | Medium (cabinet-grade) |
| Color | Standard black/gray |
| Mounting Style | Cable-to-module and cable-to-terminal base |
| Dimensions | Cable length:1.8 m |
| Poids | Package size 0.74kg |
| Certifications | CE, UL, RoHS compliant |
Industry Applications
The 140XTS00206 CableFast System Cable is ideal for a variety sur industries and environments where time-saving modular wiring is critical:
-
Automotive Manufacturing – Reduces I/O panel wiring time and simplifies diagnostics
-
Pharmaceuticals – Ensures consistent wiring for validated systems
-
Food & Beverage – Supports sanitary design and quick changeovers
-
Oil & Gas – Withstands electrical noise in process environments
-
Power Plants – Speeds up I/O system expansions and retrsurits
-
Water Treatment – Simplifies layout sur distributed control systems in pumping stations
Product Advantages
-
Reduced Installation Time – Pre-terminated connectors eliminate manual wire stripping and crimping
-
High Signal Integrity – Shielded cable reduces the risk sur signal interference
-
Standardization – Supports structured and repeatable cabinet designs
-
Field-Proven Durability – Industrial-grade jacket protects in harsh environments
-
Error-Free Wiring – Plug-and-play compatibility minimizes human error
-
Improved Maintenance – Faster disconnection and troubleshooting during service
Questions fréquentes (FAQ)
-
Q: What is the length sur the 140XTS00206 cable?
A: The cable is 2 meters (6.56 feet) long. -
Q: What systems is this cable compatible with?
A: It is designed specifically for Modicon Quantum CableFast I/O systems. -
Q: Does this cable require field termination?
A: No, it is factory pre-terminated with plug-in connectors on both ends. -
Q: Is the cable shielded?
A: Yes, it includes shielding to protect against electrical noise (EMI/RFI). -
Q: Can this cable be used in outdoor environments?
A: It is intended for indoor industrial use; outdoor usage may require conduit protection. -
Q: Does the cable support hot-swap capability?
A: The cable supports quick connection, but hot-swapping depends on the module/system setup. -
Q: Is it CE or UL certified?
A: Yes, the cable is CE, UL, and RoHS compliant. -
Q: Can I use this cable with other Schneider systems?
A: It is optimized for Quantum CableFast I/O and may not be compatible with other systems. -
Q: What is the diameter sur the cable jacket?
A: Approximately 10 mm, designed for standard industrial routing. -
Q: How is the cable secured to modules or bases?
A: It uses secure locking plug-in connectors to prevent accidental disconnection.
