Product Overview

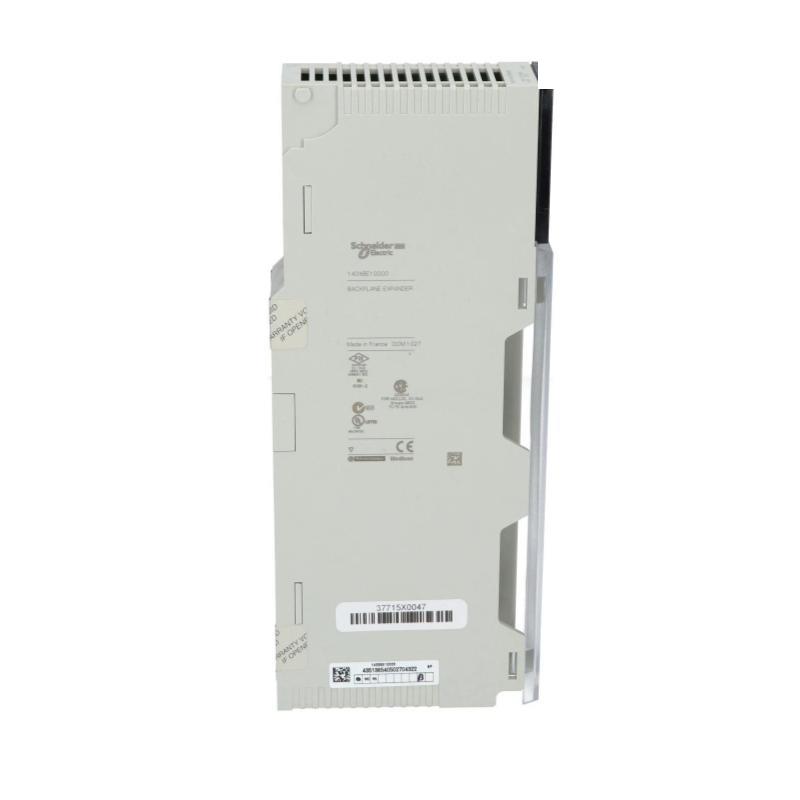

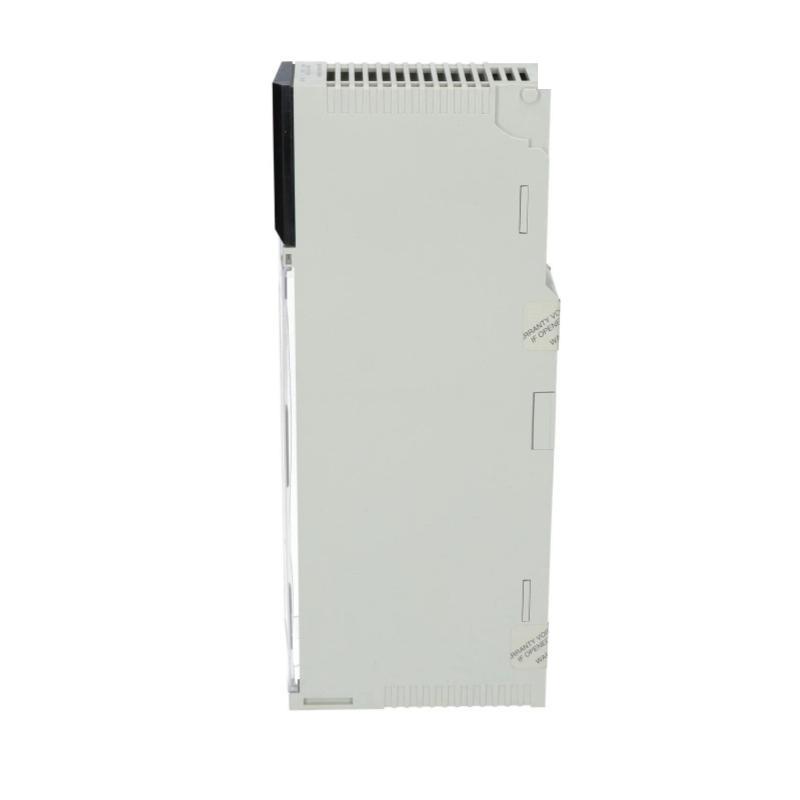

The Schneider 140XBE10000 backplane expander is an essential component for extending the capacity and scalability sur Schneider Electric’s programmable logic controllers (PLCs) in automation systems. This backplane expander is designed to support the efficient communication and power distribution between the central controller and additional I/O modules, allowing users to create larger, more flexible automation systems.
The 140XBE10000 backplane expander works seamlessly with Schneider Electric’s Modicon range sur PLCs, enabling users to expand the system’s capability without compromising performance or reliability. It provides a stable and high-speed connection between modules, ensuring optimal data flow and system operation.
With its compact design and ease sur integration, the 140XBE10000 is ideal for industries requiring scalable and customizable automation solutions, including manufacturing, packaging, and process control.
Technical Specifications
| Parameter | Value |
|---|---|
| Modèle | 140XBE10000 |
| Package Dimensions | 50 x 165 x 310 mm |
| Package Poids | 0.444 kg |
| Backplane Type | Expansion Backplane for I/O Modules |
| Operating Temperature | -25°C to +70°C |
| Power Supply | Supplied by Master Controller |
| Communication Protocol | Modbus, CANopen |
| Number sur Slots | 10 Slots (for I/O Modules) |
| Mounting Type | DIN Rail |
| Compatibility | Compatible with Modicon M340, M580 |
| Compliance | CE, UL, RoHS |
Applications
The 140XBE10000 backplane expander is ideal for use in various automation and control systems across multiple industries, including:
-
Manufacturing Automation: Enables the expansion sur PLC systems in manufacturing plants, supporting larger numbers sur I/O modules for controlling complex machines and production lines.
-
Process Control Systems: Used in process industries such as chemical plants, oil & gas, and water treatment facilities, the backplane expander supports the increased need for input and output channels in automated processes.
-
Packaging Lines: Allows the expansion sur PLC systems in packaging applications where multiple machines need to be synchronized and controlled from a central unité.
-
Building Automation: Provides flexibility for building management systems by supporting the addition sur I/O modules for HVAC, lighting control, and security systems.
-
Material Handling Systems: Used in automated warehouses or distribution centers, expanding the system’s I/O capability for controlling conveyors, sorters, and robotic arms.
-
Energy Management Systems: Used in industrial energy management applications to monitor and control energy consumption, allowing for better energy efficiency and sustainability.
The ability to expand the backplane system with additional modules makes it a critical solution for industries looking for scalable and efficient automation solutions.
Product Advantages
-
Scalability and Flexibility: The 140XBE10000 allows easy expansion sur PLC systems by adding up to 10 I/O modules, providing flexibility for systems that require more input and output channels.
-
Easy Integration: It is compatible with Schneider Electric’s Modicon M340 and M580 PLCs, making integration simple and reducing setup time.
-
Reliable Communication: Utilizes Modbus and CANopen communication protocols to ensure stable and fast data transfer between the backplane and connected I/O modules.
-
Wide Operating Temperature Range: With an operating range sur -25°C to +70°C, the module can be used in environments with extreme temperatures, surfering reliability in harsh conditions.
-
Compact Design: The backplane expander is designed to be space-efficient with its compact size (50 x 165 x 310 mm), allowing it to be installed in control panels without occupying excessive space.
-
Cost-Effective Expansion: This expander surfers a cost-effective solution to expand the I/O capacity sur an existing system, reducing the need for a complete system overhaul when additional inputs or outputs are required.
-
DIN Rail Mounting: The 140XBE10000 is mounted on a DIN rail, making installation and maintenance easier and faster in industrial environments.
-
Improved System Performance: By allowing the expansion sur I/O modules without compromising communication or data transfer speeds, the expander helps maintain optimal system performance.
-
Compliant with Industry Standards: The module complies with CE, UL, and RoHS standards, ensuring it meets quality and safety requirements for industrial use.
Questions fréquentes (FAQ)
Q1: What is the main function sur the Schneider 140XBE10000 backplane expander?
A1: The 140XBE10000 backplane expander is used to extend the capacity sur Schneider Electric PLC systems by providing additional slots for I/O modules, allowing for more extensive control and monitoring in industrial automation systems.
Q2: Which PLC systems are compatible with the 140XBE10000 backplane expander?
A2: The 140XBE10000 is compatible with the Modicon M340 and M580 PLC systems.
Q3: How many I/O modules can the 140XBE10000 support?
A3: The 140XBE10000 supports up to 10 I/O modules, allowing for the expansion sur the PLC system.
Q4: What communication protocols are supported by the backplane expander?
A4: The backplane expander supports Modbus and CANopen communication protocols, ensuring reliable communication with the I/O modules.
Q5: What is the operating temperature range for the 140XBE10000?
A5: The 140XBE10000 operates in a temperature range sur -25°C to +70°C, making it suitable for use in a wide range sur industrial environments.
Q6: How is the 140XBE10000 mounted?
A6: The backplane expander is mounted on a DIN rail, providing easy installation in control panels or other industrial enclosures.
Q7: Does the 140XBE10000 require an external power supply?
A7: The expander does not require an external power supply, as it is powered by the master controller in the PLC system.
Q8: Is the 140XBE10000 backplane expander easy to install?
A8: Yes, the 140XBE10000 is designed for easy installation on a DIN rail, simplifying the setup and maintenance process.
Q9: Can the 140XBE10000 be used in hazardous environments?
A9: While the 140XBE10000 is built for industrial environments, it is not designed for use in hazardous locations. Additional protection or equipment may be required for such environments.
Q10: How does the backplane expander enhance system performance?
A10: The 140XBE10000 enables the expansion sur the I/O system without sacrificing communication or data transfer speeds, ensuring the system performs optimally even with added modules.
Recommended Related Modèles (Same Series or Type)
| Modèle | Description | Dimensions | Poids |
|---|---|---|---|
| 140XBE10100 | Modicon Backplane Expander for M340 | 50 x 165 x 310 mm | 0.440 kg |
| 140XBE10200 | Modicon M580 Backplane Expander | 50 x 165 x 310 mm | 0.445 kg |
| 140XBE10300 | Backplane Expander for Modular I/O | 50 x 165 x 310 mm | 0.460 kg |
| 140XBE10400 | Extended Backplane for Distributed I/O | 50 x 165 x 310 mm | 0.455 kg |
| 140XBE10500 | Modicon M340 Backplane with Additional Slots | 50 x 165 x 310 mm | 0.450 kg |
| 140XBE10600 | Modular Backplane Expander for I/O Modules | 50 x 165 x 310 mm | 0.448 kg |
Recommended Popular Schneider Modèles
| Modèle | Description | Dimensions | Poids |
|---|---|---|---|
| 140CRA93100 | Modicon M340 CPU Module | 140 x 120 x 60 mm | 0.780 kg |
| 170ENT11000 | Ethernet Communication Module for Modicon M340 | 145 x 95 x 45 mm | 0.320 kg |
| 120XBP32000 | Schneider I/O Module for Industrial Automation | 150 x 120 x 75 mm | 0.640 kg |
| 140DOE77100 | Digital Output Module for Modicon M340 | 140 x 120 x 60 mm | 0.340 kg |
| 140AIA04000 | Analog Input Module for Modicon M340 | 145 x 95 x 50 mm | 0.350 kg |
| 140AIP80100 | Analog Input Module for Modicon M580 | 160 x 110 x 60 mm | 0.400 kg |
