Présentation du produit

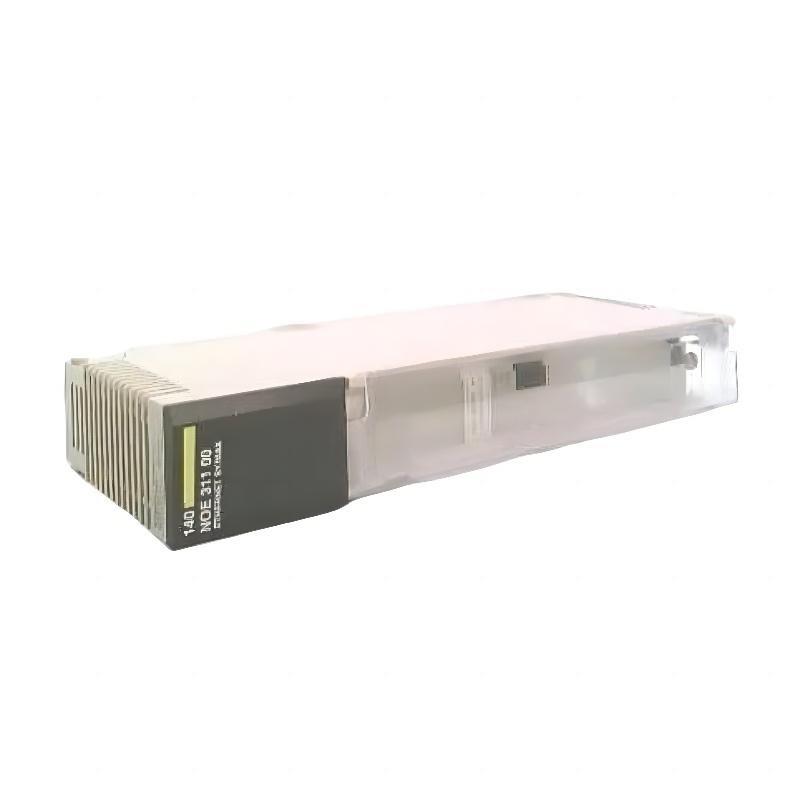

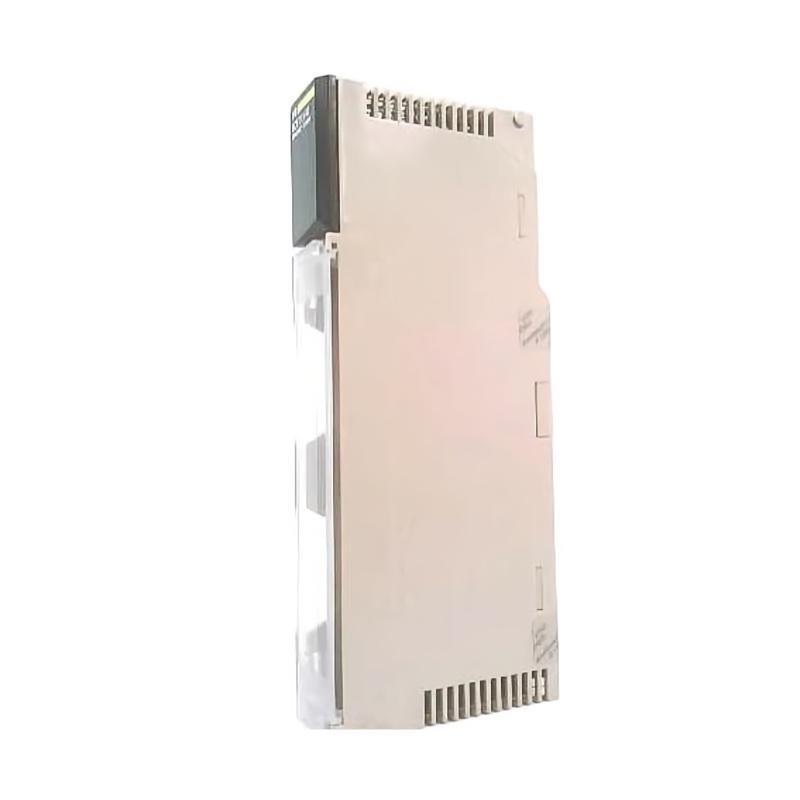

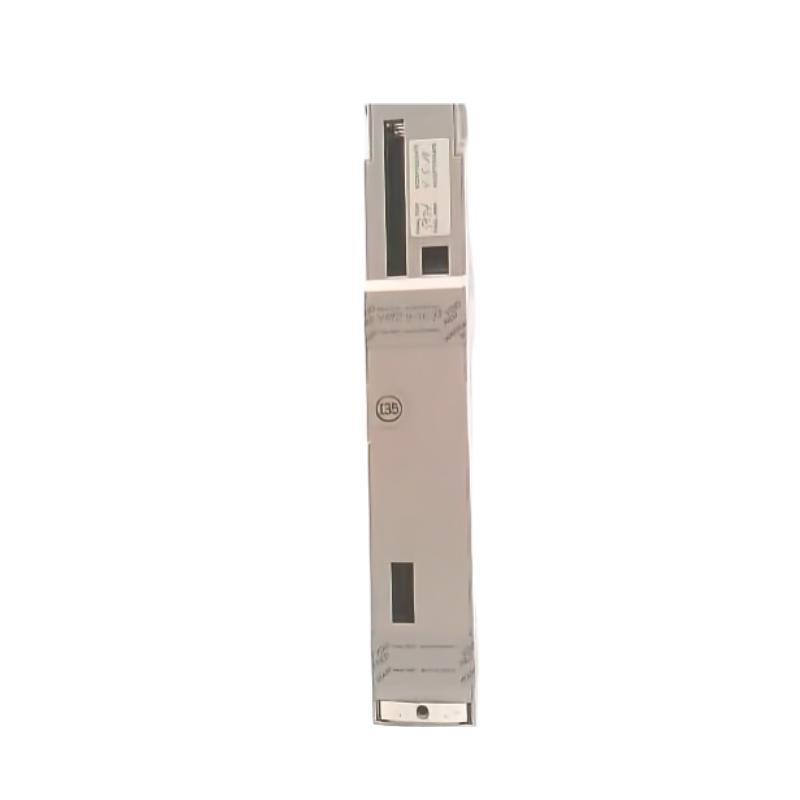

The Schneider 140NOE31100C Communication Module is a high-performance Ethernet TCP/IP network interface designed for the Modicon Quantum automation platform. It provides a reliable and scalable networking solution for process control and manufacturing environments that require real-time data exchange and centralized monitoring. Engineered to meet the demanding needs sur industrial automation, the module integrates seamlessly into Quantum racks, enabling efficient communication between controllers, operator workstations, and SCADA or MES systems. Its robust design, advanced diagnostics, and redundant communication features make it ideal for mission-critical applications where uptime and data integrity are paramount.
Technical Specifications
| Parameter | Details |
|---|---|
| Modèle | 140NOE31100C |
| Product Type | Ethernet TCP/IP Communication Module |
| Supported Protocols | Modbus TCP/IP, Modbus, EtherNet/IP |
| Network Interface | 10/100 Mbps Ethernet (RJ45) |
| Processor Compatibility | Modicon Quantum PLC series |
| Backplane Current Consumption | 350 mA at 5 V DC |
| Maximum Number sur Connections | Up to 64 simultaneous connections |
| Redundancy | Supports dual Ethernet networks for high availability |
| Configuration Method | Web server interface, Unitéy Pro/Control Expert ssurtware |
| Diagnostics | Built-in web diagnostics and LED indicators |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Shock Resistance | 30 g for 11 ms |
| Vibration Resistance | 5 g, 10–150 Hz |
| Dimensions (W × H × D) | 103.9 × 40.3 × 250 mm |
| Poids | 0.48 kg |
| Mounting | Quantum backplane slot |
| Certifications | CE, UL, CSA, RoHS compliant |
| Firmware Update | Field-upgradable via Ethernet |
| Power Supply | Provided through the Quantum rack |
Applications
-
Industrial Automation Networks – Facilitates real-time communication between Modicon Quantum controllers and SCADA/MES systems.
-
Process Control Systems – Enables high-speed data exchange for continuous processes in oil & gas, chemical, and power generation industries.
-
Remote Monitoring and Diagnostics – Offers web-based diagnostics and configuration for remote plant management.
-
Redundant Network Architectures – Supports dual Ethernet connections for uninterrupted operation in critical facilities.
-
Integration with Third-Party Systems – Seamlessly integrates with enterprise systems using open Modbus TCP/IP protocols.
Advantages
-
High-Speed Data Transfer – 10/100 Mbps Ethernet interface supports large data volumes with minimal latency.
-
Robust Redundancy – Dual Ethernet ports ensure continuous communication in case sur network failure.
-
User-Friendly Configuration – Built-in web server simplifies setup and maintenance.
-
Broad Protocol Support – Compatible with Modbus TCP/IP and EtherNet/IP, enhancing system flexibility.
-
Strong Industrial Design – Resistant to shock, vibration, and temperature fluctuations for harsh environments.
-
Advanced Diagnostics – Integrated LED indicators and web tools provide immediate network status and fault alerts.
-
Seamless Modicon Integration – Designed to fit perfectly into Quantum racks without additional hardware.
FAQ
-
How many simultaneous Ethernet connections can the 140NOE31100C handle?
The module supports up to 64 concurrent TCP/IP sessions, ensuring multiple devices and systems can communicate efficiently without performance loss. -
What redundancy options are available for critical network reliability?
It provides dual Ethernet network configurations, allowing seamless failover to maintain communication if one network path experiences a failure. -
Can the firmware be updated while the module remains in operation?
Yes, firmware updates can be applied through the Ethernet interface without removing or powering down the module. -
Does the module support both Modbus TCP/IP and EtherNet/IP protocols?
Absolutely. The module is designed for compatibility with Modbus TCP/IP and EtherNet/IP to accommodate diverse industrial network architectures. -
How is the initial configuration sur the 140NOE31100C performed?
Configuration can be completed using the integrated web server or Schneider’s Unitéy Pro/Control Expert ssurtware for a streamlined setup. -
What diagnostic capabilities are built into the module?
It surfers web-based diagnostics and LED indicators for real-time status, including link activity, errors, and network health. -
Is the module suitable for environments with high electrical noise?
Yes, the design includes EMC compliance and filtering features that allow reliable operation even in electrically noisy industrial areas. -
Does the 140NOE31100C support hot swapping in a Quantum rack?
Yes, it supports hot swapping, enabling maintenance or replacement without shutting down the system or interrupting operations. -
What is the typical backplane current consumption sur the module?
The module typically draws around 350 mA at 5 V DC, making it energy efficient within Quantum systems. -
How can this module be integrated with SCADA or MES platforms?
Integration is straightforward through Modbus TCP/IP, enabling direct data exchange for real-time monitoring and control in SCADA and MES applications.
