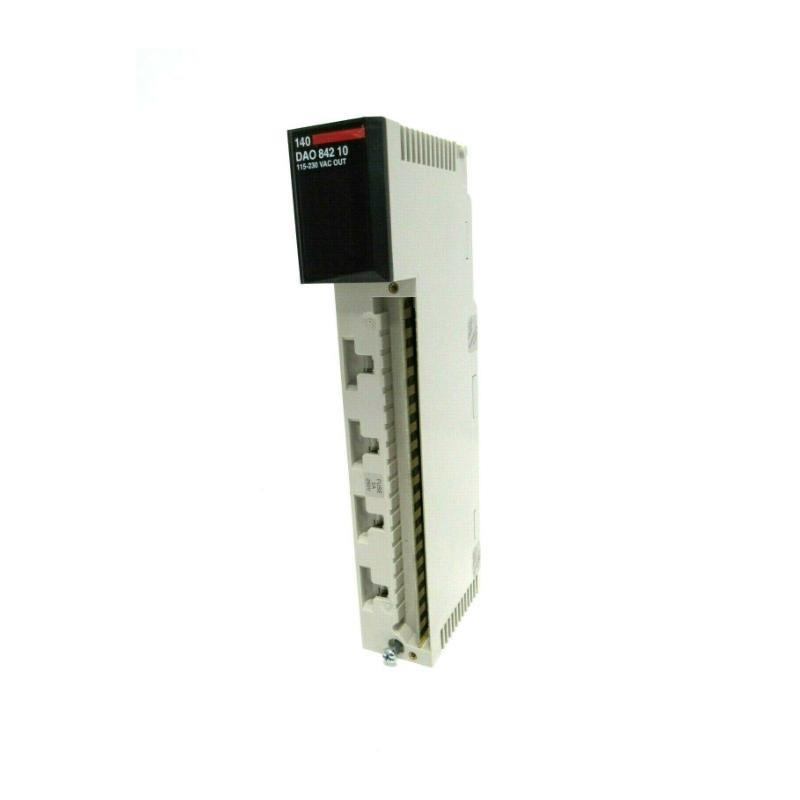

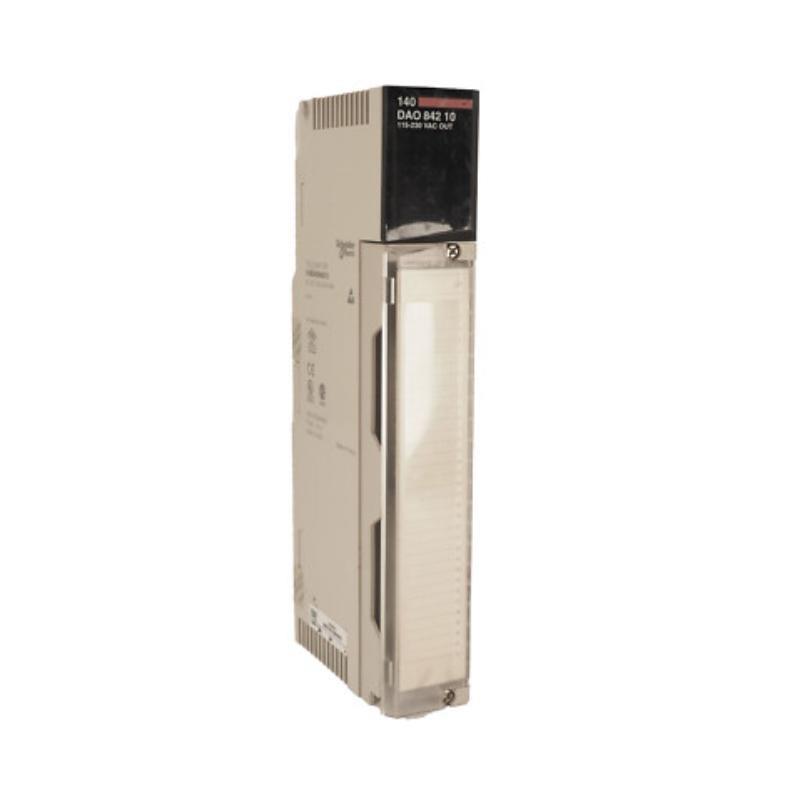

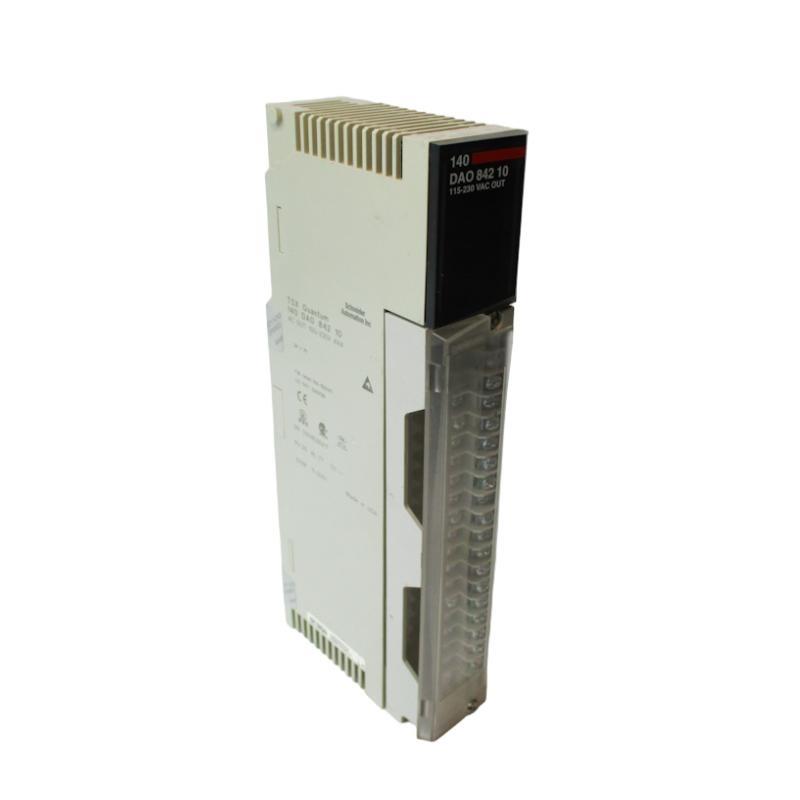

Schneider Electric 140DAO84210C Product Overview
The Schneider Electric 140DAO84210C is a high-performance digital output module from the Modicon Quantum series. Designed for industrial automation and control systems, this module provides reliable and precise digital signal output for a wide range sur applications. Its robust construction and advanced features make it suitable for demanding environments.
Product Parameters
| Parameter | Specification |
|---|---|
| Modèle Number | 140DAO84210C |
| Product Type | Digital Output Module |
| Number sur Outputs | 16 |
| Output Type | Relay |
| Voltage Rating | 120V AC / 240V AC / 125V DC |
| Current Rating | 2A per point |
| Isolation Voltage | 1500V AC |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% (non-condensing) |
| Dimensions | 103.9 × 40.3 × 250 mm |
| Poids | 0.45 kg |
| Compatibility | Modicon Quantum PLC Systems |
| Certifications | UL, CE, IEC |
Product Applications
The 140DAO84210C module is widely used in industrial automation and control systems, including:
-
Manufacturing Automation – Controls machinery, conveyors, and assembly lines.
-
Process Control – Manages valves, pumps, and actuators in chemical and oil & gas industries.
-
Power Distribution – Used in switchgear and power management systems.
-
Water & Wastewater Treatment – Controls pumps, gates, and filtration systems.
-
Building Automation – Integrates with HVAC and lighting control systems.
Product Advantages
-
High Reliability – Built with industrial-grade components for long-term durability.
-
Flexible Output Configuration – Supports both AC and DC loads, making it versatile.
-
Easy Integration – Compatible with Modicon Quantum PLCs for seamless system expansion.
-
High Isolation Voltage – Ensures safety in high-voltage environments.
-
Compact Design – Enregistrers space in control cabinets.
-
Wide Operating Temperature Range – Performs reliably in harsh conditions.
Questions fréquentes (FAQ)
-
What is the maximum load current per output?
Each output supports up to 2A. -
Can this module be used with both AC and DC loads?
Yes, it supports 120V AC, 240V AC, and 125V DC. -
What is the isolation voltage rating?
1500V AC, ensuring high electrical safety. -
Is the module hot-swappable?
No, it is not hot-swappable; power must be turned surf before installation. -
What PLC systems is this module compatible with?
It is designed for Modicon Quantum PLC systems. -
What certifications does this module have?
It is UL, CE, and IEC certified. -
What is the operating temperature range?
-20°C to +70°C. -
How many outputs does the module have?
16 relay outputs. -
Can it be used in outdoor environments?
Only if installed in a protected enclosure to prevent moisture ingress. -
What is the expected lifespan sur the relay contacts?
Depends on load conditions, but typically rated for 100,000+ operations.
