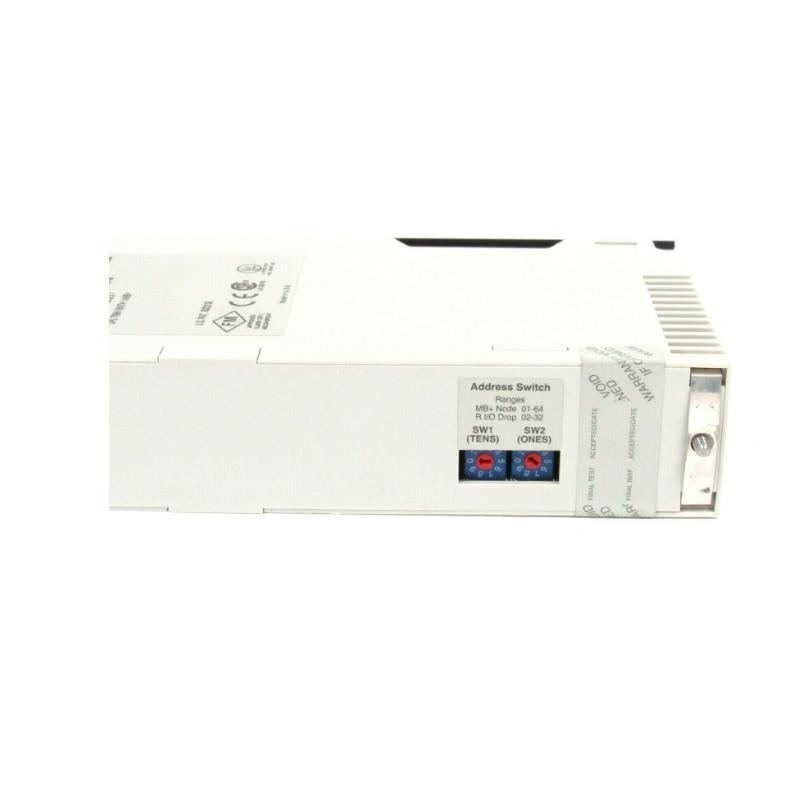

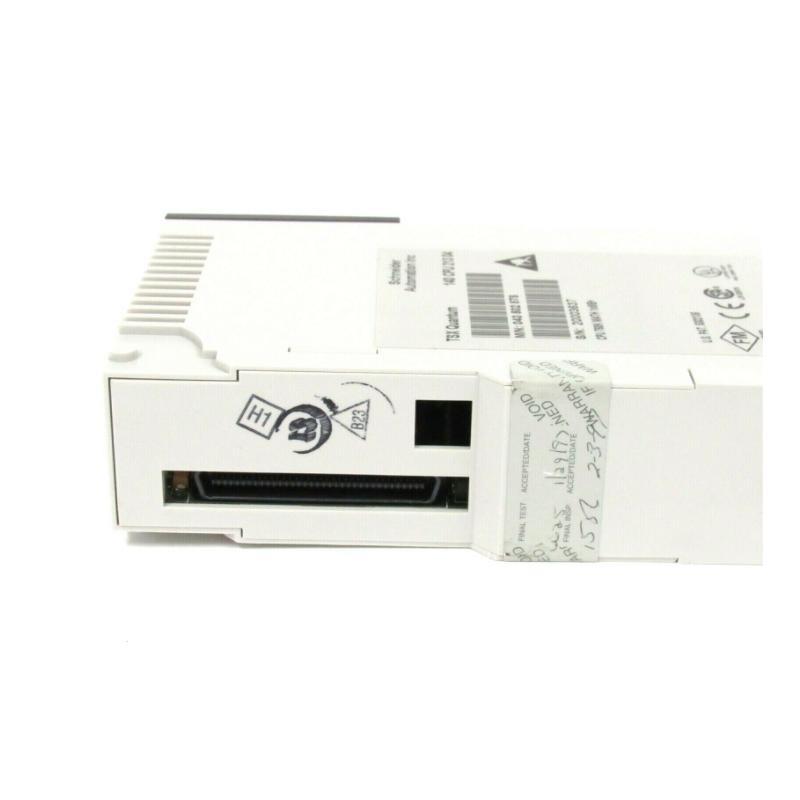

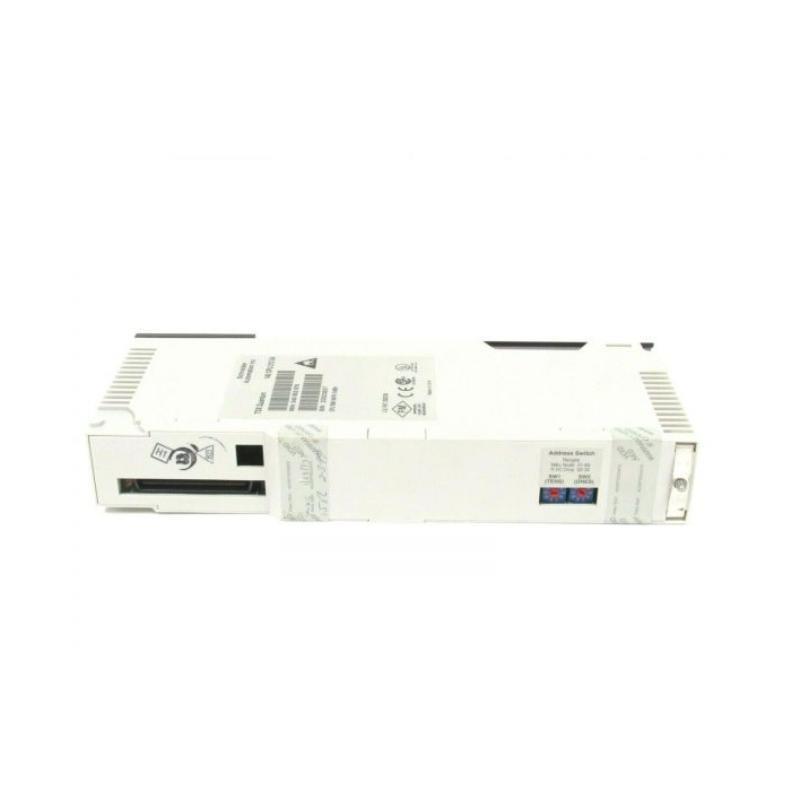

Introduction sur Schneider 140CPU21304C
The Schneider 140CPU21304C is a compact and high-performance programmable logic controller (PLC) unité from Schneider Electric. It is part sur the Modicon 140 Series, designed for industrial automation systems requiring efficient, reliable, and scalable solutions. The unité integrates seamlessly with various industrial environments, surfering versatile features to meet the complex demands sur modern manufacturing, process control, and automation industries.
With an advanced microprocessor, the 140CPU21304C provides excellent processing speeds and robust performance under various operational conditions. It supports an extensive range sur input/output modules and communication options, ensuring compatibility with numerous devices and other PLC systems. Its modularity allows for flexible system expansion, making it an ideal choice for various automation projects.
Spécifications du produit
| Parameter | Details |
|---|---|
| Modèle | Schneider 140CPU21304C |
| Type | Programmable Logic Controller |
| Processor Type | Central Processing Unité (CPU) |
| Memory Size | 128 KB RAM (User Programmable) |
| Input Voltage | 24V DC |
| Poids | 0.798 kg |
| Dimensions | 130 x 250 x 30mm |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Mounting Type | DIN Rail Mountable |
| Communication Ports | 2 x Serial, 1 x Ethernet |
| Max I/O Capacity | Up to 128 I/O Points |
| Power Consumption | 3.2W |
| Protection Rating | IP20 |
Applications sur Schneider 140CPU21304C
The Schneider 140CPU21304C is widely used in several industries and applications, including:
-
Manufacturing Automation: For controlling assembly lines, packaging machines, and robotic arms.
-
Process Control: Used in industries like oil and gas, chemical plants, and water treatment for regulating and monitoring processes.
-
Building Automation: Applied for HVAC systems, lighting controls, and security management.
-
Energy Management: In industrial power management systems to optimize energy consumption and control electrical systems.
-
Material Handling: Integrates seamlessly into conveyor belt systems, automated warehouses, and sorting mechanisms.
Advantages sur Schneider 140CPU21304C
-
High Flexibility: The modular design allows users to expand the system by adding I/O modules and other communication interfaces.
-
Reliable Performance: Built to handle tough industrial environments, it provides reliable and continuous operation.
-
Scalability: Capable sur supporting small and large-scale automation systems, making it adaptable to different project sizes.
-
Energy Efficient: Designed to consume minimal power while maintaining optimal performance, reducing overall operating costs.
-
User-Friendly: Easy to configure and program, surfering a variety sur development tools to meet user-specific requirements.
-
Integration: Compatible with other Schneider products and third-party devices, making it ideal for diverse industrial systems.
FAQs (Questions fréquentes)
-
What is the power requirement for Schneider 140CPU21304C?
The 140CPU21304C operates on a 24V DC power supply. -
How many I/O points can the Schneider 140CPU21304C handle?
This model can support up to 128 I/O points, depending on the configuration and connected modules. -
What are the mounting options for the 140CPU21304C?
The controller can be mounted on a DIN rail for easy integration into control cabinets. -
Is the Schneider 140CPU21304C compatible with Modicon PLCs?
Yes, the 140CPU21304C is fully compatible with other Modicon PLC systems from Schneider Electric. -
What are the communication ports available on the 140CPU21304C?
The unité comes with 2 serial communication ports and 1 Ethernet port for network connectivity. -
What is the maximum operating temperature for this PLC?
The unité operates within a temperature range sur -25°C to +70°C. -
Can the 140CPU21304C be used in outdoor applications?
No, this unité is designed for indoor use only, with an IP20 protection rating. -
How does the Schneider 140CPU21304C compare to other PLCs in the 140 Series?
The 140CPU21304C surfers a compact design with a high processing speed and excellent scalability, ideal for medium-scale automation systems. -
Can I expand the memory sur the 140CPU21304C?
The memory is fixed at 128KB, and it cannot be expanded. -
Is it easy to program the Schneider 140CPU21304C?
Yes, it comes with user-friendly programming ssurtware, including Schneider’s Unitéy Pro, which simplifies programming tasks.
Recommended Related Modèles (Same Series or Related)
| Modèle | Type | I/O Capacity | Memory | Power Consumption |
|---|---|---|---|---|
| 140CPU11304C | Modicon PLC CPU | 64 I/O | 64 KB | 2.5W |
| 140CPU21404C | Modicon PLC CPU | 128 I/O | 128 KB | 3.1W |
| 140CPU31304C | Modicon PLC CPU | 256 I/O | 256 KB | 4.0W |
| 140CPU21303C | Modicon PLC CPU | 64 I/O | 64 KB | 2.8W |
| 140CPU21304D | Modicon PLC CPU | 128 I/O | 128 KB | 3.3W |
| 140CPU31303C | Modicon PLC CPU | 256 I/O | 128 KB | 4.2W |
