Présentation du produit

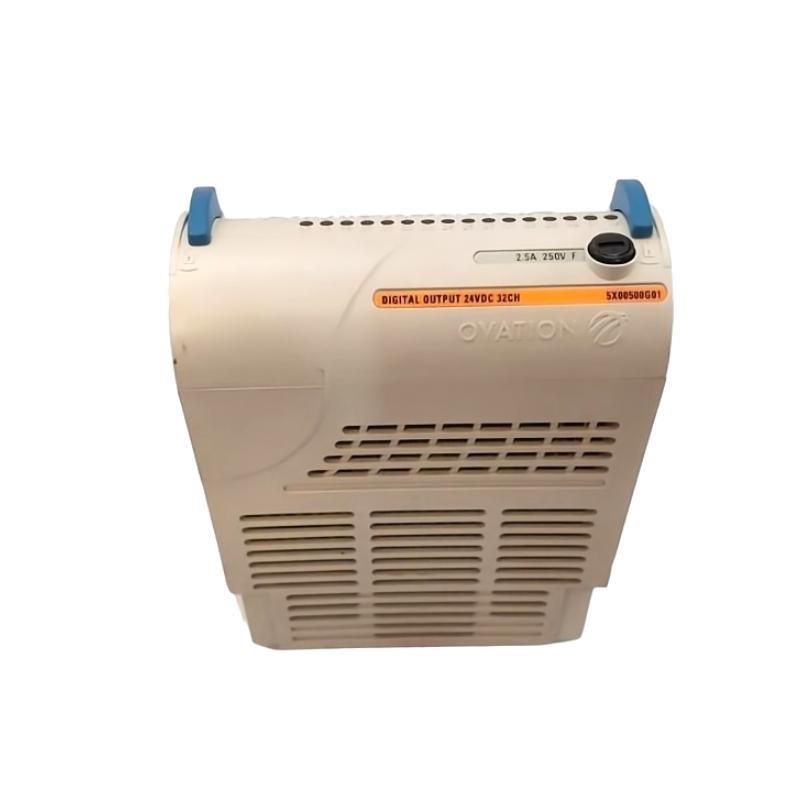

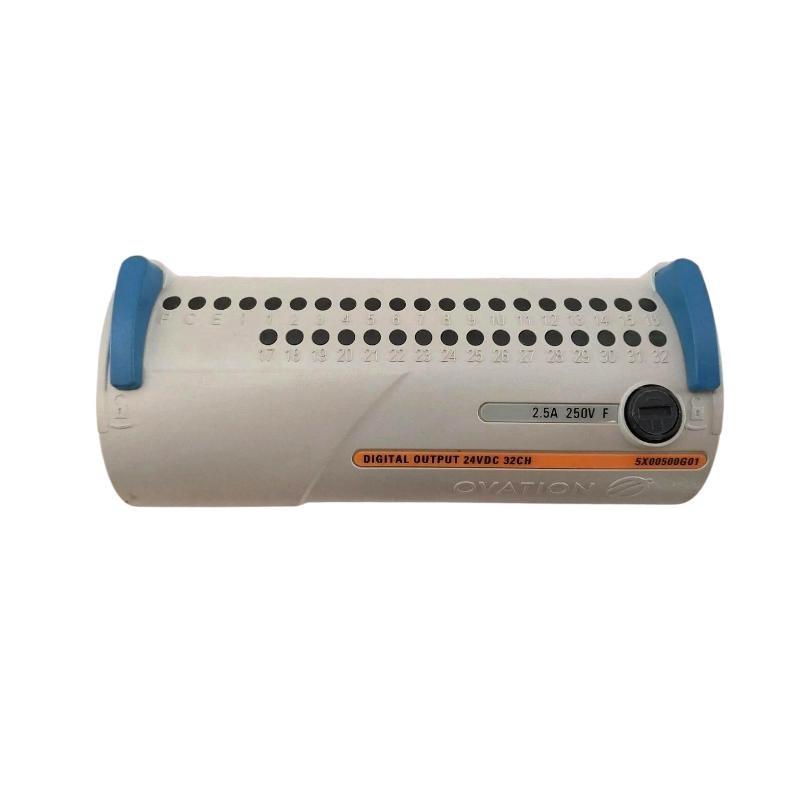

The Ovation 5X00500G01 Digital Output Module is a critical component within the Ovation control system, widely recognized for its reliability and performance in industrial automation and process control. This module is designed to interface with a wide range sur control signals and deliver precise digital output for operational control and monitoring.
The module supports multiple digital outputs which can be individually programmed to control various field devices such as solenoids, motor starters, and alarms. The design emphasizes durability and consistent performance under demanding industrial environments, making it ideal for power plants, manufacturing facilities, and large-scale process control systems.
Built with high-quality components, the 5X00500G01 ensures seamless integration into existing Ovation control systems, facilitating smooth system upgrades and expansions without operational disruptions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle Number | 5X00500G01 |
| Module Type | Digital Output Module |
| Number sur Outputs | 16 digital outputs |
| Output Type | Relay or transistor outputs (configurable) |
| Output Voltage | 24 VDC nominal |
| Output Current | Up to 0.5 A per channel |
| Response Time | Less than 10 ms |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | Up to 95% non-condensing |
| Mounting Type | DIN Rail or panel mount |
| Communication Interface | Ovation proprietary bus |
| Dimensions (HxWxD) | 44 x 178 x 114 mm |
| Poids | 0.7 kg |
| Certifications | CE, UL |
Applications
-
Power Generation Plants: Used for controlling turbine and generator auxiliaries such as lubrication pumps and cooling fans.
-
Oil & Gas Industry: Managing digital output signals for valve actuators, alarm systems, and safety interlocks.
-
Manufacturing Automation: Controls conveyor systems, machine starts/stops, and safety shutdown systems.
-
Water and Wastewater Treatment: Operates valves, pumps, and monitoring alarms.
-
Chemical Processing: Facilitates digital control for reactors, mixers, and emergency shutdown systems.
-
Building Automation: Controls lighting, HVAC systems, and security alarms.
Advantages
-
High Reliability: Designed to operate continuously in harsh industrial environments with minimal downtime.
-
Flexible Configuration: Output types and behavior can be customized according to specific process requirements.
-
Seamless Integration: Fully compatible with Ovation control systems, allowing easy upgrades and system expansions.
-
Compact Size: Small footprint reduces panel space requirements and simplifies installation.
-
Fast Response: Quick switching times ensure precise control sur field devices.
-
Robust Build: Resistant to vibration, temperature extremes, and humidity ensuring long-term operation.
-
User-Friendly Maintenance: Modular design allows quick replacement or servicing with minimal system disruption.
-
Safety Compliant: Meets industry safety and certification standards, ensuring operational compliance.
-
Diagnostic Capabilities: Built-in diagnostic functions help detect faults and simplify troubleshooting.
-
Cost-Effective: Long service life combined with reliable performance lowers overall system maintenance costs.
Questions fréquentes (FAQ)
-
Q: What type sur outputs does the Ovation 5X00500G01 module provide?
A: It supports 16 digital outputs that can be configured as either relay or transistor outputs depending on system requirements. -
Q: Can the module operate in extreme temperature environments?
A: Yes, it is rated to operate from -20°C to 70°C and can be stored safely between -40°C and 85°C. -
Q: Is the module compatible with all Ovation control systems?
A: The 5X00500G01 is designed for full compatibility with the Ovation control architecture. -
Q: How is the module mounted?
A: It can be mounted on DIN rails or panels, surfering flexibility for various installation environments. -
Q: What is the expected lifetime sur this module?
A: With proper operation and maintenance, the module typically lasts for several years in industrial conditions. -
Q: How is the module powered?
A: The module operates on a 24 VDC nominal power supply. -
Q: Does the module have built-in diagnostics?
A: Yes, it includes diagnostics to monitor output statuses and detect faults. -
Q: What is the weight and size sur the module?
A: The module measures 44 x 178 x 114 mm and weighs 0.7 kg. -
Q: Are there any certifications or standards it meets?
A: Yes, it holds CE and UL certifications, meeting relevant safety and quality standards. -
Q: Can the module be used in safety-critical applications?
A: Yes, its reliability and certification make it suitable for many safety-related industrial control tasks.
Related Modèles (Same Series or Related)
| Modèle Number | Description | Outputs | Dimensions (mm) | Poids (kg) |
|---|---|---|---|---|
| 5X00500G02 | Digital Output Module, 32 outputs | 32 digital | 120 x 50 x 160 | 0.8 |
| 5X00501G01 | Analog Output Module | 16 analog | 120 x 25 x 160 | 0.6 |
| 5X00502G01 | Digital Input Module | 16 digital | 120 x 25 x 160 | 0.5 |
| 5X00503G01 | Relay Output Module | 8 relay | 120 x 25 x 140 | 0.4 |
| 5X00504G01 | High-Speed Digital Output Module | 16 digital | 120 x 25 x 160 | 0.6 |
| 5X00505G01 | Solid État Output Module | 16 digital | 120 x 25 x 160 | 0.5 |
Popular Modèles from Ovation Marque
| Modèle Number | Description | Outputs/Inputs | Dimensions (mm) | Poids (kg) |
|---|---|---|---|---|
| 5X00400G01 | Digital Input Module | 32 digital | 120 x 50 x 160 | 0.8 |
| 5X00600G01 | Analog Input Module | 16 analog | 120 x 25 x 160 | 0.6 |
| 5X00700G01 | Controller Module | N/A | 150 x 60 x 180 | 1.2 |
| 5X00800G01 | Communication Module | Ethernet | 120 x 50 x 160 | 0.7 |
| 5X00900G01 | Power Supply Module | 24 VDC | 120 x 50 x 160 | 1.0 |
| 5X01000G01 | Display and Operator Interface | N/A | 200 x 150 x 100 | 1.5 |
