Présentation du produit

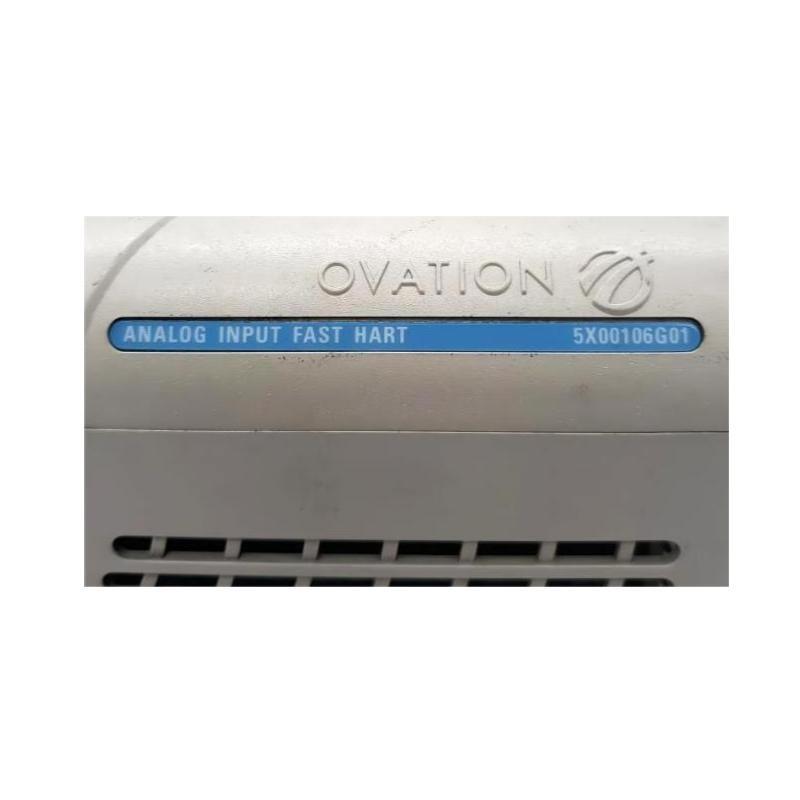

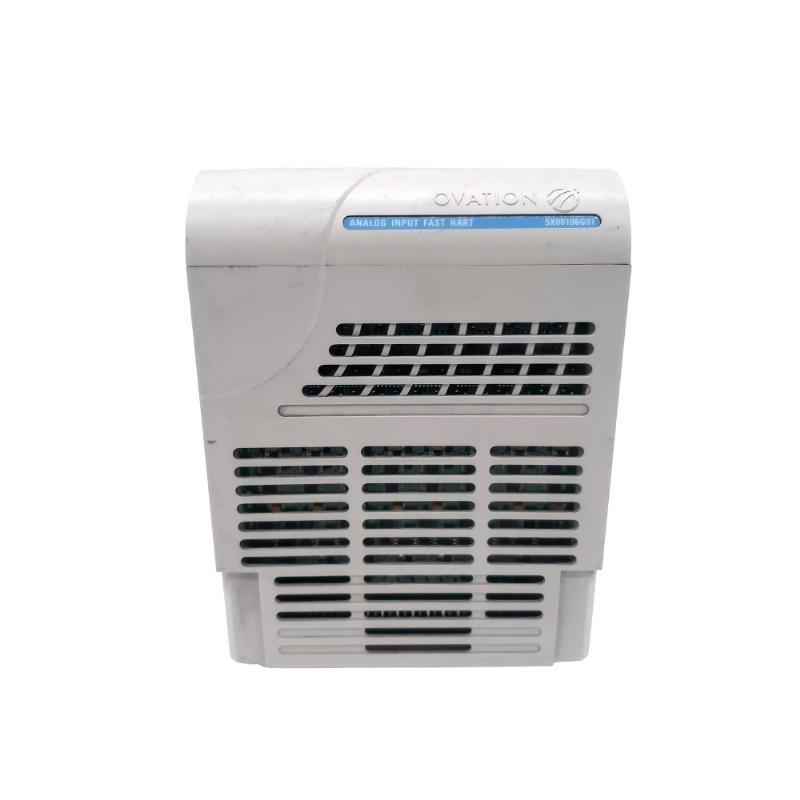

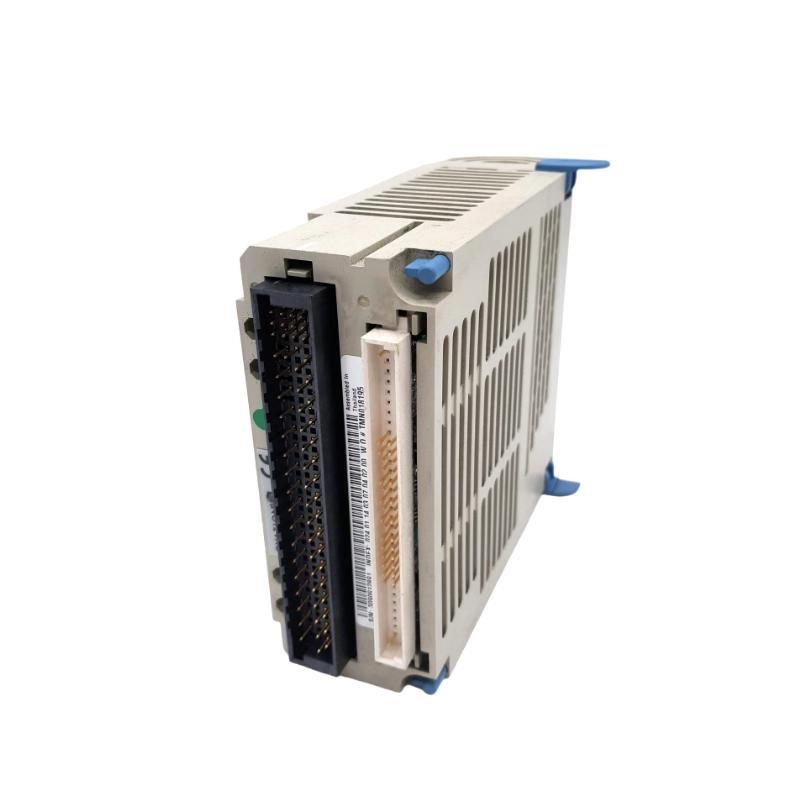

The Ovation 5X00106G01 8-Channel Analog Input Module is a high-performance analog signal acquisition device designed for integration into Emerson’s Ovation Distributed Control System (DCS). Engineered with industrial precision and reliability in mind, this module is capable sur capturing real-time analog signals from field instruments such as pressure transducers, temperature sensors, level transmitters, and flow meters.
This module plays a vital role in critical process industries by digitizing analog data and forwarding it to the control system for analysis and decision-making. It is widely appreciated for its robust construction, channel isolation, high resolution, and seamless compatibility with Ovation hardware architecture, making it ideal for power plants, chemical facilities, water treatment stations, and other automation environments that demand high accuracy and system resilience.
Spécifications du produit
| Specification | Details |
|---|---|
| Modèle Number | 5X00106G01 |
| Module Type | Analog Input Module |
| Number sur Channels | 8 Channels |
| Signal Types Supported | 4–20 mA, 0–10 VDC |
| Resolution | 16-bit |
| Input Impedance | >1 MΩ (Voltage), 250 Ω (Current) |
| Channel Isolation | 500 V RMS (Individually Isolated Inputs) |
| Accuracy | ±0.1% sur Full Scale |
| Update Rate | 10 ms per channel |
| Common Mode Rejection Ratio | >100 dB |
| Diagnostics | Input fault detection, signal range monitoring |
| Hot-Swappable | Yes |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% (non-condensing) |
| Power Consumption | <5 W |
| Mounting Type | Ovation Standard I/O Chassis |
| Dimensions (W × H × D) | 263 x 183 x 55 mm |
| Poids | 0.85 kg |
| Certifications | UL Listed, CE, CSA, RoHS Compliant |
Product Applications
The Ovation 5X00106G01 module is built to meet the demands sur real-time process monitoring in complex and mission-critical systems. Key application scenarios include:
-
Thermal and Nuclear Power Plants
Captures temperature, pressure, and flow data for turbine control, environmental monitoring, and safety systems. -
Oil and Gas Facilities
Gathers real-time analog readings from distributed instrumentation along pipelines, refineries, and compressor stations. -
Chemical and Petrochemical Plants
Enables accurate monitoring sur process variables in reactors, separators, and distillation unités. -
Water and Wastewater Treatment
Collects analog inputs for level sensors, chlorine concentration, and flow meters in treatment tanks. -
Pharmaceutical Manufacturing
Maintains regulatory compliance by ensuring environmental conditions like humidity and temperature remain within limits. -
Food and Beverage Processing
Interfaces with instrumentation to ensure product quality through precise environmental and flow control.
Product Advantages
The Ovation 5X00106G01 Analog Input Module surfers several core benefits that enhance system reliability, scalability, and operational efficiency:
-
High Precision and Resolution
16-bit conversion ensures highly accurate digitization sur analog signals for mission-critical control decisions. -
Versatile Signal Support
Accepts both voltage and current signals, making it compatible with a wide range sur industrial sensors and transmitters. -
Channel Isolation
Each sur the 8 channels is independently isolated to eliminate signal interference and prevent cross-channel faults. -
Real-Time Diagnostics
Built-in fault detection mechanisms help identify signal loss, range violations, and wiring issues before they affect operations. -
Seamless Ovation Integration
Fully compatible with the Ovation I/O chassis and control architecture, simplifying deployment and reducing integration time. -
Hot Swappability
Designed to be replaced during live operations without causing system interruption—ideal for high-availability environments. -
Industrial Grade Durability
Engineered to perform in demanding environments, with wide temperature range support and long operational life.
FAQ (Questions fréquentes)
-
What is the main function sur the 5X00106G01 module?
-
It digitizes analog input signals for processing and control within an DCS Ovation.
-
-
How many input channels are provided?
-
It surfers 8 isolated analog input channels.
-
-
Which signal types are compatible with this module?
-
It supports both 4–20 mA current loops and 0–10 V voltage inputs.
-
-
Does this module support hot-swapping?
-
Yes, it can be inserted or removed without shutting down the system.
-
-
Can the module detect wiring or input faults?
-
Yes, it includes diagnostics for open wire detection and signal out-sur-range alerts.
-
-
What kind sur isolation is present between channels?
-
Each input is individually isolated to 500 V RMS to reduce electrical interference.
-
-
What is the resolution sur the module?
-
It has a 16-bit analog-to-digital resolution.
-
-
Is the module suitable for outdoor use?
-
It is not weatherprosur but can be used outdoors if housed in a weather-protected enclosure.
-
-
What are the mounting options?
-
The module is rack-mounted in standard Ovation I/O chassis.
-
-
Is this module certified for industrial applications?
-
Yes, it is certified with UL, CE, CSA, and complies with RoHS standards.
Related Modèles (Same Series or Functional Compatibility)
| Modèle | Type | Channels | Signal Type | Key Features |
|---|---|---|---|---|
| 5X00070G01 | Analog Input Module | 8 | Voltage / Current | General-purpose analog input |
| 5X00070G04 | Analog Input Module | 8 | Voltage / Current | Enhanced diagnostics |
| 5X00105G01 | Digital Input Module | 16 | Dry Contact | Fast state monitoring |
| 5X00106G02 | Analog Output Module | 8 | 4–20 mA / 0–10 V | Analog output control for actuators |
| 5X00121G01 | RTD Input Module | 6 | RTD Sensors | Precision temperature monitoring |
| 5X00357G01 | Communication Interface | – | – | Interfaces with external systems and SCADA |
Popular Modèles from the Same Marque (Emerson Ovation)
| Modèle | Type | Function | Primary Application |
|---|---|---|---|
| 1X00024H01 | Power Supply Module | Converts AC to 24V DC | Provides stable power to I/O modules |
| 1C31194G01 | Analog Input Module | Signal acquisition | High-resolution input for sensors |
| 1C31116G01 | Controller Module | Logic and control execution | Core processor in DCS Ovation |
| 5X00167G01 | Digital Input Module | Discrete input acquisition | Contact closures, switches |
| 5X00106G01 | Analog Input Module | Analog signal digitization | Data gathering for process variables |
| 5X00106G02 | Analog Output Module | Sends control signals to actuators | Used for modulating valves and devices |
