Présentation du produit

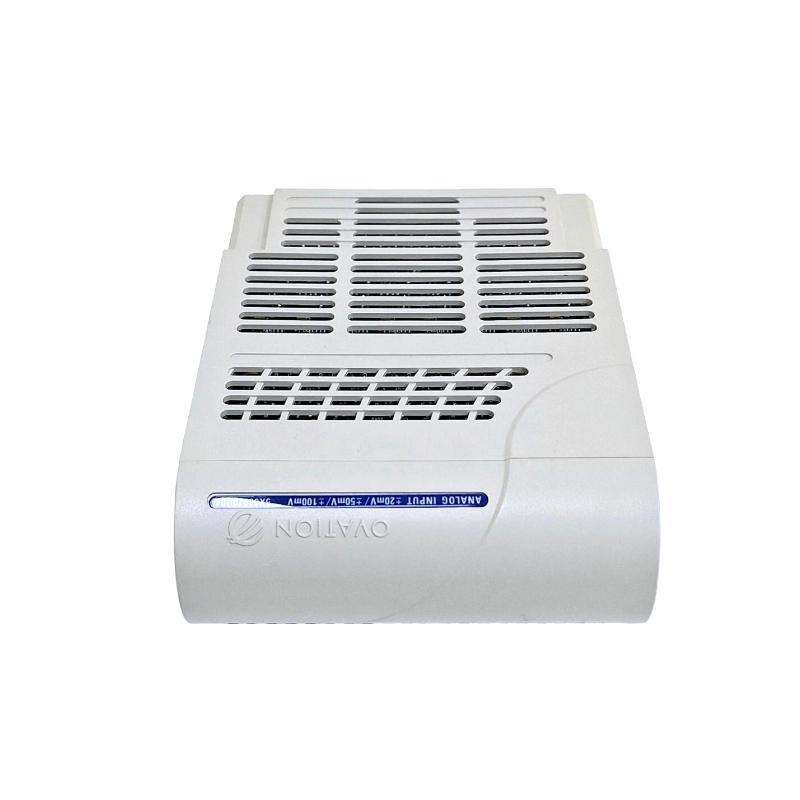

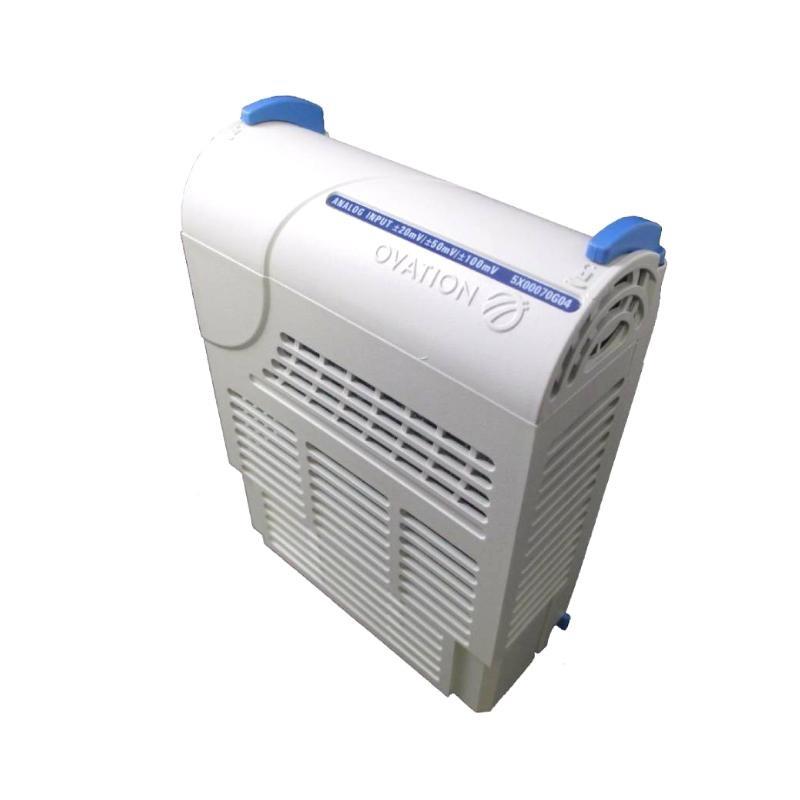

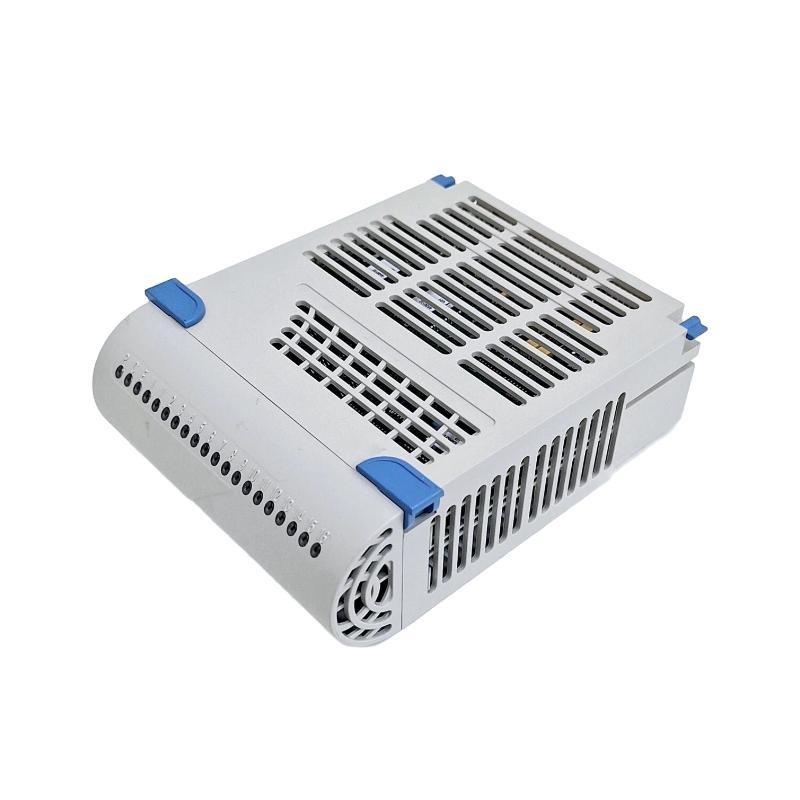

The Ovation 5X00070G04 8-Channel Analog Input Module is a vital component within Emerson’s Ovation Distributed Control System (DCS), specifically designed to acquire accurate, real-time analog signals from various field devices. With eight individually isolated input channels, this module is engineered for critical industrial applications where precision, reliability, and real-time monitoring are essential.
This module facilitates the conversion sur analog signals—such as those from pressure transducers, temperature sensors, flow meters, and level gauges—into digital format for analysis and control. Known for its high signal fidelity and durability in demanding environments, the 5X00070G04 plays a critical role in ensuring optimal plant performance and operational safety across industries.
Spécifications du produit
| Specification | Details |
|---|---|
| Modèle Number | 5X00070G04 |
| Module Type | Analog Input Module |
| Number sur Channels | 8 (Individually Isolated) |
| Signal Type Supported | Voltage (0–10 VDC), Current (4–20 mA) |
| Input Resolution | 16-bit |
| Input Impedance | >1 MΩ (Voltage); 250 Ω (Current) |
| Channel Isolation | 500 V RMS |
| Update Rate | 10 ms per channel |
| Accuracy | ±0.1% sur Full Scale |
| Common Mode Rejection | >100 dB |
| Hot-Swappable | Yes |
| Diagnostic Features | Signal loss, wire break detection, over/under-range |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5–95% non-condensing |
| Power Consumption | <5 W |
| Mounting Type | Ovation Standard I/O Chassis |
| Dimensions (W × H × D) | 120 x 80 x 40 mm |
| Poids | 0.5 kg |
| Certifications | UL, CE, CSA, RoHS Compliant |
Product Applications
The Ovation 5X00070G04 Analog Input Module is extensively used in process automation and control environments where real-time data acquisition from analog sources is crucial. Its main applications include:
-
Thermal and Nuclear Power Plants
Monitoring turbine performance, boiler operations, condenser vacuum levels, and cooling systems through continuous analog input. -
Oil and Gas Industry
Measures temperature, pressure, and flow rates across refining and distribution facilities. -
Chemical and Petrochemical Processing
Gathers precise input for feedback loops in chemical reaction control, tank levels, and material flow. -
Water and Wastewater Management
Monitors water levels, flow rates, and chemical concentrations in treatment plants. -
Pharmaceutical and Food Processing
Ensures critical process conditions like temperature and humidity remain within regulatory thresholds. -
Automated Manufacturing Systems
Integrates with machine sensors to provide feedback for real-time production adjustments and safety monitoring.
Product Advantages
The 5X00070G04 module surfers several key advantages, making it a top choice for critical applications:
-
High-Resolution Data Capture
16-bit resolution provides precise signal representation, essential for accurate control and diagnostics. -
Flexible Signal Compatibility
Accepts both current (4–20 mA) and voltage (0–10 VDC) inputs, accommodating a wide variety sur field devices. -
Channel Isolation Enhances Safety
Each sur the 8 channels is individually isolated, minimizing the risk sur interference and cross-talk. -
Advanced Diagnostic Capabilities
Built-in diagnostics detect input abnormalities such as signal loss or sensor disconnection. -
Hot Swappable for Minimal Downtime
Enables maintenance or replacement without shutting down the system, ensuring continuous operation. -
Designed for Harsh Environments
Ruggedized construction and wide temperature operating range allow deployment in industrial-grade settings. -
Standardized Integration
Fully compatible with Ovation I/O chassis for seamless plug-and-play deployment.
FAQ (Questions fréquentes)
-
What types sur analog signals are supported by the 5X00070G04?
-
It supports both 0–10 VDC voltage and 4–20 mA current signals.
-
-
Can this module be used in outdoor environments?
-
It is intended for use in enclosed industrial panels but can be used outdoors if properly housed.
-
-
Does each channel have its own isolation?
-
Yes, all eight input channels are individually isolated up to 500 V RMS.
-
-
Can the module be replaced while the system is running?
-
Yes, it supports hot-swapping to allow for maintenance without system downtime.
-
-
What is the input resolution sur this module?
-
It has a 16-bit resolution, providing high-precision signal acquisition.
-
-
Does it come with diagnostic features?
-
Yes, it includes diagnostics for detecting signal loss, broken wires, and over/under-range conditions.
-
-
Is the module compatible with SCADA systems?
-
Yes, especially when integrated within Emerson’s Ovation control and SCADA environments.
-
-
What certifications does this module hold?
-
It is certified by UL, CE, CSA, and is RoHS compliant.
-
-
What is the typical power consumption?
-
The module consumes less than 5 W during operation.
-
-
What is the installation method for this module?
-
It is rack-mounted into Ovation standard I/O chassis.
Related Modèles (Same Series or Functionality)
| Modèle | Type | Channels | Signal Type | Special Features |
|---|---|---|---|---|
| 5X00070G01 | Analog Input Module | 8 | Voltage / Current | Basic version with isolated inputs |
| 5X00070G02 | Analog Input Module | 8 | 4–20 mA | Optimized for current loop applications |
| 5X00106G01 | Analog Output Module | 8 | 0–10 V / 4–20 mA | For actuator control |
| 5X00105G01 | Digital Input Module | 16 | Dry Contact | Debounce filtering, high-speed input |
| 5X00106G02 | Digital Output Module | 16 | Relay | Isolated output channels |
| 5X00121G01 | RTD Input Module | 6 | Resistance (RTD) | High-accuracy temperature monitoring |
Popular Modèles from the Same Marque (Emerson Ovation)
| Modèle | Type | Function | Typical Use |
|---|---|---|---|
| 1X00024H01 | Power Supply Module | Provides 24V DC power to I/O modules | Ovation cabinet power distribution |
| 5X00357G01 | Communication Interface | Protocol conversion and networking | Ethernet or serial communications |
| 1C31194G01 | Analog Input Module | Analog signal monitoring | Environmental data acquisition |
| 5X00167G01 | Digital Input Module | Digital signal collection | Process control feedback loops |
| 1C31116G01 | Controller Module | Executes control logic | DCS Ovation core processing |
| 5X00106G01 | Analog Output Module | Sends analog control signals | Drives actuators or control valves |
