Présentation du produit

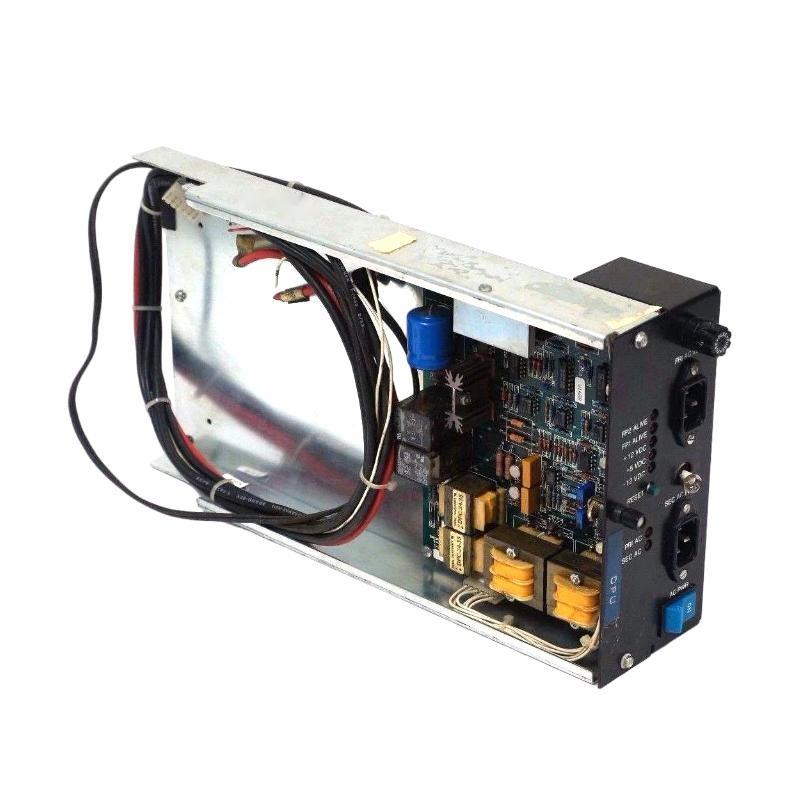

The Ovation 1D54582G01 Power Supply is a high-performance industrial power module designed to provide stable, regulated DC power for Emerson Ovation Distributed Control System (DCS) environments. Engineered for continuous operation in critical process industries, this module ensures uninterrupted power delivery to controllers, I/O modules, and communication equipment. Its rugged construction, advanced protective circuits, and high conversion efficiency make it ideal for power-sensitive applications such as power generation, water treatment, petrochemical processing, and large-scale manufacturing automation.
Spécifications du produit
| Parameter | Description |
|---|---|
| Modèle Number | 1D54582G01 |
| Product Type | Industrial Power Supply Module |
| Input Voltage Range | 85–264 VAC or 110–300 VDC |
| Output Voltage | Regulated 24 VDC |
| Output Current | Up to 10 A continuous |
| Output Power | 240 W nominal |
| Efficiency | ≥90% typical |
| Isolation Voltage | 3 kV (input to output) |
| Protection Features | Overvoltage, overload, short-circuit, thermal shutdown |
| Operating Temperature | −20 °C to +70 °C |
| Storage Temperature | −40 °C to +85 °C |
| Cooling Method | Natural convection (fanless) |
| Mounting | Ovation backplane or DIN-rail |
| Dimensions (L × W × H) | 330 × 80 × 200 mm |
| Poids | 4.99 kg |
Applications
-
Power Generation Facilities: Supplies uninterrupted power to DCS Ovation controllers and I/O subsystems.
-
Water & Wastewater Management: Maintains reliable DC power for SCADA and automation equipment.
-
Petrochemical & Refining Plants: Withstands harsh industrial conditions while powering critical control circuits.
-
Manufacturing Automation: Supports PLCs, HMIs, and networking hardware in demanding factory environments.
-
Redundant Power Configurations: Easily integrates into N+1 redundant setups for fault-tolerant performance.
-
Remote Monitoring Stations: Ensures dependable power delivery in isolated or unmanned installations.
Advantages
-
High Conversion Efficiency: ≥90% efficiency reduces energy losses and heat output.
-
Wide Input Range: Compatible with global AC mains and DC backup sources.
-
Robust Protection: Integrated overvoltage, overload, and short-circuit protection safeguards sensitive electronics.
-
Compact Footprint: Enregistrers panel space while delivering high output power.
-
Redundancy Ready: Supports parallel operation for uninterrupted service during module failure.
-
Low Maintenance: Fanless convection cooling minimizes mechanical wear and upkeep.
-
Industrial-Grade Reliability: Designed to perform in high-EMI and temperature-extreme conditions.
FAQ
-
What input voltage ranges are supported by the 1D54582G01?
It accepts 85–264 VAC or 110–300 VDC input. -
What is the regulated DC output?
A stable 24 VDC output is provided for Ovation system components. -
How much current can the module continuously supply?
It delivers up to 10 A continuous output current. -
Can the module operate in a redundant configuration?
Yes, it supports N+1 parallel redundancy for high availability. -
What protection mechanisms are built into the design?
Integrated safeguards include overload, overvoltage, short-circuit, and thermal protection. -
Is there galvanic isolation between input and output?
Yes, 3 kV isolation is provided to ensure electrical safety. -
What is the module’s typical efficiency rating?
The unité achieves approximately 90% efficiency under nominal conditions. -
How is cooling accomplished without a fan?
The module uses natural convection for silent, maintenance-free cooling. -
Can it operate in high-EMI environments?
Yes, it is designed to function reliably in industrial settings with significant electromagnetic interference. -
Does the module integrate directly with DCS Ovation backplanes?
Yes, it is fully compatible with Ovation system backplane connections.
Recommended Related Modèles (Same Series or Similar)
| Modèle | Description |
|---|---|
| 1D54582G02 | Power supply module with extended surge protection |
| 1D54582G03 | High-efficiency variant with remote monitoring capability |
| 1D54582G04 | Wide temperature range model for extreme environments |
| 1D54582G05 | Compact form factor for space-limited installations |
| 1X00024H03 | Ovation 24 VDC power supply with redundant operation |
| 1X00024H06 | Industrial-grade power module for critical process control |
Popular Ovation Modèles
| Modèle | Description |
|---|---|
| 1X00093G04 | Ovation Ethernet Switch for secure industrial networking |
| 1X00046H02 | Copper-to-Fiber Media Converter for long-distance Ethernet |
| 1X00090G01 | Advanced Ovation Controller Module |
| 1X00091G01 | High-performance I/O Module |
| 1X00092G01 | Operator Interface Workstation |
| 1X00094G01 | Network Management Module for centralized diagnostics |
