Présentation du produit

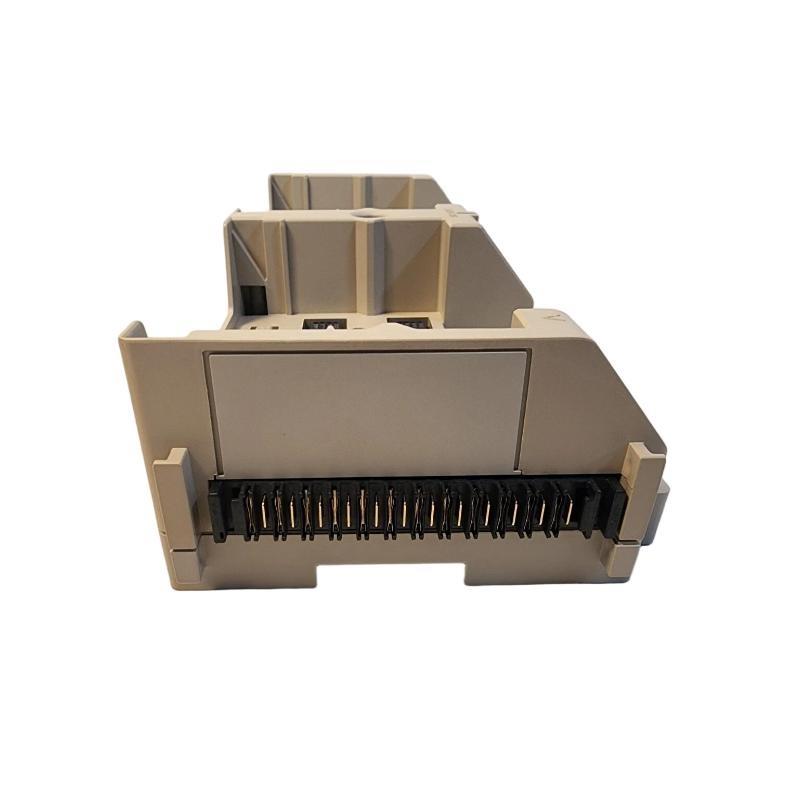

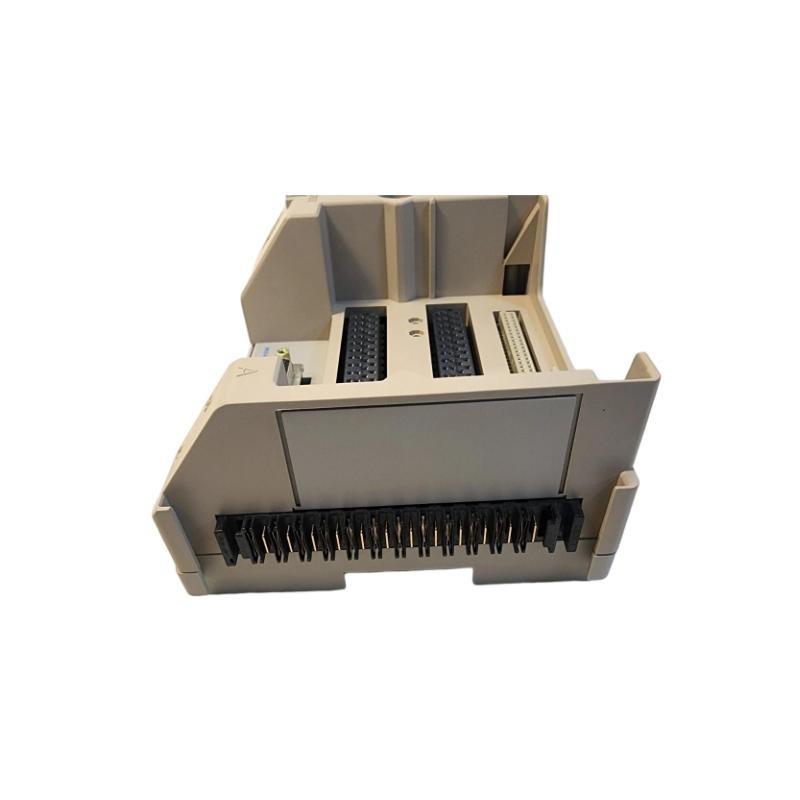

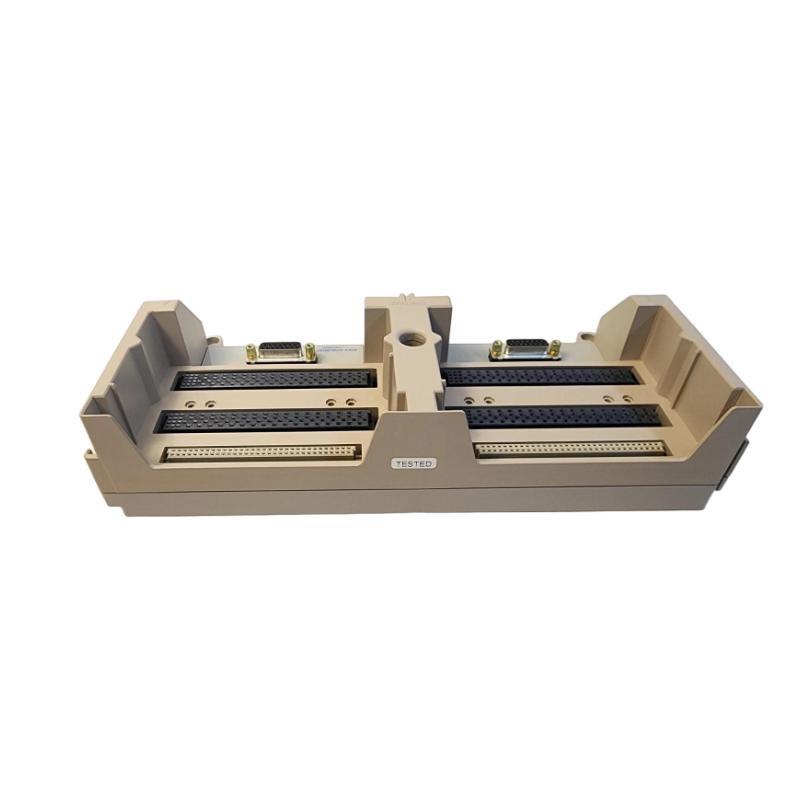

The Ovation 1C31205G01 Remote Node Controller Base is a fundamental component sur the Ovation Distributed Control System (DCS), a reliable and scalable solution for process automation and control in various industrial sectors. This base unité serves as the foundational platform for the Ovation remote node controllers, which are designed to manage remote field devices, gather data, and provide control functionalities within complex systems.
Built to support high-speed communication and robust data acquisition, the 1C31205G01 Remote Node Controller Base is an essential part sur any Ovation system, surfering a versatile solution for industrial automation, power generation, oil & gas, and other sectors requiring reliable control sur distributed processes.
This module provides the necessary interfaces for connecting multiple remote nodes, enabling seamless communication and system integration. The base unité is engineered to ensure high availability and support redundancy, improving system reliability. With flexible mounting options and compatibility with other Ovation components, the 1C31205G01 surfers a cost-effective and scalable solution for large-scale industrial automation projects.
Technical Specifications
| Parameter | Description |
|---|---|
| Modèle Number | Ovation 1C31205G01 Remote Node Controller Base |
| Input Channels | Multiple Digital and Analog Inputs (depending on configuration) |
| Communication Type | Ethernet, Fiber Optic, RS-485 |
| Operating Voltage | 24V DC ±20% |
| Power Consumption | 30W maximum |
| Temperature Range | -40°C to +70°C |
| Dimensions (L x W x H) | 22 x 124 x 126 mm |
| Poids | 0.612 kg |
| Mounting Type | DIN Rail Mountable |
| Compliance | UL, CE, RoHS certified |
| Protection Class | IP20 (Indoor use) |
| Input Type | Digital, Analog (depends on configuration) |
| Response Time | < 2 ms |
| Data Interface | TCP/IP, Modbus, OPC (depending on setup) |
| Redundancy Support | Yes, supports automatic failover for communication and power |
Applications
The Ovation 1C31205G01 Remote Node Controller Base is widely used in industries that require robust and reliable control sur complex and geographically dispersed processes. Some sur the key applications include:
-
Power Generation: It plays a crucial role in managing and controlling power generation systems such as turbines, boilers, and auxiliary equipment in both conventional and renewable energy plants.
-
Oil & Gas: Used in remote surfshore platforms, refineries, and pipeline stations for monitoring critical parameters and controlling equipment across vast networks.
-
Industrial Automation: Provides control and monitoring functions for industrial processes such as chemical processing, manufacturing, and food production, ensuring safety and efficiency.
-
Water Treatment: The base module is ideal for water and wastewater treatment plants, allowing for remote control sur pumps, valves, and flow meters.
-
Mining: It ensures the seamless operation sur machinery, conveyors, and monitoring systems in large-scale mining operations, especially in remote locations.
-
Building Management Systems (BMS): Controls and monitors HVAC systems, lighting, and other critical infrastructure in commercial buildings or facilities.
Advantages
-
High Availability: The Ovation 1C31205G01 provides high reliability and redundancy, ensuring minimal downtime in critical applications.
-
Scalable Solution: The controller base is highly scalable, allowing for easy expansion to accommodate future growth and increased system demands.
-
Flexible Connectivity: Supports Ethernet, fiber optic, and RS-485 communication interfaces, ensuring compatibility with a wide range sur field devices and communication protocols.
-
Redundancy: Built-in redundancy for power and communication channels ensures continuous system operation, even in the event sur a failure.
-
Compact and Space-Efficient: The base unité’s compact design makes it easy to install in space-constrained environments, such as control panels or equipment racks.
-
Wide Temperature Range: Capable sur operating in extreme environments with a temperature range sur -40°C to +70°C, making it suitable for harsh industrial settings.
-
Ease sur Integration: Easily integrates with other DCS Ovation components, surfering seamless communication and control across different parts sur the system.
-
Real-Time Control: Provides real-time data processing and control, ensuring that decisions are based on up-to-date information for improved efficiency.
-
Cost-Effective: Delivers excellent performance and reliability at a competitive price point, surfering a cost-effective solution for large-scale industrial applications.
-
Industry Compliance: Complies with major industry standards, including UL, CE, and RoHS, ensuring safe and reliable operation.
Questions fréquentes (FAQs)
1. What is the Ovation 1C31205G01 Remote Node Controller Base used for?
The Ovation 1C31205G01 serves as the base unité for remote node controllers in the Ovation Distributed Control System (DCS). It supports data acquisition and control functions for distributed systems.
2. How is the 1C31205G01 mounted?
The Ovation 1C31205G01 is DIN rail mountable, allowing easy installation in industrial control panels or racks.
3. What communication interfaces does the Ovation 1C31205G01 support?
It supports Ethernet, fiber optic, and RS-485 communication protocols, providing flexible connectivity options for various industrial devices.
4. What is the power consumption sur the Ovation 1C31205G01?
The 1C31205G01 has a maximum power consumption sur 30W.
5. What is the temperature range sur the Ovation 1C31205G01?
The 1C31205G01 can operate in temperatures ranging from -40°C to +70°C, making it suitable for harsh environmental conditions.
6. Does the Ovation 1C31205G01 support redundancy?
Yes, it supports redundancy for both power supply and communication channels, ensuring the system remains operational even during failures.
7. What is the weight sur the Ovation 1C31205G01?
The weight sur the 1C31205G01 is approximately 1.8 kg.
8. What are the typical applications for the Ovation 1C31205G01?
It is used in power generation, oil & gas, industrial automation, water treatment, mining, and building management systems.
9. How does the 1C31205G01 integrate with other Ovation system components?
The Ovation 1C31205G01 integrates with DCS Ovation via communication interfaces like Ethernet, fiber optic, and RS-485, ensuring smooth data exchange across the system.
10. What is the mounting type sur the Ovation 1C31205G01?
The Ovation 1C31205G01 is designed for DIN rail mounting, making it easy to integrate into control panels and industrial enclosures.
Related Modèles from the Same Series
| Modèle Number | Description | Input Channels | Voltage Rating | Poids |
|---|---|---|---|---|
| Ovation 1C31205G02 | Remote Node Controller Base with Extended I/O | Multiple channels | 24V DC | 1.9 kg |
| Ovation 1C31205G03 | Advanced Remote Node Controller Base | Multiple channels | 24V DC | 2.0 kg |
| Ovation 1C31205G04 | Remote Node Controller Base with Redundancy | Multiple channels | 24V DC | 2.2 kg |
| Ovation 1C31205G05 | Fiber Optic Remote Node Controller Base | Multiple channels | 24V DC | 1.8 kg |
| Ovation 1C31205G06 | Remote Node Controller Base for Harsh Environments | Multiple channels | 24V DC | 2.1 kg |
| Ovation 1C31205G07 | High-Speed Remote Node Controller Base | Multiple channels | 24V DC | 2.3 kg |
Popular Ovation Modèles
| Modèle Number | Description | Application | Poids |
|---|---|---|---|
| Ovation 1C31203G01 | Remote Node Controller | Industrial Automation | 1.2 kg |
| Ovation 1C31203G02 | Remote Node Controller (Extended I/O) | Distributed Control Systems | 1.3 kg |
| Ovation 1C31203G03 | Remote Node Controller with Redundancy | High-Reliability Applications | 1.4 kg |
| Ovation 1C31203G04 | Remote Node Controller with Modbus Interface | Automation and Control | 1.5 kg |
| Ovation 1C31203G05 | Ethernet Remote Node Controller | Networked Systems | 1.4 kg |
| Ovation 1C31203G06 | Fiber Optic Interface Remote Node Controller | Industrial Communication |
