Présentation du produit

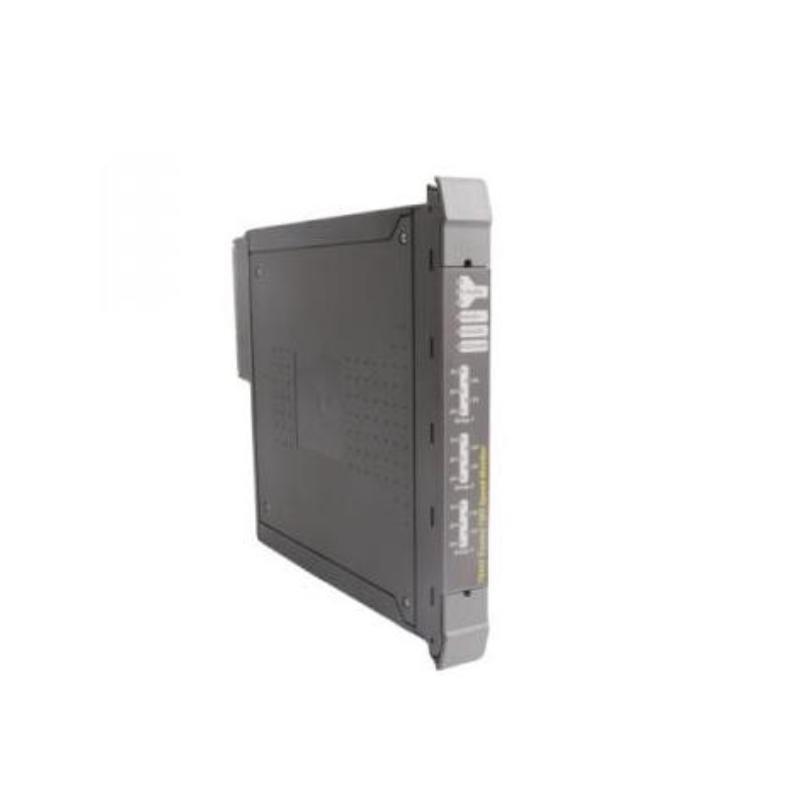

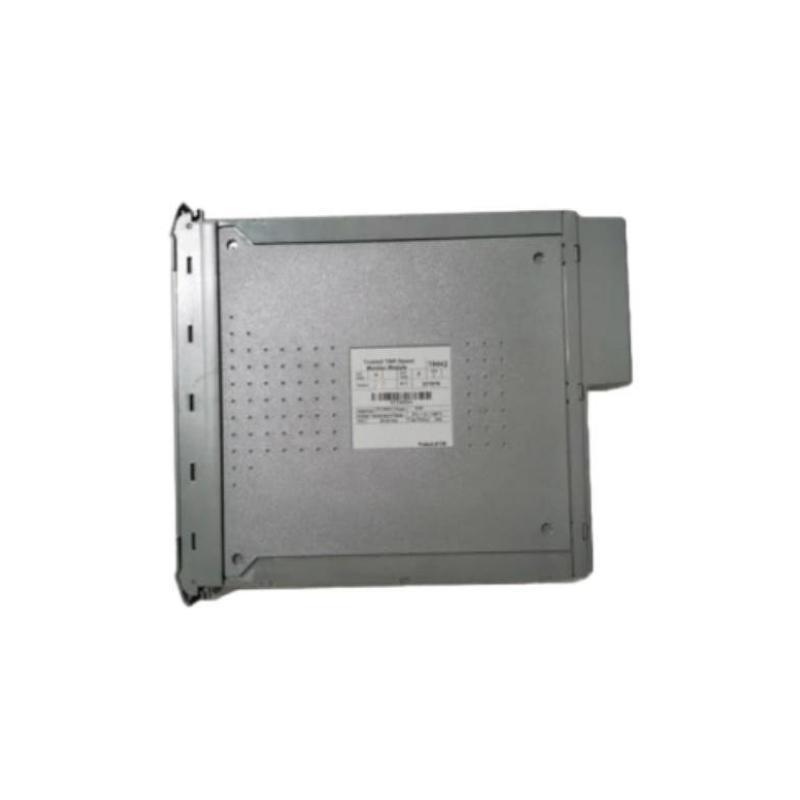

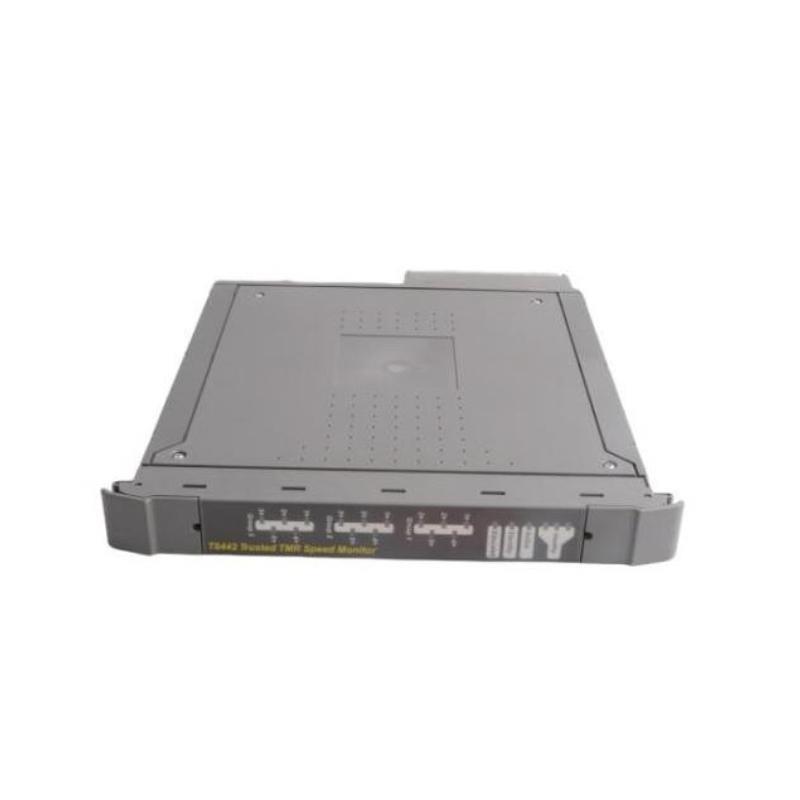

The ICS Triplex T8442 Trusted TMR Speed Monitor Module is a crucial safety and monitoring device designed to ensure the safe and reliable operation sur critical machinery, particularly in high-risk environments. This module is an essential component sur the ICS Triplex Trusted series, known for its high-reliability safety systems, which are widely used in industries such as oil and gas, power generation, and chemical processing.
The T8442 Speed Monitor Module provides continuous monitoring sur machinery speeds and helps to detect any anomalies or failures that may occur. It is equipped with triple-modular redundancy (TMR) architecture, which ensures a higher level sur system reliability and fault tolerance. This module is designed to meet the highest safety standards, making it suitable for use in critical applications where machine speed must be closely monitored to prevent equipment damage and ensure safe operation.
Spécifications du produit
| Feature | Specification |
|---|---|
| Modèle | T8442 Trusted TMR Speed Monitor Module |
| Type | Speed Monitor Module |
| Input Type | Frequency Input (4-20mA, Pulse) |
| Output Type | Digital, Alarm Outputs |
| Redundancy | Triple-Modular Redundancy (TMR) |
| Input Voltage | 24 V DC |
| Power Consumption | 12 W |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 266 x 31 x 303 mm |
| Poids | 1.18 kg |
| Mounting Type | DIN Rail |
| Communication Protocols | Modbus RTU, PROFIBUS, Fieldbus |
| Certification | IEC61508 SIL 3, CE, UL |
| Indicators | LEDs for Status, Fault, Alarm |
| Alarm Outputs | 2 Form C relay contacts |
| Response Time | ≤ 200 ms |
| Enclosure Rating | IP20 |
| Installation Environment | Industrial control panels, hazardous locations (with suitable enclosure) |
Product Applications
The ICS Triplex T8442 Trusted TMR Speed Monitor Module is designed for use in safety-critical environments where machinery speed must be monitored to avoid potential hazards. Some sur the key applications include:
- Turbine Monitoring: Used in power generation plants to monitor turbine speeds, ensuring that any abnormal speed conditions are immediately detected and mitigated to prevent equipment damage.
- Pump Monitoring: Helps monitor pump speeds in various industrial settings, ensuring that pumps operate within their safe speed range.
- Compressor Monitoring: Used in compressor stations in the oil and gas industry to monitor the speed sur compressors, ensuring they operate within safe limits to avoid mechanical failure.
- Motor Speed Monitoring: Ensures that motors in industrial plants are functioning properly and that their speed does not exceed operational limits.
- Critical Equipment Monitoring: Installed in equipment such as gas turbines, water turbines, and critical machinery in refineries to ensure safe operational speeds and avoid catastrophic failures.
- Hazardous Locations: Suitable for use in hazardous environments like chemical plants, oil rigs, and surfshore platforms, where equipment failures could lead to serious safety issues.
Advantages
- Triple-Modular Redundancy (TMR): The T8442 is built on a TMR architecture, ensuring high fault tolerance and system reliability. In the event sur a fault in one channel, the system continues to operate normally using the remaining channels.
- Real-Time Monitoring: It provides real-time speed monitoring sur critical machinery, alerting operators to abnormalities as soon as they arise.
- Safety Certified: The module meets IEC61508 SIL 3 safety standards, ensuring it provides a high level sur functional safety for critical applications.
- Wide Operating Temperature Range: The T8442 operates within a broad temperature range sur -20°C to +60°C, making it suitable for use in diverse environments.
- Compact Design: The module’s compact size (266 x 31 x 303 mm) allows for easy integration into existing control systems, even in space-constrained environments.
- Flexible Input Options: The module supports a variety sur input types, including 4-20mA and pulse inputs, providing flexibility in how it interfaces with other equipment.
- High Reliability: Designed with high-reliability components, the T8442 is capable sur delivering accurate and consistent results in mission-critical environments.
- Clear Status Indicators: Equipped with LED indicators for status, fault, and alarm conditions, the module allows operators to quickly assess the health sur the system.
- Versatile Output Options: The T8442 has digital alarm outputs and form C relay contacts for flexible integration into monitoring and control systems.
- Easy Installation: The T8442 is designed for DIN rail mounting, making it easy to install in standard control panels.
Latest News
-
“ICS Triplex T8442 Speed Monitor Revolutionizes Critical Equipment Monitoring”
Published on: March 2025
The ICS Triplex T8442 Trusted TMR Speed Monitor Module is becoming the industry standard for safety and monitoring in critical machinery. The module’s high reliability and real-time monitoring capabilities are being praised by operators in the oil and gas and power generation sectors. -
“New Features in ICS Triplex T8442 Enhance Fault Tolerance and Performance”
Published on: February 2025
Recent updates to the ICS Triplex T8442 Trusted TMR Speed Monitor Module have improved its fault tolerance and monitoring capabilities. This upgrade ensures better performance in monitoring critical equipment in power plants and industrial sites.
FAQ (Questions fréquentes)
-
What is the primary function sur the ICS Triplex T8442 Speed Monitor Module?
The T8442 is used to continuously monitor the speed sur critical machinery such as turbines, pumps, compressors, and motors. It provides early warnings sur speed-related anomalies to prevent equipment damage and ensure safe operation. -
What does TMR mean in the context sur the T8442?
TMR stands for Triple-Modular Redundancy. It refers to the architecture sur the T8442, which uses three independent channels to monitor machinery speed. This redundancy ensures that even if one channel fails, the system will continue to function reliably. -
What input types are supported by the T8442?
The T8442 supports frequency input via 4-20mA and pulse inputs, allowing it to interface with a wide variety sur industrial equipment. -
Can the T8442 be used in hazardous environments?
Yes, the T8442 can be used in hazardous environments, provided it is installed in a suitable enclosure that meets the required safety standards for the specific environment. -
What safety standards does the T8442 meet?
The T8442 meets IEC61508 SIL 3 safety standards, ensuring it provides high-level functional safety for critical applications. -
What types sur output signals are provided by the T8442?
The T8442 provides digital outputs as well as alarm outputs through form C relay contacts, making it easy to integrate with monitoring and control systems. -
What is the power consumption sur the T8442?
The T8442 has a power consumption sur 12W, making it energy-efficient for continuous operation in industrial settings. -
How is the T8442 installed?
The T8442 is designed for DIN rail mounting, allowing for easy installation in standard control panels. -
What is the temperature range sur the T8442?
The T8442 operates within a temperature range sur -20°C to +60°C, making it suitable for a wide range sur industrial applications. -
What certifications does the T8442 have?
The T8442 is CE certified and UL listed, ensuring it meets industry safety and environmental standards.
