Product Overview

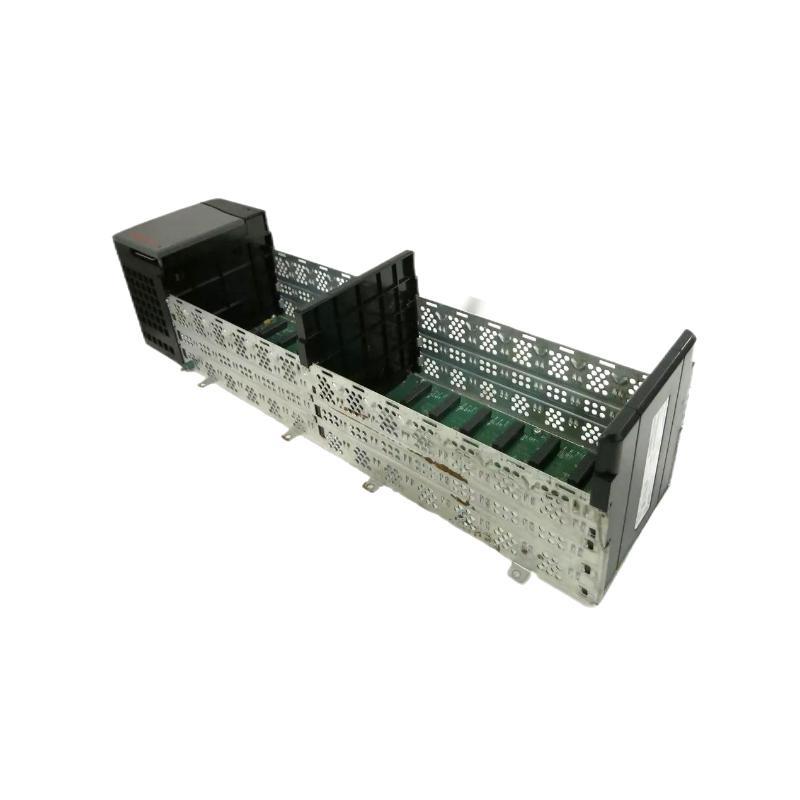

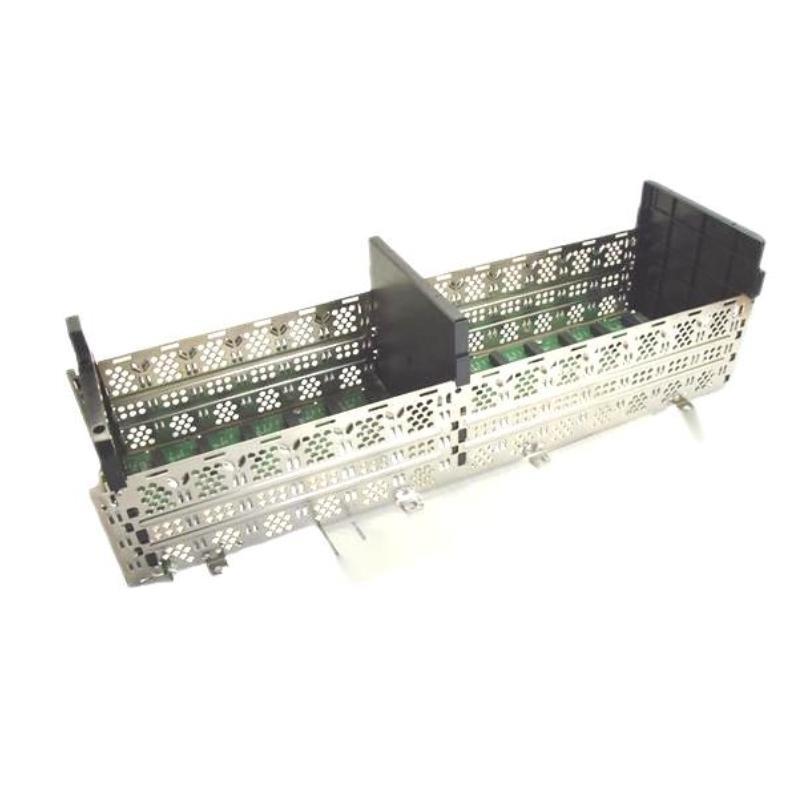

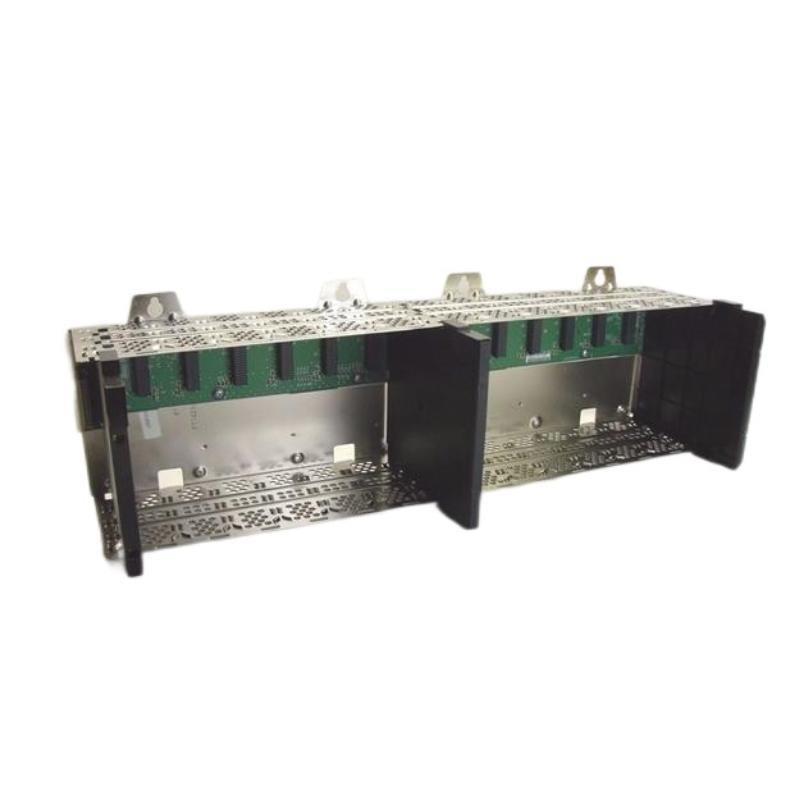

The Honeywell TK-FXX132 S97753404 Experion LS Frame is an integral component sur the Honeywell Experion LS Process Control System, designed to house and organize I/O modules and communication components. This high-density modular frame plays a key role in ensuring that Honeywell’s Experion LS system remains reliable, scalable, and easy to maintain while providing flexibility for system growth and expansion.
Engineered for use in process control applications, the TK-FXX132 frame surfers a space-efficient and durable solution for industrial automation systems. It is capable sur accommodating a wide range sur I/O modules, power supplies, and communication interfaces, ensuring a smooth integration into complex process environments.
Key Features
-
High-Density Modular Design: Maximizes space efficiency by housing multiple control modules within a compact frame
-
Seamless Integration with Experion LS: Fully compatible with Honeywell’s Experion LS I/O and control modules
-
Scalability: The frame supports system expansion to accommodate growing operational needs
-
Rugged Construction: Designed for industrial environments, it provides resistance against dust, moisture, and electrical interference
-
Redundancy Support: Provides options for redundancy configurations, ensuring the availability sur critical systems for high-reliability applications
-
Efficient Power Distribution: Ensures stable and reliable power supply to all integrated modules
-
Ease sur Maintenance: Simplifies module replacement and system upgrades with minimal downtime
-
Versatile Mounting Options: Can be installed on DIN rails, racks, or within panels based on system needs
Technical Specifications
| Parameter | Description |
|---|---|
| Product Name | Experion LS Frame |
| Modèle Number | TK-FXX132 S97753404 |
| System Compatibility | Honeywell Experion LS Process Control System |
| Frame Type | High-density modular frame for housing I/O and control modules |
| Power Supply Input | 24 VDC nominal (system-dependent) |
| Power Consumption | Dependent on configured modules and system components |
| Environmental États | IP20 rating, suitable for indoor environments |
| Operating Temperature Range | 0°C to +55°C |
| Storage Temperature Range | -40°C to +70°C |
| Mounting Options | DIN rail, rack-mounted, or panel-mounted |
| Module Capacity | Supports up to 16 I/O and control modules per frame |
| Dimensions | 480 x 200 x 100 mm |
| Poids | 1.2 kg |
| Certifications | CE, UL, RoHS, IEC standards (system dependent) |
Note: The number sur modules supported depends on the specific system configuration.
Product Advantages
-
Compact and Space-Efficient: Ideal for installations where space is limited, while maintaining high module density
-
Modular and Scalable: Offers the flexibility to expand and adapt the system as your operational needs grow
-
Robust Industrial Design: Built to withstand harsh industrial environments, ensuring durability and long-term reliability
-
Redundancy for Critical Systems: Supports redundancy configurations to maintain high system availability in mission-critical applications
-
Optimized Power Distribution: Ensures smooth and uninterrupted operation by distributing power efficiently to all connected modules
-
Easy Integration and Maintenance: Simplifies installation, module replacement, and system upgrades, minimizing downtime
-
Industrial Standards Compliance: Fully certified to meet global safety, environmental, and quality standards
Industry Applications
The Honeywell TK-FXX132 S97753404 Experion LS Frame is designed for industries where process automation and reliable system control are critical:
-
Oil & Gas: Used in upstream and downstream processes like refining, transportation, and drilling operations
-
Chemical & Petrochemical: Provides control for reactors, distillation unités, and chemical processing facilities
-
Power Generation: Integrates with turbines, generators, and auxiliary systems in power plants
-
Water & Wastewater Treatment: Essential for water purification, pumping stations, and chemical dosing systems
-
Pharmaceutical & Life Sciences: Provides precision control in regulated manufacturing environments for pharmaceutical products
-
Food & Beverage: Supports control sur automated production lines and packaging operations
-
Industrial Manufacturing: Used in a variety sur manufacturing plants to control automated systems and processes
Questions fréquentes (FAQ)
Q1: What is the TK-FXX132 frame used for?
It is designed to house and organize Honeywell Experion LS system components such as I/O modules and communication interfaces.
Q2: How many modules can the TK-FXX132 frame hold?
The frame can support up to 16 I/O and control modules, depending on the configuration sur your system.
Q3: What is the power input requirement for the frame?
The frame operates with a nominal 24 VDC input; however, power consumption will vary based on the modules installed.
Q4: Is the frame suitable for outdoor environments?
The frame has an IP20 rating, making it suitable for indoor installations. For outdoor use, additional protection or enclosures may be required.
Q5: Can the TK-FXX132 frame support redundancy?
Yes, the frame supports redundancy configurations, ensuring high system availability for mission-critical applications.
Q6: What is the operating temperature range for the frame?
The operating temperature range for the frame is from 0°C to +55°C.
Q7: How is the frame mounted?
The frame can be mounted on DIN rails, within racks, or in control panels, based on the system’s design and configuration.
Q8: Is the frame compliant with international safety standards?
Yes, the TK-FXX132 frame complies with CE, UL, RoHS, and IEC standards, ensuring it meets global industrial safety and quality requirements.
Q9: Is the frame compatible with all Experion LS modules?
Yes, the frame is designed to integrate seamlessly with the full range sur Honeywell Experion LS I/O and control modules.
Q10: Can I upgrade the frame as my system expands?
Yes, the modular design allows for easy upgrades and system expansion as your operational needs evolve.
Recommended Related Modèles
| Modèle Number | Description |
|---|---|
| TK-FXX131 | Standard Experion LS Frame for I/O and communication modules |
| TK-FXX134 | High-Capacity Frame for larger system configurations |
| TK-FXX135 | Modular Expansion Frame for Experion LS |
| TK-FXX133 | Compact Frame for smaller Experion LS installations |
| TK-FXX150 | Frame with enhanced power distribution for critical systems |
| TK-FXX200 | Extended Frame for large-scale, distributed systems |
Popular Honeywell Process Automation Produits
| Modèle Number | Description |
|---|---|
| FC-PSU-UNI2450 | Universal Power Supply for Experion LS |
| FC-QPP-0001 | Quad Processor Cluster Module for Experion LS |
| FS-TSGAS-1624 | Safety Fire Detector Input FTA for hazardous area protection |
| FS-TERM-0001 | I/O Bus Terminator for redundancy and stability |
| FC-PSU-240516 136-011194D | 24VDC Power Supply for safety and control systems |
| FC-IO-0001 | I/O Expansion Modules for flexible Experion LS systems |
