Product Overview

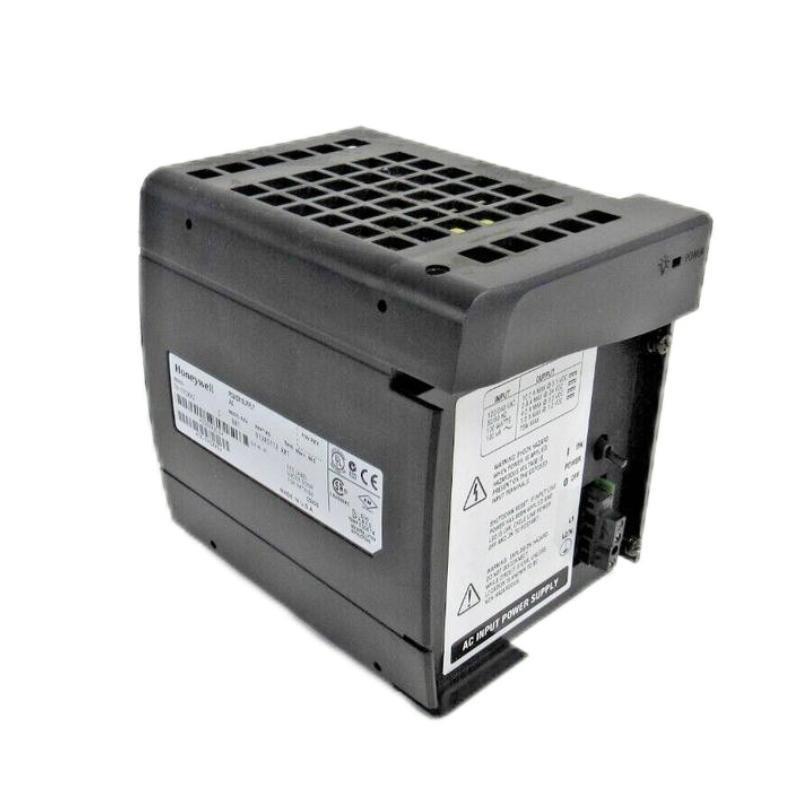

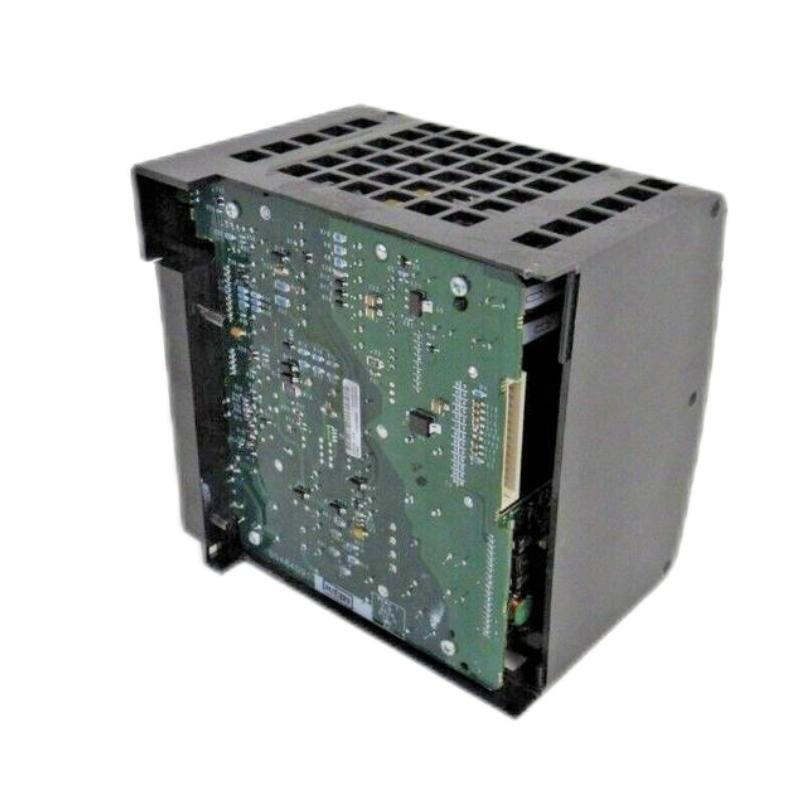

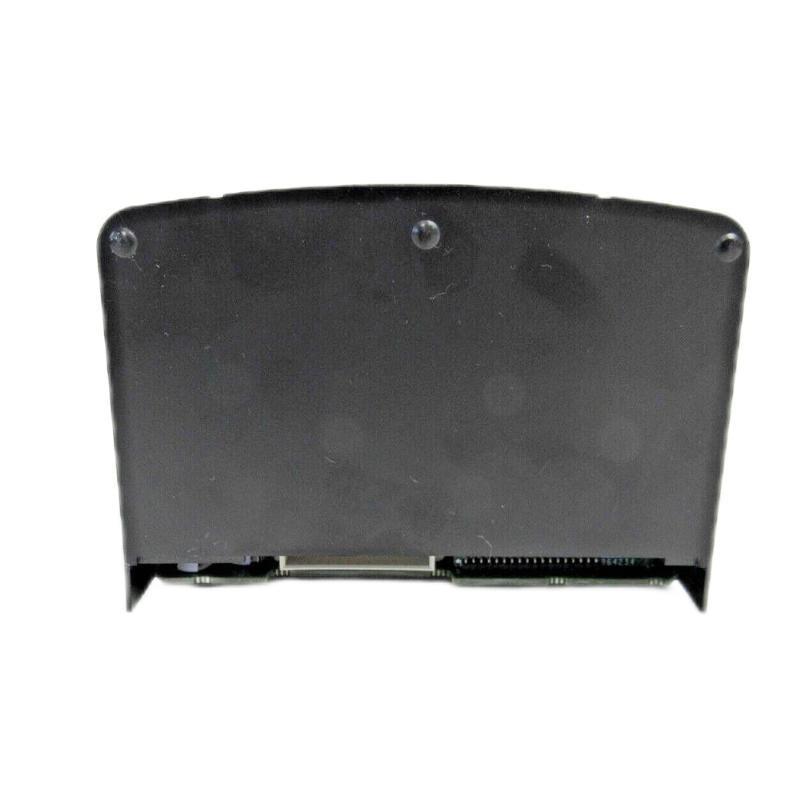

The Honeywell TK-FPCXX2 Power Module is a critical power supply component designed for the Experion LS control system, part sur Honeywell’s industry-leading automation solutions portfolio. The Experion LS system provides integrated process automation for small to mid-sized plants, delivering seamless control, safety, and operational reliability.
The TK-FPCXX2 Power Module ensures stable and continuous power delivery to the system’s critical control components, enhancing system availability and minimizing process downtime. Engineered for industrial reliability, this power module surfers robust protection features, ease sur integration, and compatibility with other Honeywell Experion LS components.
Key Features
-
Stable Power Output: Ensures consistent voltage supply to control hardware
-
Designed for Experion LS System Integration: Seamless operation within Honeywell’s process control architecture
-
Industrial-Grade Reliability: Withstands harsh environments including temperature variations, vibration, and electrical noise
-
Compact, Modular Design: Space-saving, easy-to-install module simplifies system assembly and maintenance
-
Built-in Protection Circuits: Over-voltage, over-current, and thermal protection for safe operation
-
Supports Continuous Process Operations: Maximizes uptime and system reliability
-
Certified for Industrial Use: Meets global industry standards for safety and performance
Technical Specifications
| Parameter | Description |
|---|---|
| Product Name | Experion LS Power Module |
| Modèle Number | TK-FPCXX2 |
| System Compatibility | Honeywell Experion LS Process Control System |
| Input Voltage | 24 VDC nominal (range 18 to 30 VDC) |
| Output Voltage | Regulated supply to control components (model-dependent) |
| Output Current | Designed for typical system load (consult system manuals) |
| Protection Features | Over-voltage, Over-current, Short-circuit, Thermal Protection |
| Operating Temperature Range | 0°C to +55°C |
| Storage Temperature Range | -40°C to +70°C |
| Environmental Protection | Industrial-grade casing, resistant to dust and humidity |
| Installation Type | DIN Rail or Panel Mount (system-dependent) |
| Dimensions | 160 × 140 × 60 mm |
| Poids | 1.5 kg |
| Certifications | CE, RoHS, IEC, UL (installation dependent) |
Note: Exact output specifications depend on the configured Experion LS system requirements.
Product Advantages
-
Reliable Power Supply for Automation Systems: Essential for maintaining stable operations in process environments
-
Seamless Integration with Honeywell Experion LS: Optimized to function within Honeywell’s proven process automation framework
-
Enhanced Protection for Control Hardware: Prevents power anomalies from damaging sensitive electronics
-
Compact, Modular Construction: Facilitates quick installation, replacement, and system expansion
-
Reduced Downtime and Maintenance Costs: Improves system resilience, minimizing production interruptions
-
Built for Industrial Environments: Withstands mechanical stress, electrical interference, and varying temperatures
-
Global Compliance: Certified to international safety and quality standards for industrial applications
Industry Applications
The Honeywell TK-FPCXX2 Power Module is designed for use in critical industries where reliable power delivery to control systems is essential:
-
Oil & Gas Production: Powering process control for drilling, refining, and transportation
-
Chemical and Petrochemical Plants: Ensuring stable operations in hazardous environments
-
Power Generation: Supporting control systems in thermal, renewable, and distributed energy plants
-
Water and Wastewater Treatment: Providing reliable power for automated treatment processes
-
Pharmaceutical and Life Sciences: Maintaining consistent control conditions for regulated production environments
-
Food & Beverage Processing: Supporting process reliability and automation in hygienic environments
-
General Manufacturing and Industrial Automation: Ensuring uptime and efficiency in diverse production operations
Questions fréquentes (FAQ)
Q1: What system is the TK-FPCXX2 designed for?
It is designed specifically for use with Honeywell’s Experion LS Process Control System.
Q2: What voltage does the TK-FPCXX2 require?
The module operates on a 24 VDC nominal input, with a range from 18 to 30 VDC.
Q3: Is the TK-FPCXX2 module hot-swappable?
Replacement procedures depend on system design; consult Honeywell Experion LS technical manuals for details.
Q4: Can the TK-FPCXX2 operate in harsh environments?
Yes, it features industrial-grade construction suitable for typical process plant conditions.
Q5: What protection features are included?
The module surfers over-voltage, over-current, short-circuit, and thermal protection for safe operation.
Q6: Is the module suitable for redundant power configurations?
Yes, the TK-FPCXX2 can be deployed in systems with redundant power setups to enhance reliability.
Q7: What standards does the module comply with?
It meets CE, RoHS, IEC, and UL standards for industrial control equipment.
Q8: Is the module easy to install?
Yes, its compact, modular design supports fast installation on DIN rails or panels.
Q9: Can the TK-FPCXX2 be replaced without shutting down the system?
Replacement procedures depend on the system configuration and redundancy; refer to Honeywell guidelines.
Q10: Where can I find technical documentation?
Detailed manuals and specifications are available from Honeywell technical support or authorized distributors.
Recommended Related Modèles
| Modèle Number | Description |
|---|---|
| TK-PRS021 | Honeywell Power Redundancy Supply for Experion LS |
| TK-PRS030 | Power Supply Module for Redundant System Architectures |
| TK-FTEB01 | Field Terminal Enclosure Power and Signal Integration |
| TK-FTPCXX2 | Field Terminal Power Étater for Experion LS Systems |
| TK-FCPCXX2 | Control Cabinet Power Module for Experion LS Applications |
| TK-CPXX2 | Compact Power Supply Module for Distributed Installations |
