Product Overview

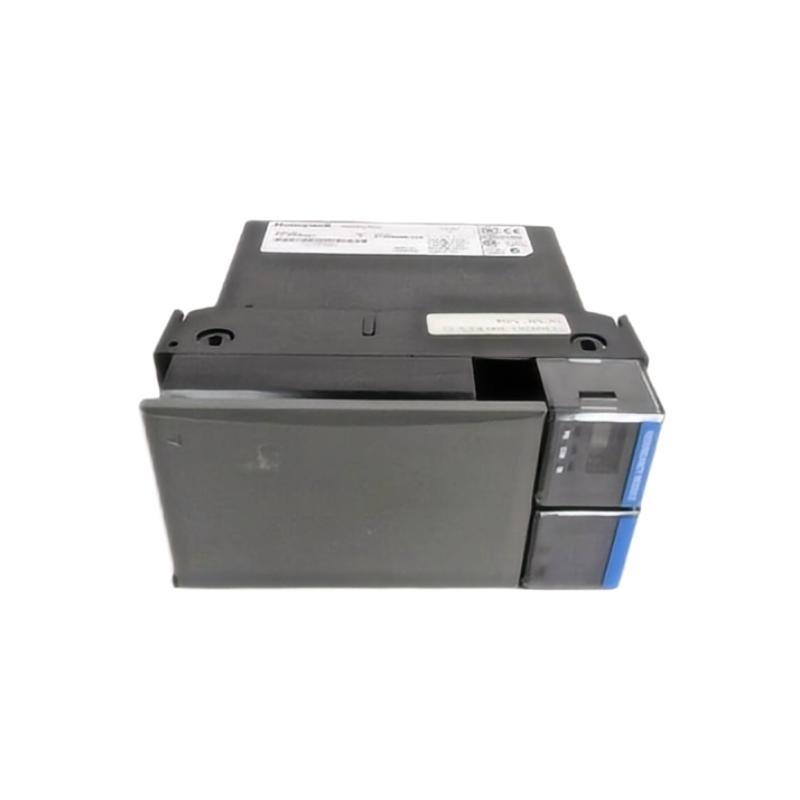

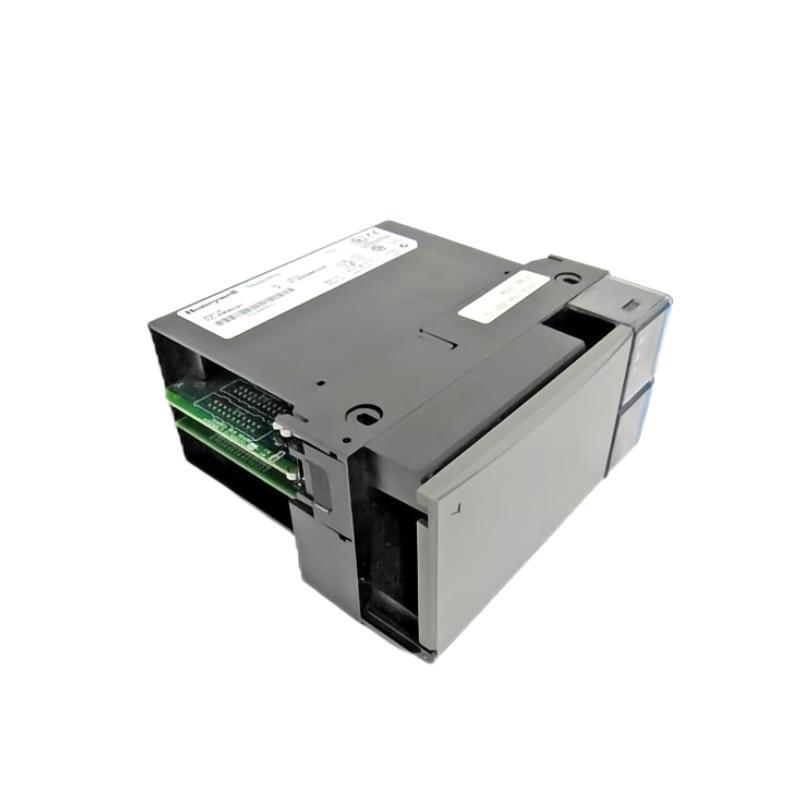

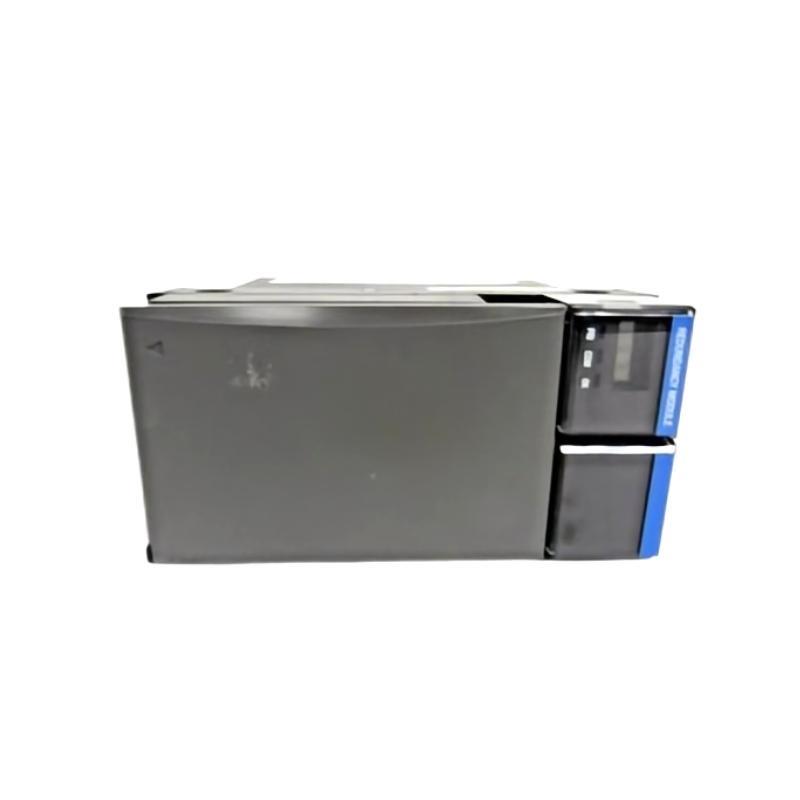

The Honeywell TC-PRR021 51309288-125 Redundancy Module is a critical component designed to enhance the reliability and availability sur Honeywell control systems by providing seamless redundancy functionality. This module ensures continuous system operation by automatically switching to a backup processor or power source when the primary one fails, thereby minimizing downtime and preventing system interruptions.
Engineered for high-performance industrial environments, the TC-PRR021 enables fault-tolerant configurations within Honeywell’s automation platforms such as the Experion PKS and TPS systems. Its robust design and intelligent switching capability make it an essential part sur mission-critical installations where system reliability cannot be compromised.
Spécifications du produit
| Feature | Specification |
|---|---|
| Product Type | Redundancy Module |
| Modèle Number | TC-PRR021 51309288-125 |
| Input Voltage | 24 VDC |
| Communication Interface | Proprietary Honeywell bus interface |
| Redundancy Type | Automatic switchover between primary and backup |
| Dimensions (L x W x H) | 230 x 158 x 66 mm |
| Poids | 0.408 kg |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Status Indicators | LED indicators for system status and fault |
| Compatibility | Compatible with Honeywell Experion PKS, TPS and other automation systems |
Applications
The Honeywell TC-PRR021 Redundancy Module is widely used in industrial sectors where continuous system uptime is vital. Key applications include:
-
Process Automation
Ensures uninterrupted control by providing automatic switchover in process control environments, such as oil & gas, chemical plants, and refineries. -
Power Generation and Distribution
Provides fault tolerance in power plants and electrical grid systems, ensuring seamless operation sur monitoring and control systems. -
Manufacturing Automation
Minimizes downtime on production lines by maintaining continuous control even if the primary controller or power source fails. -
Building Management Systems (BMS)
Enhances reliability sur building control systems by providing redundancy for HVAC, lighting, and security systems. -
Safety-Critical Systems
Used in safety instrumented systems to guarantee fail-safe operation and maintain safety integrity levels during equipment faults. -
Telecommunications
Supports high availability sur telecommunication control systems where network uptime is critical.
Advantages
-
Increased System Reliability
The TC-PRR021 ensures continuous operation by automatically switching to backup components without human intervention. -
Minimized Downtime
With fast switchover capability, the module reduces system interruptions, helping maintain production and process continuity. -
Compact Design
Its small footprint allows easy integration into existing control cabinets without requiring additional space. -
Wide Operating Range
Capable sur operating in harsh industrial environments with temperature and humidity tolerances suitable for most conditions. -
User-Friendly Monitoring
Equipped with LED indicators to display operational status and fault conditions clearly, facilitating easier system management. -
Seamless Integration
Designed to work natively with Honeywell’s Experion PKS and TPS systems, simplifying implementation in existing setups. -
Cost-Effective Solution
Enhances system uptime and reduces maintenance costs by preventing unexpected shutdowns and failures.
FAQ (Questions fréquentes)
1. What is the main purpose sur the TC-PRR021 Redundancy Module?
It automatically switches control to a backup unité if the primary system fails, ensuring continuous operation.
2. Can the TC-PRR021 work with existing Honeywell control systems?
Yes, it is designed to integrate seamlessly with Honeywell Experion PKS and TPS platforms.
3. How does the module indicate its operational status?
LED indicators show normal operation and fault conditions for quick diagnostics.
4. Is the TC-PRR021 suitable for use in extreme temperature environments?
Yes, it operates reliably between -20°C and 60°C.
5. What are the physical dimensions and weight sur the module?
The module measures 230 x 158 x 66 mm and weighs 0.408 kg.
6. How does the redundancy module help reduce downtime?
By switching immediately to a backup system upon failure, it prevents interruptions in control processes.
7. What kind sur maintenance does the TC-PRR021 require?
It generally requires minimal maintenance; periodic visual inspections and status checks are recommended.
8. Can the module be used in safety-critical systems?
Yes, it is designed to support safety systems requiring high availability and reliability.
9. How is the module powered?
It operates on a standard 24 VDC power supply common in industrial control systems.
10. What communication methods does the module use to interface with other devices?
It uses Honeywell’s proprietary communication bus designed for fast and reliable data exchange between redundant components.
Related Modèles
| Modèle | Description | Redundancy Type | Dimensions (L x W x H) | Poids |
|---|---|---|---|---|
| TC-PRR022 | Redundancy Module with Enhanced Diagnostics | Automatic switchover | 8.0″ x 4.5″ x 2.6″ (203 x 114 x 66 mm) | 0.90 kg |
| TC-PRR023 | High-Availability Redundancy Module | Manual and automatic | 7.9″ x 4.7″ x 2.5″ (200 x 119 x 64 mm) | 0.87 kg |
| TC-PRR024 | Dual Redundancy Module | Automatic switchover | 8.2″ x 4.8″ x 2.7″ (208 x 122 x 69 mm) | 0.95 kg |
| TC-PRR025 | Processor Redundancy Interface Module | Automatic switchover | 7.7″ x 4.3″ x 2.4″ (196 x 109 x 61 mm) | 0.83 kg |
| TC-PRR026 | Communication Redundancy Module | Automatic switchover | 8.1″ x 4.6″ x 2.6″ (206 x 117 x 66 mm) | 0.89 kg |
| TC-PRR027 | Network Redundancy Module | Seamless failover | 8.0″ x 4.4″ x 2.5″ (203 x 112 x 64 mm) | 0.85 kg |
Popular Honeywell Modèles
| Modèle | Description | Type | Dimensions (L x W x H) | Poids |
|---|---|---|---|---|
| HC900 | Process Control System | Controller | 12.0″ x 6.0″ x 3.5″ (305 x 152 x 89 mm) | 1.80 kg |
| ControlEdge PLC | Edge Computing PLC | Programmable Controller | 11.5″ x 8.0″ x 4.0″ (292 x 203 x 102 mm) | 1.50 kg |
| S88 | Safety System Controller | Safety Controller | 10.0″ x 6.0″ x 4.5″ (254 x 152 x 114 mm) | 1.25 kg |
| ExD | Explosion-Prosur Digital Input Module | Input Module | 7.25″ x 4.50″ x 3.00″ (184 x 114 x 76 mm) | 0.80 kg |
| W5000 | Industrial Control and Monitoring System | Control System | 8.5″ x 4.5″ x 3.2″ (216 x 114 x 81 mm) | 0.95 kg |
| VISTA | Advanced Control System | Controller | 7.25″ x 4.15″ x 3.50″ (184 x 105 x 89 mm) | 0.90 kg |
