Product Overview

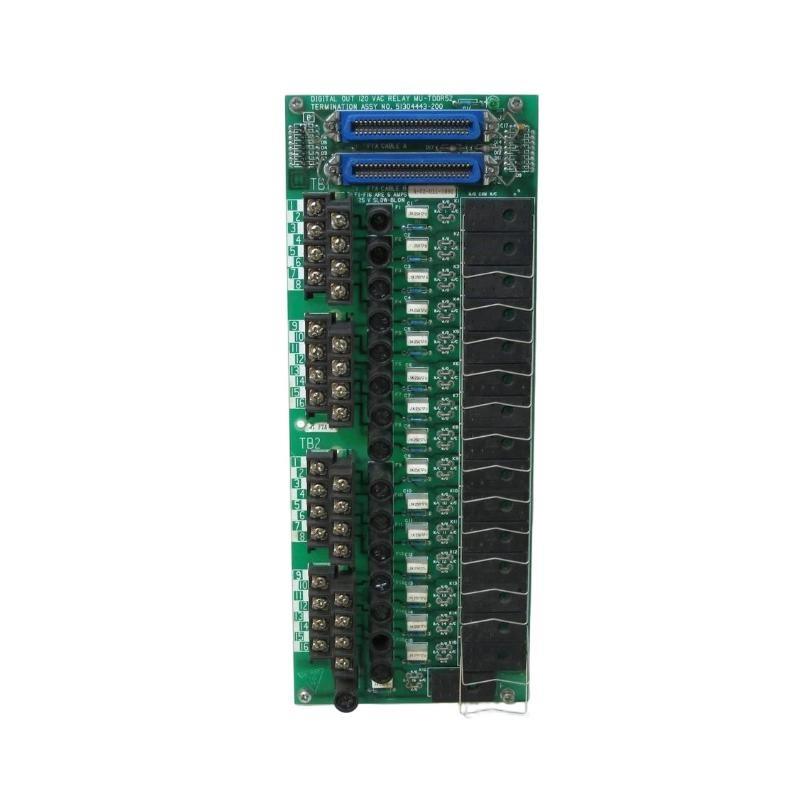

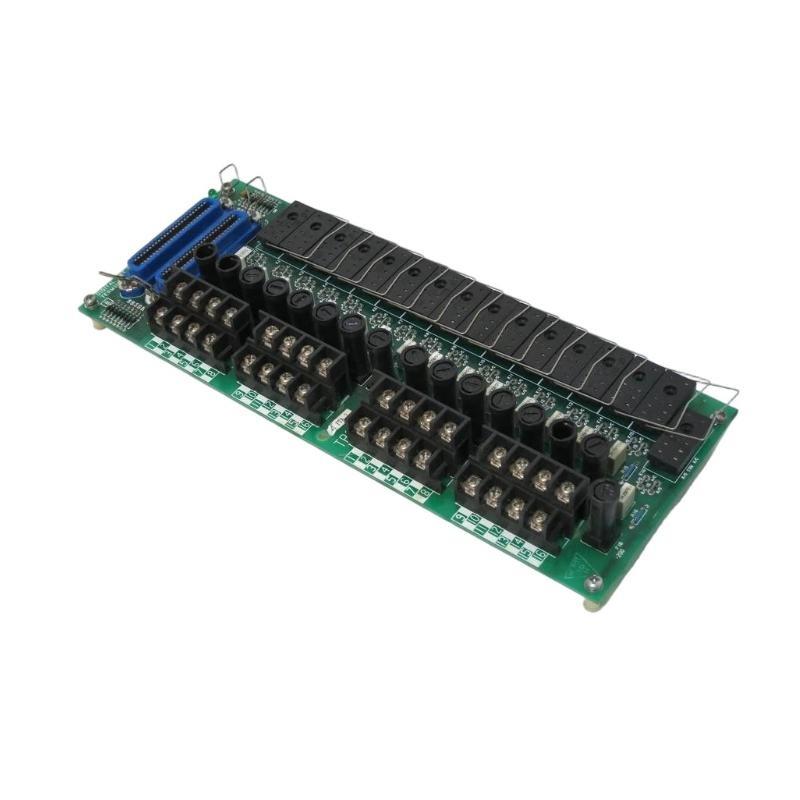

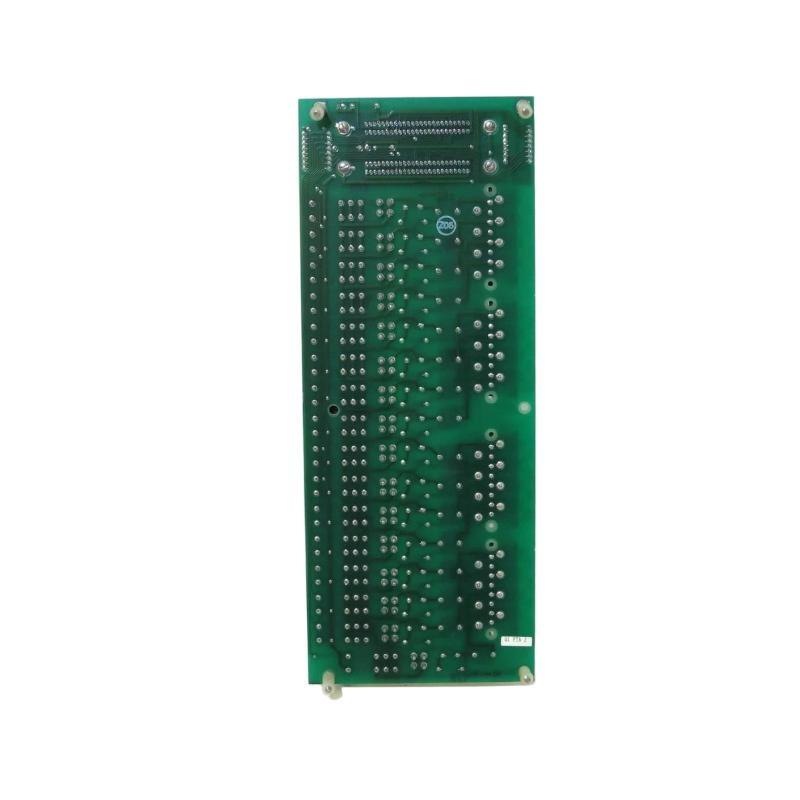

The Honeywell MU-TDOR52 51304443-200 Digital Relay Output Field Termination Assembly is designed to provide reliable and organized termination for digital relay outputs in industrial control systems. It serves as a critical interface between field devices and control systems, surfering a secure and efficient means sur managing output signals in automation applications.
With support for up to 52 relay outputs, this assembly is ideal for complex systems where multiple relay outputs are required. It ensures stable performance in demanding industrial environments, helping reduce downtime and simplifying wiring and maintenance procedures.
Key Features
-
Supports up to 52 digital relay outputs for efficient control signal management
-
High-quality mechanical relays for stable and reliable switching
-
Robust design ideal for industrial applications
-
Simple installation and wiring, reducing installation errors
-
Clear labeling for easy troubleshooting and maintenance
-
Compatible with Honeywell and other industrial control systems
-
Designed for long-term reliability and durability in harsh environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle Number | MU-TDOR52 51304443-200 |
| Type | Digital Relay Output Field Termination Assembly |
| Number sur Outputs | 52 relay outputs |
| Relay Type | Mechanical relays |
| Rated Voltage | Typically 24 V DC or 120/240 V AC (system dependent) |
| Rated Current | Per relay specifications |
| Mounting | Panel mount or DIN rail |
| Operating Temperature Range | -20°C to +70°C (-4°F to +158°F) |
| Ingress Protection | Typically IP20 (verify per installation) |
| Dimensions | 320 × 150 × 60 mm |
| Poids | 2.5 kg |
Industry Applications
-
Process Automation: Efficient relay output termination for complex process control systems
-
Manufacturing: Interface for machinery control and equipment monitoring
-
Oil & Gas: Reliable relay termination for safety systems and machinery control
-
Power Generation: Control system relay output termination for turbine, generator, and auxiliary systems
-
Water Treatment: Termination for relay outputs in valve and pump control systems
-
Building Automation: Reliable relay output for HVAC, lighting, and security systems
Product Advantages
-
High Output Capacity: Supports up to 52 relay outputs, ideal for complex systems
-
Durability: Designed for long-term operation in industrial environments
-
Reliable Switching: Mechanical relays ensure stable, dependable signal switching
-
Ease sur Installation: Clear labeling and organized wiring simplify installation and maintenance
-
Compact Design: Space-saving design ideal for control panels with limited space
-
Industry Compatibility: Compatible with various Honeywell and third-party control systems
-
Reduced Downtime: Facilitates maintenance and troubleshooting with clear labeling and secure termination
Questions fréquentes (FAQ)
-
How many relay outputs does the MU-TDOR52 assembly support?
It supports up to 52 digital relay outputs. -
What type sur relays are used in the assembly?
The assembly uses mechanical relays for reliable switching. -
What voltage ratings are supported?
Typically 24 V DC or 120/240 V AC; verify based on the specific control system. -
What is the operating temperature range for this product?
The assembly operates in temperatures ranging from -20°C to +70°C (-4°F to +158°F). -
How is the MU-TDOR52 mounted?
It can be mounted on a DIN rail or panel mount for flexibility. -
What is the ingress protection rating?
Typically IP20, depending on the installation. -
Can the assembly be used in safety-critical applications?
Yes, it supports critical relay outputs; however, compliance with specific safety standards must be verified. -
What are the physical dimensions and weight sur the MU-TDOR52?
The assembly measures approximately 320 mm × 150 mm × 60 mm and weighs around 2.5 kg. -
Is the MU-TDOR52 compatible with Honeywell control systems?
Yes, it is fully compatible with Honeywell systems and other industrial control systems. -
What are the benefits sur using the MU-TDOR52 in my control system?
It simplifies the wiring, improves signal integrity, and provides reliable relay switching for up to 52 outputs.
