Product Overview

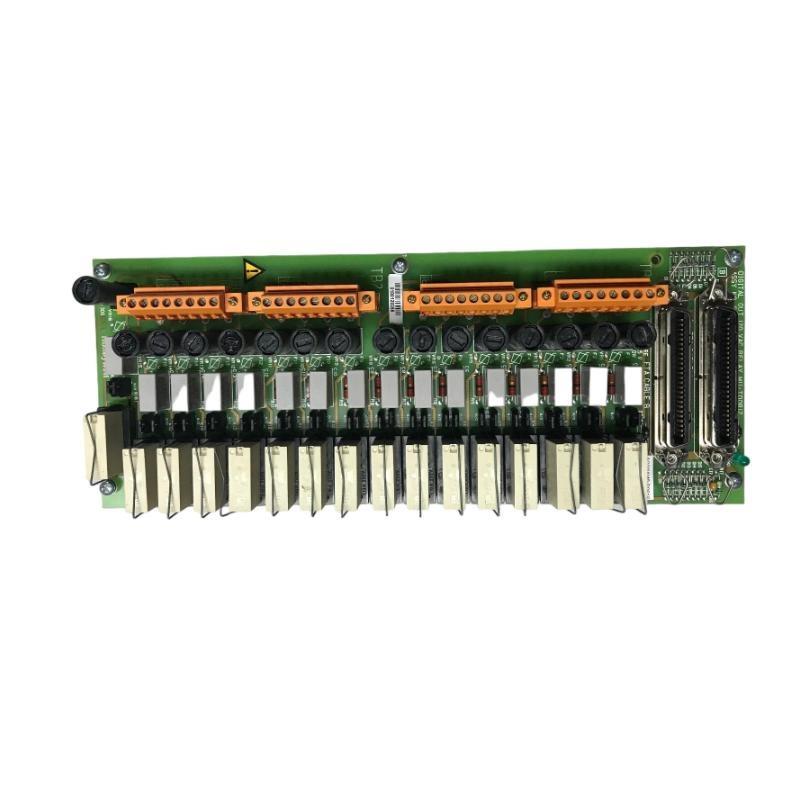

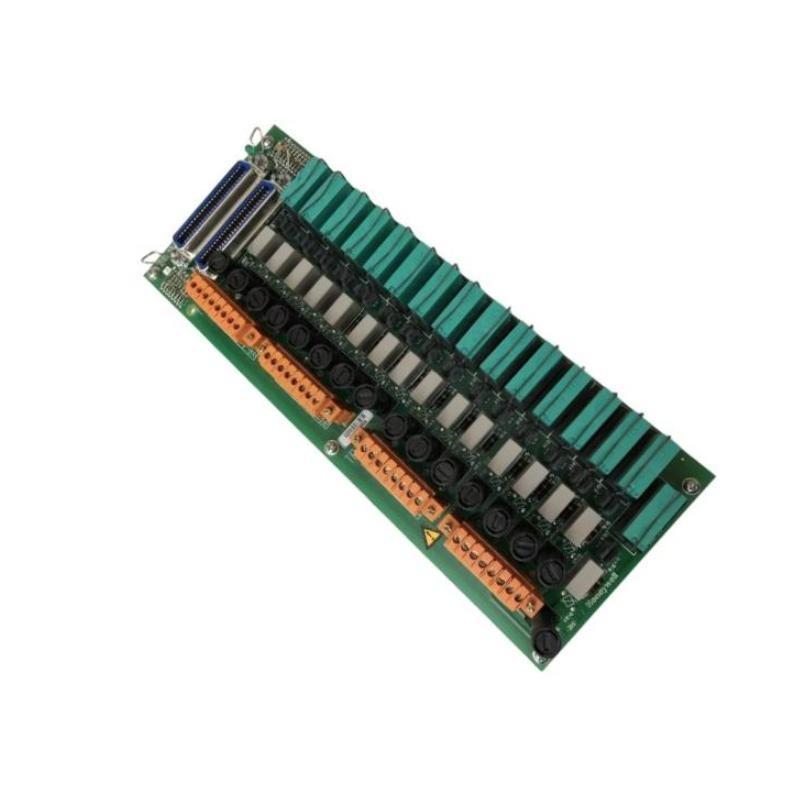

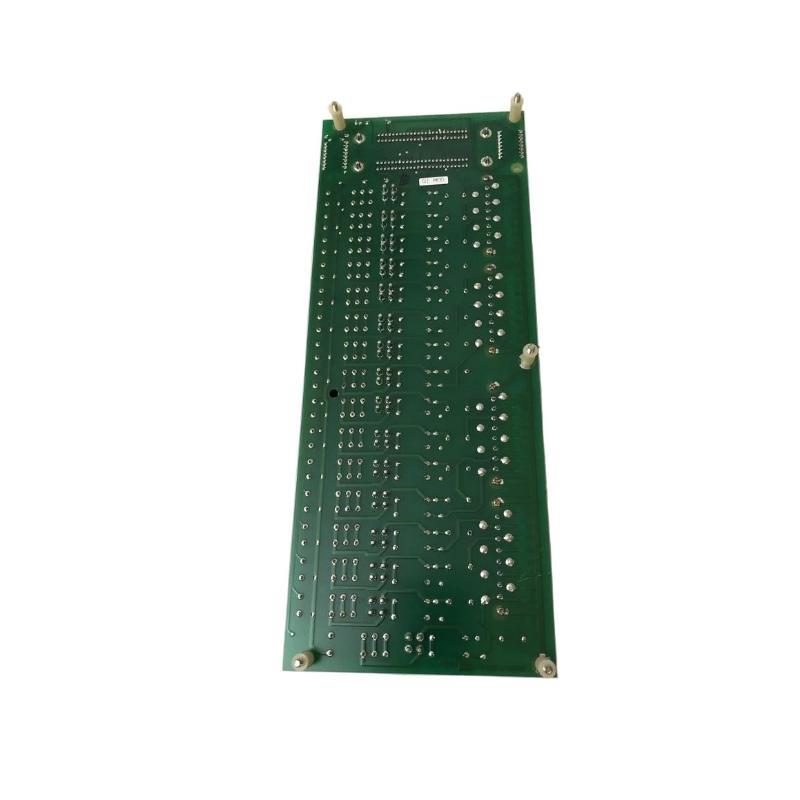

The Honeywell MU-TDOR12 51309148-125 Digital Relay Output Field Termination Assembly is designed to provide dependable interface and termination for digital relay outputs in industrial automation and control systems. It serves as a critical link between field devices and control equipment, facilitating secure and organized wiring termination, signal transmission, and reliable relay operation.
Engineered for durability and ease sur installation, this assembly ensures robust performance in demanding industrial environments, supporting safety, reliability, and maintainability sur control circuits.
Key Features
-
Provides organized termination for up to 12 digital relay outputs
-
High-quality components ensure reliable signal integrity and switching
-
Compact and rugged design suited for industrial environments
-
Facilitates easy wiring and maintenance with clear labeling
-
Compatible with Honeywell and other industrial control systems
-
Supports fast and secure field wiring termination
-
Designed to meet industry safety and reliability standards
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle Number | MU-TDOR12 51309148-125 |
| Type | Digital Relay Output Field Termination Assembly |
| Number sur Outputs | 12 relay outputs |
| Relay Type | Mechanical relays |
| Rated Voltage | Typically 24 V DC or 120/240 V AC (verify per system) |
| Rated Current | Depends on relay specifications |
| Mounting | Panel mount or DIN rail |
| Operating Temperature Range | -20°C to +70°C (-4°F to +158°F) |
| Ingress Protection | Typically IP20 (verify per installation) |
| Dimensions | 200 × 120 × 50 mm |
| Poids | 1.5 kg |
Industry Applications
-
Process Automation: Reliable relay output termination for process control
-
Manufacturing: Control system interface for machinery and equipment
-
Oil & Gas: Digital relay output management in safety and control systems
-
Power Generation: Relay output termination for turbine and generator controls
-
Water Treatment: Control relay management for valves and pumps
-
Building Automation: Relay output for HVAC and security systems
Product Advantages
-
Organized and secure termination for multiple relay outputs
-
Durable mechanical relays for reliable switching operations
-
Simplifies wiring, reduces installation errors
-
Compact design suitable for limited panel space
-
High-quality construction ensures long service life
-
Compatible with various industrial control systems
-
Facilitates troubleshooting and maintenance with clear labeling
Questions fréquentes (FAQ)
-
How many relay outputs does the MU-TDOR12 assembly support?
It supports up to 12 digital relay outputs. -
What type sur relays are used in this assembly?
Mechanical relays are used for reliable switching. -
What voltage ratings are supported?
Typically 24 V DC or 120/240 V AC; please verify based on specific system requirements. -
What is the operating temperature range?
From -20°C to +70°C (-4°F to +158°F). -
How is the assembly mounted?
It can be panel mounted or DIN rail mounted. -
What is the ingress protection rating?
Generally IP20, depending on installation conditions. -
Is this assembly compatible with Honeywell controllers?
Yes, it is designed for compatibility with Honeywell and other industrial controllers. -
Does it simplify field wiring?
Yes, it provides clear labeling and organized wiring points for ease sur installation and maintenance. -
Can this assembly be used in safety-related applications?
It supports relay outputs that can be integrated into safety systems, but compliance with safety standards must be verified. -
What are the dimensions and weight sur the assembly?
Approximately 200 mm × 120 mm × 50 mm and weighs about 1.5 kg.
