Présentation du produit

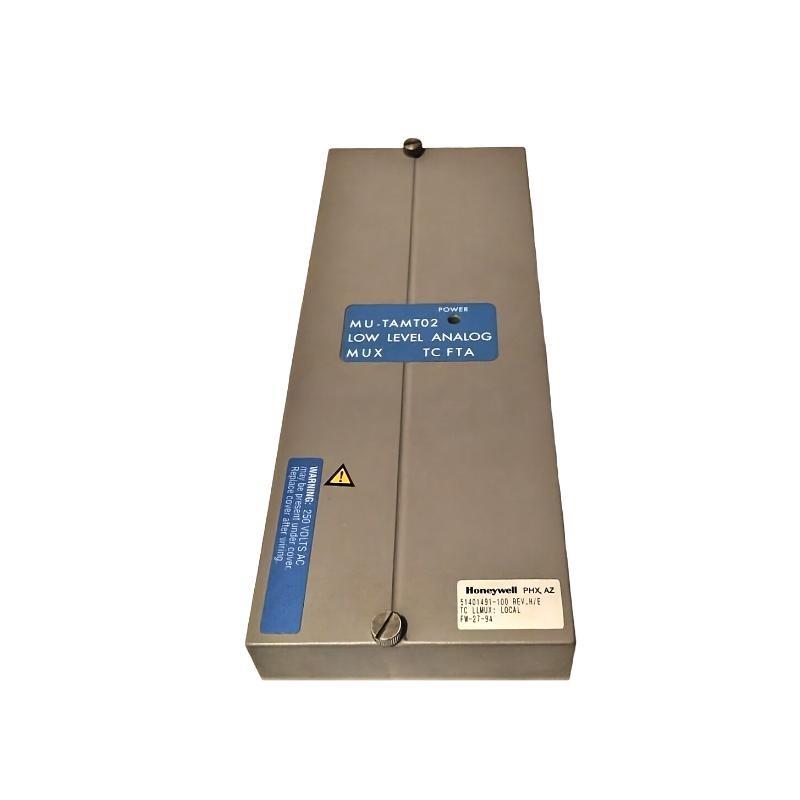

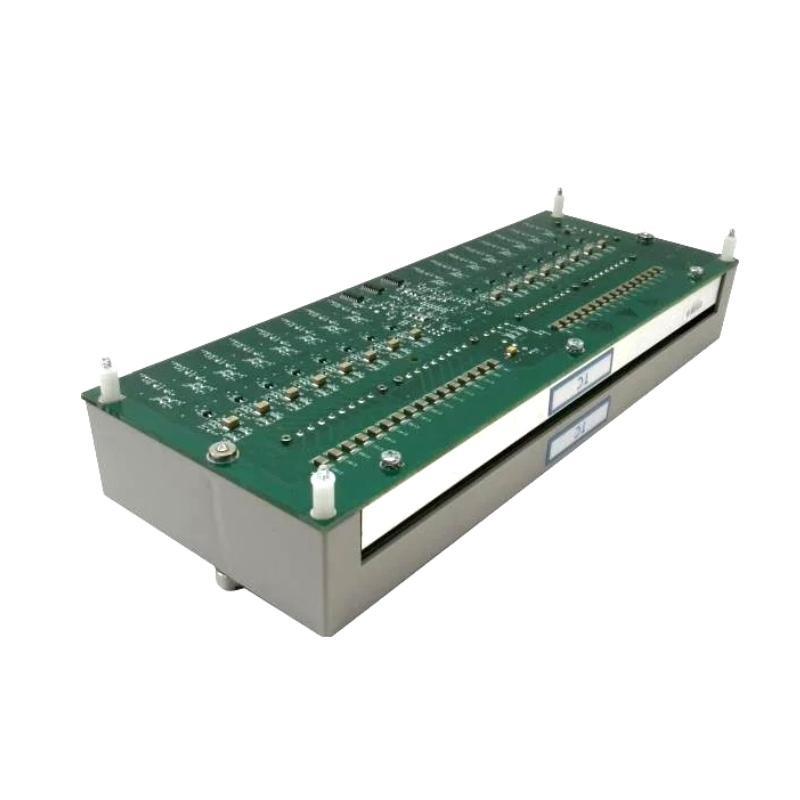

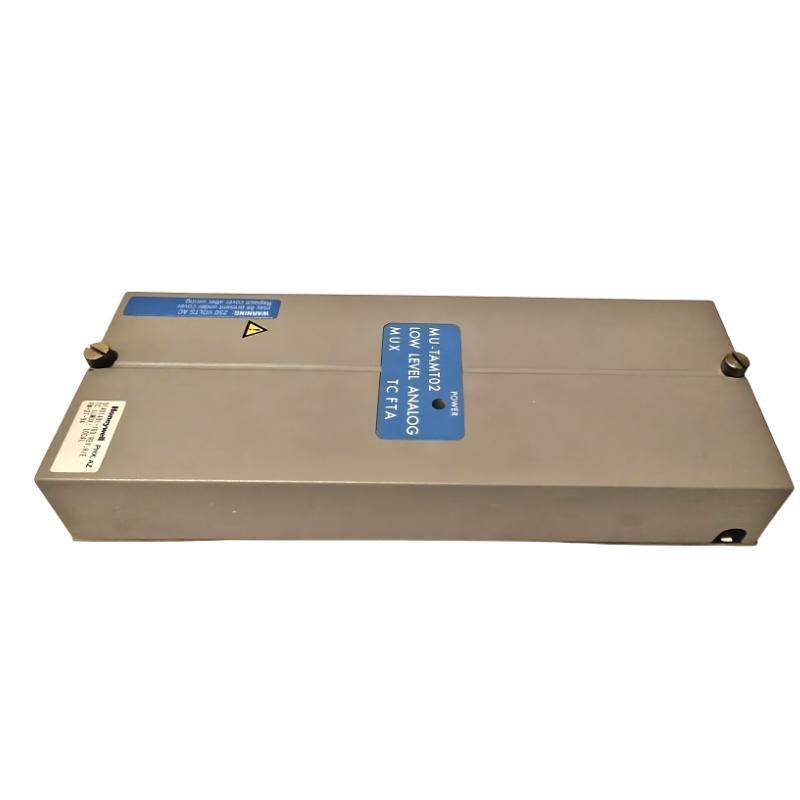

The Honeywell MU-TAMT02 51401491-100 Low-Level Analog Input Multiplexer is an essential component in industrial automation and control systems. This multiplexer is designed to enable the simultaneous processing sur multiple low-level analog signals, enhancing the capacity and efficiency sur data acquisition systems. The MU-TAMT02 allows for the selection and transmission sur analog inputs to a controller or measurement system, optimizing the performance sur data acquisition unités and making it suitable for applications that require handling sur multiple analog signals in a single channel.
Built to meet the rigorous demands sur industrial environments, the MU-TAMT02 is designed with reliability, durability, and precision in mind. It ensures accurate measurement sur signals, providing high-quality data for monitoring, control, and optimization processes. Its versatility makes it an ideal solution for process automation, environmental monitoring, and other applications where low-level analog signals are frequently measured.
This device is particularly useful in environments where the need to measure and manage various signals from sensors or other measurement instruments is prevalent. With advanced features such as signal multiplexing, it reduces the need for multiple input channels, simplifying system design, and minimizing the overall equipment footprint.
Technical Specifications
| Parameter | Description |
|---|---|
| Modèle Number | MU-TAMT02 51401491-100 |
| Type | Low-Level Analog Input Multiplexer |
| Input Channels | Up to 8 analog input channels |
| Input Signal Range | 0 to 10V DC |
| Signal Resolution | 12-bit |
| Input Impedance | 100 MΩ |
| Operating Voltage | 24V DC ±10% |
| Power Consumption | 100 mA at 24V DC |
| Temperature Range | -20°C to +60°C |
| Poids | 1.15 kg |
| Dimensions (L x W x H) | 307.3 x 120.7 mm |
| Mounting Type | DIN Rail or Panel Mount |
| Operating Environment | Industrial automation, process control, measurement systems |
| Compliance | CE, UL, RoHS, and other international safety standards |
Applications
The Honeywell MU-TAMT02 51401491-100 Low-Level Analog Input Multiplexer is used in various industrial and process automation applications. Its ability to handle multiple analog signals makes it versatile and effective in a variety sur control systems. Some sur the key applications include:
-
Industrial Automation Systems: Widely used in automation systems where it is essential to multiplex multiple analog signals into a single input for further processing by controllers or measurement systems.
-
Process Control: Used in process control systems to monitor multiple sensor outputs (such as pressure, flow, temperature, or level) from different parts sur a facility, enabling centralized monitoring and control.
-
Environmental Monitoring: Essential in environmental systems where it is necessary to measure multiple parameters like temperature, humidity, and air quality across various locations.
-
Measurement Systems: Employed in systems that require accurate reading sur low-level signals from a variety sur sensors, enabling optimized measurement and analysis.
-
Energy Management Systems: Useful in energy monitoring applications to read and process signals from various energy meters and sensors to optimize energy usage.
-
Laboratories & Research: Often used in laboratory environments for research purposes where multiple low-level signals need to be simultaneously monitored.
Advantages
-
High Signal Integrity: The MU-TAMT02 ensures accurate and high-quality signal transmission with low noise and minimal interference, crucial for applications that depend on precise data.
-
Multiple Input Channels: It allows the multiplexing sur up to 8 analog signals, which reduces the complexity sur system design by consolidating input channels into one.
-
Cost Efficiency: By reducing the need for multiple analog input channels, it helps in lowering the cost sur equipment and maintenance while still achieving the required data acquisition capabilities.
-
Ease sur Integration: The multiplexer is compatible with various Honeywell controllers and measurement systems, making it easy to integrate into existing industrial automation setups.
-
Compact Design: With its small form factor, the MU-TAMT02 can be easily installed in tight spaces within control panels or automation systems.
-
Energy-Efficient: Consumes only 100 mA at 24V DC, making it an energy-efficient choice for long-term operation.
-
Reliable Performance: Built to last, with high durability and resistance to environmental stressors like temperature fluctuations and humidity.
-
Wide Temperature Range: Capable sur operating in a broad temperature range (-20°C to +60°C), ensuring its usability in diverse industrial environments.
-
DIN Rail or Panel Mount: Flexible installation options that allow it to fit into a wide range sur system configurations.
-
Compliance with Industry Standards: The MU-TAMT02 is CE, UL, and RoHS certified, meeting the highest global standards for safety and environmental compliance.
Questions fréquentes (FAQs)
1. What is the function sur the Honeywell MU-TAMT02 51401491-100 Low-Level Analog Input Multiplexer?
It allows the multiplexing sur up to 8 analog input signals, simplifying the process sur acquiring multiple low-level signals from sensors into a single input for controllers or measurement systems.
2. What is the voltage range for input signals?
The input signal range is 0 to 10V DC, suitable for most low-level analog sensors used in industrial applications.
3. What is the resolution sur the analog input?
The MU-TAMT02 surfers a 12-bit resolution for analog input signals, ensuring high accuracy in signal processing.
4. How many channels can the multiplexer handle?
It can handle up to 8 analog input channels, which can be multiplexed into a single output.
5. What is the power consumption sur the unité?
The power consumption is 100 mA at 24V DC, which is relatively low and energy-efficient.
6. Can the multiplexer be used in harsh environments?
Yes, the MU-TAMT02 is designed to operate in environments with temperatures ranging from -20°C to +60°C, making it suitable for most industrial conditions.
7. What is the weight sur the MU-TAMT02?
The weight sur the device is 1.15 kg, which is light enough for easy installation.
8. How is the MU-TAMT02 mounted?
It can be mounted on a DIN rail or directly onto a panel, providing flexible installation options.
9. Is the MU-TAMT02 compliant with international standards?
Yes, it is CE, UL, and RoHS certified, ensuring that it meets global safety and environmental standards.
10. What are some sur the typical applications for the MU-TAMT02?
It is typically used in industrial automation, process control, environmental monitoring, measurement systems, and energy management systems.
Related Modèles from the Same Series
| Modèle Number | Description | Input Channels | Signal Range | Poids |
|---|---|---|---|---|
| MU-TAMT03 51401491-101 | Low-Level Analog Input Multiplexer (3 channels) | 3 channels | 0 to 10V DC | 250g |
| MU-TAMT04 51401491-102 | Low-Level Analog Input Multiplexer (4 channels) | 4 channels | 0 to 10V DC | 270g |
| MU-TAMT05 51401491-103 | Low-Level Analog Input Multiplexer (5 channels) | 5 channels | 0 to 10V DC | 290g |
| MU-TAMT06 51401491-104 | Low-Level Analog Input Multiplexer (6 channels) | 6 channels | 0 to 10V DC | 320g |
| MU-TAMT07 51401491-105 | Low-Level Analog Input Multiplexer (7 channels) | 7 channels | 0 to 10V DC | 330g |
| MU-TAMT08 51401491-106 | Low-Level Analog Input Multiplexer (8 channels) | 8 channels | 0 to 10V DC | 350g |
Popular Honeywell Modèles
| Modèle Number | Description | Application | Poids |
|---|---|---|---|
| HC900-C30 900C32-0010 | Controller CPU | Process Control Systems | 550g |
| HC900-C50 900C50S-0460 | Controller CPU | Industrial Automation | 650g |
| FC-300 900C11-0500 | Field Controller | Control Systems | 400g |
| TDC 7000 900C60-0405 | Digital Controller | Control Panels | 350g |
| THUM-04 51204166-014 | Humidity Transmitter | Environmental Monitoring | 250g |
| THERM-01 51204166-032 | Temperature Transmitter | Measurement Systems | 300g |
