Product Overview

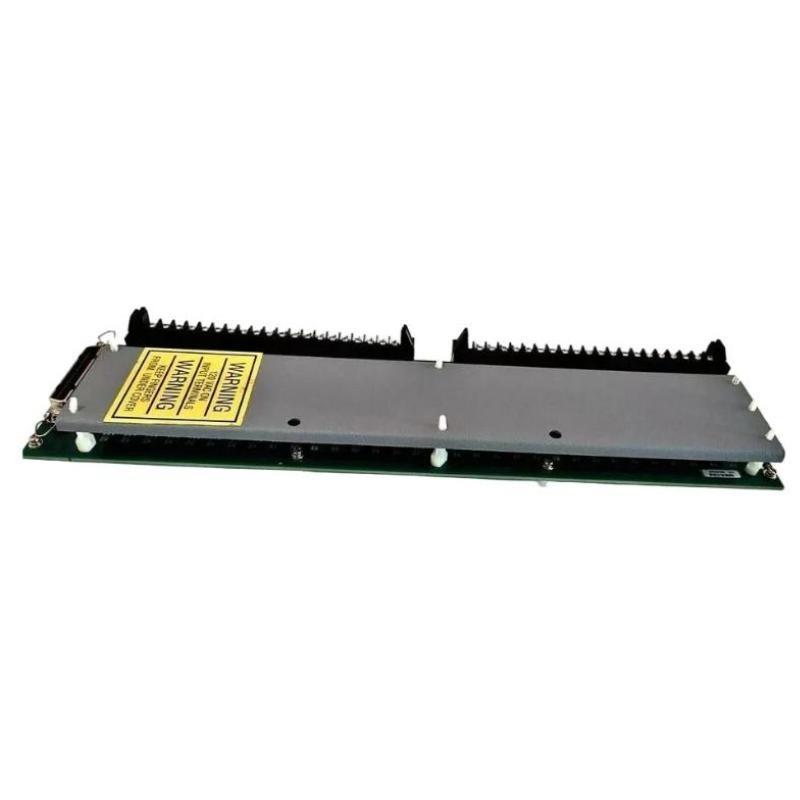

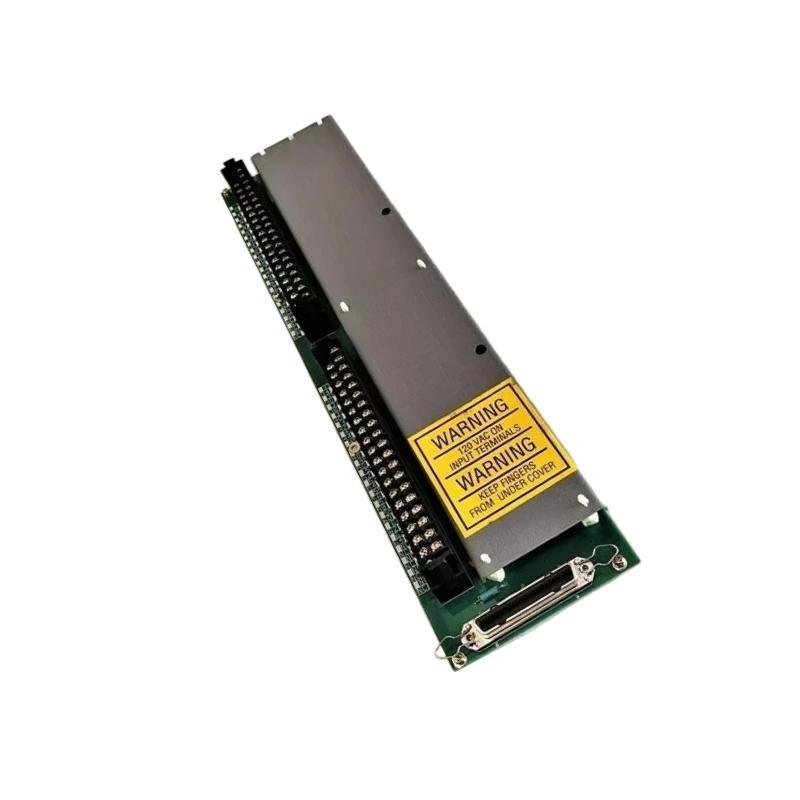

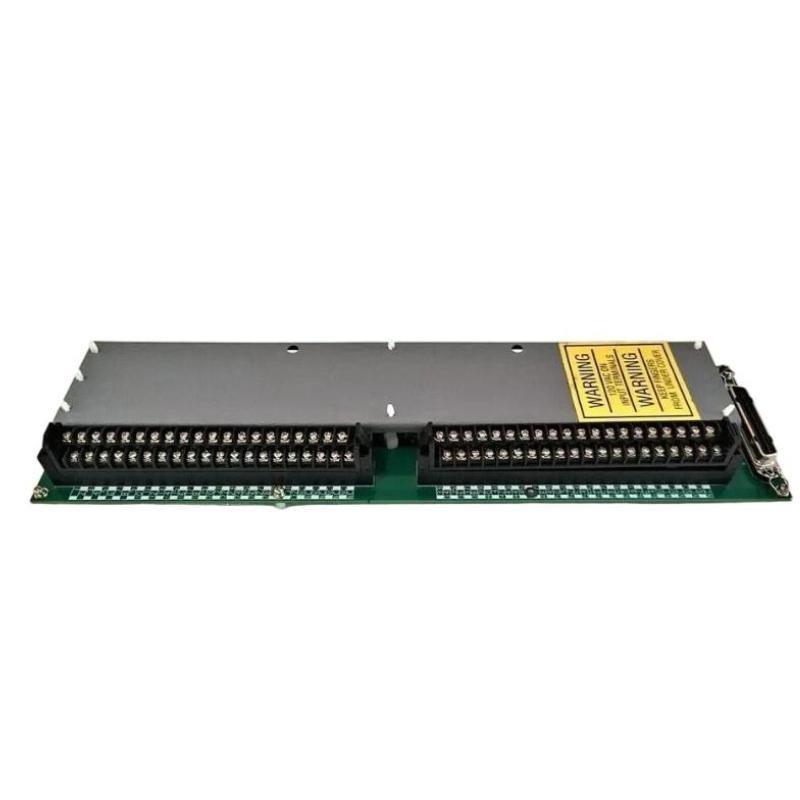

The Honeywell MC-TDIA72 51303930-150 Isolated Digital Input Module is designed for industrial automation systems requiring reliable and electrically isolated digital signal acquisition. It provides isolated input channels for monitoring process signals, ensuring system safety and preventing ground loop interference.
Key Features
-
Provides isolated digital input channels for safe and reliable signal acquisition
-
Compatible with Honeywell Experion PKS and other DCS systems
-
Prevents ground loop interference with full channel isolation
-
High-speed signal processing for real-time monitoring
-
Compact, modular design for easy installation
-
LED indicators for input status monitoring
-
Hot-swappable for maintenance without system shutdown
-
Designed for reliable operation in harsh industrial conditions
Technical Specifications
| Item | Specification |
|---|---|
| Fabricant | Honeywell |
| Référence | 51303930-150 |
| Product Type | Isolated Digital Input Module |
| Input Channels | 8 isolated digital input channels |
| Input Type | TTL/Contact closure or 24 VDC |
| Isolation | Full galvanic isolation between channels and backplane |
| Response Time | < 10 ms |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –20 °C to +70 °C |
| Humidity | 5–95% RH, non-condensing |
| Mounting | Standard DCS rack |
| Dimensions | 252 × 110 × 45 mm |
| Poids | 0.7 kg |
| Applications | Monitoring and acquisition sur digital process signals in industrial automation systems |
Industry Applications
-
Oil and gas process control
-
Petrochemical and chemical plants
-
Power generation and distribution
-
Water and wastewater treatment
-
Manufacturing automation systems
-
Distributed control systems (DCS) digital input monitoring
Questions fréquentes (FAQ)
Q1: What is the primary function sur the MC-TDIA72 module?
It provides electrically isolated digital input channels for safe signal monitoring.
Q2: How many input channels does it have?
It supports 8 isolated digital input channels.
Q3: What types sur input signals are supported?
TTL/contact closure and 24 VDC digital signals.
Q4: Is the module compatible with DCS Honeywell systems?
Yes, it works with Honeywell Experion PKS and other DCS platforms.
Q5: Does it provide isolation between channels?
Yes, full galvanic isolation is provided to prevent ground loops.
Q6: Can it be installed in harsh industrial environments?
Yes, it operates reliably between 0 °C and +60 °C and resists industrial contaminants.
Q7: Are there status indicators on the module?
Yes, LED indicators show the status sur each input channel.
Q8: Can the module be replaced without shutting down the system?
Yes, it supports hot-swappable installation for easy maintenance.
Related Honeywell Modules
| Modèle | Description |
|---|---|
| MC-TDIA70 51303930-140 | 8-Channel Isolated Digital Input Module |
| MC-TDIA71 51303930-145 | 16-Channel Isolated Digital Input Module |
| MC-TDIA73 51303930-155 | High-Speed Digital Input Module |
| MC-TDIA74 51303930-160 | Redundant Digital Input Module |
| MC-TDIA75 51303930-165 | Multi-Channel Isolated Input Module |
| MC-TDIA76 51303930-170 | Digital Input/Output Mixed Module |
Popular Honeywell Modules
| Modèle | Description |
|---|---|
| MC-TDIA72 51303930-150 | Isolated Digital Input Module |
| MC-TDIA70 51303930-140 | 8-Channel Isolated Digital Input Module |
| MC-TDIA71 51303930-145 | 16-Channel Isolated Digital Input Module |
| MC-ADA72 51303931-150 | Isolated Analog Input Module |
| MC-ADA74 51303931-155 | High-Speed Analog Input Module |
| MC-TDO72 51303932-150 | Isolated Digital Output Module |
