Présentation du produit

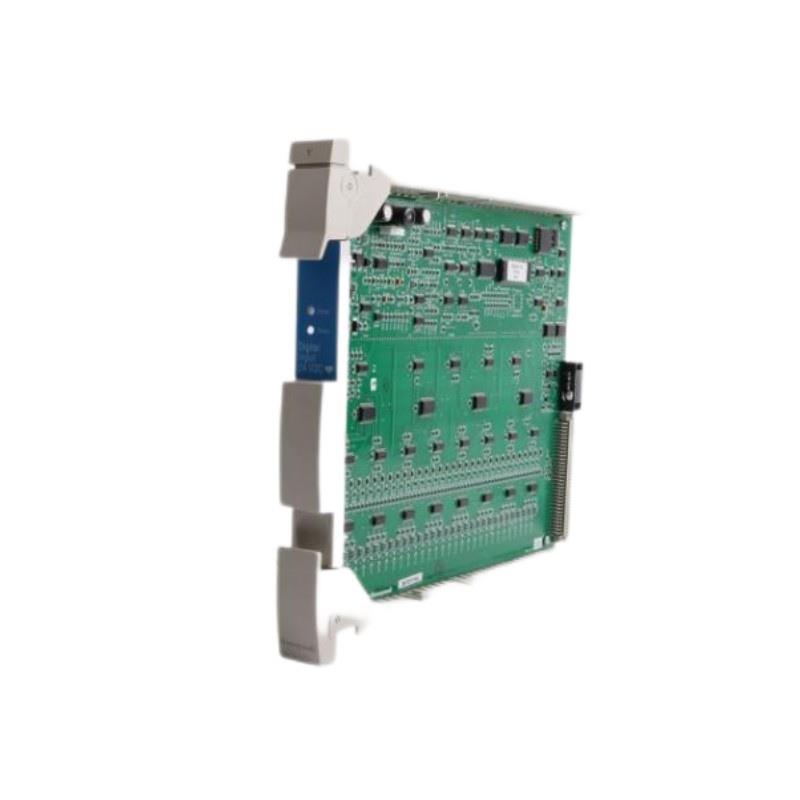

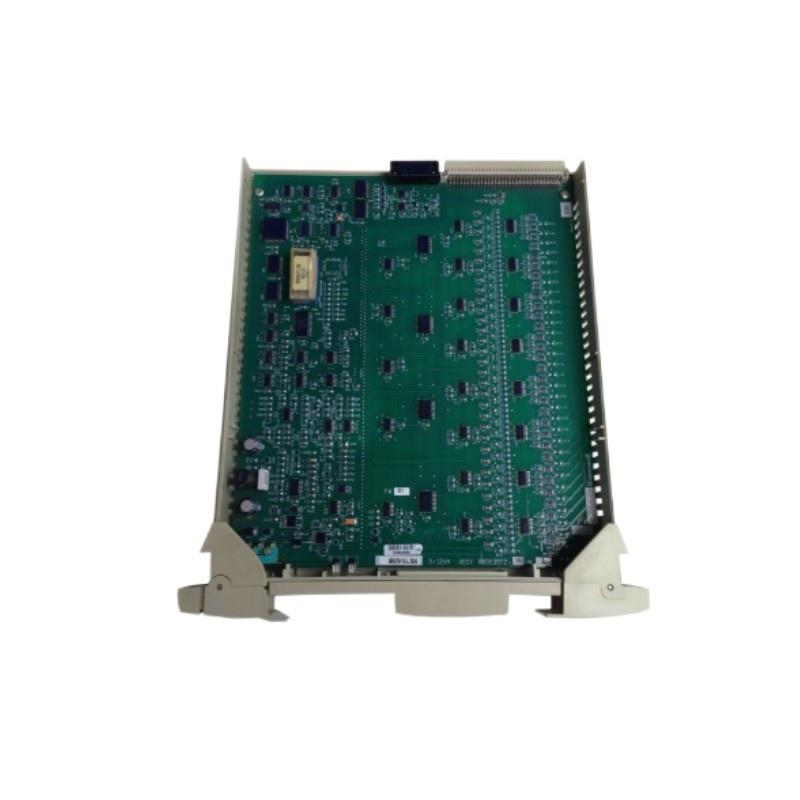

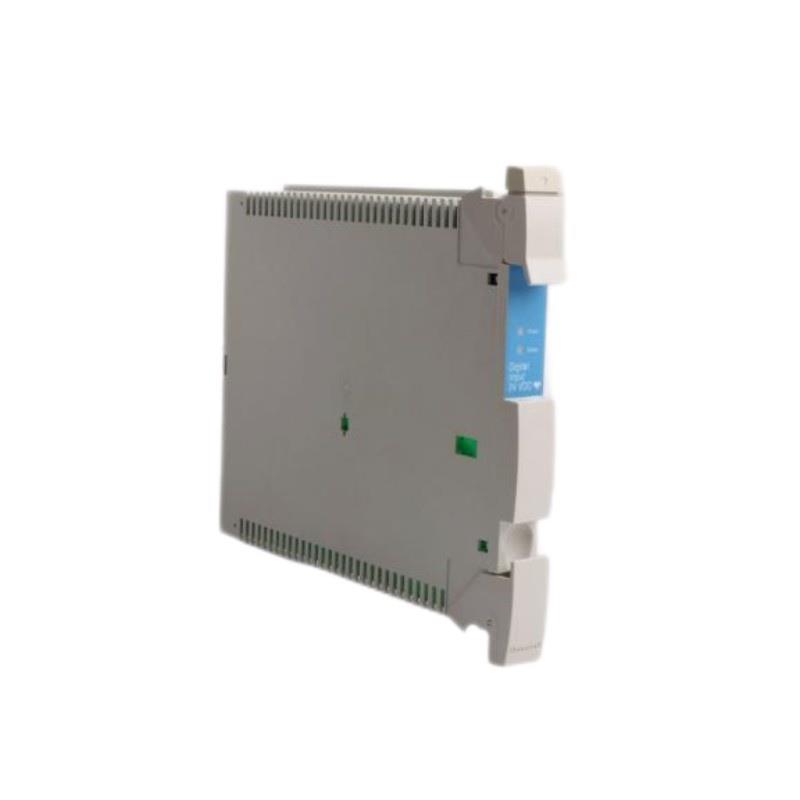

Honeywell MC-PDIY22 (Référence. 80363972-150) is a high-performance digital input module designed for use within Honeywell’s Experion Process Knowledge System (PKS) or other compatible control platforms. As part sur the C300 or other ControlEdge family, this module is engineered to interface with field input devices such as sensors, limit switches, and other discrete signal sources. With robust industrial-grade build quality, it ensures dependable signal acquisition and transmission in mission-critical automation environments.
This module features optical isolation, fast response times, and secure communication capabilities, making it an ideal choice for applications that require high integrity and availability. It is hot-swappable and designed for DIN rail mounting, allowing convenient replacement and reduced system downtime.
Spécifications du produit
| Parameter | Details |
|---|---|
| Modèle | MC-PDIY22 |
| Référence | 80363972-150 |
| Module Type | Digital Input Module |
| Number sur Inputs | 32 discrete input channels |
| Input Voltage Range | 24 VDC (nominal) |
| Input Type | Sink (Positive Logic) |
| Isolation | Optical isolation per channel |
| Diagnostic Functions | Built-in diagnostics, status LEDs |
| Hot Swappable | Yes |
| Mounting Type | DIN Rail |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Power Consumption | < 4W |
| Dimensions | 110 x 120 x 40 mm |
| Poids | 0.25 kg |
| Certifications | CE, UL, RoHS |
Product Applications
The MC-PDIY22 module is suitable for a wide range sur industrial and process control applications, including:
-
Oil & Gas: Monitoring discrete field devices in remote wellheads or pipelines.
-
Power Generation: Input acquisition from limit switches, interlocks, and alarms in power plants.
-
Chemical Processing: Integration with batch reactors and safety interlock systems.
-
Pharmaceutical Manufacturing: Ensures compliance with GxP through reliable signal handling.
-
Water and Wastewater Treatment: Remote sensing sur flow switches and gate positions.
-
Pulp and Paper: Real-time signal acquisition from mill equipment for efficient process control.
Product Advantages
-
High Channel Density: 32 channels in a compact module saves panel space.
-
Hot-Swappable Design: Reduces system downtime during maintenance.
-
Enhanced Diagnostics: Built-in LED indicators for real-time channel status and health monitoring.
-
Industrial Robustness: Operates reliably in harsh environmental conditions.
-
Seamless Integration: Fully compatible with Honeywell Experion PKS and ControlEdge systems.
-
Improved Safety: Optical isolation protects internal circuits and personnel.
-
Ease sur Installation: DIN rail mounting simplifies installation and wiring.
-
Scalability: Ideal for both small-scale expansions and large control systems.
Questions fréquentes (FAQ)
Q1: What is the function sur the MC-PDIY22 module?
A1: It captures digital input signals from field devices and transmits them to the control system for processing.
Q2: How many inputs does the module support?
A2: The MC-PDIY22 supports 32 discrete digital inputs.
Q3: Can this module be replaced without shutting down the system?
A3: Yes, it is hot-swappable and can be safely replaced during operation.
Q4: What voltage does the MC-PDIY22 operate at?
A4: It operates at a nominal 24 VDC input voltage.
Q5: Is it compatible with other Honeywell controllers?
A5: Yes, it’s compatible with the C300 and ControlEdge systems.
Q6: What type sur inputs does it accept—sink or source?
A6: The module is designed for sinking inputs (positive logic).
Q7: Does it support diagnostic functions?
A7: Yes, it features built-in diagnostics and status LEDs for each channel.
Q8: What are the environmental tolerances sur the module?
A8: It operates between -20°C and +60°C and can be stored at -40°C to +85°C.
Q9: How is it mounted in a cabinet?
A9: The MC-PDIY22 is mounted using a standard DIN rail.
Q10: Is this module certified for industrial use?
A10: Yes, it is CE, UL, and RoHS certified for industrial applications.
Recommended Related Modèles (Same Series or Functionally Similar)
| Modèle | Description |
|---|---|
| MC-PDOD22 | Digital Output Module, 32 channels |
| MC-PD2Y22 | Mixed Digital I/O Module |
| MC-TDIY22 | Terminal Board for Digital Inputs |
| MC-TAOY22 | Analog Output Module |
| MC-TDOY22 | Digital Output Terminal Module |
| MC-TDOD22 | High-Speed Digital Output Module |
Popular Honeywell Modules (Same Marque)
| Modèle | Description | Channels | Type |
|---|---|---|---|
| CC-PAIH01 | Analog Input Module | 16 | AI |
| CC-PDIL01 | Digital Input Module | 32 | DI |
| CC-PDOB01 | Digital Output Module | 32 | DO |
| CC-PAOH01 | Analog Output Module | 8 | AO |
| CC-PCNT01 | Pulse Counter Module | 8 | Pulse Input |
| CC-TDIL01 | Digital Input Terminal | 32 | Terminal (DI) |
