Product Overview

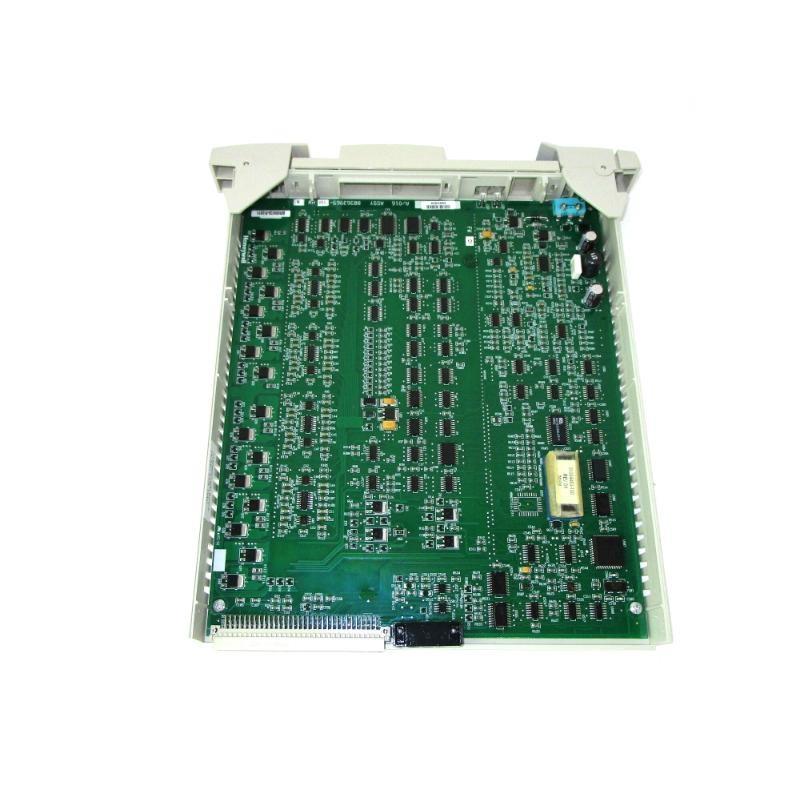

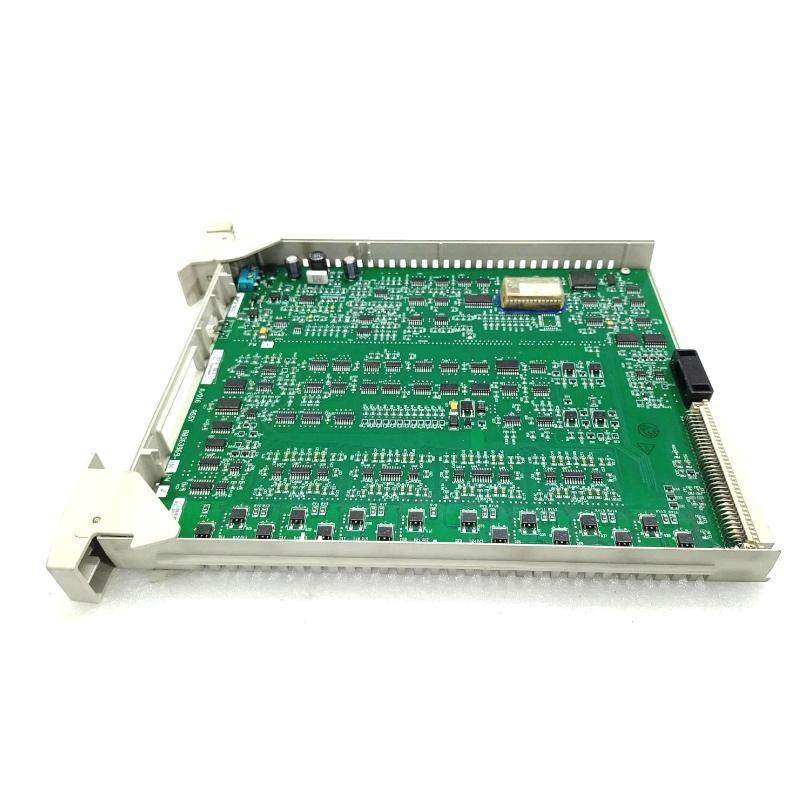

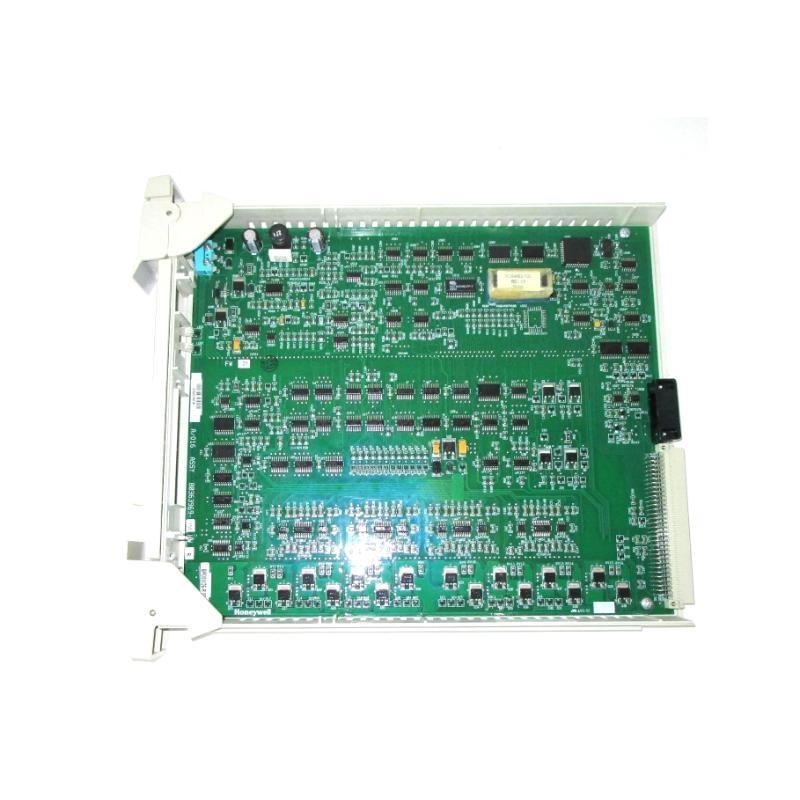

The Honeywell MC-PAOY22 80363969-150 is an industrial-grade analog output module designed to convert digital signals into precise analog outputs for process control systems. It plays a critical role in industrial automation by enabling the accurate control sur valves, actuators, and other field devices that require analog input signals.
Built for durability and high performance, this module integrates seamlessly within Honeywell’s control systems, surfering stable and reliable signal output. Its compact design ensures efficient use sur panel space, while robust construction guarantees consistent operation under demanding industrial conditions.
Technical Specifications
| Parameter | Value |
|---|---|
| Modèle | MC-PAOY22 80363969-150 |
| Module Type | Analog Output Module |
| Output Signal Types | 4-20 mA, 0-20 mA, 0-10 V |
| Number sur Channels | Single channel |
| Accuracy | ±0.2% sur full scale |
| Response Time | ≤ 50 ms |
| Dimensions (L x W x H) | 126 × 28 × 130 mm |
| Poids | 0.21 kg |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 0% to 95% non-condensing |
| Mounting | DIN rail or panel mount |
| Power Supply | 24 VDC |
| Communication Interface | Compatible with Honeywell control systems |
| Protection Features | Overload, short circuit, and open circuit protection |
Applications
The MC-PAOY22 analog output module is widely applied in industrial process control for precise and safe operation sur field devices. Common application areas include:
-
Oil & Gas – Control sur valve positioners and actuators to regulate flow and pressure.
-
Chemical and Petrochemical – Precise modulation sur reactors and batch processes.
-
Power Generation – Output signal control for turbines and auxiliary equipment.
-
Water & Wastewater Treatment – Regulation sur pumps and valve actuators in treatment processes.
-
Pharmaceutical – Ensuring accurate control in manufacturing and processing lines.
-
Food & Beverage – Managing analog control sur processing machinery and instrumentation.
Key Advantages
-
High-Accuracy Output: Delivers precise and stable analog signals essential for accurate process control.
-
Compact Size: Measures just 126 × 28 × 130 mm and weighs 0.21 kg, saving panel space.
-
Durable Design: Built to withstand harsh industrial conditions including temperature extremes and humidity.
-
Fast Response: Provides output updates within 50 milliseconds for responsive control.
-
Multiple Signal Types: Supports common analog output standards (4-20 mA, 0-20 mA, 0-10 V).
-
Protective Features: Equipped with overload, short circuit, and open circuit protection to ensure reliability.
-
Flexible Mounting: Suitable for DIN rail or panel mounting to fit diverse installation needs.
-
Seamless Integration: Fully compatible with Honeywell’s process control systems for straightforward integration.
Questions fréquentes (FAQ)
-
What analog output signals does this module support?
It supports 4-20 mA, 0-20 mA, and 0-10 V output signals. -
How many output channels are available?
The module provides a single analog output channel. -
What is the accuracy sur the analog output?
The accuracy is ±0.2% sur full scale. -
What is the response time sur the module?
Response time is 50 milliseconds or less. -
Can the module be mounted on a DIN rail?
Yes, it supports both DIN rail and panel mounting. -
What are the dimensions sur the module?
Dimensions are 126 mm (L) × 28 mm (W) × 130 mm (H). -
What is the weight sur the module?
The weight is approximately 0.21 kg. -
What is the operating temperature range?
The module operates between -20°C and +70°C. -
Does the module have built-in protection?
Yes, it includes overload, short circuit, and open circuit protection. -
Is it compatible with Honeywell control systems?
Yes, it is designed for compatibility with Honeywell process control architectures.
Recommended Related or Series Modèles
| Modèle | Description |
|---|---|
| MC-PAOY21 | Analog Output Module with dual channels |
| MC-PAOY23 | Analog Output Module for 4-20 mA signal only |
| MC-PAOI10 | Analog Input Module |
| MC-PDIY15 | Digital Input Module |
| MC-PDOY20 | Digital Output Module |
| MC-PDAI30 | Process Data Acquisition Module |
Popular Honeywell Modèles
| Modèle | Function |
|---|---|
| MC-PACI10 | Analog Input Module |
| MC-PDRO10 | Digital Relay Output Module |
| MC-PDIO20 | Digital Input/Output Module |
| MC-PACV15 | Analog Control Valve Module |
| MC-PDRO12 | Safety Relay Output Module |
| MC-PDOI25 | Digital Output Interface |
