Présentation du produit

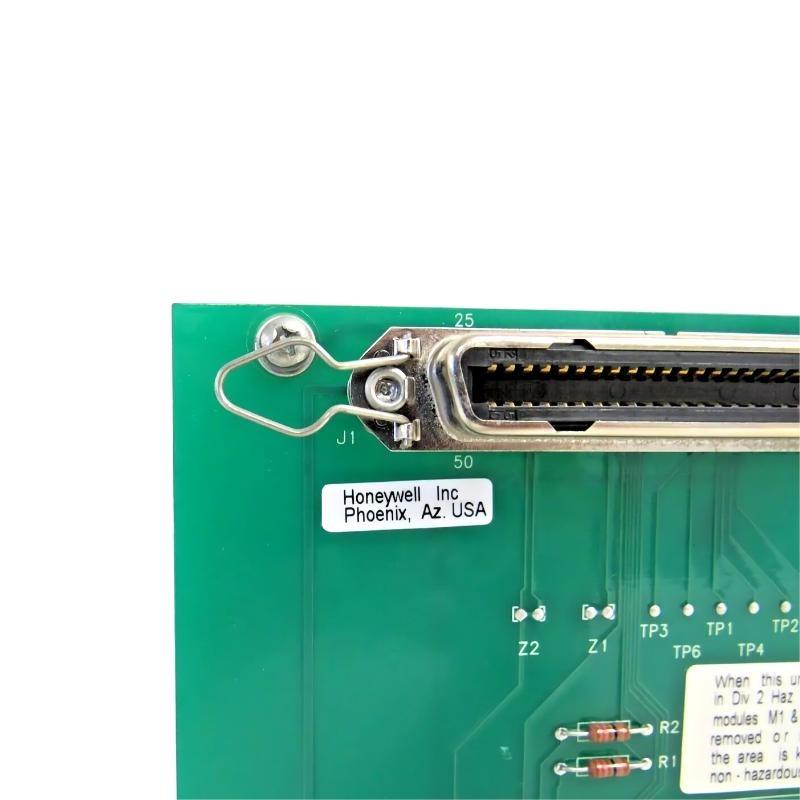

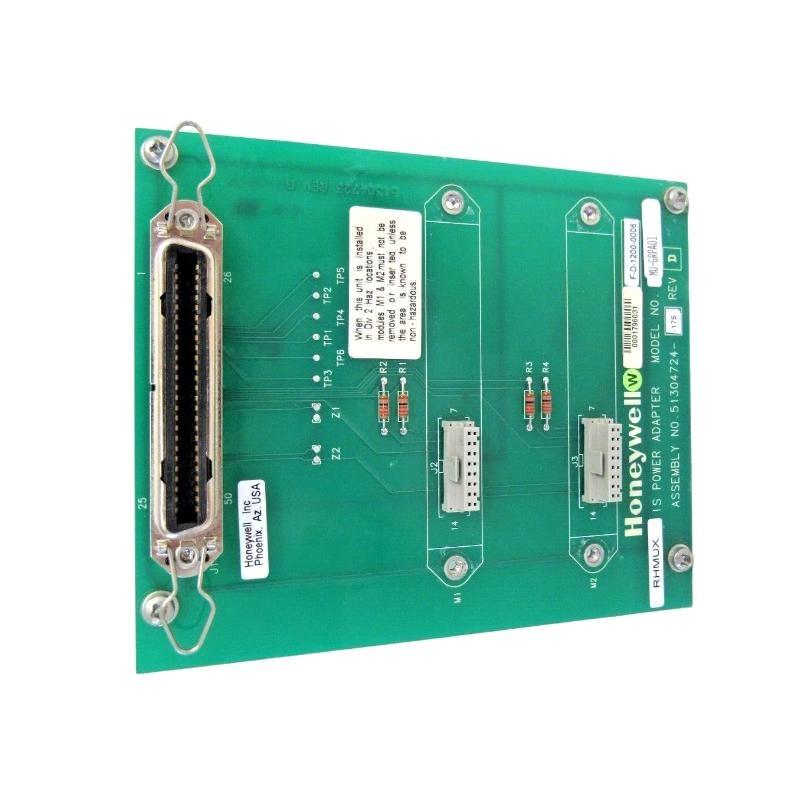

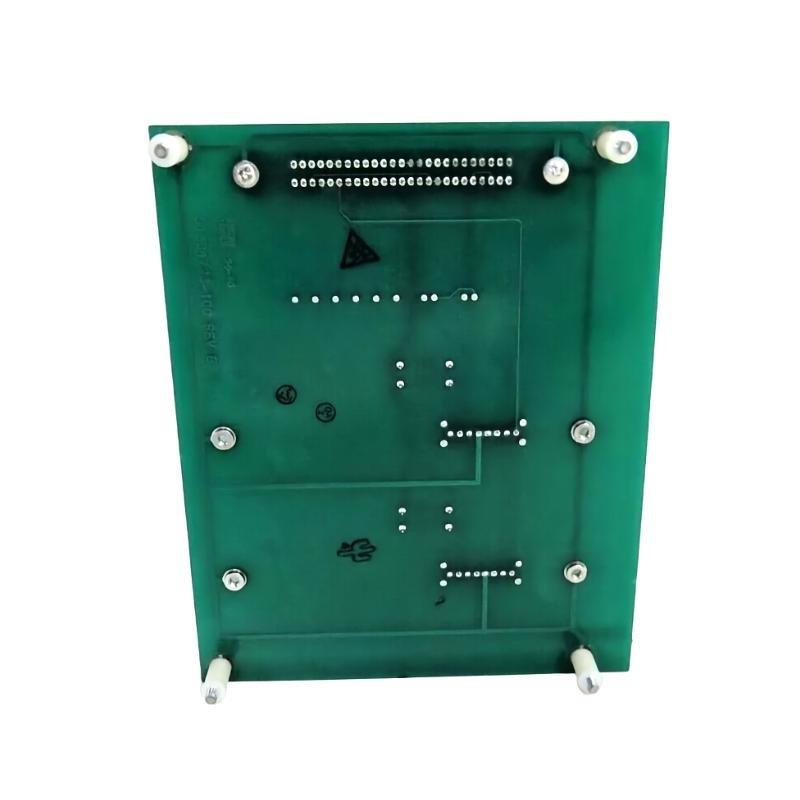

The Honeywell MC-GRPA01 51304724-175 RHMUX GI/IS Power Adapter is a specialized industrial power interface module designed to provide reliable and isolated power distribution for Honeywell Experion and TDC3000 control systems. This adapter serves as a critical link between Remote High-speed Multiplexers (RHMUX) and General/Intrinsic Safety (GI/IS) field instruments, ensuring safe and stable power delivery in demanding industrial environments.
Engineered with advanced galvanic isolation and robust internal circuitry, the MC-GRPA01 minimizes noise, eliminates ground loops, and protects downstream equipment from electrical surges or transient voltage spikes. Its compact and durable design makes it ideal for applications in oil & gas, chemical processing, power generation, and other hazardous-area control systems requiring both precision power regulation and intrinsic safety compliance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle | MC-GRPA01 |
| Référence | 51304724-175 |
| Function | RHMUX GI/IS Power Adapter |
| Input Voltage | 24 VDC (nominal) |
| Input Voltage Range | 18–30 VDC |
| Output Voltage | 24 VDC regulated |
| Maximum Output Current | 2 A continuous |
| Isolation | 1500 V galvanic isolation |
| Surge Protection | Integrated transient suppression |
| Power Consumption | < 10 W |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | 5–95% non-condensing |
| Cooling | Natural convection |
| Dimensions | 120 × 80 × 35 mm |
| Poids | 0.3 kg |
| Mounting | DIN rail or panel mount |
| Compliance | CE, UL, RoHS |
Applications
The MC-GRPA01 RHMUX GI/IS Power Adapter is suitable for a wide range sur industrial automation and safety applications that require secure and isolated power distribution:
-
Distributed Control Systems (DCS): Provides stable power to Honeywell Experion or TDC3000 RHMUX nodes for reliable data acquisition.
-
Intrinsic Safety Systems: Safely powers field devices in hazardous areas, ensuring compliance with IS standards.
-
Process Automation: Supports chemical, petrochemical, and pharmaceutical processes requiring high signal integrity.
-
Oil & Gas Facilities: Delivers robust power for pipeline monitoring and surfshore platform control systems.
-
Power Generation: Feeds critical sensors and actuators in turbine control and auxiliary systems.
-
Water & Wastewater Plants: Maintains reliable operation sur monitoring and pump control networks.
Advantages
-
Robust Isolation: 1500 V galvanic isolation eliminates ground loops and protects sensitive control equipment.
-
Compact Design: Space-saving enclosure allows flexible panel or DIN rail installation.
-
Enhanced Safety: Intrinsic safety compliance ensures suitability for hazardous locations.
-
High Efficiency: Low power consumption and excellent thermal performance reduce operating costs.
-
Stable Output: Precision voltage regulation provides consistent power to critical devices.
-
Surge Protection: Integrated transient suppression safeguards against voltage spikes and surges.
-
Wide Operating Range: Reliable performance in extreme temperatures and high humidity.
-
Low Maintenance: Solid-state construction minimizes failure points and extends service life.
FAQ
-
What is the input voltage range supported by the MC-GRPA01?
It accepts 18–30 VDC, with a nominal input sur 24 VDC. -
Does the adapter provide galvanic isolation?
Yes, it provides 1500 V isolation between input and output circuits. -
Can it be mounted on a DIN rail?
Yes, the unité supports both DIN rail and panel mounting. -
What is the maximum continuous output current?
The adapter can supply up to 2 A continuous current at 24 VDC. -
Is it suitable for use in hazardous environments?
Yes, it meets intrinsic safety requirements for hazardous-area installations. -
What protection features are included?
Integrated surge suppression and overvoltage protection are built in. -
What is the operating temperature range?
The unité operates reliably from –20 °C to +70 °C. -
Is external cooling required?
No, it is convection-cooled and requires no external fans. -
Can this power adapter be used with non-Honeywell RHMUX modules?
While designed for Honeywell systems, it can power compatible third-party IS devices if specifications match. -
What is the typical power consumption?
Less than 10 W under normal operating conditions.
Related Honeywell Modèles (Same Series or Equivalent)
| Modèle | Description | Key Feature |
|---|---|---|
| MC-PAIH03 | Analog Input Module | High-accuracy signal processing |
| MC-PDOY22 | Digital Output Module | Reliable high-speed outputs |
| MC-TAIH14 | Temperature Input Module | Multi-channel temperature measurement |
| MC-TAMR04 | Analog Output Module | Precision analog signal control |
| MC-TLPA02 | Power Supply Module | Redundant 24 VDC supply |
| MC-PDIA15 | Digital Input Module | Robust discrete input handling |
Popular Honeywell Modèles
| Modèle | Description | Application |
|---|---|---|
| C300 Controller | Advanced process controller | Experion DCS integration |
| HC900 Hybrid Controller | Flexible hybrid controller | Process and safety automation |
| ST800 Series Transmitter | High-performance pressure transmitter | Industrial pressure measurement |
| SMX SmartLine Transmitter | Smart pressure/temperature transmitter | Critical process monitoring |
| XLS3000 Fire Panel | Intelligent fire alarm panel | Life safety systems |
| FSC100 Safety Controller | High-integrity safety logic solver | Emergency shutdown applications |
