Présentation du produit

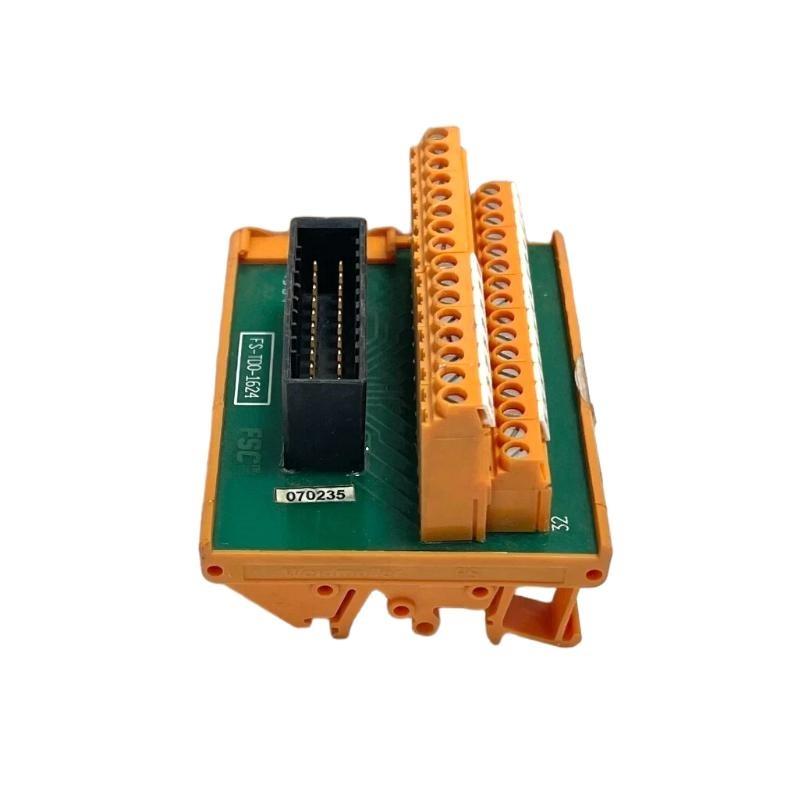

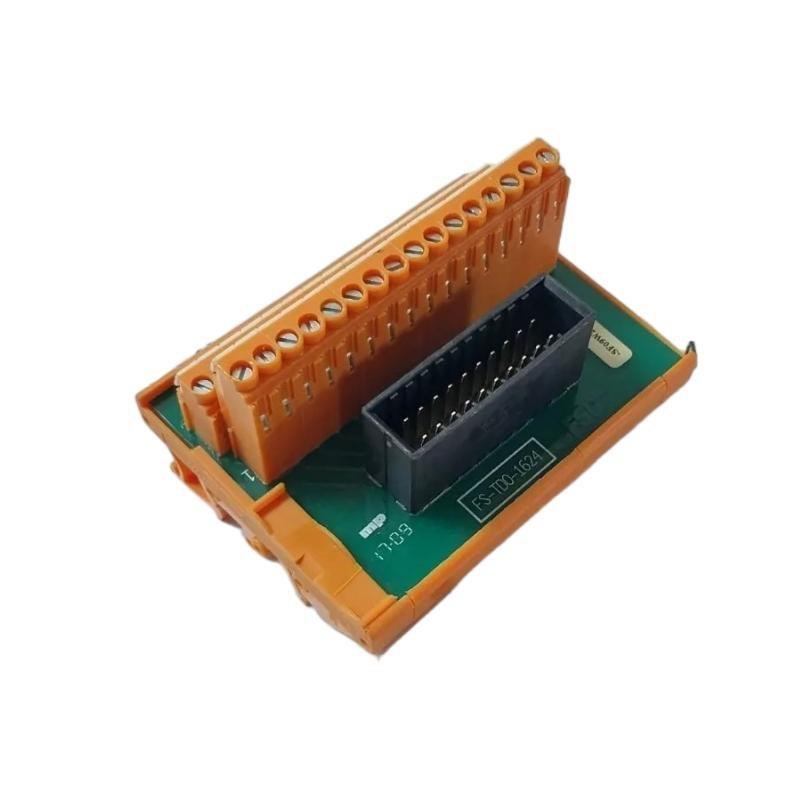

The Honeywell FS-DO-1624 Digital Output Module is a high-performance output module engineered for industrial control and safety systems that demand precise, reliable digital signal actuation. Designed to operate within Honeywell’s FS Series control platform, this module provides 16 optically-isolated digital output channels capable sur switching a wide range sur DC loads. Its robust design ensures consistent operation in harsh industrial environments, surfering protection against electrical noise, transient surges, and electromagnetic interference.
With a 24 VDC nominal operating voltage and built-in diagnostics, the FS-DO-1624 enables fast and deterministic output control for applications such as emergency shutdown (ESD), fire & gas systems, and critical process automation. The module’s compact form factor allows easy installation in standard system racks, while advanced fault detection capabilities help maintain system integrity and reduce downtime.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle | FS-DO-1624 |
| Function | 16-channel Digital Output Module |
| Output Channels | 16 isolated digital outputs |
| Operating Voltage | 18–32 VDC (nominal 24 VDC) |
| Output Type | Solid-state, sourcing type |
| Output Current | Up to 0.5 A per channel (continuous) |
| Isolation | 1500 Vrms channel-to-bus and channel-to-channel |
| Response Time | <1 ms typical |
| Diagnostic Features | Channel fault detection, line monitoring, short-circuit protection |
| Power Consumption | 4 W typical |
| Operating Temperature | –20 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 5%–95% RH, non-condensing |
| Dimensions | 100 x 60 x 40 mm |
| Poids | 0.25 kg |
| Mounting | Standard FS Series rack |
| Compliance | CE, UL, CSA, RoHS |
Applications
The FS-DO-1624 is ideal for a wide variety sur industrial and commercial control scenarios:
-
Emergency Shutdown (ESD) Systems: Provides reliable actuation sur shutdown valves and critical safety mechanisms.
-
Fire & Gas Detection Systems: Interfaces with alarms, sirens, and suppression equipment to ensure rapid response.
-
Process Automation: Controls pumps, motors, and solenoid valves in chemical, oil & gas, and pharmaceutical plants.
-
Power Generation: Supports turbine control, auxiliary equipment operation, and protective relay systems.
-
Water & Wastewater Management: Enables precise operation sur pumps and gates in municipal and industrial facilities.
-
HVAC and Building Automation: Drives fans, dampers, and emergency ventilation controls.
Advantages
-
High Channel Density: 16 outputs in a single module reduce panel space and cost.
-
Fast Switching: Sub-millisecond response ensures timely actuation in critical processes.
-
Advanced Diagnostics: Real-time fault detection helps identify open circuits or shorts before they escalate.
-
Robust Isolation: 1500 Vrms isolation protects sensitive control electronics from voltage transients.
-
Low Power Consumption: Optimized for energy efficiency without sacrificing performance.
-
Hot-Swappable Design: Allows replacement without system shutdown, minimizing downtime.
-
Seamless Integration: Fully compatible with Honeywell FS Series controllers and engineering tools.
-
Industrial Durability: Designed to operate reliably in high-temperature, high-humidity, and electrically noisy environments.
FAQ
-
What is the maximum continuous output current per channel?
Each channel can deliver up to 0.5 A continuously. -
How is channel isolation implemented?
Each output is optically and galvanically isolated at 1500 Vrms to prevent cross-channel interference. -
Can the module detect a short-circuit condition on an output?
Yes, it provides built-in short-circuit detection and reports faults to the control system. -
What is the typical switching response time?
Less than 1 ms for rapid actuation. -
Does the FS-DO-1624 support hot-swapping?
Yes, it can be replaced while the system remains powered, with no disruption to other modules. -
What type sur loads can be driven by the outputs?
The solid-state outputs can drive DC solenoids, relays, lamps, and other resistive or inductive loads. -
Is there internal surge protection?
Yes, integrated suppression protects against voltage spikes and transients. -
How is module addressing configured?
Addressing is handled automatically through the FS Series controller backplane—no manual switch settings required. -
What communication protocol is used to interface with the controller?
It communicates over the FS Series high-speed system bus for deterministic updates. -
What is the recommended installation environment?
An industrial control cabinet with ambient temperature –20 °C to +60 °C and humidity up to 95% non-condensing.
Related Honeywell FS Series or Equivalent Modèles
| Modèle | Description | Key Feature |
|---|---|---|
| FS-DI-1624 | 16-channel Digital Input Module | High-speed input monitoring |
| FS-AI-0816 | 8-channel Analog Input Module | High accuracy for process variables |
| FS-AO-0808 | 8-channel Analog Output Module | Precise analog signal generation |
| FS-PS-2410 | Power Supply Module | Redundant 24 VDC power |
| FS-CPU-2010 | Central Processing Unité | Core controller for FS Series |
| FS-COM-1200 | Communication Interface Module | High-speed network interface |
Popular Honeywell Modèles
| Modèle | Description | Application |
|---|---|---|
| C300 Controller | Process controller | Experion DCS systems |
| HC900 Hybrid Controller | Flexible control | Process and safety |
| SMX SmartLine Transmitter | Pressure/temperature transmitter | Industrial measurement |
| ST700 Series | Pressure transmitter | Critical process monitoring |
| XLS140 Intelligent Panel | Fire alarm control panel | Life safety systems |
| FSC100 | Safety controller | Emergency shutdown |
